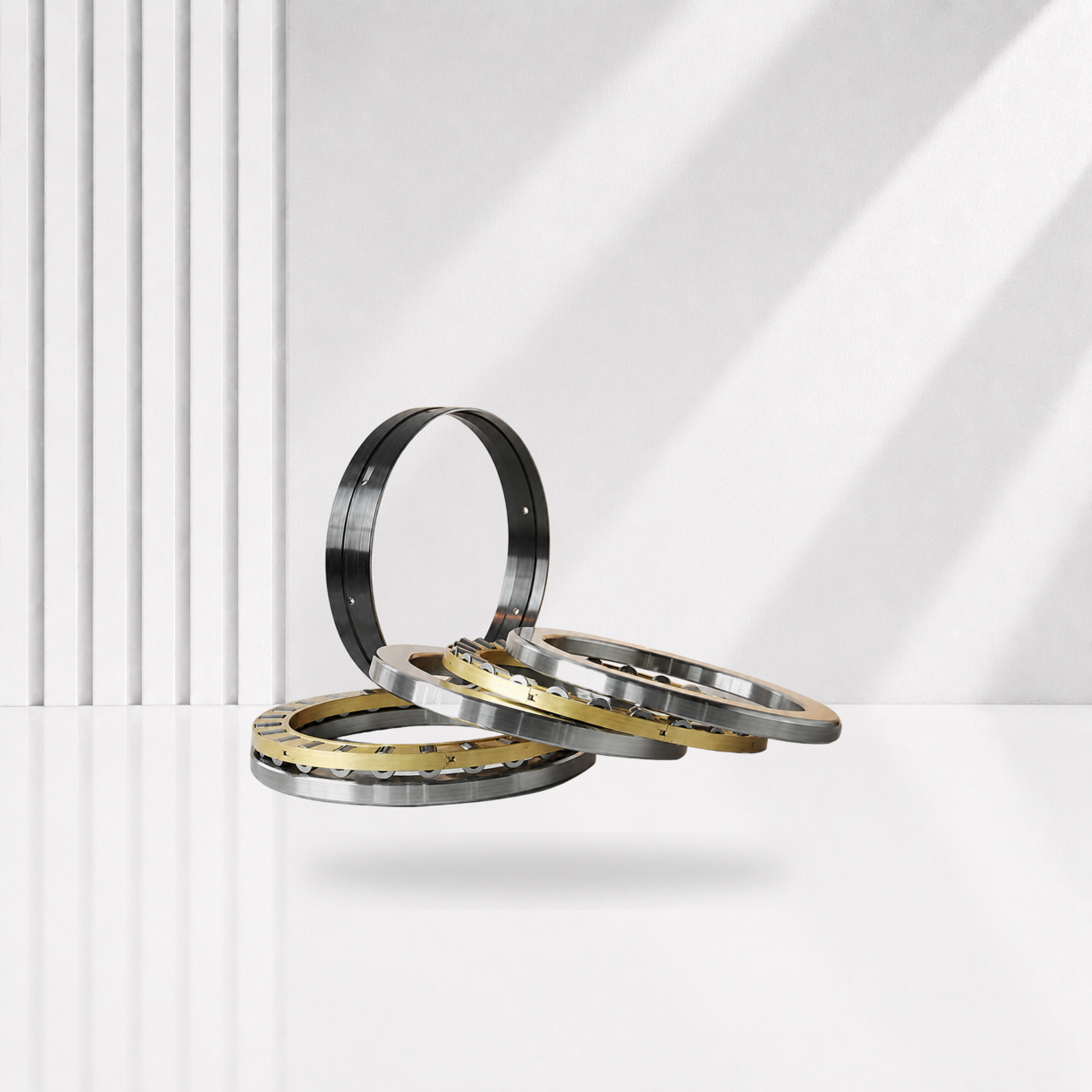

Tapered Roller Thrust Bearings

Tapered roller thrust bearings are designed for high axial loads, shock loads and rigid axial support at low to moderate speeds. They are used in rolling mills, extruders, cranes and other heavy-duty thrust positions.

Availability:

Quantity:



Inquire Add to Basket

Model:
TRTB0001, TRTB0002, TRTB0003, TRTB0004, TRTB0005, TRTB0006, TRTB0007, TRTB0008, TRTB0009, TRTB0010, TRTB0011, TRTB0012, TRTB0013, TRTB0014, TRTB0015, TRTB0016, TRTB0017, TRTB0018, TRTB0019, TRTB0020,

Product Overview

Tapered roller thrust bearings are designed for high axial loads, shock loads and rigid axial support at low to moderate speeds. They are used in rolling mills, extruders, cranes and other heavy-duty thrust positions.

Available models and complete dimensional data are listed in the following parameter table tab.

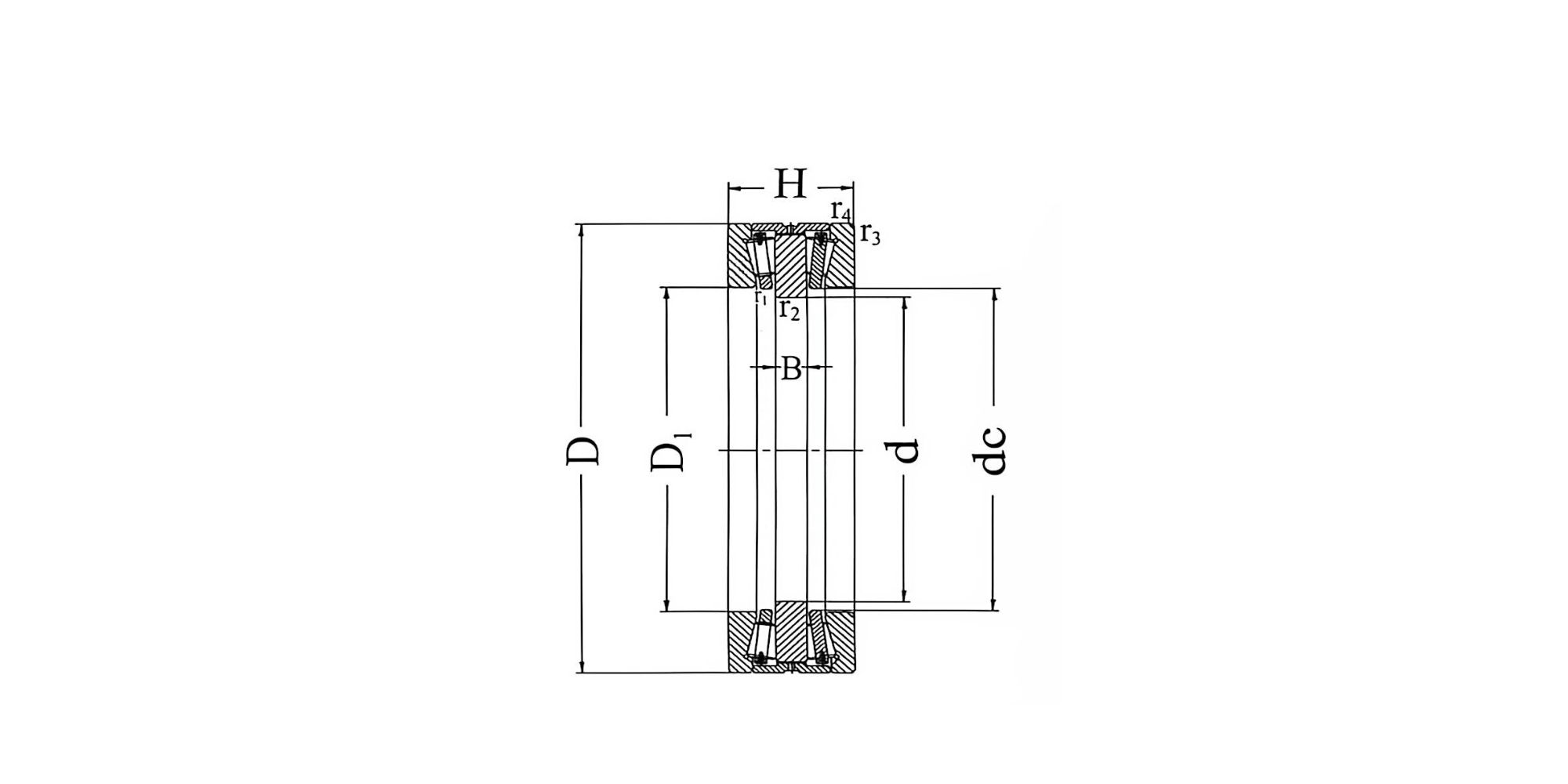

Tapered Roller Thrust Bearings

Models & Dimensions

Bearing Designation	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – H	Boundary Dimensions (mm) – D1	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – d1	Boundary Dimensions (mm) – r1,2 min	Boundary Dimensions (mm) – r3,4 min	Basic Load Ratings (kN) – Ca	Basic Load Ratings (kN) – Coa	Bearing Designation – SKF	Bearing Designation – FAG	kg
TRTB0001	160	300	110	190	34	187	1	1.5	825	3000	–	515805	3.52
TRTB0002	170	240	84	184	20	182	0.6	2	380	1430	350980C	528974	12.5
TRTB0003	180	280	90	196	20	192	1	2	720	3250	353162	528294	22.2
TRTB0004	200	300	96	236	22	229	0.6	2	570	2240	–	563400	23.4
TRTB0005	220	300	96	236	22	231	0.6	2	570	2240	351019C	528876	20.5
TRTB0006	230	400	180	260	42	254	1	3	1500	5800	–	530852	114
TRTB0007	240	320	96	256	22	251	0.6	2	610	2600	354182C	529086	21.5
TRTB0008	240	380	105	270	27	267	2	2	980	5200	–	545678	42.2
TRTB0009	250	360	96	285	24	274	1.1	2.1	680	3100	–	547482	30.1
TRTB0010	250	380	100	275	22	265	0.6	2	980	5200	353005	502010	43.5
TRTB0011	260	360	92	285	20	276	1	2	680	3100	350981C	509352	28.2
TRTB0012	270	450	180	310	45	302	2	5	2000	8500	351164C	–	120
TRTB0013	270	450	180	316	44	302	2	5	2000	7500	–	527907	115
TRTB0014	300	420	100	330	23	326	1.5	2.5	890	4500	–	524740	45.3
TRTB0015	305.070	530	200	345	56	330	1.5	5	2380	10600	BFDB353194	544025	200
TRTB0016	310	490	130	350	29	340	3	3	1300	5000	–	524902	84.2
TRTB0017	320	440	108	355	26	348	1.1	3	990	4900	353102A	528562	48.5
TRTB0018	320	470	130	350	30	340	1.1	3	1300	6550	350982C	509654	80.3
TRTB0019	320	500	218	350	60	340	2	5	2100	8360	–	540295	175
TRTB0020	320	600	240	380	50	360	2	4	3900	17600	–	522837	324
TRTB0021	350	490	130	390	30	382	1.1	3	1320	6700	351100C	530739	73.5
TRTB0022	350	540	135	400	30	386	1.1	4	1800	10400	353006	522008	115
TRTB0023	360	530	145	396	34	382	1.5	4	1500	7800	–	573320	110
TRTB0024	360	560	200	396	48	385	1.5	4	2900	12900	–	524194	180
TRTB0025	380	560	130	430	32	416	1.5	2.5	1800	10800	351175C	513125	108
TRTB0026	380	560	145	430	47	411	1.5	3	1800	10800	–	567356	130
TRTB0027	380	650	215	450	65	446	2	4	3750	19300	BFDB353204	545936	275
TRTB0028	400	650	200	450	50	439	1.5	5	2700	13700	353106	540162	250
TRTB0029	410	560	160	440	40	429	2	5	2780	10200	–	524134	111
TRTB0030	420	620	170	465	35	458	1.5	3	2420	12200	351121C	–	185
TRTB0031	420	620	170	470	35	458	1.5	3	2280	12000	–	509392	185
TRTB0032	420	620	185	465	50	458	1.5	3	2420	12200	BFDB353200/HA3	–	200
TRTB0033	420	620	185	470	50	458	1.5	3	2280	12000	–	545991	202
TRTB0034	440	645	167	490	50	483	3	4	2240	12700	353152	534038	190
TRTB0035	440	660	155	505	35	485	3	5	2450	12300	–	523720	178
TRTB0036	450	645	155	490	38	483	1.5	4	1980	10800	350916D	–	170
TRTB0037	450	645	155	500	38	483	1.5	4	2240	12200	–	513401	157
TRTB0038	470	720	200	535	50	519	2	4	3410	19300	353151	509391	285
TRTB0039	470	720	200	535	60	519	2	4	3410	19300	BFDB353238/HA3	549701	305
TRTB0040	480	710	218	575	57	564	2	4	2700	14000	–	547584	280
TRTB0041	530	710	218	575	57	564	2	3	2700	14000	351475C	511746	245
TRTB0042	550	760	230	610	50	589	2	5	2920	13200	350976C	515196	310
TRTB0043	600	880	290	680	70	674	5	6	4730	21200	BFDB350824B/HA1	–	550
TRTB0044	600	910	290	680	70	670	5	6	4730	21200	350901C	–	655
TRTB0045	670	900	230	725	50	709	2	5	3580	19000	351761A	521823	425
TRTB0046	900	1180	220	990	48	960	2	6	4500	22000	–	522834	580
