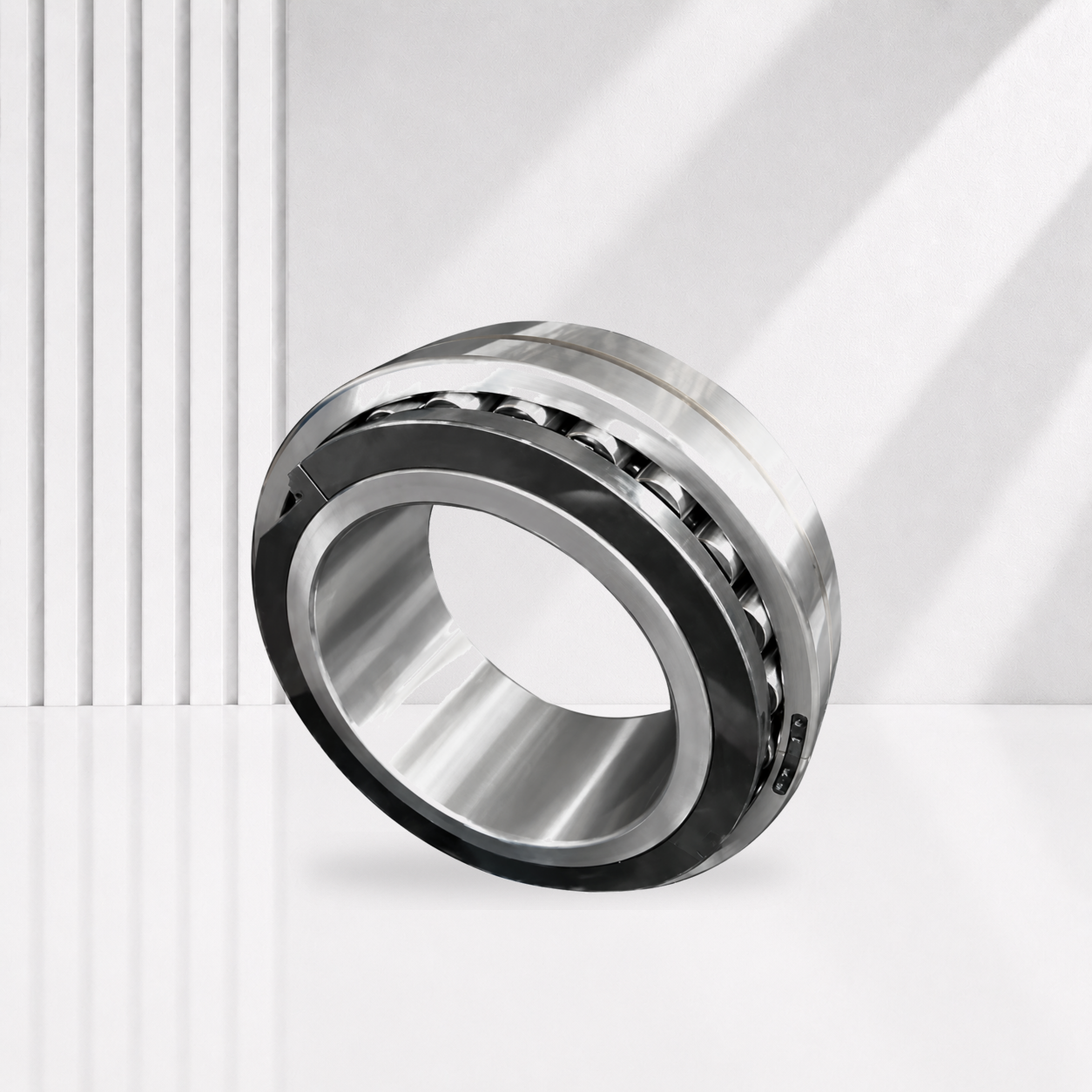

Split Spherical Roller Bearings

Split spherical roller bearings can be mounted around an existing shaft and accommodate misalignment without dismantling adjacent equipment. They are used to reduce maintenance time in conveyors, fans, drive shafts and large process machinery.

Availability:

Quantity:



Inquire Add to Basket

Model:
SSRB0001, SSRB0004, SSRB0005, SSRB0009, SSRB0012, SSRB0014, SSRB0018, SSRB0022, SSRB0025, SSRB0032

Product Overview

Split spherical roller bearings can be mounted around an existing shaft and accommodate misalignment without dismantling adjacent equipment. They are used to reduce maintenance time in conveyors, fans, drive shafts and large process machinery.

Available models and complete dimensional data are listed in the following parameter table tab.

Models & Dimensions

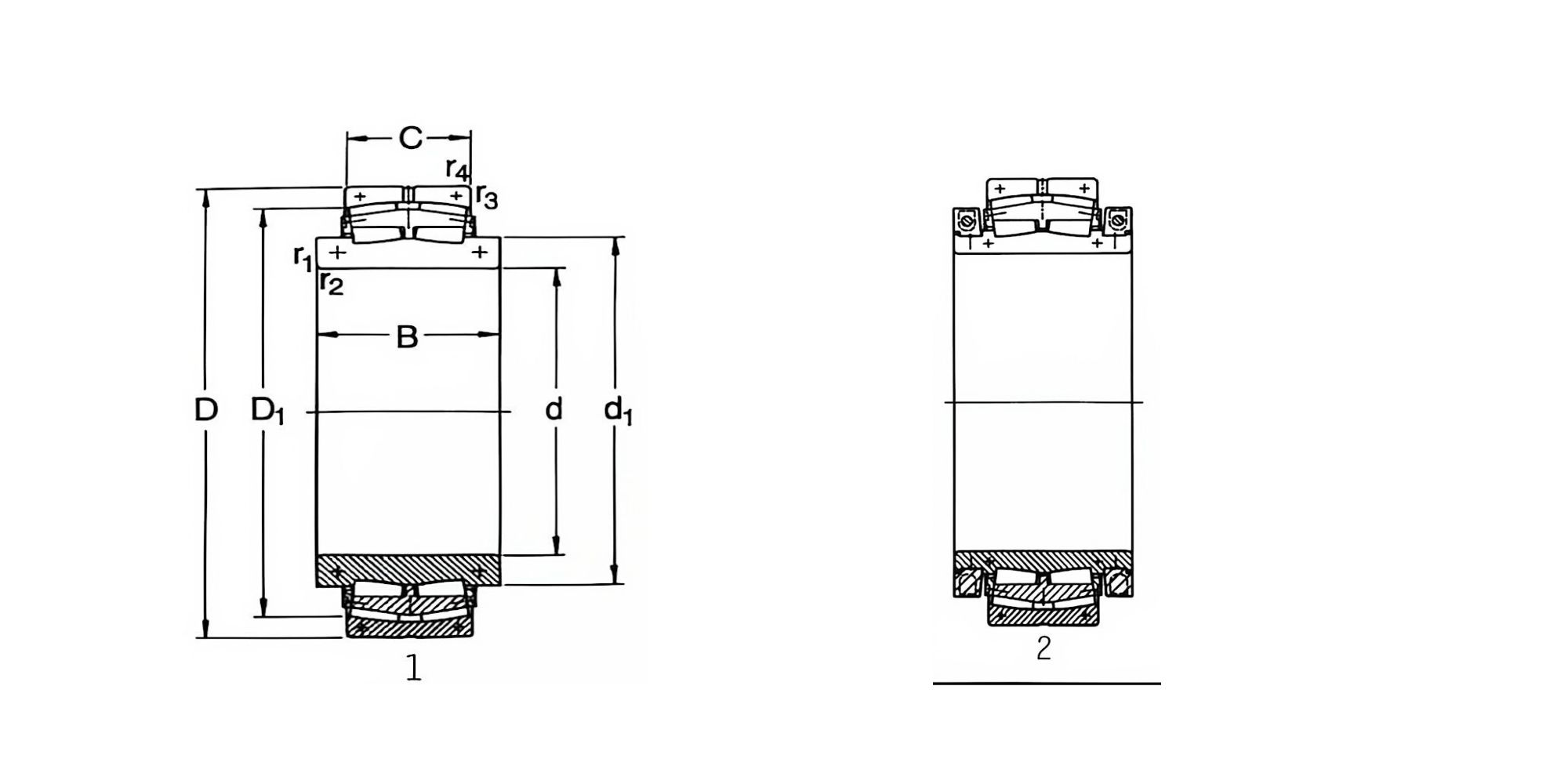

Bearing Designation	SKF	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – C	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Design	Other Dimensions (mm) – d1	Other Dimensions (mm) – D1	Other Dimensions (mm) – r1,2min	Other Dimensions (mm) – r3,4min	Calculation Factors – e	Calculation Factors – Y1	Calculation Factors – Y2	Calculation Factors – Y0	kg
SSRB0001	BS2B321598	120	200	142	80	552	900	1	166	169	11×45°	2	0.37	1.8	2.7	1.8	17.2
SSRB0002	BS2B321606	140	230	102	53	368	600	1	180	190	2	2	0.22	3	4.6	2.8	14.5
SSRB0003	BS2B321578	148	225	142	75	535	950	1	180	197	2.1	2.1	0.3	2.3	3.4	2.2	14.5
SSRB0004	BS2B321610	180	300	125	74	713	1200	1	220	248	2.1	2.1	0.24	2.8	4.2	2.8	30.3
SSRB0005	BS2B247534	280	500	260	176	2710	4650	2	419	439	5	5	0.35	1.9	2.9	1.9	175
SSRB0006	BS2B247597	300	500	240	160	2710	4900	2	418	434	5	5	0.3	2.3	3.4	2.2	150
SSRB0007	BS2B247307	360	540	220	134	2250	4500	2	476	482	5	5	0.23	2.9	4.4	2.8	155
SSRB0007	BS2B243256	400	600	240	148	2880	5850	2	522	541	5	5	0.23	2.9	4.4	2.8	205
SSRB0008	BS2B243485	420	620	238	150	2880	5850	2	542	562	6	6	0.22	3	4.6	2.8	215
SSRB0009	BS2B243120	460	700	245	165	3280	6550	2	604	635	6	6	0.21	3.2	4.8	3.2	340
SSRB0010	BS2B242975D	470	720	270	167	3570	7500	2	646	656	6	6	0.21	3.2	4.8	3.2	375
SSRB0011	BS2B247590	560	800	230	150	3340	8150	1	669	742	5	5	0.17	4	5.9	4	320
SSRB0012	BS2B247087	560	870	330	200	5060	11000	2	733	786	6	6	0.22	3	4.6	2.8	580
SSRB0013	BS2B243123	600	920	310	212	5640	12000	2	798	837	9.5	7.5	0.21	3.2	4.8	3.2	690
SSRB0014	BS2B243266	600	980	515	375	10400	21600	2	811	833	7.5	7.5	0.35	1.9	2.9	1.8	1350
SSRB0015	BS2B242989	630	920	310	212	5640	12000	2	798	837	7.5	7.5	0.21	3.2	4.8	3.2	630
SSRB0016	BS2B242994	670	980	350	230	6440	14000	2	860	890	7.5	7.5	0.21	3.2	4.8	3.2	800
SSRB0017	BS2B243122	710	950	375	243	5750	15300	2	860	868	6	6	0.22	3	4.6	2.8	700
SSRB0018	BS2B247181	710	1030	360	236	7020	15600	2	901	939	7.5	7.5	0.21	3.2	4.8	3.2	880
SSRB0019	BS2B243125	750	1000	360	250	6330	17000	2	900	916	6	6	0.22	3	4.6	2.8	710
SSRB0020	BS2B243127	750	1090	475	335	9950	24000	2	938	969	7.5	7.5	0.28	2.4	3.6	2.5	1300
SSRB0021	BS2B243262	800	1060	370	258	6900	18600	2	955	968	6	6	0.21	3.2	4.8	3.2	810
SSRB0022	BS2B243124	850	1120	390	272	7360	20800	2	1008	1028	6	6	0.22	3	4.6	2.8	830
SSRB0023	BSR-8001	850	1180	331	206	6440	17000	2	1070	1100	6	6	0.15	4.5	6.7	4.5	880
SSRB0024	BSR-8000	850	1280	430	280	10100	23200	2	1120	1177	7.5	7.5	0.2	3.4	5	3.2	1550
SSRB0025	BS2B243268	850	1280	540	375	12400	31000	2	1123	1147	7.5	7.5	0.26	2.6	3.9	2.5	2350
SSRB0026	BS2B243126	900	1180	400	280	8170	22800	2	1058	1086	6	6	0.21	3.2	4.8	3.2	1100
SSRB0027	BS2B243114	950	1250	420	300	8970	25500	2	1130	1150	7.5	7.5	0.21	3.2	4.8	3.2	1300
SSRB0028	BS2-8001	1020	1280	352	218	5980	19600	2	1192	1210	6	6	0.14	4.8	7.2	4.5	950
SSRB0029	321489	1060	1460	500	335	11500	33500	2	1330	1350	7.5	7.5	0.2	3.4	5	3.2	2470
SSRB0030	BS2B243486A	1060.335	1400	490	335	11300	32000	2	1253	1284	7.5	7.5	0.21	3.2	4.8	3.2	1800
SSRB0031	BS2B246572	1120	1460	500	335	11500	33500	2	1330	1350	7.5	7.5	0.2	3.4	5	3.2	2070
SSRB0032	BS2B243487CAB	1120	1540	525	355	14400	44000	2	1401	1420	7.5	7.5	0.2	3.4	5	3.2	2850
