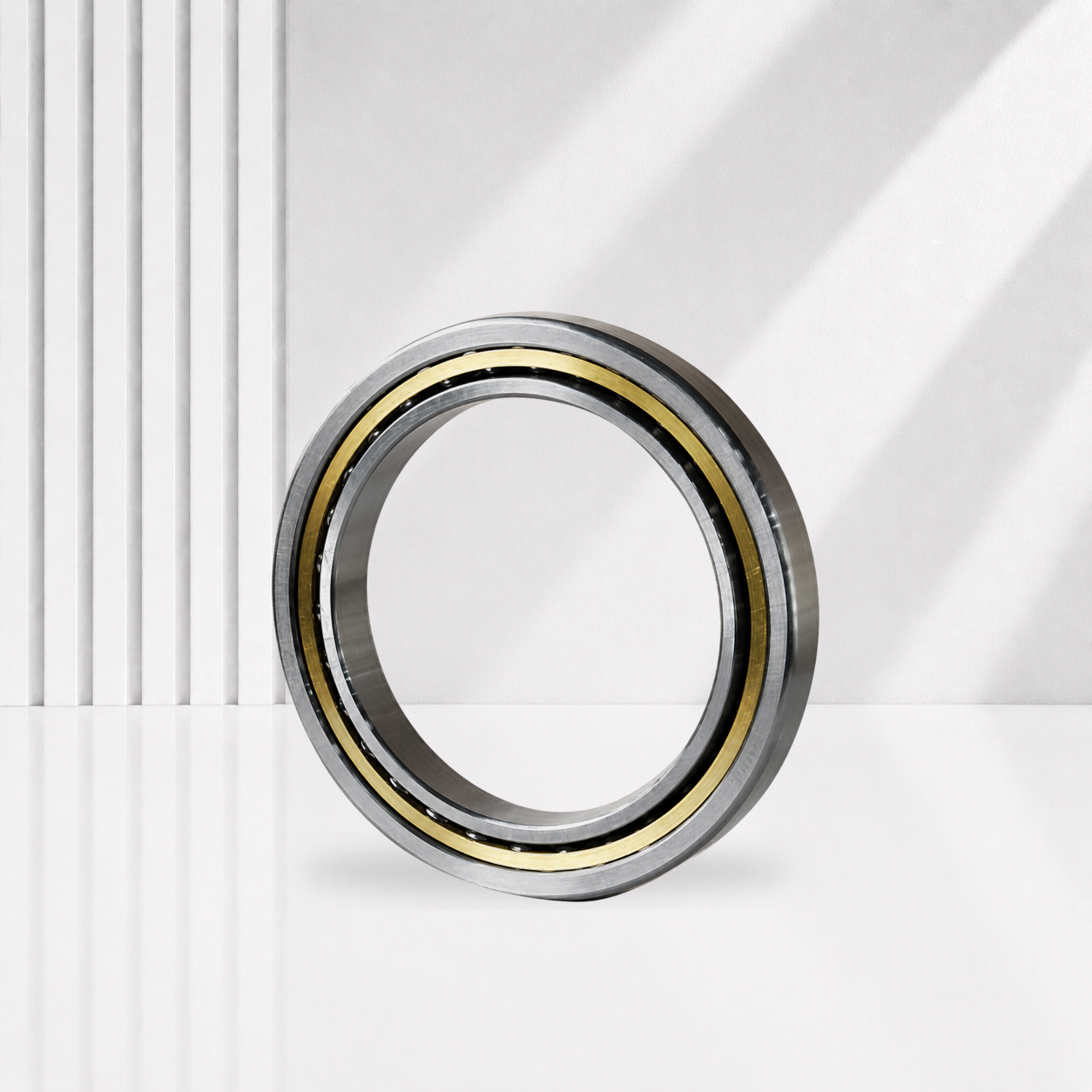

Single-Row Angular Contact Ball Bearings

Single-row angular contact ball bearings carry combined radial and axial loads, with axial load acting mainly in one direction. They are commonly mounted in matched pairs or sets when bidirectional axial guidance, higher rigidity or preload is required.

Availability:

Quantity:



Inquire Add to Basket

Model:
7018B, 7218B, 7318B, 7024B, 7224B, 7324B, 7030B, 7230B, 7330B, 7340B

Product Overview

Single-row angular contact ball bearings carry combined radial and axial loads, with axial load acting mainly in one direction. They are commonly mounted in matched pairs or sets when bidirectional axial guidance, higher rigidity or preload is required.

Available models and complete dimensional data are listed in the following parameter table tab.

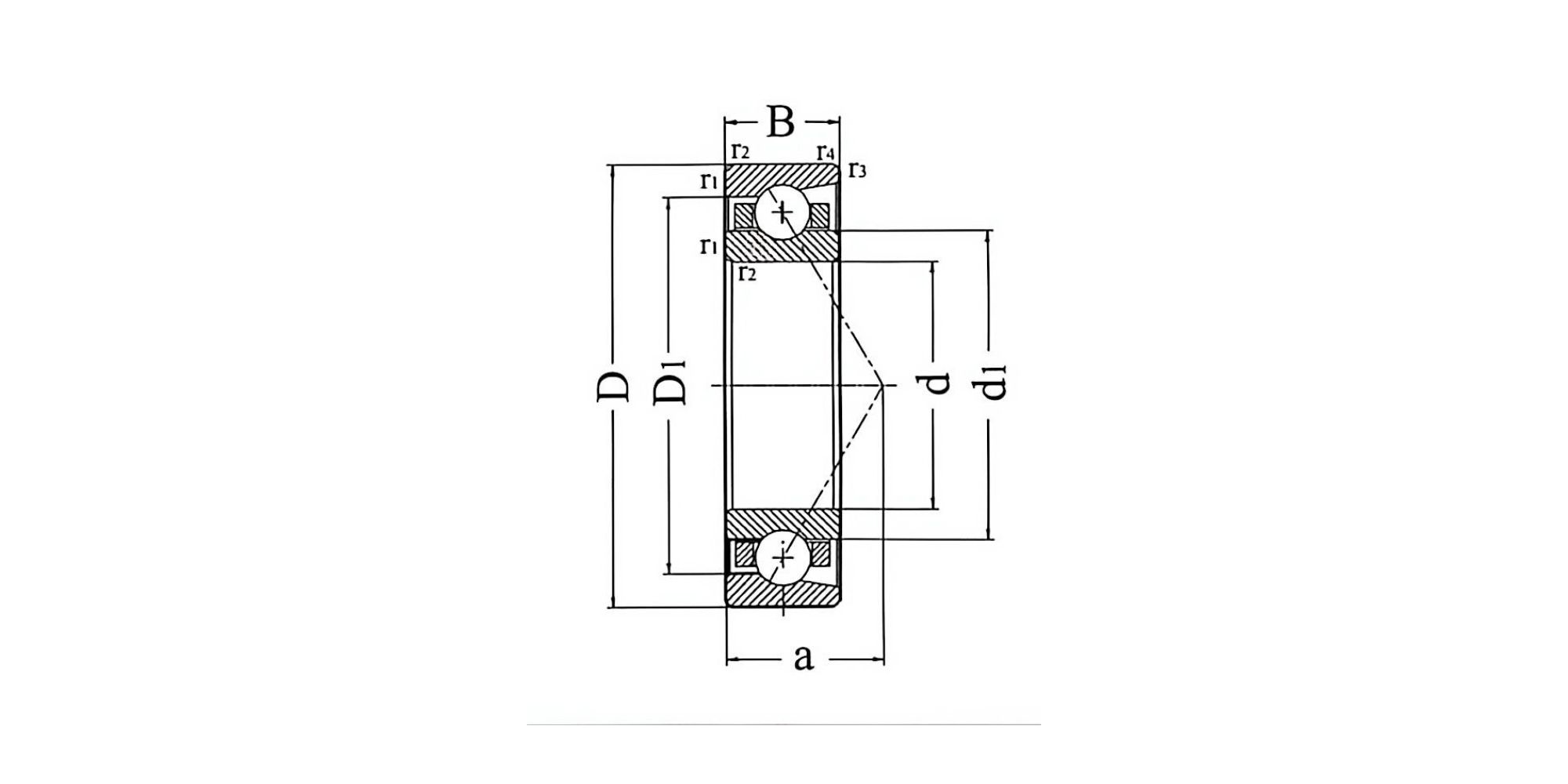

Models & Dimensions

Bearing Designation – New	Bearing Designation – Old	d	D	B	r1,2 min	r3,4 min	a	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	Calculation Factors – e	Calculation Factors – X	Calculation Factors – Y	Calculation Factors – Y0	kg
7018B	-	90	140	24	1.5	1	60.2	58.5	57	–	–	1.14	0.35	0.57	0.26	1.37
7218B	-	90	160	30	2	1	67.4	102	88	–	–	1.14	0.35	0.57	0.26	2.56
7318B	-	90	190	43	3	1.1	80.2	148	124	–	–	1.14	0.35	0.57	0.26	5.86
7020B	-	100	150	24	1.5	1	64.4	61	63.5	–	–	1.14	0.35	0.57	0.26	1.49
7220B	-	100	180	34	2.1	1.1	75.7	124	107	–	–	1.14	0.35	0.57	0.26	3.7
7320B	-	100	215	47	3	1.1	89.6	190	178	–	–	1.14	0.35	0.57	0.26	8.32
7022B	-	110	170	28	2	1	72.7	86.5	86	–	–	1.14	0.35	0.57	0.26	2.32
7222B	-	110	200	38	2.1	1.1	84	147	135	–	–	1.14	0.35	0.57	0.26	5.18
7322B	-	110	240	50	3	1.1	98.4	201	197	–	–	1.14	0.35	0.57	0.26	11.2
7024B	66124	120	180	28	2	1	77	92	96	2600	3600	1.14	0.35	0.57	0.26	2.47
7224B	-	120	215	40	2.1	1.1	90.3	165	162	–	–	1.14	0.35	0.57	0.26	6.26
7324B	-	120	260	55	3	1.1	107.2	225	231	–	–	1.14	0.35	0.57	0.26	14.4
7026B	66126	130	200	33	2	1	85.7	105	113	2300	3300	1.14	0.35	0.57	0.26	3.83
7226B	-	130	230	40	3	1.1	95.5	171	175	–	–	1.14	0.35	0.57	0.26	7.15
7326B	-	130	280	58	4	1.5	115	250	268	–	–	1.14	0.35	0.57	0.26	17.6
7028B	66128	140	210	33	2	1	90	107	119	2000	3000	1.14	0.35	0.57	0.26	3.96
7228B	-	140	250	42	3	1.1	102.8	197	213	–	–	1.14	0.35	0.57	0.26	8.94
7328B	-	140	300	62	4	1.5	123.3	275	310	–	–	1.14	0.35	0.57	0.26	21.6
7030B	66130	150	225	35	2.1	1.1	96	122	138	1900	2800	1.14	0.35	0.57	0.26	4.76
7230B	-	150	270	45	3	1.1	110.6	225	254	–	–	1.14	0.35	0.57	0.26	11.2
7330B	-	150	320	65	4	1.5	131.1	289	340	–	–	1.14	0.35	0.57	0.26	25.9
7032B	66132	160	240	38	2.1	1.1	103	139	159	1800	2600	1.14	0.35	0.57	0.26	5.93
7232B	-	160	290	48	3	1.1	118.4	238	279	–	–	1.14	0.35	0.57	0.26	14.2
7332B	-	160	340	68	4	1.5	138.9	315	385	–	–	1.14	0.35	0.57	0.26	30.8
7034B	66134	170	260	42	2.1	1.1	111	186	193	1700	2400	1.14	0.35	0.57	0.26	7.93
7234B	-	170	310	52	4	1.5	126.7	266	325	–	–	1.14	0.35	0.57	0.26	17.6
7334B	-	170	360	72	4	1.5	147.2	355	445	–	–	1.14	0.35	0.57	0.26	35.6
7036B	66136	180	280	46	2.1	1.1	119	185	227	1600	2200	1.14	0.35	0.57	0.26	10.8
7236B	-	180	320	52	4	1.5	130.9	276	350	–	–	1.14	0.35	0.57	0.26	18.4
7336B	-	180	380	75	4	1.5	155	375	490	–	–	1.14	0.35	0.57	0.26	42.6
7038B	66138	190	290	46	2.1	1.1	124	201	253	1600	2200	1.14	0.35	0.57	0.26	11.1
7238B	-	190	340	55	4	1.5	138.7	284	375	–	–	1.14	0.35	0.57	0.26	22.5
7338B	-	190	400	78	5	2	162.8	410	550	–	–	1.14	0.35	0.57	0.26	47.2
7040B	66140	200	310	51	2.1	1.1	132.5	215	280	1600	2200	1.14	0.35	0.57	0.26	14.3
7240B	-	200	360	58	4	1.5	146.5	305	410	–	–	1.14	0.35	0.57	0.26	26.6
7340B	-	200	420	80	5	2	170.1	430	600	–	–	1.14	0.35	0.57	0.26	55.3
7044B	66144	220	340	56	3	1.1	145.5	253	355	–	–	1.14	0.35	0.57	0.26	18.4
7244B	-	220	400	65	4	1.5	162.6	370	530	–	–	1.14	0.35	0.57	0.26	36.1
7344B	-	220	460	88	5	2	186.6	450	665	–	–	1.14	0.35	0.57	0.26	72.9
7048B	66144	240	360	56	3	1.1	153.9	268	390	–	–	1.14	0.35	0.57	0.26	19.9
7248B	-	240	440	72	4	1.5	178.6	390	600	–	–	1.14	0.35	0.57	0.26	50.3
7348B	-	240	500	95	5	2	202.7	515	800	–	–	1.14	0.35	0.57	0.26	91.9
7052B	66144	260	400	65	4	1.5	171	310	475	–	–	1.14	0.35	0.57	0.26	29.3
7252B	-	260	480	80	5	2	195.2	430	680	–	–	1.14	0.35	0.57	0.26	65.5
7056B	66156	280	420	65	4	1.5	179.3	325	520	–	–	1.14	0.35	0.57	0.26	31.4
7256B	-	280	500	80	5	2	203.6	460	765	–	–	1.14	0.35	0.57	0.26	70.1
7060B	66160	300	460	74	4	1.5	196.4	345	545	–	–	1.14	0.35	0.57	0.26	44.5
7064B	66164	320	480	74	4	1.5	204.8	415	715	–	–	1.14	0.35	0.57	0.26	46.9
7264B	-	320	580	92	5	2	234.8	590	1070	–	–	1.14	0.35	0.57	0.26	109
7068B	66168	340	520	82	5	2	221.4	465	820	–	–	1.14	0.35	0.57	0.26	61.8
7072B	66172	360	540	82	5	2	229.9	475	865	–	–	1.14	0.35	0.57	0.26	63.6
7272B	-	360	650	95	6	3	259.4	600	1150	–	–	1.14	0.35	0.57	0.26	140
7076B	66176	380	560	82	5	2	238.2	440	790	–	–	1.14	0.35	0.57	0.26	66.7
466953	-	380	520	65	4	1	222	345	610	800	1000	1.14	0.35	0.57	0.26	43.5
7080B	66180	400	600	90	5	2	254.8	500	915	–	–	1.14	0.35	0.57	0.26	86.2
7084B	66184	420	620	90	5	2	263.2	550	1070	–	–	1.14	0.35	0.57	0.26	90.6
7284B	-	420	760	109	7.5	4	302	695	1460	–	–	1.14	0.35	0.57	0.26	220
