7202 ACD/P4A
BWK
BWK-7202-ACD-P4A

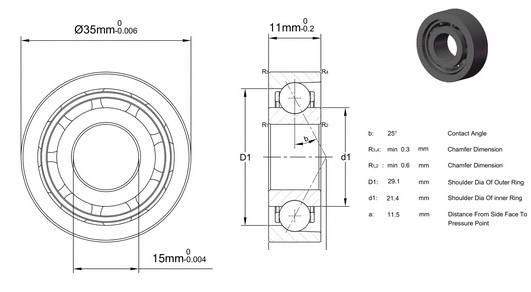

7202 ACD/P4A super precision angular contact ball bearing, 15 mm bore x 35 mm outside diameter x 11 mm width. Designed for precise, reliable operation in industrial machinery.
| Model | 7202 ACD/P4A |
|---|---|
| Bore diameter | 15 mm |
| Outside diameter | 35 mm |
| Width | 11 mm |
| Bearing type | Super precision angular contact ball bearing |
| Design | Single-row open design with 25° contact angle and P4 precision |
| Cage | Phenolic |
| Seal type | Open |
| Dynamic radial load | 7.16 kN |
| Static radial load | 3.2 kN |
| Maximum speed | 63,000 rpm |
P4 precision for high-speed spindle applications
25° contact angle supports combined loads
Phenolic cage for stable high-speed operation
Open design supports application-specific lubrication
Machine-tool spindles
High-speed motors
Precision pumps
Industrial automation equipment
Confirm shaft and housing fits, load direction, speed, lubrication, operating temperature and required precision before ordering.
