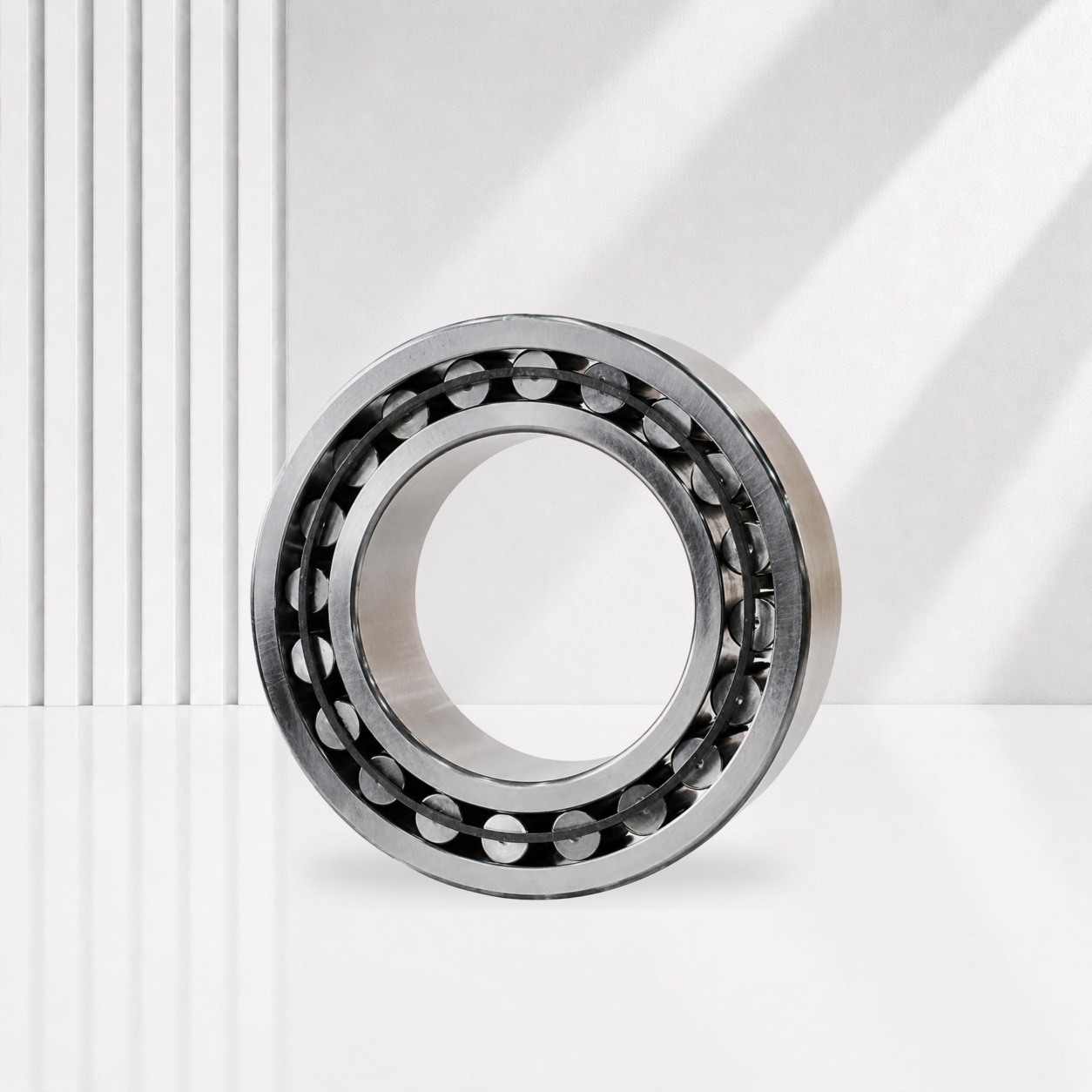

Open CARB-Type Toroidal Roller Bearings

Open toroidal roller bearings combine self-aligning capability with the ability to accommodate axial displacement within the bearing. They are used as non-locating bearings in systems affected by shaft deflection, thermal expansion and heavy radial loading.

Availability:

Quantity:



Inquire Add to Basket

Model:
C4916V, C2216, C2316, C4020V, C2222, C4124V, C3130, C3236, C3180MB, C31/500M

Product Overview

Available models and complete dimensional data are listed in the following parameter table tabs.

Models & Dimensions (1/2)

Bearing Designation – Cylindrical Bore	Bearing Designation – Tapered Bore	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Basic Load Ratings (kN) – C	Basic Load Ratings (kN) – CO	Reference / Limiting Speeds (rpm) – Reference Speed	Reference / Limiting Speeds (rpm) – Limiting Speed	d2	D1	r1，2 min	S11	S21	Abutment Dimensions (mm) – da min	Abutment Dimensions (mm) – da max	Abutment Dimensions (mm) – Da min	Abutment Dimensions (mm) – Da max	Abutment Dimensions (mm) – Ca2 min	Abutment Dimensions (mm) – ra max	Calculation Factors – K1	Calculation Factors – K2	kg
C4916V	C4916K30V	80	110	30	173	275	–	2200	88.2	101	1	6	1.7	84.6	88	–	105	–	1	0.107	0.11	0.87
C5916V	–	80	110	40	208	345	–	1800	88.8	101	1	9.4	5.1	84.6	88	–	105	–	1	0.114	0.098	1.2
C2216	C2216K	80	140	33	220	250	4500	6000	98.1	125	2	9.1	–	91	105	120	129	1.2	2	0.104	0.121	2
C2216V	C2216KV	80	140	33	255	305	–	2000	98.1	125	2	9.1	4.8	91	115	–	129	–	2	0.104	0.121	2.1
C2316	C2316K	80	170	58	510	550	3400	4500	102	145	2.1	10.1	–	92	115	135	158	2.4	2	0.107	0.101	6.2
C4917V	C4917K30V	85	120	35	224	355	–	2000	94.5	109	1.1	6	1.7	91	94	–	114	–	1	0.1	0.114	1.3
C5917V	–	85	120	46	275	465	–	1700	95	109	1.1	8.9	4.6	91	95	–	114	–	1	0.098	0.109	1.7
C2217	C2217K	85	150	36	275	320	4300	5600	104	133	2	7.1	–	96	110	125	139	1.3	2	0.114	0.105	2.6
C2217v	C2217KV	85	150	36	315	390	–	1800	104	133	2	7.1	1.7	96	115	–	139	–	2	0.114	0.105	2.8
C2317	C2317K	85	180	60	540	600	3200	4300	110	153	3	12.1	–	99	125	145	166	2.4	2.5	0.105	0.105	7.3
C4918V	C4918K30V	90	125	35	186	315	–	2000	102	113	1.1	11	6.7	96	100	–	119	–	1	0.125	0.098	1.3
C5918V	–	90	125	46	224	400	–	1600	102	113	1.1	15.4	11.1	96	105	–	119	–	1	0.089	0.131	1.75
BSC-2039V	–	90	150	72	455	670	–	1500	109	131	2	19.7	19.7	101	115	–	139	–	2	0.087	0.123	5.1
C2218	C2218K	90	160	40	325	380	3800	5300	112	144	2	9.5	–	101	120	130	149	1.4	2	0.104	0.117	3.3
C2218V	C2218KV	90	160	40	365	440	–	1500	112	144	2	9.5	5.4	101	125	–	149	–	2	0.104	0.117	3.4
C2318	C2318K	90	190	64	610	695	2800	4000	119	166	3	9.6	–	104	135	155	176	2	2.5	0.108	0.101	8.5
C2219	C2219K	95	170	43	360	400	3800	5000	113	149	2.1	10.5	–	107	112	149	158	4.2	2	0.114	0.104	4
C2319	C2319K	95	200	67	610	695	2800	4000	120	166	3	12.6	–	109	135	155	186	2.1	2.5	0.103	0.106	10
C4920V	C4920K30V	100	140	40	275	450	–	1700	113	130	1.1	9.4	5.1	106	110	–	134	–	1	0.115	0.103	1.9
C5920V	–	100	140	54	375	640	–	1400	110	127	1.1	9	4.7	106	105	–	134	–	1	0.103	0.105	2.7
C4020V	C4020K30V	100	150	50	355	530	–	1400	113	135	1.5	14	9.7	109	120	–	141	–	1.5	0.098	0.118	3.05
C5020V	–	100	150	67	510	865	–	1100	114	136	1.5	9.3	5	109	125	–	141	–	1.5	0.112	0.094	4.3
C3120	C3120K	100	165	52	415	540	3200	4300	119	150	2	10	–	111	119	150	154	4.5	2	0.1	0.112	4.4
C3120V	–	100	165	52	475	655	–	1300	119	150	2	10	4.7	111	130	–	154	–	2	0.1	0.112	4.4
C4120V/VE240	C4120K30V/VE240	100	165	65	475	655	–	1300	120	148	2	17.7	17.7	111	130	–	154	–	2	0.09	0.125	5.25
BSC-2034V	–	100	170	65	475	655	–	1400	120	148	2	17.7	17.7	111	130	–	159	–	2	0.09	0.125	5.95
C2220	C2220K	100	180	46	415	465	3600	4800	118	157	2.1	10.1	–	112	130	150	168	0.9	2	0.108	0.11	4.85
C2320	C2320K	100	215	73	800	880	2600	3600	126	185	3	11.2	–	114	150	170	201	3.2	2.5	0.113	0.096	12.5
C3022	C3022K	110	170	45	355	480	3200	4500	128	156	2	9.5	–	119	127	157	161	4	2	0.107	0.11	3.5
C4022V	C4022K30V	110	170	60	500	800	–	1200	126	150	2	12	6.6	119	130	–	161	–	2	0.107	0.103	5.15
C4122V	C4122K30V	110	180	69	670	1000	–	900	132	163	2	11.4	4.6	120	145	–	170	–	2	0.111	0.097	7.05
C2222	C2222K	110	200	53	530	620	3200	4300	132	176	2.1	11.1	–	122	150	165	188	1.9	2	0.113	0.103	6.9
C3024	C3024K	120	180	46	375	530	3000	4000	138	166	2	10.6	–	129	145	160	171	0.9	2	0.111	0.109	3.9
C3024V	C3024KV	120	180	46	430	640	–	1400	138	166	2	10.6	3.8	129	150	–	171	–	2	0.111	0.109	4.05
C4024V	C4024K30V	120	180	60	530	880	–	1100	140	164	2	12	5.2	129	150	–	171	–	2	0.109	0.103	5.5
C4124V	C4124K30V	120	200	80	780	1120	–	750	140	176	2	18	11.2	131	140	–	189	–	2	0.103	0.103	10.5
C2224	C2224K	120	215	58	610	710	3000	4000	144	191	2.1	13	–	132	143	192	203	5.4	2	0.113	0.103	8.6
C3224	C3224K	120	215	76	750	980	2400	3200	149	190	2.1	17.1	–	132	160	180	203	2.4	2	0.103	0.108	11.5
C3026	C3026K	130	200	52	390	585	2800	3800	154	180	2	16.5	–	139	152	182	191	4.4	2	0.123	0.1	5.9
C4026	C4026K30	130	200	69	620	930	1900	2800	149	181	2	11.4	–	139	155	175	191	1.9	2	0.113	0.097	7.84
C4026V	C4026K30V	130	200	69	720	1120	–	850	149	181	2	11.4	4.6	139	165	–	191	–	2	0.113	0.097	8.05
C4126V/VE240	C4126K30V/VE240	130	210	80	750	1100	–	670	153	190	2	9.7	9.7	141	170	–	199	–	2	0.09	0.126	10.5
C2226	C2226K	130	230	64	735	930	2800	3800	152	199	3	9.6	–	144	170	185	216	1.1	2.5	0.113	0.101	11
C3028	C3028K	140	210	53	490	735	2600	3400	163	194	2	11	–	149	161	195	201	4.7	2	0.102	0.116	6.3
C4028V	C4028K30V	140	210	69	750	1220	–	800	161	193	2	11.4	5.9	149	175	–	201	–	2	0.115	0.097	8.55
C4128V	C4128K30V	140	225	85	1000	1600	–	630	167	203	2.1	12	5.2	151	185	–	214	–	2	0.111	0.097	14.2
C2228	C2228K	140	250	68	830	1060	2400	3400	173	223	3	13.7	–	154	190	210	236	2.3	2.5	0.109	0.108	13.8
C3030MB	C3030KMB	150	225	56	540	850	2400	3200	173	204	2.1	2.8	–	161	172	200	214	1.3	2	–	0.108	8.3
C4030V	C4030K30V	150	225	75	780	1320	–	750	173	204	2.1	17.4	10.6	161	185	–	214	–	2	0.107	0.106	10.5
C3130	C3130K	150	250	80	880	1290	2000	2800	182	226	2.1	13.9	–	162	195	215	238	2.3	2	0.12	0.092	15
C4130V	C4130K30V	150	250	100	1220	1860	–	450	179	222	2.1	20	10.1	162	175	–	228	–	2	0.103	0.103	20.5
C2230	C2230K	150	270	73	980	1220	2400	3200	177	236	3	11.2	–	164	200	215	256	2.5	2.5	0.119	0.096	17.5
C3032	C3032K	160	240	60	600	980	2200	3000	187	218	2.1	15	–	171	186	220	229	5.1	2	0.115	0.106	9.6
C4032	C4032K30	160	240	80	795	1160	1600	2400	181	217	2.1	18.1	–	171	190	210	229	2.2	2	0.109	0.103	12.3
C4032V	C4032K30V	160	240	80	915	1460	–	600	181	217	2.1	18.1	8.2	171	195	–	229	–	2	0.109	0.103	12.6
C3132	C3132K	160	270	86	1000	1400	2000	2600	191	240	2.1	19	-	172	190	242	258	7.5	2	0.099	0.111	20
C4132V	C4132K30V	160	270	109	1460	2160	–	300	190	241	2.1	21	11.1	172	190	–	258	–	2	0.101	0.105	26
C3232	C3232K	160	290	104	1370	1830	1700	2400	194	256	3	19.3	–	174	215	245	276	2.6	2.5	0.112	0.096	28.5
C3034	C3034K	170	260	67	750	1160	2000	2800	200	237	2.1	12.5	–	181	200	238	249	5.8	2	0.105	0.112	12.5
C4034V	C4034K30V	170	260	90	1140	1860	–	480	195	235	2.1	17.1	7.2	181	215	–	249	–	2	0.108	0.103	17.5
C3134	C3134K	170	280	88	1040	1460	1900	2600	200	249	2.1	21	–	182	200	250	268	7.6	2	0.101	0.109	21
C4134V	C4134K30V	170	280	109	1530	2280	–	280	200	251	2.1	21	11.1	182	200	–	268	–	2	0.101	0.106	27
C2234	C2234K	170	310	86	1270	1630	2000	2600	209	274	4	16.4	–	187	230	255	293	3	3	0.114	0.1	28
C3036	C3036K	180	280	74	880	1340	1900	2600	209	251	2.1	15.1	–	191	220	240	269	2	2	0.112	0.105	16.5
C4036V	C4036K30V	180	280	100	1320	2120	–	430	203	247	2.1	20.1	10.2	191	225	–	269	–	2	0.107	0.103	23
C3136	C3136K	180	300	96	1250	1730	1800	2400	210	266	3	23.2	–	194	230	255	286	2.2	2.5	0.102	0.111	26
C4136V	C4136K30V	180	300	118	1760	2700	–	220	211	265	3	20	10.1	194	210	–	286	–	2.5	0.095	0.11	34.5
C3236	C3236K	180	320	112	1530	2200	1500	2000	228	289	4	27.3	–	197	245	275	303	3.2	3	0.107	0.104	37
C3038	C3038K	190	290	75	930	1460	1800	2400	225	266	2.1	16.1	–	201	235	255	279	1.9	2	0.113	0.107	17.5
C4038V	C4038K30V	190	290	100	1370	2320	–	380	220	263	2.1	20	10.1	201	220	–	279	–	2	0.103	0.106	24.5
C3138	C3138K	190	320	104	1530	2200	1600	2200	228	289	3	19	–	204	227	290	306	9.1	2.5	0.096	0.113	33.5
C4138V	C4138K30V	190	320	128	2040	3150	–	130	222	284	3	20	10.1	204	220	–	306	–	2.5	0.094	0.111	43
C2238	C2238K	190	340	92	1370	1730	1800	2400	224	296	4	22.5	–	207	250	275	323	1.6	3	0.108	0.108	34
C3040	C3040K	200	310	82	1120	1730	1700	2400	235	285	2.1	15.2	–	211	250	275	299	2.9	2	0.123	0.095	22
C4040V	C4040K30V	200	310	109	1630	2650	–	260	229	280	2.1	21	11.1	211	225	–	299	–	2	0.101	0.108	30.5
C3140	C3140K	200	340	112	1600	2320	1500	2000	245	305	3	27.3	–	214	260	307	326	–	2.5	0.108	0.104	40
C4140V	C4140K30V	200	340	140	2360	3650	–	80	237	302	3	22	12.1	214	235	–	326	–	2.5	0.092	0.112	54
C3044	C3044K	220	340	90	1320	2040	1600	2200	257	310	3	17.2	–	233	270	295	327	3.1	2.5	0.114	0.104	29
C4044V	C4044K30V	220	340	118	1930	3250	–	200	251	306	3	20	10.1	233	250	–	327	–	2.5	0.095	0.113	40
C3144	C3144K	220	370	120	1900	2900	1400	1900	268	333	4	22.3	–	237	290	315	353	3.5	3	0.114	0.097	51
C2244	C2244K	220	400	108	2000	2500	1500	2000	259	350	4	20.5	–	237	295	320	383	1.7	3	0.113	0.101	56.5
C3048	C3048K	240	360	92	1340	2160	1400	2000	276	329	3	19.2	–	253	290	315	347	1.3	2.5	0.113	0.106	31.5
C3148	C3148K	240	400	128	2320	3450	1300	1700	281	357	4	20.4	–	257	305	335	383	3.7	3	0.116	0.095	63
C3052	C3052K	260	400	104	1760	2850	1300	1800	305	367	4	19.3	–	275	325	350	385	3.4	3	0.122	0.096	46
C3152	C3152K	260	440	144	2650	4050	1100	1500	314	394	4	26.4	-	277	340	375	423	4.1	3	0.115	0.096	87
C3056	C3056K	280	420	106	1860	3100	1200	1600	328	389	4	21.3	-	295	350	375	405	1.8	3	0.121	0.098	50
C3156	C3156K	280	460	146	2850	4500	1100	1400	336	416	5	28.4	-	300	360	395	440	4.1	4	0.115	0.097	93
C3060M	C3060KM	300	460	118	2160	3750	1100	1500	352	417	4	20	-	315	375	405	445	1.7	3	0.123	0.095	71
C4060M	C4060K30M	300	460	160	2900	4900	850	1200	338	409	4	30.4	-	315	360	400	445	2.8	3	0.105	0.106	95
C3160	C3160K	300	500	160	3250	5200	1000	1300	362	448	5	30.5	-	320	390	425	480	4.9	4	0.106	0.106	120
C3064M	C3064KM	320	480	121	2280	4000	1000	1400	376	440	4	23.3	-	335	395	430	465	1.8	3	0.121	0.098	76.5
C3164M	C3164KM	320	540	176	4150	6300	950	1300	372	476	5	26.7	-	340	410	455	520	3.9	4	0.114	0.096	160
C3068M	C3068KM	340	520	133	2900	5000	950	1300	402	482	5	25.4	-	358	430	465	502	1.9	4	0.12	0.099	100
C3168M	C3168KM	340	580	190	4900	7500	850	1200	405	517	5	25.9	-	360	445	490	560	4.2	4	0.118	0.093	205
C3972M	C3972KM	360	480	90	1760	3250	1000	1400	394	450	3	17.2	-	373	405	440	467	1.6	2.5	0.127	0.104	44
C3072M	C3072KM	360	540	134	2900	5000	900	1200	417	497	5	26.4	-	378	445	480	522	2	4	0.12	0.099	105

Models & Dimensions (2/2)

Bearing Designation – Cylindrical Bore	Bearing Designation – Tapered Bore	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Basic Load Ratings (kN) – C	Basic Load Ratings (kN) – CO	Reference / Limiting Speeds (rpm) – Reference Speed	Reference / Limiting Speeds (rpm) – Limiting Speed	d2	D1	r1，2 min	S11	S21	Abutment Dimensions (mm) – da min	Abutment Dimensions (mm) – da max	Abutment Dimensions (mm) – Da min	Abutment Dimensions (mm) – Da max	Abutment Dimensions (mm) – Ca2 min	Abutment Dimensions (mm) – ra max	Calculation Factors – K1	Calculation Factors – K2	kg
C3172M	C3172KM	360	600	192	5000	8000	800	1100	423	537	5	27.9	-	380	460	510	522	3.9	4	0.117	0.094	215
C3976MB	C3976KMB	380	520	106	2120	4000	950	1300	429	489	4	10	-	395	425	490	505	9.7	3	–	0.128	65.5
C3076M	C3076KM	380	560	135	3000	5200	900	1200	431	511	5	27	-	398	460	495	542	2	4	0.12	0.1	110
C3176MB	C3176KMB	380	620	194	4550	7500	750	1000	450	550	5	19	-	400	445	555	600	16.4	4	–	0.106	230
C3980MB	C3980KMB	400	540	106	2160	4150	900	1300	440	500	4	10	-	415	435	505	525	9.7	3	–	0.128	69
C3080M	C3080KM	400	600	148	3650	6200	800	1100	458	553	5	30.6	-	418	480	525	582	2.1	4	0.121	0.099	140
C3180MB	C3180KMB	400	650	200	5000	8650	700	950	485	589	6	10.1	-	426	480	565	624	4.4	5	–	0.109	275
C3984M	C3984KM	420	560	106	2160	4250	850	1200	462	522	4	21.3	-	435	480	515	545	1.8	3	0.132	0.098	71
C3084M	C3084KM	420	620	150	3800	6400	800	1100	475	570	5	32.6	-	438	510	550	602	2.2	4	0.12	0.1	150
C3184M	C3184KM	420	700	224	6000	10400	670	900	508	618	6	34.8	-	446	540	595	674	3.8	5	0.113	0.098	340
C3988MB	C3988KMB	440	600	118	2750	5300	800	1100	495	564	4	11	-	455	490	565	585	10.5	3	–	0.119	98
C3088MB	C3088KMB	440	650	157	3750	6400	750	1000	491	587	6	19.7	-	463	490	565	627	1.7	5	–	0.105	185
C3188MB	C3188KMB	440	720	226	5700	9300	670	900	514	633	6	22	-	466	510	635	694	19.1	5	–	0.102	360
C3992MB	C3992KMB	460	620	118	2700	5300	800	1100	508	577	4	11	-	475	505	580	605	10.4	3	–	0.12	100
C3092M	C3092KM	460	680	163	4000	7500	700	950	539	624	6	33.5	-	486	565	605	654	2.3	5	0.114	0.108	200
C3192M	C3192KM	460	760	240	6800	12000	600	800	559	679	7.5	51	-	492	570	655	728	4.2	6	0.108	0.105	430
C4192M	C4192K30M	460	760	300	8300	14300	480	630	540	670	7.5	46.2	-	492	570	655	728	5.6	6	0.111	0.097	535
C3996M	C3996KM	480	650	128	3100	6100	750	1000	529	604	5	20.4	-	498	550	590	632	2	4	0.133	0.095	120
C3096M	C3096KM	480	700	165	4050	7800	670	900	555	640	6	35.5	-	503	580	625	677	2.3	5	0.113	0.11	210
C3196MB	C3196KMB	480	790	248	6950	12500	560	750	583	700	7.5	24	-	512	580	705	758	20.6	6	–	0.104	490
C39/500M	C39/500KM	500	670	128	3150	6300	700	950	556	631	5	20.4	-	518	580	615	652	2	4	0.135	0.095	125
C30/500M	C30/500KM	500	720	167	4250	8300	630	900	572	656	6	37.5	-	523	600	640	697	2.3	5	0.113	0.111	225
C31/500M	C31/500KM	500	830	264	7500	12700	530	750	605	738	7.5	75.3	-	532	655	705	798	–	6	0.099	0.116	550
C41/500MB	C41/500K30MB	500	830	325	9800	17600	400	560	598	740	7.5	16.3	-	532	595	705	798	5.9	6	–	0.093	720
C39/530M	C39/530KM	530	710	136	3550	7100	670	900	578	657	5	28.4	-	548	600	640	692	2.2	4	0.129	0.101	150
C30/530M	C30/530KM	530	780	185	5100	9500	600	800	601	704	6	35.7	-	553	635	685	757	2.5	5	0.12	0.101	295
C31/530M	C31/530KM	530	870	272	8800	15600	500	670	635	781	7.5	44.4	-	562	680	745	838	4.8	6	0.115	0.097	630
C39/560M	C39/560KM	560	750	140	3600	7350	600	850	622	701	5	32.4	-	578	645	685	732	2.3	4	0.128	0.104	170
C30/560M	C30/560KM	560	820	195	5600	11000	530	750	660	761	6	45.7	-	583	695	740	793	2.7	5	0.116	0.106	345
C31/560MB	C31/560KMB	560	920	280	9500	17000	480	670	664	808	7.5	28	-	592	660	810	888	23.8	6	–	0.111	750
C39/600M	C39/600KM	600	800	150	4000	8800	560	750	666	744	5	32.4	-	618	685	725	782	2.4	4	0.131	0.1	210
C30/600M	C30/600KM	600	870	200	6300	12200	500	700	692	805	6	35.9	-	623	725	775	847	2.7	5	0.125	0.098	390
C31/600MB	C31/600KMB	600	980	300	10200	18000	430	600	710	870	7.5	30	-	632	705	875	948	25.4	6	–	0.105	870
C39/630M	C39/630KM	630	850	165	4650	10000	530	700	700	784	6	35.5	-	653	720	770	827	2.4	5	0.121	0.11	270
C30/630M	C30/630KM	630	920	212	6800	12900	480	670	717	840	7.5	48.1	-	658	755	810	892	2.9	6	0.118	0.104	465
C31/630MB	C31/630KMB	630	1030	315	12200	22000	400	560	749	919	7.5	31	-	662	745	920	998	26.8	6	–	0.109	1040
C39/670M	C39/670KM	670	900	170	4900	11200	480	630	764	848	6	40.5	-	693	765	830	877	2.5	5	0.121	0.113	310
C30/670M	C30/670KM	670	980	230	8150	16300	430	600	775	904	7.5	41.1	-	698	820	875	952	2.9	6	0.121	0.101	580
C31/670MB	C31/670KMB	670	1090	336	12000	22000	380	530	797	963	7.5	33	-	702	795	965	1058	28	6	–	0.104	1230
C39/710M	C39/710KM	710	950	180	6000	12500	450	630	773	877	6	30.7	-	733	795	850	927	2.7	5	0.131	0.098	355
C30/710M	C30/710KM	710	1030	236	8800	17300	400	560	807	945	7.5	47.3	-	738	850	910	1002	3.2	6	0.119	0.104	645
C40/710M	C40/710K30M	710	1030	315	10600	21600	320	430	803	935	7.5	51.2	-	738	840	915	1002	4.4	6	0.113	0.101	860
C31/710MB	C31/710KMB	710	1150	345	12700	24000	360	480	848	1012	9.5	34	-	750	845	1015	1100	28.6	8	–	0.102	1410
C39/750M	C39/750KM	750	1000	185	6100	13400	430	560	830	933	6	35.7	-	773	855	910	977	2.7	5	0.131	0.101	405
C30/750MB	C30/750KMB	750	1090	250	9000	18000	380	530	858	993	7.5	25	-	778	855	995	1062	21.8	6	–	0.112	770
C31/750MB	C31/750KMB	750	1220	365	16000	30500	320	450	888	1076	9.5	36	-	790	885	1080	1180	31.5	8	–	0.117	1700
C39/800M	C39/800KM	800	1060	195	6400	14600	380	530	889	990	6	45.7	-	823	915	970	1037	2.9	5	0.126	0.106	470
C30/800MB	C30/800KMB	800	1150	258	9150	18600	360	480	913	1047	7.5	25	-	828	910	1050	1122	22.3	6	–	0.111	860
C31/800MB	C31/800KMB	800	1280	375	15600	30500	300	400	947	1133	9.5	37	-	840	945	1135	1240	32.1	8	–	0.115	1870
C39/850M	C39/850KM	850	1120	200	7350	16300	360	480	940	1053	6	35.9	-	873	960	1025	1097	2.9	5	0.135	0.098	530
C30/850MB	C30/850KMB	850	1220	272	11200	24000	320	430	968	1113	7.5	27	-	878	965	1115	1192	24.1	6	–	0.124	1050
C31/850MB	C31/850KMB	850	1360	400	16000	32000	280	380	1020	1200	12	40	-	898	1015	1205	1312	33.5	10	–	0.11	2260
C39/900MB	C39/900KMB	900	1180	206	8150	18000	340	450	989	1113	6	20	-	923	985	1115	1157	18.4	5	–	0.132	580
C30/900M	C30/900KM	900	1280	280	12700	26500	300	400	1008	1172	7.5	45.8	-	928	1050	1130	1252	3.4	6	0.124	0.1	1150
C39/950M	C39/950KM	950	1250	224	9300	22000	300	430	1044	1167	7.5	35	-	978	1080	1145	1222	3.1	6	0.134	0.098	745
C30/950MB	C30/950KMB	950	1360	300	12900	27500	280	380	1080	1240	7.5	30	-	978	1075	1245	1322	26.2	6	–	0.116	1410
C30/1000MB	C30/1000KMB	1000	1420	308	13400	29000	260	340	1136	1294	7.5	30	-	1028	1135	1295	1392	26.7	6	–	0.114	1570
C31/1000MB	C31/1000KMB	1000	1580	462	22800	45500	220	300	1179	1401	12	46	-	1048	1175	1405	1532	38.6	10	–	0.105	3470
C39/1060MB	C39/1060KMB	1060	1400	250	12500	29000	260	340	1175	1323	7.5	25	-	1088	1170	1325	1372	23.4	6	–	0.142	1040
C39/1180M	C39/1180KM	1180	1540	272	12900	31500	220	300	1311	1457	7.5	44.4	-	1208	1335	1425	1512	4.1	6	0.137	0.097	1340

Open CARB-Type Toroidal Roller Bearings C4916V C5916V C2216 C2216V C2316 BWK Bearing

Open CARB-Type Toroidal Roller Bearings

Related Products
