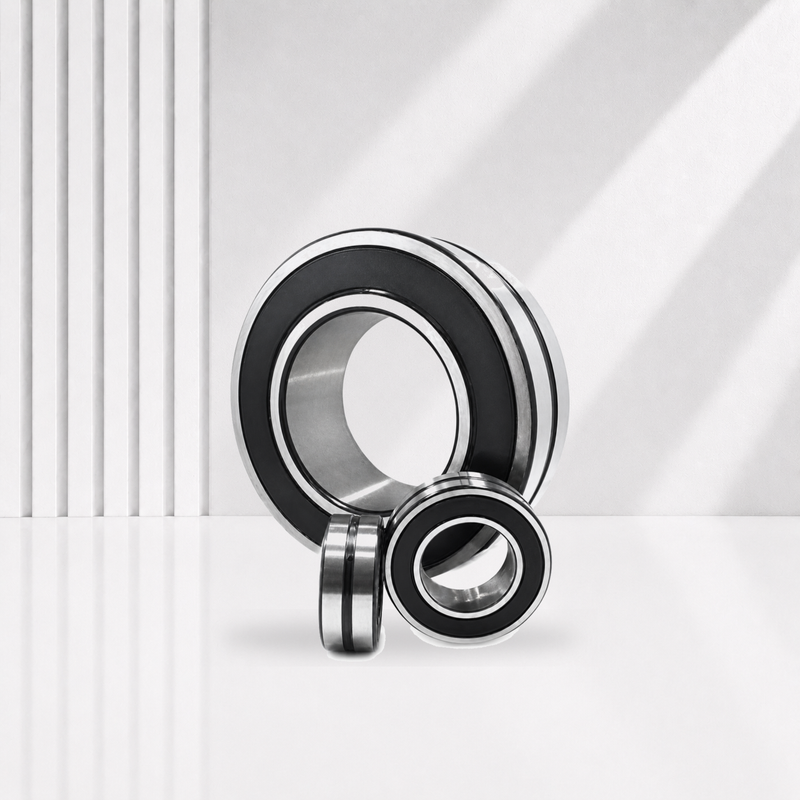

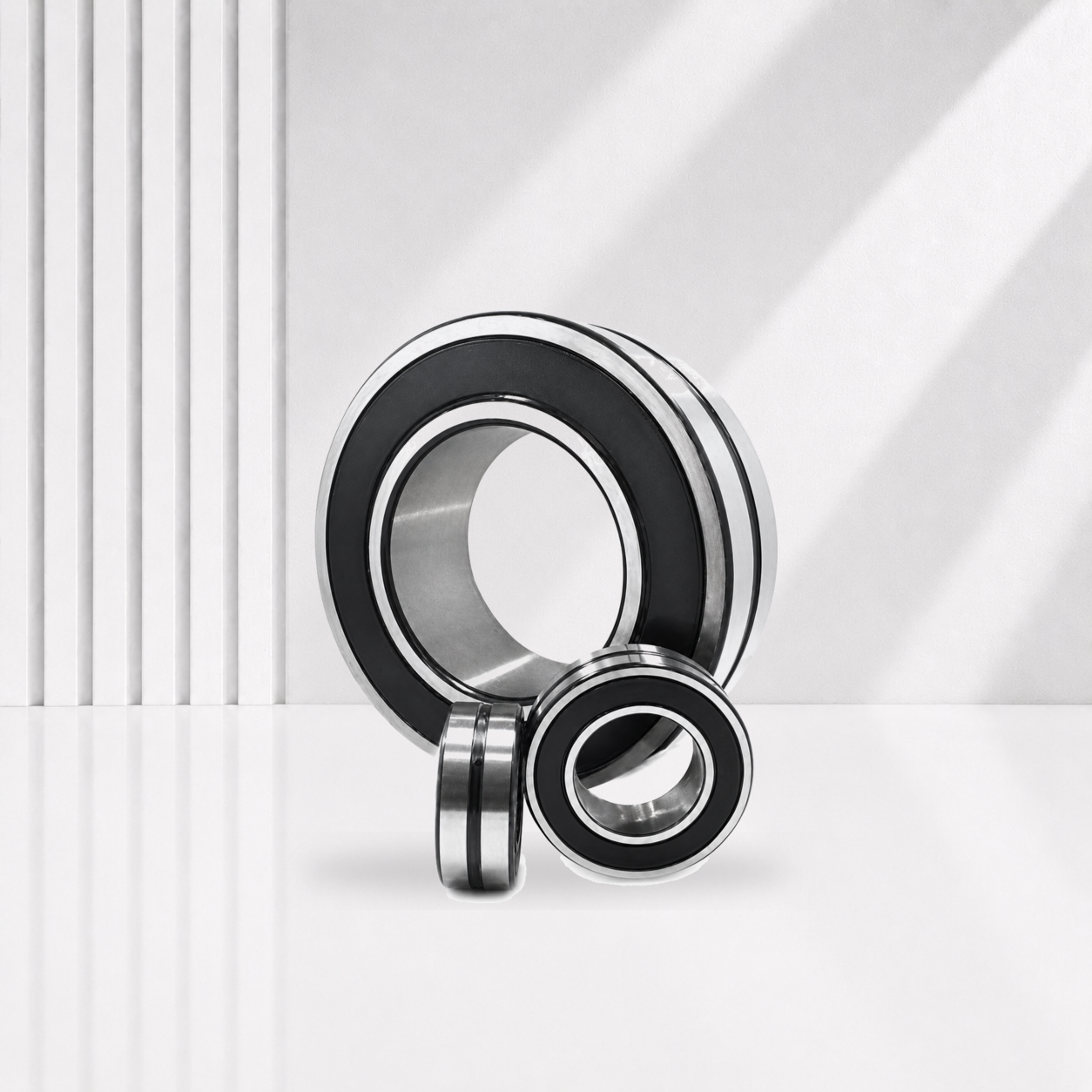

Sealed Spherical Roller Bearings

Sealed spherical roller bearings provide misalignment capability and heavy-load performance together with integrated protection against contamination and grease loss. They are suitable for dusty, wet or difficult-to-relubricate equipment where extended maintenance intervals are desired.

Availability:

Quantity:



Inquire Add to Basket

Model:
24020CA/W33-2RS, 23120CA/W33-2RS, 22222CA/W33-2RS, 24124CA/W33-2RS, 23026CA/W33-2RS, 22226CA/W33-2RS, 24130CA/W33-2RS, 23132CA/W33-2RS, 24138CA/W33-2RS, 23240CA/W33-2RS

Product Overview

Sealed spherical roller bearings provide misalignment capability and heavy-load performance together with integrated protection against contamination and grease loss. They are suitable for dusty, wet or difficult-to-relubricate equipment where extended maintenance intervals are desired.

Available models and complete dimensional data are listed in the following parameter table tab.

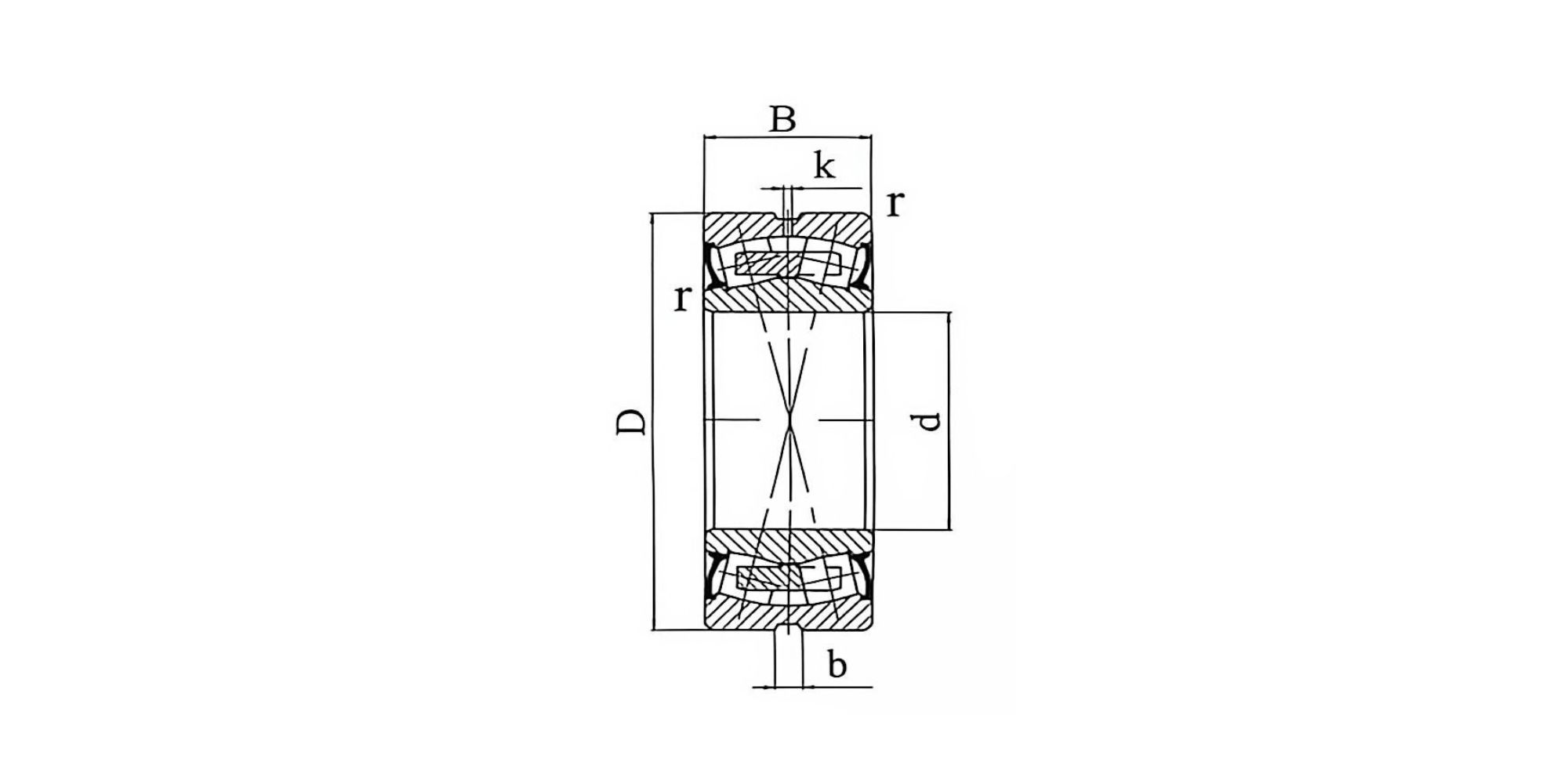

Models & Dimensions

Bearing Designation	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – r min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Grease (rpm)	Other Dimensions (mm) – b	Other Dimensions (mm) – k	Abutment Dimensions (mm) – Db max	Abutment Dimensions (mm) – da min	Abutment Dimensions (mm) – ra max	e	kg
24020CA/W33-2RS	100	150	50	1.5	285	415	800	5.5	3	107	108	1.5	0.28	3.15
23120CA/W33-2RS	100	165	52	2	365	490	850	5.5	3	154	111	2	0.3	4.55
24120CA/W33-2RS	100	165	65	2	380	570	570	5.5	3	155	110	2	0.36	5.52
23220CA/W33-2RS	100	180	60.3	2.1	475	600	700	8.3	4.5	168	112	2	0.33	6.85
23022CA/W33-2RS	110	170	45	2	310	440	900	8.3	4.5	161	119	2	0.26	3.8
23122CA/W33-2RS	110	180	56	2	430	585	800	8.3	4.5	169	121	2	0.29	5.75
22222CA/W33-2RS	110	200	53	2.1	345	455	1100	8.3	4.5	188	122	2	0.26	7.28
24122CA/W33-2RS	110	180	69	2	365	540	550	5.5	3	170	120	2	0.36	6.64
23024CA/W33-2RS	120	180	46	2	355	510	850	5.5	3	171	129	2	0.24	4.2
24024CA/W33-2RS	120	180	60	2	400	670	880	5.5	3	170	130	2	0.31	5.31
24124CA/W33-2RS	120	200	80	2	655	950	560	5.5	3	203	132	2	0.38	10.5
23026CA/W33-2RS	130	200	52	2	430	610	800	8.3	4.5	191	139	2	0.25	6
23126CA/W33-2RS	130	210	64	2	480	695	930	8.3	4.5	200	140	2	0.28	9.2
24026CA/W33-2RS	130	200	69	2	540	815	600	5.5	3	191	139	2	0.33	8.05
24126CA/W33-2RS	130	210	80	2	560	930	490	8.3	4.5	200	140	2	0.36	10.95
22226CA/W33-2RS	130	230	64	3	500	680	990	11.1	6	216	144	2.5	0.28	11.2
24028CA/W33-2RS	140	210	69	2	490	830	650	5.5	3	200	150	2	0.31	8.4
24128CA/W33-2RS	140	225	85	2.1	765	1160	450	8.3	4.5	213	152	2	0.35	13.5
24030CA/W33-2RS	150	225	75	2.1	655	1040	530	5.5	3	214	161	2	0.31	10.5
24130CA/W33-2RS	150	250	100	2.1	1020	1530	400	8.3	4.5	238	162	2	0.37	20
24032CA/W33-2RS	160	240	80	2.1	545	990	500	8.3	4.5	229	171	2	0.25	13.2
23132CA/W33-2RS	160	270	86	2.1	980	1370	530	13.9	7.5	258	172	2	0.31	20.5
24132CA/W33-2RS	160	270	109	2.1	860	1450	440	8.3	4.5	258	172	2	0.33	25.5
24034CA/W33-2RS	170	260	90	2.1	780	1400	520	8.3	4.5	248	182	2	0.31	17.8
24134CA/W33-2RS	170	280	109	2.1	890	1550	400	8.3	4.5	268	182	2	0.37	26.8
24036CA/W33-2RS	180	280	100	2.1	780	1440	430	8.3	4.5	269	191	2	0.31	23.4
24138CA/W33-2RS	190	320	128	3	1260	2300	340	11.1	6	306	204	2.5	0.4	42.5
24140CA/W33-2RS	200	340	140	3	1800	2800	320	11.1	6	326	214	2.5	0.4	53.5
23240CA/W33-2RS	200	360	128	4	1860	2700	430	16.7	9	343	217	3	0.35	58
23944CA/W33-2RS	220	300	60	2.1	546	1080	600	8.3	4.5	289	231	2	0.16	12.5

Sealed Spherical Roller Bearings 24020CA/W33-2RS 23120CA/W33-2RS 24120CA/W33-2RS 23220CA/W33-2RS 23022CA/W33-2RS BWK Bearing
