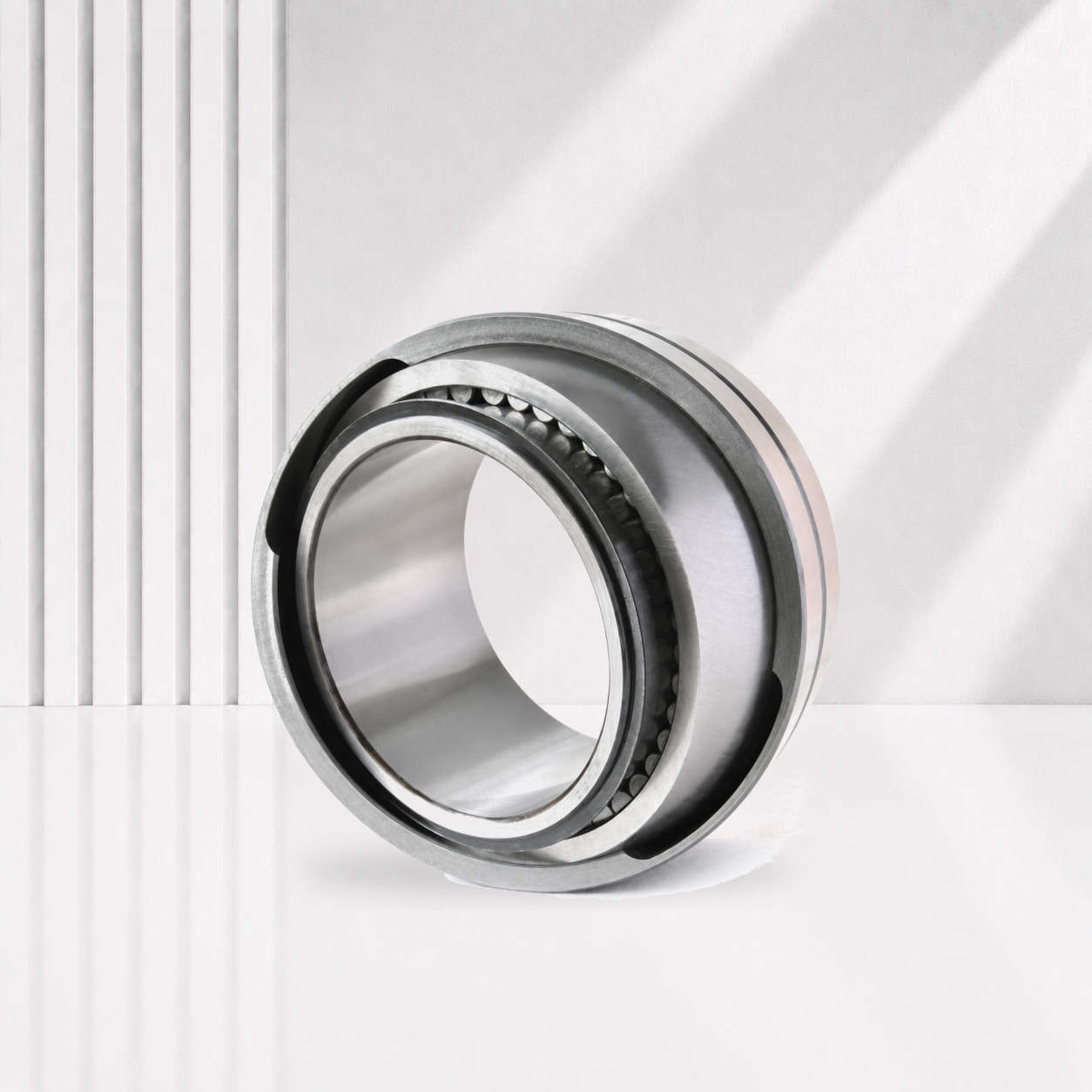

Self-Aligning Cylindrical Roller Bearings for Continuous Casting and Rolling Equipment (P&N Type)

P&N-type self-aligning cylindrical roller bearings are designed for guide and straightening rolls in continuous casting and rolling lines. They combine high radial load capacity with compensation for shaft deflection and alignment errors in hot, contaminated and heavily loaded operating conditions.
Availability:
Quantity:
Inquire Add to Basket

  • SLCB0001, SLCB0002, SLCB0003, SLCB0004

Product Overview

P&N-type self-aligning cylindrical roller bearings are designed for guide and straightening rolls in continuous casting and rolling lines. They combine high radial load capacity with compensation for shaft deflection and alignment errors in hot, contaminated and heavily loaded operating conditions.

Available models and complete dimensional data are listed in the following parameter table tab.

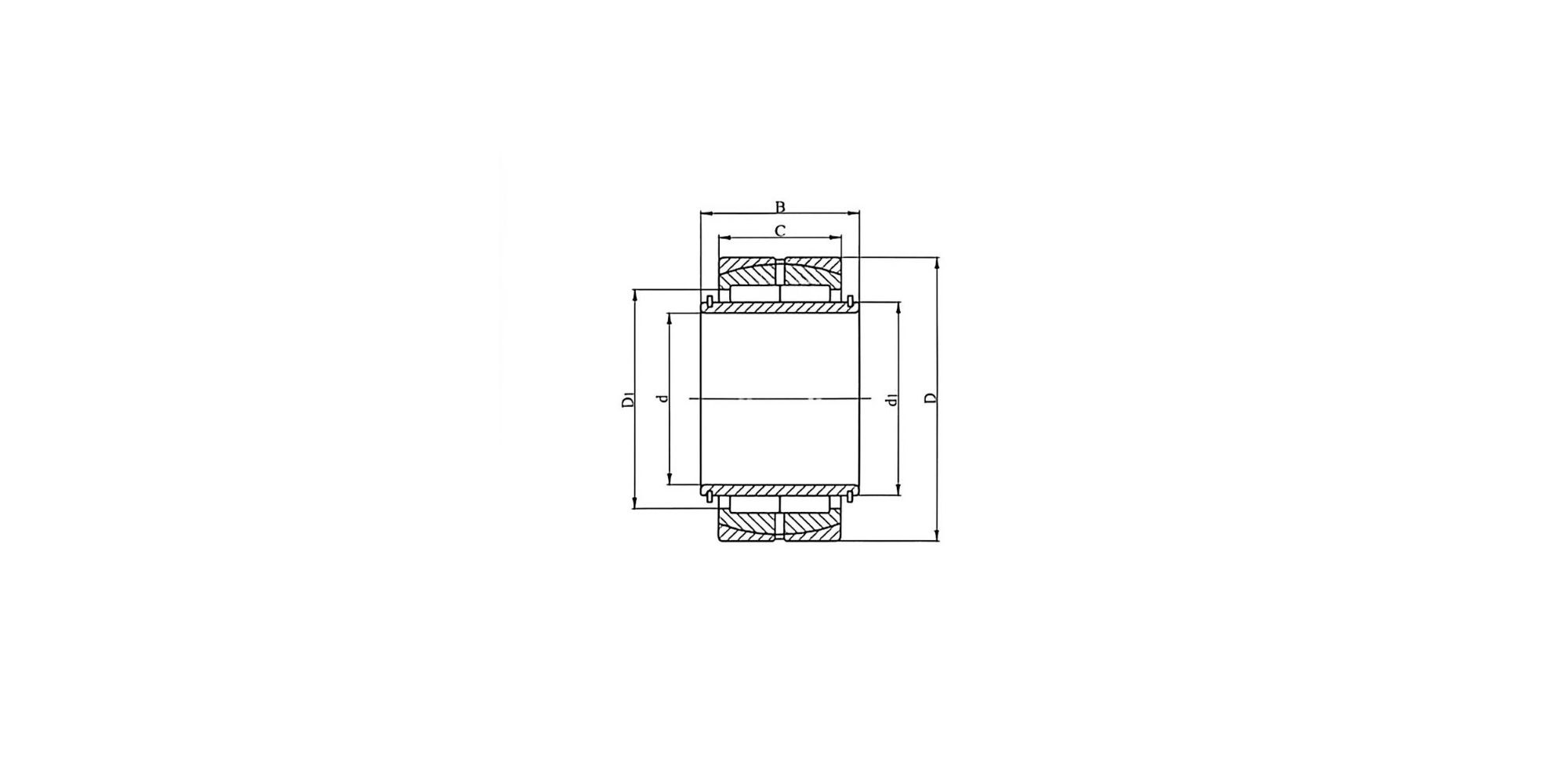

Models & Dimensions
Bearing DesignationBoundary Dimensions (mm) – dBoundary Dimensions (mm) – DBoundary Dimensions (mm) – C/BBoundary Dimensions (mm) – r1,2minBoundary Dimensions (mm) – r3,4minBasic Load Ratings (kN) – CrBasic Load Ratings (kN) – Corkg
SLCB000115027096/9621785132022.3
SLCB000217026090/1102169396519.5
SLCB0003170310110/11021990191027.2
SLCB0004190320128/128211050238034.7
