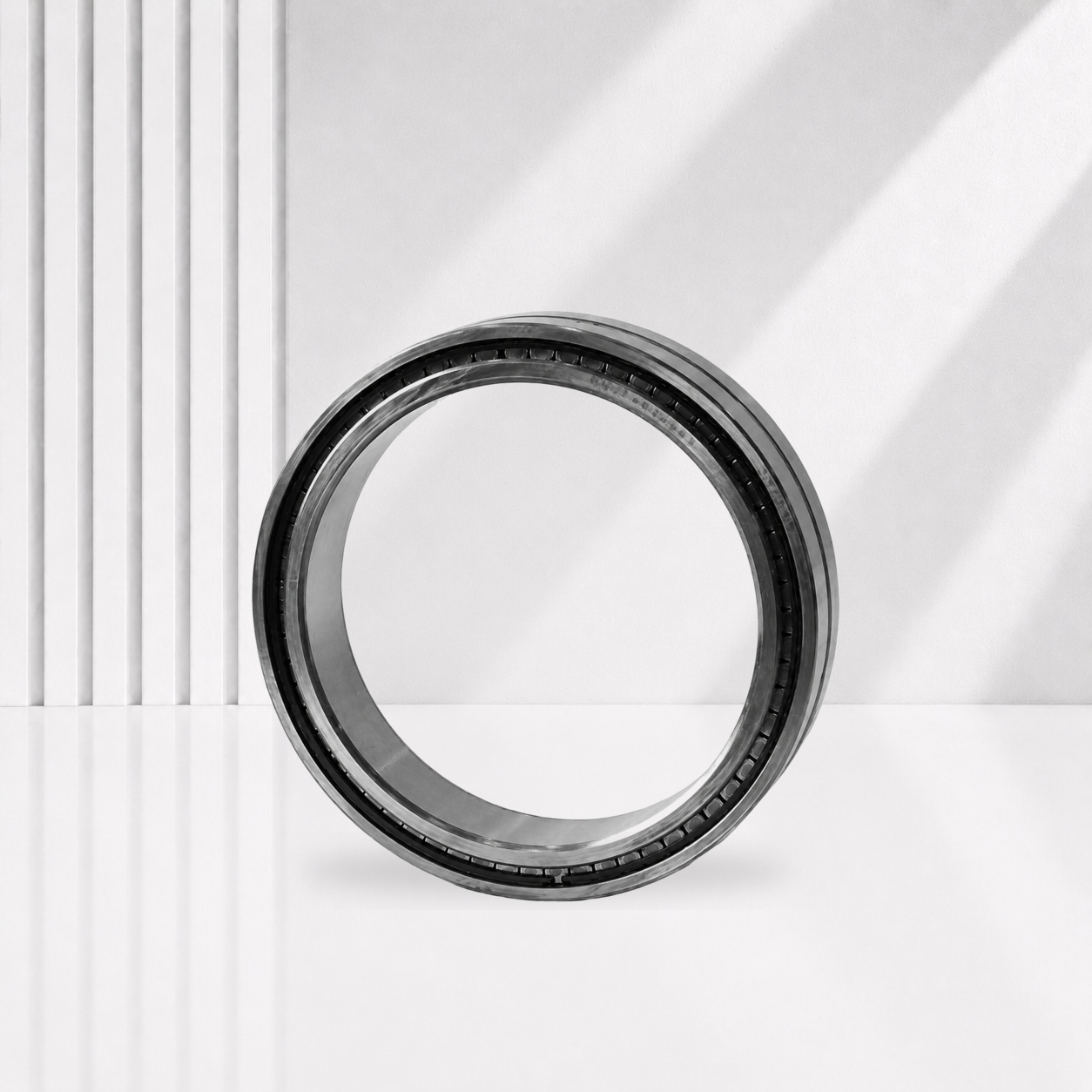

Double-Row Full-Complement Cylindrical Roller Bearings

Double-row full-complement cylindrical roller bearings contain the maximum number of rollers and therefore offer very high radial and static load capacity. They are intended for heavy, relatively low-speed applications where compact dimensions and resistance to shock loading are more important than very high rotational speed.

Availability:

Quantity:



Inquire Add to Basket

Model:
NNC4916V, NNCF5016V, NNCF4920V, NNCL4928V, NNCF5030V, NNCF4936V, NNCF5040V, NNCF5052V, NNCF5064V, NNCF5080V

Product Overview

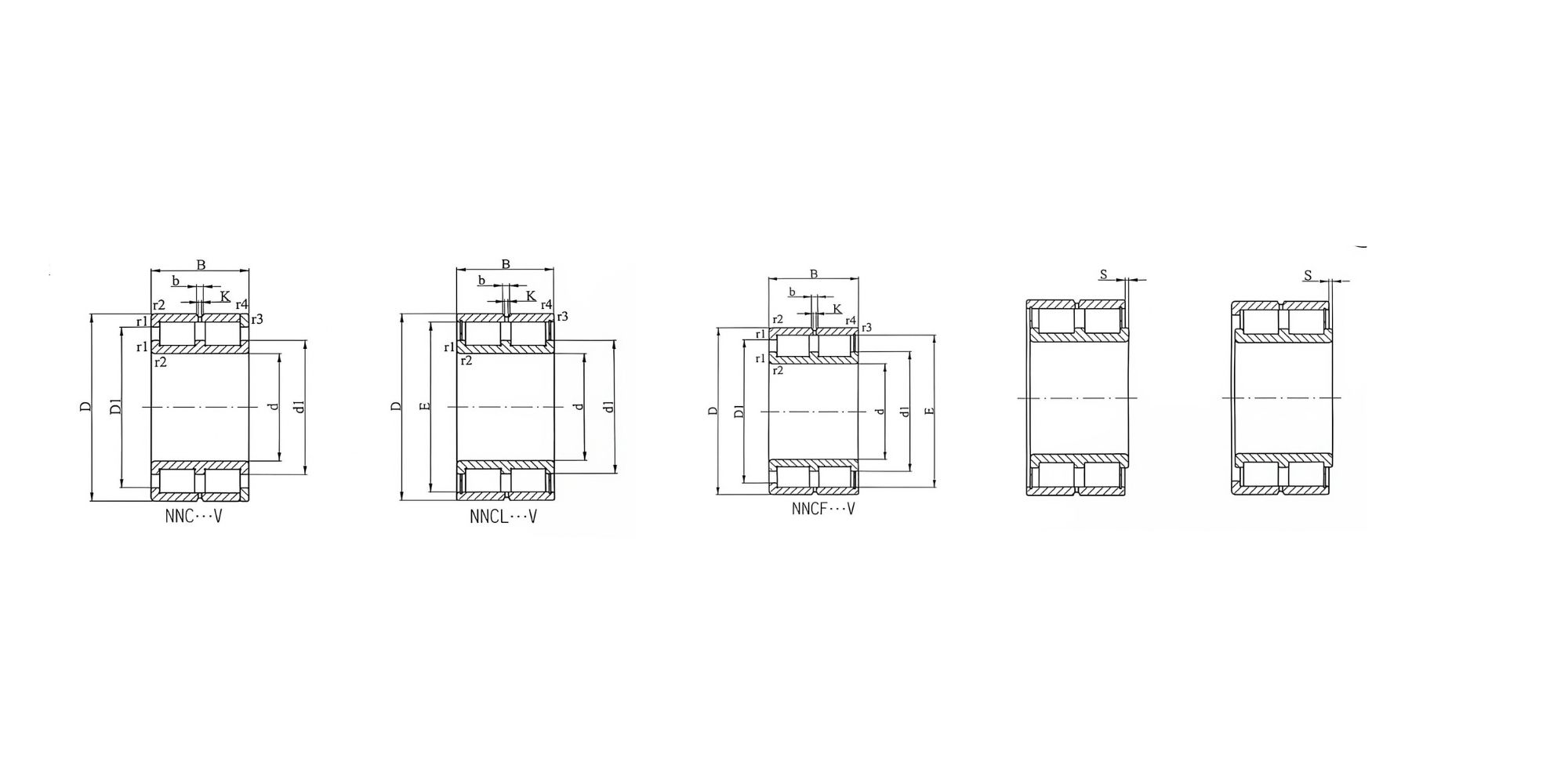

Available models and complete dimensional data are listed in the following parameter table tabs.

Models & Dimensions (1/2)

Bearing Designation	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – r1,2min	Boundary Dimensions (mm) – r3,4min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Other Dimensions (mm) – E	Other Dimensions (mm) – d1	Other Dimensions (mm) – D1	Other Dimensions (mm) – b	Other Dimensions (mm) – K	Other Dimensions (mm) – S	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	kg
NNC4916V	80	110	30	1	1	110	210	–	90.5	98	5	3.5	–	1200	2600	0.90
NNCF4916V	80	110	30	1	1	110	210	101.2	90.5	98	5	3.5	1	1200	2600	0.88
NNCL4916V	80	110	30	1	1	110	210	101.2	90.5	98	5	3.5	1	1200	2600	0.88
NNCF5016V	80	125	60	1.1	1.1	286	469	117.2	94.8	112	5	3.5	2.5	1100	2400	2.60
NNC4918V	90	125	35	1.1	1.1	146	292	–	103.5	111.5	5	3.5	–	1100	2300	1.40
NNCF4918V	90	125	35	1.1	1.1	146	292	115.5	103.5	111.5	5	3.5	1.5	1100	2300	1.37
NNCL4918V	90	125	35	1.1	1.1	146	292	115.5	103.5	111.5	5	3.5	1.5	1100	2300	1.37
NNCF5018V	90	140	67	1.5	1.5	369	635	130.3	106	125	5	3.5	2.5	1000	2200	3.75
NNC4920V	100	140	40	1.1	1.1	194	400	–	116	126	5	3.5	–	950	2000	2.10
NNCF4920V	100	140	40	1.1	1.1	194	400	130	116	126	5	3.5	2	950	2000	2.00
NNCL4920V	100	140	40	1.1	1.1	194	400	130	116	126	5	3.5	2	950	2000	2.00
NNCF5020V	100	150	67	1.5	1.5	391	600	140	116	134	6	3.5	2.5	950	2000	4.05
NNC4922V	110	150	40	1.1	1.1	201	430	–	125	135	6	3.5	–	900	1900	2.30
NNCF4922V	110	150	40	1.1	1.1	201	430	138.6	125	135	6	3.5	2	900	1900	2.20
NNCL4922V	110	150	40	1.1	1.1	201	430	138.6	125	135	6	3.5	2	900	1900	2.20
NNCF5022V	110	170	80	2	2	528	957	157	128	150	6	3.5	2.5	850	1800	6.60
NNC4924V	120	165	45	1.1	1.1	224	480	–	139	149	6	3.5	–	800	1700	3.20
NNCF4924V	120	165	45	1.1	1.1	224	480	154	139	149	6	3.5	3	800	1700	3.00
NNCL4924V	120	165	45	1.1	1.1	224	480	154	139	149	6	3.5	3	800	1700	3.00
NNCF5024V	120	180	80	2	2	561	1050	168	139	161	6	3.5	2.5	800	1700	7.10
NNC4926V	130	180	50	1.5	1.5	255	540	–	149	161	6	3.5	–	750	1600	4.20
NNCF4926V	130	180	50	1.5	1.5	255	540	166	149	161	6	3.5	4	750	1600	4.00
NNCL4926V	130	180	50	1.5	1.5	255	540	166	149	161	6	3.5	4	750	1600	4.00
NNCF5026V	130	200	95	2	2	704	1380	183.5	153	176	6	3.5	2.5	700	1500	11.0
NNC4928V	140	190	50	1.5	1.5	265	576	–	159	171	6	3.5	–	700	1500	4.40
NNCF4928V	140	190	50	1.5	1.5	265	576	176.4	159	171	6	3.5	4	700	1500	4.20
NNCL4928V	140	190	50	1.5	1.5	265	576	176.4	159	171	6	3.5	4	700	1500	4.20
NNCF5028V	140	210	95	2	2	737	1500	195.5	165	188	7	4	3	670	1400	11.5
NNC4830V	150	190	40	1.1	1.1	233	585	–	165	175	7	4	–	700	1500	3.00
NNCF4830V	150	190	40	1.1	1.1	233	585	178.7	165	175	7	4	2	700	1500	2.90
NNCL4830V	150	190	40	1.1	1.1	233	585	178.7	165	175	7	4	2	700	1500	2.80
NNC4930V	150	210	60	2	2	383	850	–	171	188	7	4	–	670	1400	7.00
NNCF4930V	150	210	60	2	2	383	850	192	171	188	7	4	4	670	1400	6.80
NNCL4930V	150	210	60	2	2	383	850	192	171	188	7	4	4	670	1400	6.80
NNCF5030V	150	225	100	2.1	2.1	842	1680	209	175	201	7	4	3	630	1300	14.0
NNC4832V	160	200	40	1.1	1.1	242	620	–	176	186	7	4	–	670	1400	3.20
NNCF4832V	160	200	40	1.1	1.1	242	620	190.1	176	186	7	4	2	670	1400	3.05
NNCL4832V	160	200	40	1.1	1.1	242	620	190.1	176	186	7	4	2	670	1400	3.05
NNC4932V	160	220	60	2	2	399	906	–	184	198	7	4	–	630	1300	7.20
NNCF4932V	160	220	60	2	2	399	906	203.9	184	198	7	4	4	630	1300	7.10
NNCL4932V	160	220	60	2	2	399	906	203.9	184	198	7	4	4	630	1300	7.10
NNCF5032V	160	240	109	2.1	2.1	1010	1950	225	185	215	7	4	3	600	1200	17.0
NNC4834V	170	215	45	1.1	1.1	264	655	–	186	197	7	4	–	630	1300	4.20
NNCF4834V	170	215	45	1.1	1.1	264	655	201.7	186	197	7	4	3	630	1300	4.10
NNCL4834V	170	215	45	1.1	1.1	264	655	201.7	186	197	7	4	3	630	1300	4.00
NNC4934V	170	230	60	2	2	413	950	–	192	206	7	4	–	600	1200	7.60
NNCF4934V	170	230	60	2	2	413	950	212.2	192	206	7	4	4	600	1200	7.50
NNCL4934V	170	230	60	2	2	413	950	212.2	192	206	7	4	4	600	1200	7.50
NNCF5034V	170	260	122	2.1	2.1	1140	2170	243	198	232	7	4	5	560	1100	23.0
NNC4836V	180	225	45	1.1	1.1	270	695	–	196	207	7	4	–	600	1200	4.50
NNCF4836V	180	225	45	1.1	1.1	270	695	211.3	196	207	7	4	3	600	1200	4.30
NNCL4836V	180	225	45	1.1	1.1	270	695	211.3	196	–	7	4	3	600	1200	4.30
NNC4936V	180	250	69	2	2	550	1220	–	205	226	7	4	–	560	1100	11.0
NNCF4936V	180	250	69	2	2	550	1220	231.1	205	226	7	4	4	560	1100	10.8
NNCL4936V	180	250	69	2	2	550	1220	231.1	205	226	7	4	4	560	1100	10.8
NNCF5036V	180	280	136	2.1	2.1	1320	2580	260.5	212	249	8	4	6	560	1100	30.5
NNC4838V	190	240	50	1.5	1.5	305	760	–	208	220	7	4	–	560	1100	5.80
NNCF4838V	190	240	50	1.5	1.5	305	760	225.4	208	220	7	4	4	560	1100	5.65
NNCL4838V	190	240	50	1.5	1.5	305	760	225.4	208	–	7	4	4	560	1100	5.65
NNC4938V	190	260	69	2	2	562	1290	–	217	234	7	4	–	560	1100	11.5
NNCF4938V	190	260	69	2	2	562	1290	241.3	217	234	7	4	4	560	1100	11.3
NNCL4938V	190	260	69	2	2	562	1290	241.3	217	234	7	4	4	560	1100	11.3
NNCF5038V	190	290	136	2.1	2.1	1380	2690	270	222	258	8	4	6	530	1000	31.5
NNC4840V	200	250	50	1.5	1.5	315	800	–	219	230	7	4	–	560	1100	6.00
NNCF4840V	200	250	50	1.5	1.5	315	800	235.9	219	230	7	4	4	560	1100	5.90
NNCL4840V	200	250	50	1.5	1.5	315	800	235.9	219	–	7	4	4	560	1100	5.90
NNC4940V	200	280	80	2.1	2.1	661	1500	–	233	251	8	4	–	530	1000	16.0
NNCF4940V	200	280	80	2.1	2.1	661	1500	260	233	251	8	4	5	530	1000	15.9
NNCL4940V	200	280	80	2.1	2.1	661	1500	260	233	251	8	4	5	530	1000	15.9
NNCF5040V	200	310	150	2.1	2.1	1570	3130	288	236	276	8	4	7	500	950	41.0
NNC4844V	220	270	50	1.5	1.5	330	878	–	240	252	7	4	–	530	1000	6.55
NNCF4844V	220	270	50	1.5	1.5	330	878	256.9	240	252	7	4	4	530	1000	6.55
NNCL4844V	220	270	50	1.5	1.5	330	878	256.9	240	252	7	4	4	530	1000	6.55
NNC4944V	220	300	80	2.1	2.1	690	1610	–	250	269	8	4	–	500	950	17.5
NNCF4944V	220	300	80	2.1	2.1	690	1610	277.2	250	269	8	4	5	500	950	17.2
NNCL4944V	220	300	80	2.1	2.1	690	1610	277.2	250	269	8	4	5	500	950	17.2
NNCF5044V	220	340	160	3	3	1870	3680	313.5	255	300	8	4	7	450	850	52.5
NNC4848V	240	300	60	2	2	501	1292	–	261	276	8	4	–	480	900	10.3
NNCF4848V	240	300	60	2	2	501	1292	282.4	261	276	8	4	4	480	900	10.0
NNCL4848V	240	300	60	2	2	501	1292	282.4	261	276	8	4	4	480	900	10.0
NNC4948V	240	320	80	2.1	2.1	725	1762	–	273	292	8	4	–	450	850	18.7
NNCF4948V	240	320	80	2.1	2.1	725	1762	300.1	273	292	8	4	5	450	850	18.5
NNCL4948V	240	320	80	2.1	2.1	725	1762	300.1	273	292	8	4	5	450	850	18.5
NNCF5048V	240	360	160	3	3	1980	4050	355.6	278	322	9.4	5	7	430	800	56.0
NNC4852V	260	320	60	2	2	523	1406	–	283	298	8	4	–	430	800	11.1
NNCF4852V	260	320	60	2	2	523	1406	304.7	283	298	8	4	4	430	800	11.0
NNCL4852V	260	320	60	2	2	523	1406	304.7	283	298	8	4	4	430	800	10.8
NNC4952V	260	360	100	2.1	2.1	1080	2550	–	294	324	9.4	5	–	400	750	33.1
NNCF4952V	260	360	100	2.1	2.1	1080	2550	331.5	294	324	9.4	5	6	400	750	32.2
NNCL4952V	260	360	100	2.1	2.1	1080	2550	331.5	294	324	9.4	5	6	400	750	32.2
NNCF5052V	260	400	190	4	4	2640	5340	373.5	304	357	9.4	5	7	380	700	85.5
NNC4856V	280	350	69	2	2	682	1860	–	308	325	8	4	–	400	750	16.1
NNCF4856V	280	350	69	2	2	682	1860	332.9	308	325	8	4	4	400	750	16.0
NNCL4856V	280	350	69	2	2	682	1860	332.9	308	–	8	4	4	400	750	15.8
NNC4956V	280	380	100	2.1	2.1	1120	2710	–	316	346	9.4	5	–	380	700	34.5
NNCF4956V	280	380	100	2.1	2.1	1120	2710	353.5	316	346	9.4	5	6	380	700	34.2
NNCL4956V	280	380	100	2.1	2.1	1120	2710	353.5	316	346	9.4	5	6	380	700	34.2
NNCF5056V	280	420	190	4	4	2700	5610	389	320	372	9.4	5	7	360	670	90.5
NNC4860V	300	380	80	2.1	2.1	801	2146	–	330	349	9.4	5	–	380	700	23.0
NNCF4860V	300	380	80	2.1	2.1	801	2146	357.4	330	349	9.4	5	6	380	700	23.0
NNCL4860V	300	380	80	2.1	2.1	801	2146	357.4	330	349	9.4	5	6	380	700	23.0
NNC4960V	300	420	118	3	3	1560	3630	–	343	381	9.4	5	–	340	630	53.0
NNCF4960V	300	420	118	3	3	1560	3630	390.2	343	381	9.4	5	6	340	630	52.8
NNCL4960V	300	420	118	3	3	1560	3630	390.2	343	381	9.4	5	6	340	630	52.8
NNCF5056V	300	460	218	4	4	3410	7180	432	355	413	9.4	5	9	320	600	130
NNC4864V	320	400	80	2.1	2.1	832	2300	–	353	372	9.4	5	–	340	630	24.5
NNCF4864V	320	400	80	2.1	2.1	832	2300	380.3	353	372	9.4	5	6	340	630	24.5
NNCL4864V	320	400	80	2.1	2.1	832	2300	380.3	353	372	9.4	5	6	340	630	24.5
NNC4964V	320	440	118	3	3	1600	3835	–	365	399	9.4	5	–	320	600	56.0
NNCF4964V	320	440	118	3	3	1600	3835	409	365	399	9.4	5	6	320	600	55.2
NNCL4964V	320	440	118	3	3	1600	3835	409	365	399	9.4	5	6	320	600	55.2
NNCF5064V	320	480	218	4	4	3470	7450	447.5	370	429	9.4	5	9	300	560	135
NNC4868V	340	420	80	2.1	2.1	850	2415	–	370	389	9.4	5	–	320	600	25.5
NNCF4868V	340	420	80	2.1	2.1	850	2415	397.4	370	389	9.4	5	6	320	600	25.5
NNCL4868V	340	420	80	2.1	2.1	850	2415	397.4	370	389	9.4	5	6	320	600	25.5
NNC4968V	340	460	118	3	3	1640	4035	–	383	413	9.4	5	–	300	560	60.5
NNCF4968V	340	460	118	3	3	1640	4035	427.1	383	413	9.4	5	6	300	560	59.5
NNCL4968V	340	460	118	3	3	1640	4035	427.1	383	413	9.4	5	6	300	560	59.5
NNCF5068V	340	520	243	5	5	4180	9200	486	399	465	9.4	5	11	280	530	185
NNC4872V	360	440	80	2.1	2.1	880	2570	–	393	412	9.4	5	–	300	560	27.0
NNCF4872V	360	440	80	2.1	2.1	880	2570	420.2	393	412	9.4	5	6	300	560	27.0
NNCL4872V	360	440	80	2.1	2.1	880	2570	420.2	393	412	9.4	5	6	300	560	27.0
NNC4972V	360	480	118	3	3	1690	4240	–	399	437	9.4	5	–	300	560	61.0
NNCF4972V	360	480	118	3	3	1690	4240	446	399	437	9.4	5	6	300	560	61.0
NNCL4972V	360	480	118	3	3	1690	4240	446	399	437	9.4	5	6	300	560	61.0
NNCF5072V	360	540	243	5	5	4290	9570	504	417	483	9.4	5	11	260	500	195
NNC4876V	380	480	100	2.1	2.1	1300	3650	–	421	445	9.4	5	–	280	530	45.5
NNCF4876V	380	480	100	2.1	2.1	1300	3650	456	421	445	9.4	5	6	280	530	45.5
NNCL4876V	380	480	100	2.1	2.1	1300	3650	456	421	445	9.4	5	6	280	530	45.5
NNC4976V	380	520	140	4	4	2124	5460	–	433	466	9.4	5	–	260	500	93.0
NNCF4976V	380	520	140	4	4	2124	5460	481.5	433	466	9.4	5	7	260	500	92.4
NNCL4976V	380	520	140	4	4	2124	5460	481.5	433	466	9.4	5	7	260	500	92.4

Models & Dimensions (2/2)

Bearing Designation	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – r1,2min	Boundary Dimensions (mm) – r3,4min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Other Dimensions (mm) – E	Other Dimensions (mm) – d1	Other Dimensions (mm) – D1	Other Dimensions (mm) – b	Other Dimensions (mm) – K	Other Dimensions (mm) – S	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	kg
NNCF5076V	380	560	243	5	5	4400	9940	532	435	511	9.4	5	11	240	480	200
NNC4880V	400	500	100	2.1	2.1	1320	3750	–	436	460	9.4	5	–	260	500	47.5
NNCF4880V	400	500	100	2.1	2.1	1320	3750	470.3	436	460	9.4	5	6	260	500	47.5
NNCL4880V	400	500	100	2.1	2.1	1320	3750	470.3	436	460	9.4	5	6	260	500	47.5
NNC4980V	400	540	140	4	4	2185	5730	502	454	486	9.4	5	–	240	480	97.5
NNCF4980V	400	540	140	4	4	2185	5730	502	454	486	9.4	5	7	240	480	96.5
NNCL4980V	400	540	140	4	4	2185	5730	502	454	486	9.4	5	7	240	480	96.5
NNCF5080V	400	600	272	5	5	5500	12300	560	464	536	9.4	5	11	220	450	270
NNC4884V	420	520	100	2.1	2.1	1353	4000	–	458	482	9.4	5	–	240	480	49.5
NNCF4884V	420	520	100	2.1	2.1	1353	4000	492.6	458	482	9.4	5	6	240	480	49.5
NNCL4884V	420	520	100	2.1	2.1	1353	4000	492.6	458	482	9.4	5	6	240	480	49.5
NNC4984V	420	560	140	4	4	2235	6000	–	470	512	9.4	5	–	220	450	100
NNCF4984V	420	560	140	4	4	2235	6000	522.5	470	512	9.4	5	7	220	450	99.5
NNCL4984V	420	560	140	4	4	2235	6000	522.5	470	512	9.4	5	7	220	450	99.5
NNCF5084V	420	620	272	5	5	5610	12800	579	483	555	9.4	5	11	200	430	280
NNC4888V	440	540	100	2.1	2.1	1400	4150	–	480	504	9.4	5	–	220	450	52.0
NNCF4888V	440	540	100	2.1	2.1	1400	4150	514.6	480	504	9.4	5	6	220	450	52.0
NNCL4888V	440	540	100	2.1	2.1	1400	4150	514.6	480	504	9.4	5	6	220	450	52.0
NNC4988V	440	600	160	4	4	2990	7570	–	503	544	9.4	5	–	200	430	140
NNCF4988V	440	600	160	4	4	2990	7570	563.5	503	544	9.4	5	7	200	430	138
NNCL4988V	440	600	160	4	4	2990	7570	563.5	503	544	9.4	5	7	200	430	138
NNCF5088V	440	650	280	6	6	6160	14100	608	507	583	9.4	5	11	190	400	320
NNC4892V	460	580	118	3	3	1560	4614	–	505	531	9.4	5	–	200	430	77.5
NNCF4892V	460	580	118	3	3	1560	4614	543.3	505	531	9.4	5	7	200	430	76.9
NNCL4892V	460	580	118	3	3	1560	4614	543.3	505	–	9.4	5	7	200	430	76.9
NNC4992V	460	620	160	4	4	3030	7770	–	512	564	9.4	5	–	190	400	145
NNCF4992V	460	620	160	4	4	3030	7770	577	512	564	9.4	5	7	190	400	141
NNCL4992V	460	620	160	4	4	3030	7770	577	512	564	9.4	5	7	190	400	141
NNCF5092V	460	680	300	6	6	6440	14700	638	527	609	9.4	5	14	180	380	365
NNC4896V	480	600	118	3	3	1597	4838	–	529	555	9.4	5	–	190	400	80.0
NNCF4896V	480	600	118	3	3	1597	4838	567.3	529	555	9.4	5	7	190	400	89.8
NNCL4896V	480	600	118	3	3	1597	4838	567.3	529	555	9.4	5	7	190	400	89.8
NNC4996V	480	650	170	5	5	3300	8420	–	537	592	9.4	5	–	180	380	170
NNCF4996V	480	650	170	5	5	3300	8420	605.5	537	592	9.4	5	8	180	380	166
NNCL4996V	480	650	170	5	5	3300	8420	605.5	537	592	9.4	5	8	180	380	166
NNCF5096V	480	700	300	6	6	6710	15300	657	548	630	9.4	5	14	170	360	380
NNC48/500V	500	620	118	3	3	1625	4987	–	546	571	9.4	5	–	190	400	82.5
NNCF48/500V	500	620	118	3	3	1625	4987	583.5	546	571	9.4	5	7	190	400	83.0
NNCL48/500V	500	620	118	3	3	1625	4987	583.5	546	–	9.4	5	7	190	400	83.0
NNC49/500V	500	670	170	5	5	3360	8850	–	568	611	9.4	5	–	170	360	179
NNCF49/500V	500	670	170	5	5	3360	8850	631.5	568	611	9.4	5	8	170	360	175
NNCL49/500V	500	670	170	5	5	3360	8850	631.5	568	611	9.4	5	8	170	360	175
NNCF50/500V	500	720	300	6	6	6820	15900	678	569	651	9.4	5	14	170	360	390
NNC48/530V	530	650	118	3	3	1700	5400	–	577	603	9.4	5	7	170	360	87.5
NNCF48/530V	530	650	118	3	3	1700	5400	615	577	603	9.4	5	7	170	360	87.2
NNCL48/530V	530	650	118	3	3	1700	5400	615	577	603	9.4	5	7	170	360	87.2
NNC49/530V	530	710	180	5	5	3910	10200	–	588	648	9.4	5	–	160	300	208
NNCF49/530V	530	710	180	5	5	3910	10200	663	588	648	9.4	5	8	160	300	205
NNCL49/530V	530	710	180	5	5	3910	10200	663	588	648	9.4	5	8	160	300	205

Double-Row Full-Complement Cylindrical Roller Bearings NNC4916V NNCF4916V NNCL4916V NNCF5016V NNC4918V BWK Bearing

Double-Row Full-Complement Cylindrical Roller Bearings

Related Products
