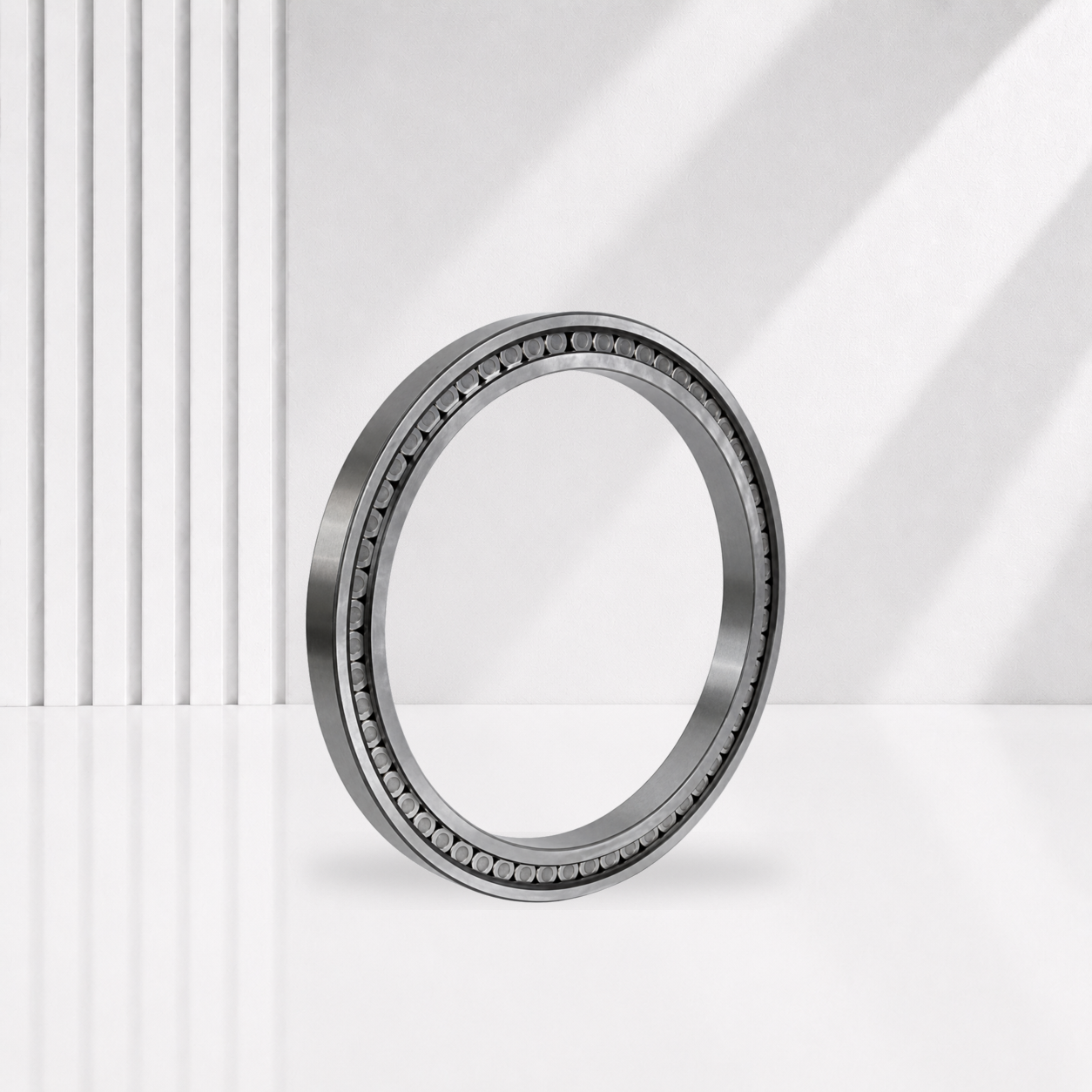

Single-Row Full-Complement Cylindrical Roller Bearings

Single-row full-complement cylindrical roller bearings use a cage-free design to maximize the number of rollers and radial load capacity. They are well suited to compact, heavy-duty mechanisms operating at moderate speed, including industrial gearboxes, lifting equipment and large mechanical assemblies.

Availability:

Quantity:



Inquire Add to Basket

Model:
NCF2916V, NCF3016V, NJ2316VH, NCF2920V, NCF3024V, NJ2324VH, NCF3030V, NCF3036V, NJ2340VH, NCF3052V

Product Overview

Available models and complete dimensional data are listed in the following parameter table tabs.

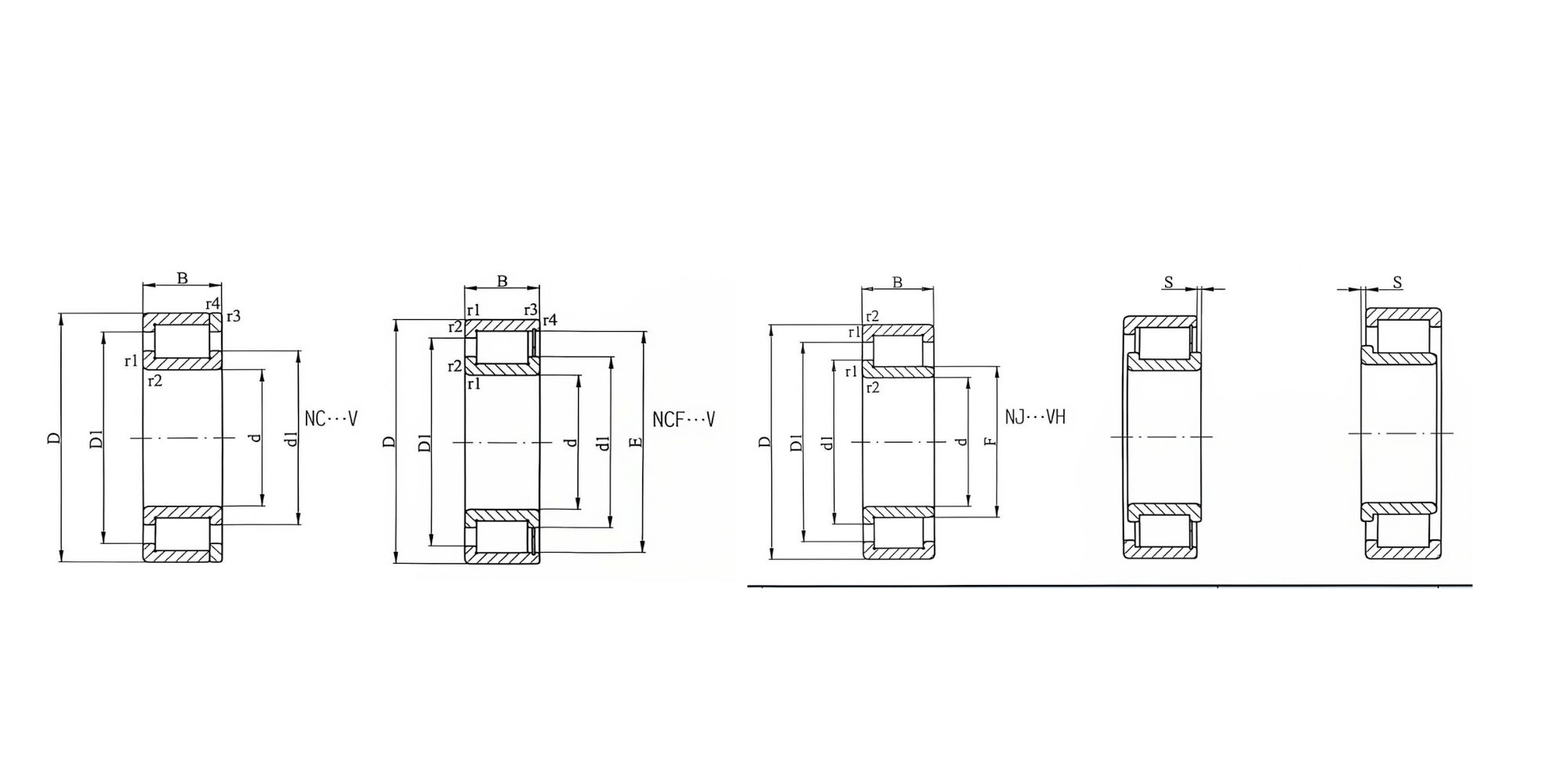

Single-Row Full-Complement Cylindrical Roller Bearings

Models & Dimensions (1/2)

Bearing Designation	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – r1,2min	Boundary Dimensions (mm) – r3,4min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Other Dimensions (mm) – E	Other Dimensions (mm) – F	Other Dimensions (mm) – d1	Other Dimensions (mm) – D1	Other Dimensions (mm) – S	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	kg
NC2916V	80	110	19	1	0.6	81	128	–	-	90.7	98.7	–	1200	2600	0.57
NCF2916V	80	110	19	1	0.6	81	128	102.7	-	90.7	98.7	0.75	1200	2600	0.53
NC3016V	80	125	34	1.1	0.6	194	285	–	-	94.8	112	–	1100	2400	1.56
NCF3016V	80	125	34	1.1	0.6	194	285	117.2	-	94.8	112	1.8	1100	2400	1.52
NJ2316VH	80	170	58	2.1	–	455	550	–	98.3	109	141	4	700	1500	6.41
NC2917V	85	120	22	1.1	1	105	168	–	-	99.1	109	–	1100	2400	0.79
NCF2917V	85	120	22	1.1	1	105	168	112.5	-	99.1	109	0.75	1100	2400	0.78
NC3017V	85	130	34	1.1	0.6	195	295	–	-	99.2	116	–	1100	2400	1.61
NCF3017V	85	130	34	1.1	0.6	195	295	121.6	-	99.2	116	1.8	1100	2200	1.55
NJ2317VH	85	180	60	3	–	482	695	–	107.02	117.4	151.5	4	670	1400	7.31
NC2918V	90	125	22	1.1	1	105	172	–	-	102	111	–	1100	2400	0.91
NCF2918V	90	125	22	1.1	1	105	172	115.6	-	102	111	0.75	1100	2400	0.82
NC3018V	90	140	37	1.5	1	227	348	–	-	106.2	125	–	1000	2200	2.12
NCF3018V	90	140	37	1.5	1	227	348	130.3	-	106.2	125	2	1000	2200	2.05
NJ2318VH	90	190	64	3	–	520	790	–	108.8	121	156	4	670	1400	8.75
NC2919V	95	130	22	1.1	1	108	180	–	-	107	117	–	1000	2200	0.94
NCF2919V	95	130	22	1.1	1	108	180	120.4	-	107	117	0.75	1000	2200	0.86
NC3019V	95	145	37	1.5	1	230	360	–	-	111	129	2	950	2000	2.28
NCF3019V	95	145	37	1.5	1	230	360	135.1	-	111	129	4.5	950	2000	2.15
NC2920V	100	140	24	1.1	1	132	224	–	-	114	124	–	1000	2200	1.25
NCF2920V	100	140	24	1.1	1	132	224	129	-	114	124	0.75	1000	2200	1.15
NC3020V	100	150	37	1.5	1	242	375	–	-	116	134	–	950	2000	2.29
NCF3020V	100	150	37	1.5	1	242	375	139.9	-	116	134	2	950	2000	2.22
NJ2320VH	100	215	73	3	–	704	1030	–	122.8	136	176	4.5	600	1200	13.1
NC2922V	110	150	24	1.1	1	140	250	–	-	126	137	–	900	1900	1.35
NCF2922V	110	150	24	1.1	1	140	250	141.3	-	126	137	0.75	900	1900	1.25
NC3022V	110	170	45	2	1	330	510	–	-	129	150	–	850	1800	3.79
NCF3022V	110	170	45	2	1	330	510	157	-	129	150	3	850	1800	3.65
NJ2322VH	110	240	80	3	–	858	1060	–	134.5	151	198	5	560	1100	17.8
NC2924V	120	165	27	1.1	1	172	290	–	-	136	149	–	850	1800	1.88
NCF2924V	120	165	27	1.1	1	172	290	154.3	-	136	149	0.75	850	1800	1.71
NC3024V	120	180	46	2	1	341	550	–	-	139	160	–	800	1700	4.11
NCF3024V	120	180	46	2	1	341	550	167.9	-	139	160	3.5	800	1700	3.95
NJ2324VH	120	260	86	3	–	935	1300	–	147.4	164	211	5.5	530	1000	22.5
NC2926V	130	180	30	1.5	1.1	205	360	–	-	147	161	–	750	1600	2.52
NCF2926V	130	180	30	1.5	1.1	205	360	167.1	-	147	161	0.75	750	1600	2.32
NC3026V	130	200	52	2	1	429	695	–	-	154	179	–	700	1500	6.05
NCF3026V	130	200	52	2	1	429	695	186.5	-	154	179	3.5	700	1500	5.82
NJ2326VH	130	280	93	4	–	1080	1660	–	157.95	175	226	6	500	950	28.3
NC2928V	140	190	30	1.5	1.1	220	390	–	-	159	173	–	700	1500	2.59
NCF2928V	140	190	30	1.5	1.1	220	390	180	-	159	173	0.75	700	1500	2.42
NC3028V	140	210	53	2	1	468	750	–	-	163	180	–	670	1400	6.21
NCF3028V	140	210	53	2	1	468	750	198.2	-	163	180	3.5	670	1400	6.11
NJ2328VH	140	300	102	4	–	1250	1910	–	168.5	187	241	6.5	450	850	35.5
NC1830V	150	190	20	1.1	1	108	200	–	-	163	176	1.5	700	1500	1.54
NCF1830V	150	190	20	1.1	1	108	200	179.5	-	163	176	1.5	700	1500	1.31
NC2930V	150	210	36	2	1.1	286	500	–	-	171	188	–	670	1400	4.05
NCF2930V	150	210	36	2	1.1	286	500	195.5	-	171	188	0.8	670	1400	3.85
NC3030V	150	225	56	2.1	1.1	539	880	–	-	174	203	–	630	1300	7.72
NCF3030V	150	225	56	2.1	1.1	539	880	211.7	-	174	203	3.5	630	1300	7.51
NJ2330VH	150	320	108	4	–	1450	2240	–	182.5	202	261	6.5	430	800	42.5
NC1832V	160	200	20	1.1	1.1	112	212	–	-	173	185	1.5	670	1400	1.61
NCF1832V	160	200	20	1.1	1.1	112	212	189	-	173	185	1.5	670	1400	1.45
NC2932V	160	220	36	2	1.1	297	540	–	-	181	198	–	630	1300	4.03
NCF2932V	160	220	36	2	1.1	297	540	205.7	-	181	198	0.8	630	1300	4.05
NC3032V	160	240	60	2.1	1.1	583	970	–	-	185	215	–	600	1200	9.26
NCF3032V	160	240	60	2.1	1.1	583	970	225.1	-	185	215	4	600	1200	9.11
NJ2332VH	160	340	114	4	–	1630	2550	–	196.55	216.7	286	7	400	750	48.8
NC1834V	170	215	22	1.1	1.1	149	272	–	-	185	200	1.5	630	1300	2.02
NCF1834V	170	215	22	1.1	1.1	149	272	204.5	-	185	200	1.5	630	1300	1.85
NC2934V	170	230	36	2	1.1	308	570	–	-	192	208	–	600	1200	4.53
NCF2934V	170	230	36	2	1.1	308	570	216	-	192	208	0.8	600	1200	4.25
NC3034V	170	260	67	2.1	1.1	737	1230	–	-	198	232	–	560	1100	13.7
NCF3034V	170	260	67	2.1	1.1	727	1230	243.2	-	198	232	7	560	1100	12.5
NJ2334VH	170	360	120	3	–	1760	2450	–	203.5	225	294	7	380	700	59.5
NC1836V	180	225	22	1.1	1.1	147	275	–	-	196	211	1.5	600	1200	2.21
NCF1836V	180	225	22	1.1	1.1	147	275	215.2	-	196	211	1.5	600	1200	1.95
NC2936V	180	250	42	2	1.1	391	695	–	-	203	223	–	560	1100	6.41
NCF2936V	180	250	42	2	1.1	391	695	232	-	203	223	1	560	1100	6.25
NC3036V	180	280	74	2.1	2.1	825	1400	–	-	212	249	–	560	1100	17.1
NCF3036V	180	280	74	2.1	2.1	825	1400	260.5	-	212	249	5	560	1100	16.5
NJ2336VH	180	380	126	3	–	1900	2700	–	221.74	243	312	9	360	670	69.6
NC1838V	190	240	24	1.5	1.5	172	320	–	-	208	225	1.8	560	1100	2.72
NCF1838V	190	240	24	1.5	1.5	172	320	229	-	208	225	1.8	560	1100	2.45
NC2938V	190	260	42	2	1.1	440	782	–	-	212	236	–	560	1100	6.81
NCF2938V	190	260	42	2	1.1	440	782	244	-	212	236	1	560	1100	6.55
NC3038V	190	290	75	2.1	2.1	858	1450	–	-	222	258	–	530	1000	17.9
NCF3038V	190	290	75	2.1	2.1	858	1450	270	-	222	258	6	530	1000	17.1
NJ2338VH	190	400	132	4	–	2080	2900	–	224.6	247.6	327	7	400	700	80.2
NC1840V	200	250	24	1.5	1.5	176	335	–	-	216	233	1.8	560	1100	3.41
NCF1840V	200	250	24	1.5	1.5	176	335	237.5	-	216	233	1.8	560	1100	3.41
NC2940V	200	280	48	2.1	1.5	528	965	–	-	227	253	–	530	1000	9.52
NCF2940V	200	280	48	2.1	1.5	528	965	262	-	227	253	3	530	1000	9.15
NC3040V	200	310	82	2.1	2.1	990	1750	–	-	237	276	–	500	950	23.2
NCF3040V	200	310	82	2.1	2.1	990	1750	287.75	-	237	276	6.5	500	950	22.5
NJ2340VH	200	420	138	5	–	2290	3680	–	238.65	266	342	9	320	600	92.3
NC1844V	220	270	24	1.5	1.5	183	365	–	-	237	253	1.8	530	1000	3.35
NCF1844V	220	270	24	1.5	1.5	183	365	258	-	237	253	1.8	530	1000	2.85
NC2944V	220	300	48	2.1	1.5	550	1030	–	-	248	274	–	480	900	10.9
NCF2944V	220	300	48	2.1	1.5	550	1030	283	-	248	274	2.5	480	900	9.93
NC3044V	220	340	90	3	3	1190	2100	–	-	255	299	–	450	850	30.5
NCF3044V	220	340	90	3	3	1190	2100	312.7	-	255	299	7	450	850	29.5
NC1848V	240	300	28	2	2	260	510	–	-	261	281	1.8	480	900	5.31
NCF1848V	240	300	28	2	2	260	510	287	-	261	281	1.8	480	900	4.42
NC2948V	240	320	48	2.1	1.5	583	1140	–	-	268	296	–	450	850	12.1
NCF2948V	240	320	48	2.1	1.5	583	1140	303	-	268	296	2.5	450	850	11.2
NC3048V	240	360	92	3	3	1250	2240	–	-	278	322	–	430	800	33.2
NCF3048V	240	360	92	3	3	1250	2240	335.6	-	278	322	7	430	800	32.1
NC1852V	260	320	28	2	2	270	550	–	-	281	302	1.8	430	800	5.55
NCF1852V	260	320	28	2	2	270	550	307.2	-	281	302	1.8	430	800	4.75
NC2952V	260	360	60	2.1	1.5	737	1430	–	-	294	321	–	400	750	19.3
NCF2952V	260	360	60	2.1	1.5	737	1430	333.7	-	294	321	5	400	750	18.5
NC3052V	260	400	104	4	4	1610	2920	–	-	307	357	–	380	700	47.5
NCF3052V	260	400	104	4	4	1610	2920	373.5	-	307	357	8	380	700	46.5
NC1856V	280	350	33	2	2	330	655	–	-	305	328	2.5	400	750	8.03
NCF1856V	280	350	33	2	2	330	655	334	-	305	328	2.5	400	750	7.12
NC2956V	280	380	60	2.1	1.5	897	1730	–	-	319	346	–	380	700	21.1
NCF2956V	280	380	60	2.1	1.5	897	1730	362.7	-	319	346	4	380	700	20.3
NC3056V	280	420	106	4	4	1680	3100	–	-	324	375	–	360	670	52.5
NCF3056V	280	420	106	4	4	1680	3100	391	-	324	375	9	360	670	50.1
NC1860V	300	380	38	2.1	2.1	418	850	–	-	329	356	3	360	670	11.5
NCF1860V	300	380	38	2.1	2.1	418	850	363	-	329	356	3	360	670	10.2
NC2960V	300	420	72	3	3	1120	2200	–	-	342	375	–	340	630	32.3
NCF2960V	300	420	72	3	3	1120	2200	390.5	-	342	375	5	340	630	31.5
NC1864V	320	400	38	2.1	2.1	440	900	–	-	349	376	3	340	630	11.3
NCF1864V	320	400	38	2.1	2.1	440	900	383	-	349	376	3	340	630	10.5
NC2964V	320	440	72	3	3	1140	2360	–	-	363	395	–	320	600	34
NCF2964V	320	440	72	3	3	1140	2360	411	-	363	395	5	320	600	33
NC1868V	340	420	38	2.1	2.1	446	900	–	-	369	395	3	320	600	12.8
NCF1868V	340	420	38	2.1	2.1	446	900	403	-	369	395	3	320	600	11
NC2968V	340	460	72	3	3	1190	2500	–	-	383	415	–	300	560	36
NCF2968V	340	460	72	3	3	1190	2500	431	-	383	415	5	300	560	35
NC1872V	360	440	38	2.1	2.1	457	1000	–	-	389	416	3	300	560	12.4
NCF1872V	360	440	38	2.1	2.1	457	1000	423.2	-	389	416	3	300	560	12
NC2972V	360	480	72	3	3	1230	2600	–	-	403	436	–	280	530	36.8
NCF2972V	360	480	72	3	3	1230	2600	451.5	-	403	436	5	280	530	36.5
NC1876V	380	480	46	2.1	2.1	627	1290	–	-	416	450	3.5	280	530	19.9
NCF1876V	380	480	46	2.1	2.1	627	1290	458	-	416	450	3.5	280	530	19.5
NC2976V	380	520	82	4	4	1570	3250	–	-	427	473	–	260	500	53.5
NCF2976V	380	520	82	4	4	1570	3250	488	-	427	473	5	260	500	52.5
NC1880V	400	500	46	2.1	2.1	627	1340	–	-	433	467	3.5	260	500	21.2
NCF1880V	400	500	46	2.1	2.1	627	1340	475	-	433	467	3.5	260	500	20.5
NC2980V	400	540	82	4	4	1650	3450	–	-	450	496	–	240	480	55
NCF2980V	400	540	82	4	4	1650	3450	511	-	450	496	5	240	480	54.5
NC1884V	420	520	46	2.1	2.1	660	1430	–	-	457	491	3.5	240	480	21.6
NCF1884V	420	520	46	2.1	2.1	660	1430	499	-	457	491	3.5	240	480	21
NC2984V	420	560	82	4	4	1650	3600	–	-	463	509	–	220	450	57.7
NCF2984V	420	560	82	4	4	1650	3600	524	-	463	509	5	220	450	57
NC1888V	440	540	46	2.1	2.1	670	1460	–	-	474	508	3.5	220	450	22.6
NCF1888V	440	540	46	2.1	2.1	670	1460	516	-	474	508	3.5	220	450	22

Models & Dimensions (2/2)

Bearing Designation	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – r1,2min	Boundary Dimensions (mm) – r3,4min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Other Dimensions (mm) – E	Other Dimensions (mm) – F	Other Dimensions (mm) – d1	Other Dimensions (mm) – D1	Other Dimensions (mm) – S	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	kg
NC2988V	440	600	95	4	4	2010	4400	–	-	502	545	–	200	430	81.1
NCF2988V	440	600	95	4	4	2010	4400	565.5	-	502	545	6	200	430	80.5
NC1892V	460	580	56	3	3	913	1960	–	-	501	543	5	200	430	34.8
NCF1892V	460	580	56	3	3	913	1960	553	-	501	543	5	200	430	34
NC2992V	460	620	95	4	4	2050	4500	–	-	516	558	–	190	400	83.9
NCF2992V	460	620	95	4	4	2050	4500	579	-	516	558	6	190	400	83.5
NCF1896V	480	600	56	3	3	935	2040	573.5	-	521	563	5	190	400	35.5
NCF2996V	480	650	100	5	5	2290	5100	606	-	538	584	–	180	380	98
NCF18/500V	500	620	56	3	3	952	2120	594	-	542	584	5	180	380	36.5
NCF29/500V	500	670	100	5	5	2380	5300	634.5	-	567	612	7	170	360	100
NCF18/530V	530	650	56	3	3	990	2240	624.5	-	572	614	5	170	360	38.5
NCF18/560V	560	680	56	3	3	1020	2360	655	-	603	645	5	160	340	40.5
NCF18/600V	600	730	60	3	3	1050	2550	696	-	644	686	7	150	320	51.5
NCF18/630V	630	780	69	4	4	1250	2900	739	-	680	728	8	140	300	72.5
NCF18/670V	670	820	69	4	4	1300	3150	783	-	724	772	8	130	280	74.2
NCF18/710V	710	870	74	4	4	1540	3750	831	-	766	818	8	120	260	90.2
NCF18/750V	750	920	78	5	5	1760	4300	880	-	810	867	6	110	240	110
NCF18/800V	800	980	82	5	5	1940	4800	936	-	863	922	9	100	220	130
NCF18/850V	850	1030	82	5	5	2050	5200	986	-	911	972	9	95	200	135
NCF18/900V	900	1090	85	5	5	2240	5700	1044	-	966	1029	9	90	190	160
NCF18/950V	950	1150	90	5	5	2420	6300	1103	-	1021	1087	10	80	170	185
NCF18/1000V	1000	1220	100	6	6	2920	7500	1165	-	1073	1148	12	75	160	230
