Deep Groove Ball Bearings for Rolling Mills

Deep groove ball bearings are versatile, low-friction bearings for radial loads and moderate axial loads in both directions. Their simple construction supports high-speed operation and broad use in motors, pumps, gearboxes, appliances and general industrial machinery.

Availability:

Quantity:



Inquire Add to Basket

Model:
6320, 6022, 6224, 6030, 6034, 6036, 6040, 6048, 6056, 60/500

Product Overview

Deep groove ball bearings are versatile, low-friction bearings for radial loads and moderate axial loads in both directions. Their simple construction supports high-speed operation and broad use in motors, pumps, gearboxes, appliances and general industrial machinery.

Available models and complete dimensional data are listed in the following parameter table tab.

Models & Dimensions

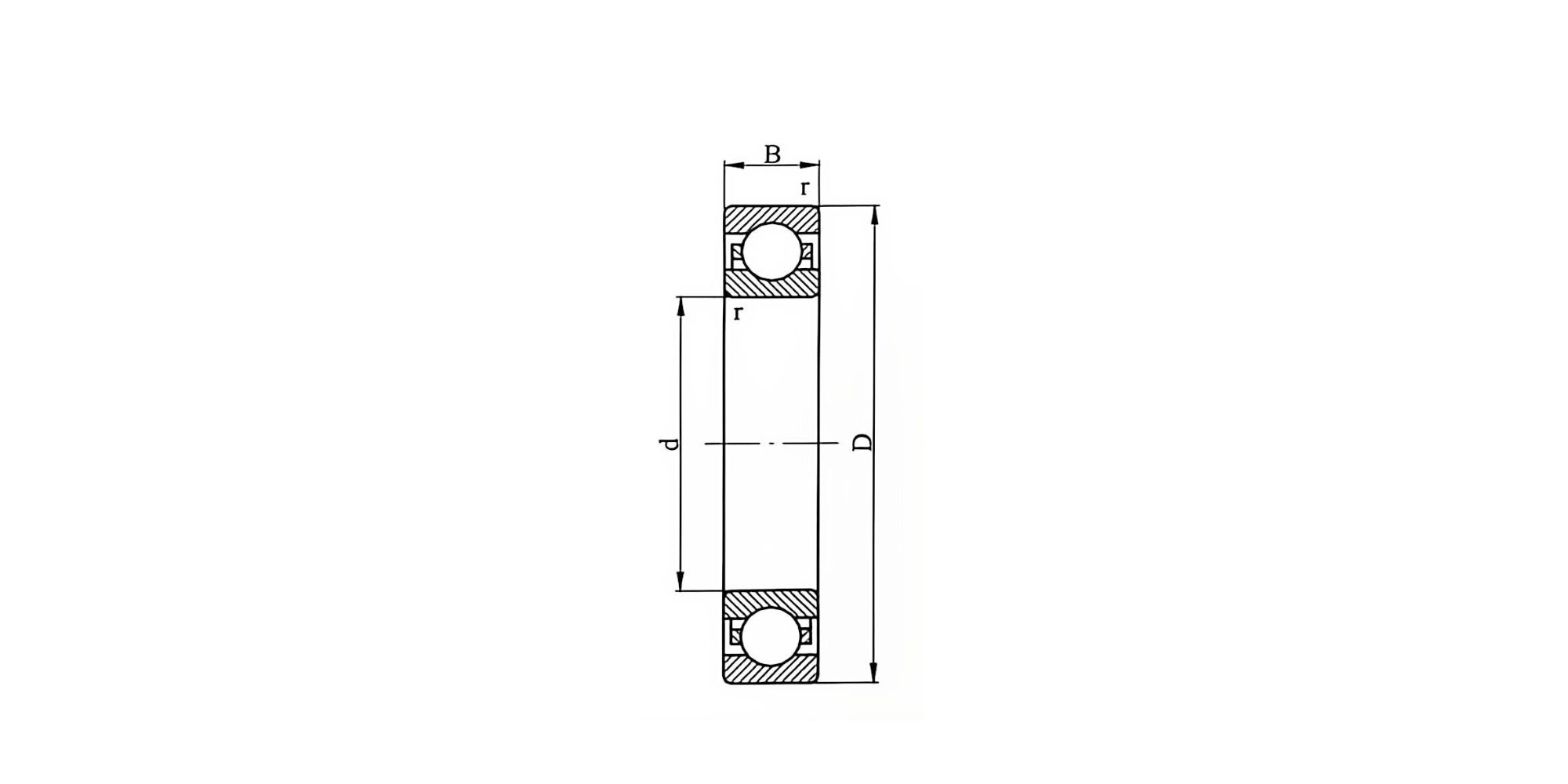

Bearing Designation – New	Bearing Designation – Old	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – rmin	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	kg
6320	320	100	215	47	3	225	183	3200	3700	7
6022	122	110	170	28	2	107	95	3800	4500	2
6024	124	120	180	28	2	111	103	3500	4100	2.1
6224	224	120	215	40	2.1	202	170	2900	3400	5.2
6026	126	130	200	33	2	138	131	3200	3800	3.2
6028	128	140	210	33	2	143	142	3000	3500	3.4
6030	130	150	225	35	2.1	164	164	2800	3200	4.8
6030X1	830	150	230	35	2	166	166	2800	3200	5.5
6032	132	160	240	38	2.1	186	187	2600	3000	5.9
61834	1000834	170	215	22	1.1	78	92	2700	3200	1.9
61934	1000934	170	230	28	2	119	129	2600	3100	3.4
6034	134	170	260	42	2.1	218	224	2400	2800	7.9
6034YA1	134K	170	265	42	2.1	218	218	2400	2800	8.5
6034X1	134Y	170	270	42	2.1	220	220	2400	2800	8.5
61836	1000836	180	225	22	1.1	79	95	2600	3000	2
61936	1000936	180	250	33	2	143	155	2400	2900	5.05
61936X1	736	180	259.5	52	2.1	205	155	2400	2900	8.6
-	736K	180	259.5	33	2	191	146	2400	2900	6
62936	136Y	180	260	42	2.1	117	145	2300	2700	7
6036	136	180	280	46	2.1	246	259	2300	2700	10.5
61838	1000838	190	240	24	1.5	95	114	2400	2900	2.6
61938	1000938	190	260	33	2	147	165	2300	2700	5.25
61938X1	738	190	269.5	33	2	210	170	2300	2700	6.3
6038X1	-	190	289.5	46	2.1	256	280	2100	2500	11
6038	138	190	290	46	2.1	256	280	2100	2500	11
61840	1000840	200	250	24	1.5	96	119	2300	2700	2.7
61940X3	-	200	269.5	51	2.1	135	204	2200	2600	7.2
61940X1	740	200	279.5	38	2.1	204	218	2200	2600	7
61940	1000940	200	280	38	2.1	204	218	2200	2600	7.1
-	840	200	289.5	38	2.1	204	218	2200	2600	9
6040	140	200	310	51	2.1	283	316	2000	2400	11.9
61844	1000844	220	270	24	1.5	99	127	2100	2400	3
61944	1000944	220	300	38	2.1	208	234	2000	2300	7.7
63944	944	220	300	60	2.1	220	248	2000	2300	13
61944X1	744	220	309.5	38	3	208	234	2000	2300	9.4
6044	144	220	340	56	3	313	376	1800	2200	18.5
61848	1000848	240	300	28	2	128	165	1900	2200	4.6
61948	1000948	240	320	38	2.1	221	264	1800	2100	8.3
6048X1	748	240	359.5	56	3	324	403	1700	2000	21
6048	148	240	360	56	3	324	403	1700	2000	21
-	148K	240	369.5	56	3	324	403	1700	2000	23
61852	1000852	260	320	28	2	138	181	1700	2000	5
61952	1000952	260	360	46	2.1	289	364	1600	1900	14.5
61952X1-2	952	260	369.5	46	2.1	204	255	1600	1900	16.5
62952X1	752	260	369.5	60	4	310	288	1500	1800	21.6
61952X1	752K	260	370	46	2.1	310	288	1500	1800	16.5
62952X1-2	852	260	379.5	60	4	204	255	1500	1800	23.9
6052	152	260	400	65	4	378	488	1500	1800	29.5
62954X1	754	270	399.5	60	2.1	320	300	1500	1800	25
61856	1000856	280	350	33	2	178	230	1600	1900	7.4
62956X3	956	280	375	65	2.1	209	272	1500	1800	21.1
61956	1000956	280	380	46	2.1	209	222	1500	1800	15
61956X1-2	756K	280	389.5	46	2.1	209	272	1500	1800	17.2
-	756YS	280	389.5	65	4	209	272	1500	1800	24.8
61956X1-1	756	280	390	46	4	209	272	1500	1800	18
6056	156	280	420	65	4	423	546	1400	1600	36
61860	1000860	300	380	38	2.1	211	273	1500	1700	10.5
61960X1	-	300	419.5	56	3	359	488	1400	1600	24.4
61960	1000960	300	420	56	4	359	488	1400	1600	24.5
61960X2	-	300	420	65	3	359	488	1400	1600	27.9
6060	160	300	460	74	4	462	624	1300	1500	43.8
16060X3	-	300	479	60	4	475	504	1200	1400	45
61864	1000864	320	400	38	2.1	218	296	1400	1600	10.9
61964	1000964	320	440	56	3	371	527	1300	1500	25.5
62964X2	764	320	440	65	3	470	530	1300	1500	31
61964X3	864	320	459.5	60	4	342	544	1400	1600	34
6064	164	320	480	74	4	481	689	1200	1400	49.4
61868	1000868	340	420	38	2.1	221	307	1300	1500	11.5
61968	1000968	340	460	56	3	381	559	1200	1400	26.2
6068	168	340	520	82	5	546	793	1100	1300	61.8
61872	1000872	360	440	38	2.1	243	335	1200	1400	12.3
61972	1000972	360	480	56	3	390	591	1100	1300	27.5
6072	172	360	540	82	5	572	871	1100	1200	64.7
61876	1000876	380	480	46	2.1	300	442	1100	1300	19.7
61976	1000976	380	520	65	4	423	663	1100	1200	39.8
6076	176	380	560	82	5	591	943	990	1200	67.5
61880	1000880	400	500	46	2.1	306	455	1100	1200	20.6
61980	1000980	400	540	65	4	436	696	990	1200	41.6
6080	180	400	600	90	5	663	1073	930	1100	87.6
61884	1000884	420	520	46	2.1	338	527	1000	1200	21.6
61984	1000984	420	560	65	4	442	728	940	1100	43.4
6084	184	420	620	90	5	689	1164	880	1000	91.1
61888	1000888	440	540	46	2.1	343	546	950	1100	22.5
61988	1000988	440	600	74	4	475	800	890	1000	60
6088	188	440	650	94	6	550	960	750	900	107
61892	1000892	460	580	56	3	403	715	800	1000	34.3
61992	1000992	460	620	74	4	405	720	800	950	62.6
6092	192	460	680	100	6	605	1080	710	850	123
61896	1000896	480	600	56	3	410	748	800	950	35.4
61996	1000996	480	650	78	5	450	815	750	900	73.5
6096	196	480	700	100	6	605	1090	710	850	127
618/500	10008/500	500	620	56	3	416	780	750	900	40.5
619/500	10009/500	500	670	78	5	460	865	710	850	82
60/500	1/500	500	720	100	6	630	1170	670	800	131
618/530	10008/530	530	650	56	3	423	813	710	850	39.8
619/530	10009/530	530	710	82	5	455	870	670	800	89.8
60/530	1/530	530	780	112	6	680	1300	600	750	184
618/560	10008/560	560	680	56	3	429	845	670	800	41.5
619/560	10009/560	560	750	85	5	525	1040	600	750	105
60/560	1/560	560	820	115	6	735	1500	560	670	210
618/600	10008/600	600	730	60	3	462	956	600	710	50.9
619/600	10009/600	600	800	90	5	550	1160	560	670	120
60/600	1/600	600	870	118	6	790	1640	530	630	236
618/630	10008/630	630	780	69	4	546	1157	560	670	73.0
619/630	10009/630	630	850	100	6	625	1350	530	630	163
60/630	1/630	630	920	128	7.5	819	1760	480	600	285
618/670	10008/670	670	820	69	4	566	1255	500	630	83.5
619/670	10009/670	670	900	103	6	675	1460	480	560	185
60/670	1/670	670	980	136	7.5	904	2040	450	530	351
618/710	10008/710	710	870	74	4	624	1430	480	560	92.6
619/710	10009/710	710	950	106	6	715	1640	450	530	220
60/710	1/710	710	1030	140	7.5	956	2200	480	560	375
618/750	10008/750	750	920	78	5	685	1625	500	600	110
619/750	10009/750	750	1000	112	5	761	1800	480	560	255
60/750	1/750	750	1090	150	6	995	2360	450	530	485
618/800	10008/800	800	980	82	4	727	1781	450	530	130
619/800	10009/800	800	1060	115	5	832	2040	430	500	275
60/800	1/800	800	1150	155	6	1010	2550	400	480	535
618/850	10008/850	850	1030	82	4	727	1859	430	500	140
619/850	10009/850	850	1120	118	6	832	2160	400	480	310
60/850	1/850	850	1220	165	7.5	1120	2900	360	430	630
618/900	10008/900	900	1090	85	5	803	2080	380	450	160
619/900	10009/900	900	1180	122	6	852	2280	360	430	350
60/900	1/900	900	1280	170	7.5	1140	3100	340	400	720

rolling mill bearings Deep Groove Ball Bearings for Rolling Mills steel mill bearings 6320 6022 6024
