6307-2RS1 Sealed Deep Groove Ball Bearing

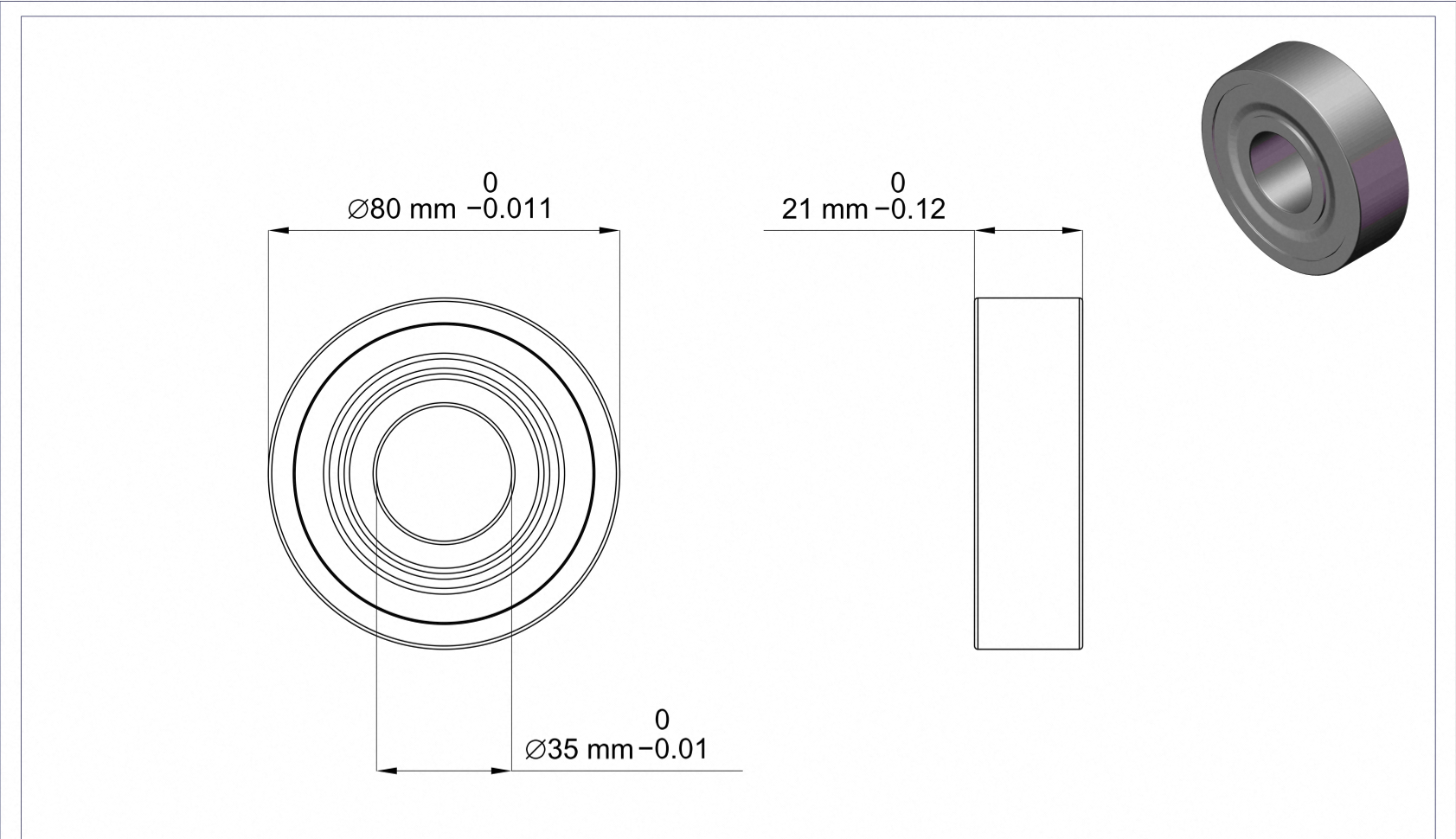

BWK 6307-2RS1 sealed single-row deep groove ball bearing, 35 mm bore x 80 mm outside diameter x 21 mm width.

Availability:

Quantity:



Inquire Add to Basket

Model:
6307-2RS1
Brand:
BWK
Code:
BWK-6307-2RS1

DESCRIPTION

Product Overview

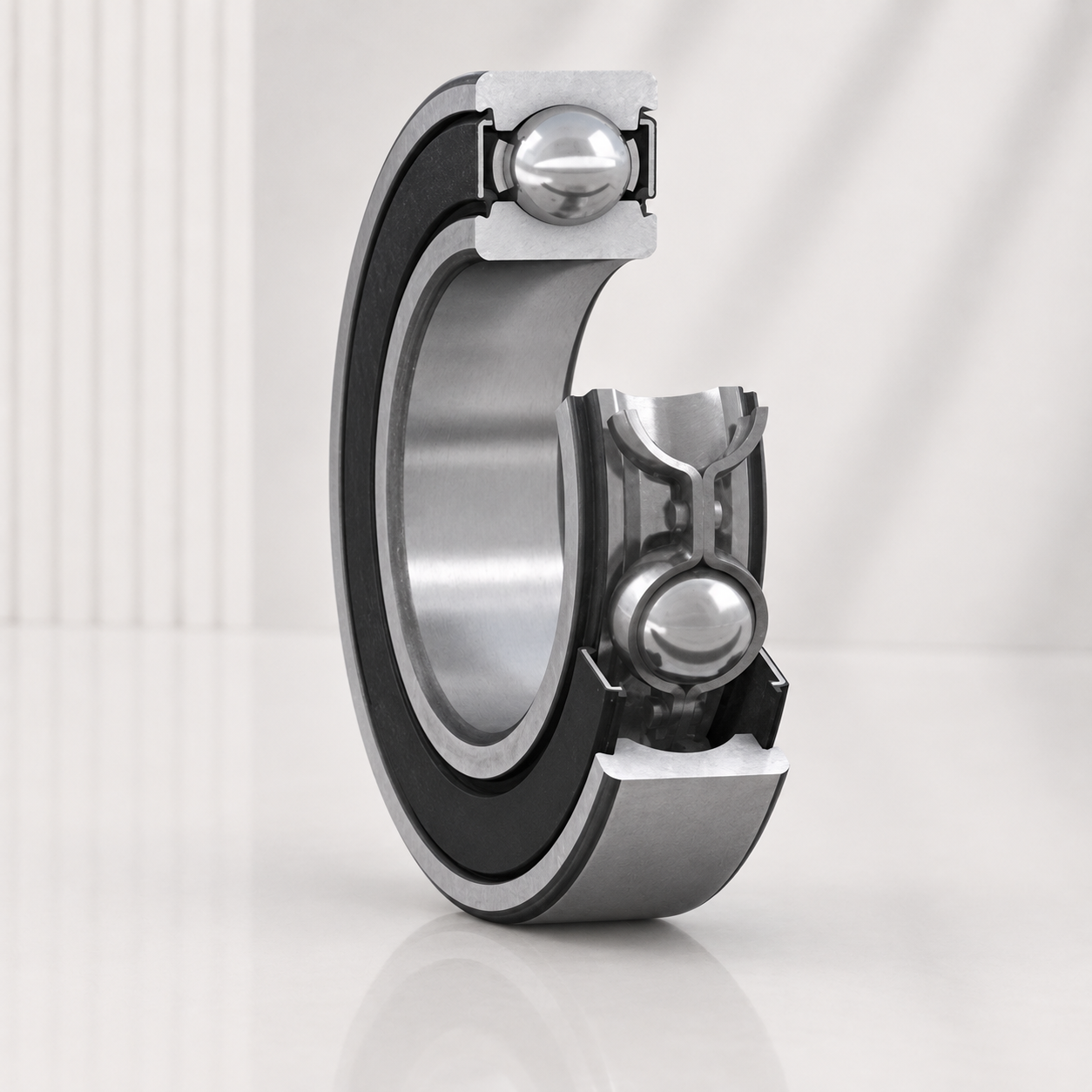

6307-2RS1 is a sealed single-row deep groove ball bearing with 35 mm bore, 80 mm outside diameter and 21 mm width. Its double-contact seal arrangement helps retain lubricant and reduce contamination in general industrial service.

6307-2RS1

Technical Data

Model	6307-2RS1
Bearing type	Single-row deep groove ball bearing
Seal type	Sealed on both sides
Bore diameter	35 mm
Outside diameter	80 mm
Width	21 mm
Ring and ball material	Chrome steel
Dynamic radial load	7891 lbf
Static radial load	4271 lbf
Maximum speed	6,000 rpm

Key Features

Sealed on both sides for lubricant retention
Chrome steel rings and balls
Supports radial loads and moderate axial loads
Low-friction design for reliable rotation

Applications

Electric motors and pumps
Industrial machinery
Conveyors and gearboxes
Agricultural and automation equipment

Selection Notes

Confirm shaft and housing fits, load, speed, lubrication and operating temperature before ordering.
