6302-2RSH Sealed Deep Groove Ball Bearing

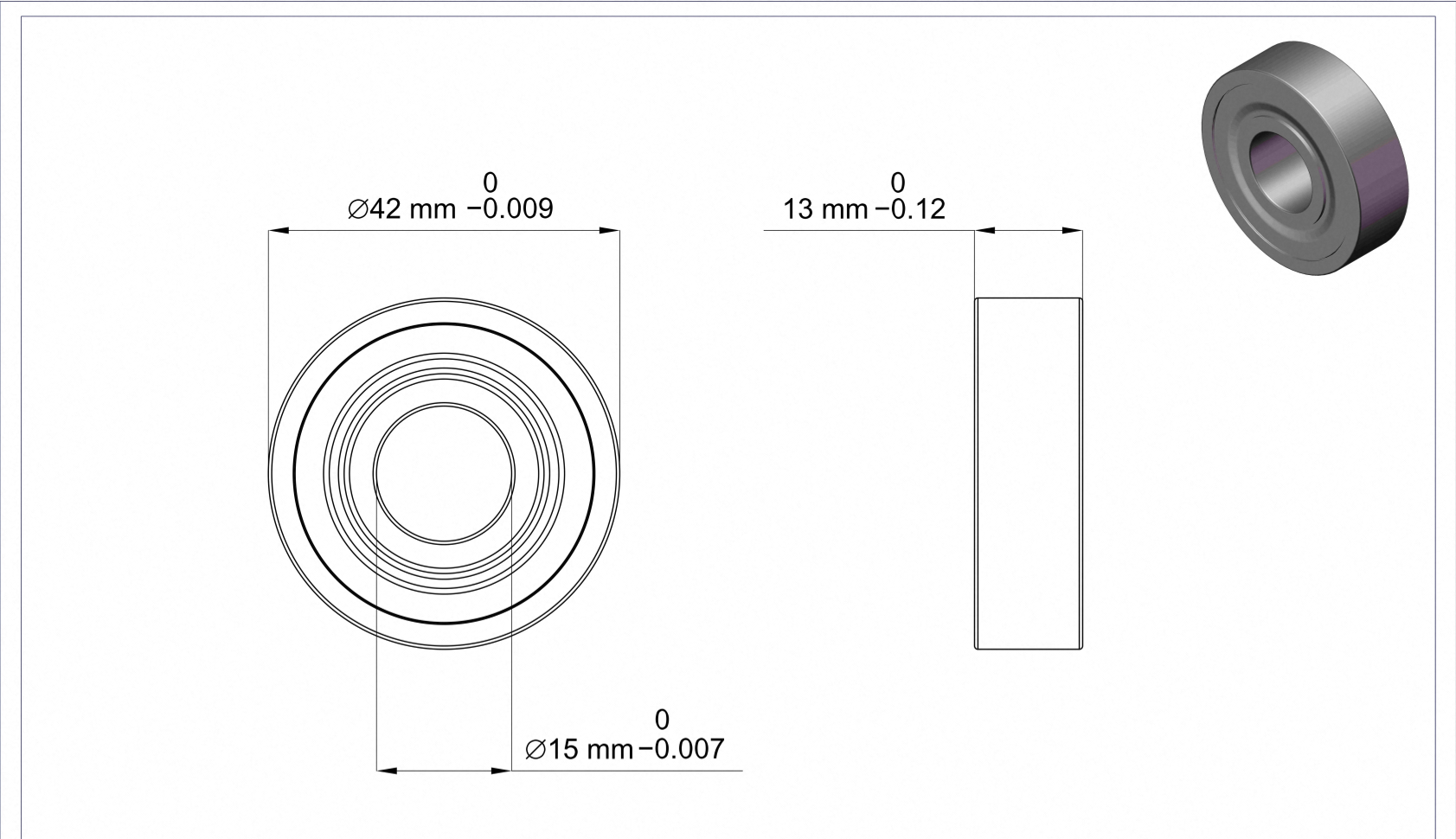

BWK 6302-2RSH sealed single-row deep groove ball bearing, 15 mm bore x 42 mm outside diameter x 13 mm width.

Availability:

Quantity:



Inquire Add to Basket

Model:
6302-2RSH
Brand:
BWK
Code:
BWK-6302-2RSH

DESCRIPTION

Product Overview

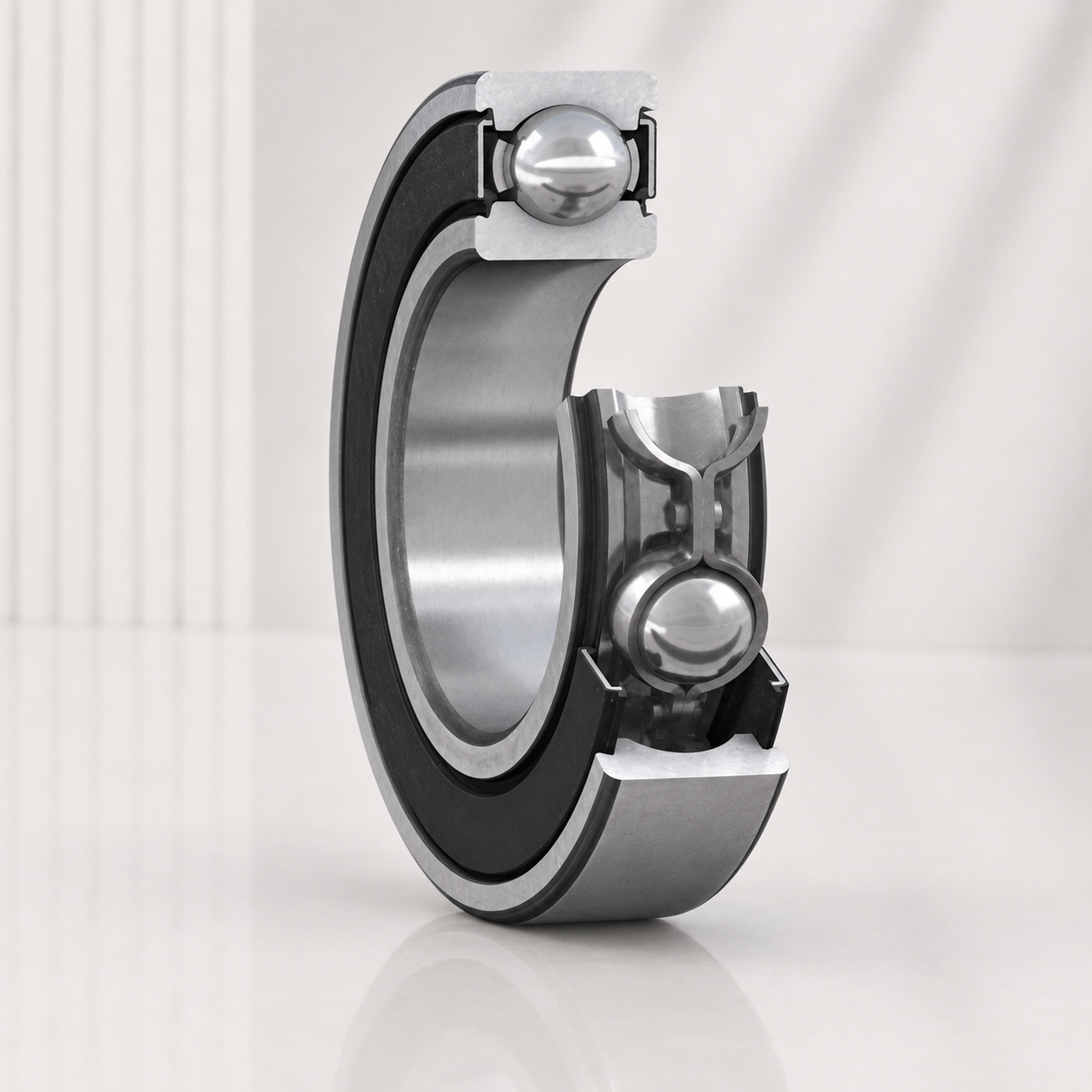

6302-2RSH is a sealed single-row deep groove ball bearing with 15 mm bore, 42 mm outside diameter and 13 mm width. Its double-contact seal arrangement helps retain lubricant and reduce contamination in general industrial service.

6302-2RSH

Technical Data

Model	6302-2RSH
Bearing type	Single-row deep groove ball bearing
Seal type	Sealed on both sides
Bore diameter	15 mm
Outside diameter	42 mm
Width	13 mm
Ring and ball material	Chrome steel
Dynamic radial load	2675 lbf
Static radial load	1214 lbf
Maximum speed	12,000 rpm

Key Features

Sealed on both sides for lubricant retention
Chrome steel rings and balls
Supports radial loads and moderate axial loads
Low-friction design for reliable rotation

Applications

Electric motors and pumps
Industrial machinery
Conveyors and gearboxes
Agricultural and automation equipment

Selection Notes

Confirm shaft and housing fits, load, speed, lubrication and operating temperature before ordering.
