6701
BWK
BWK-6701

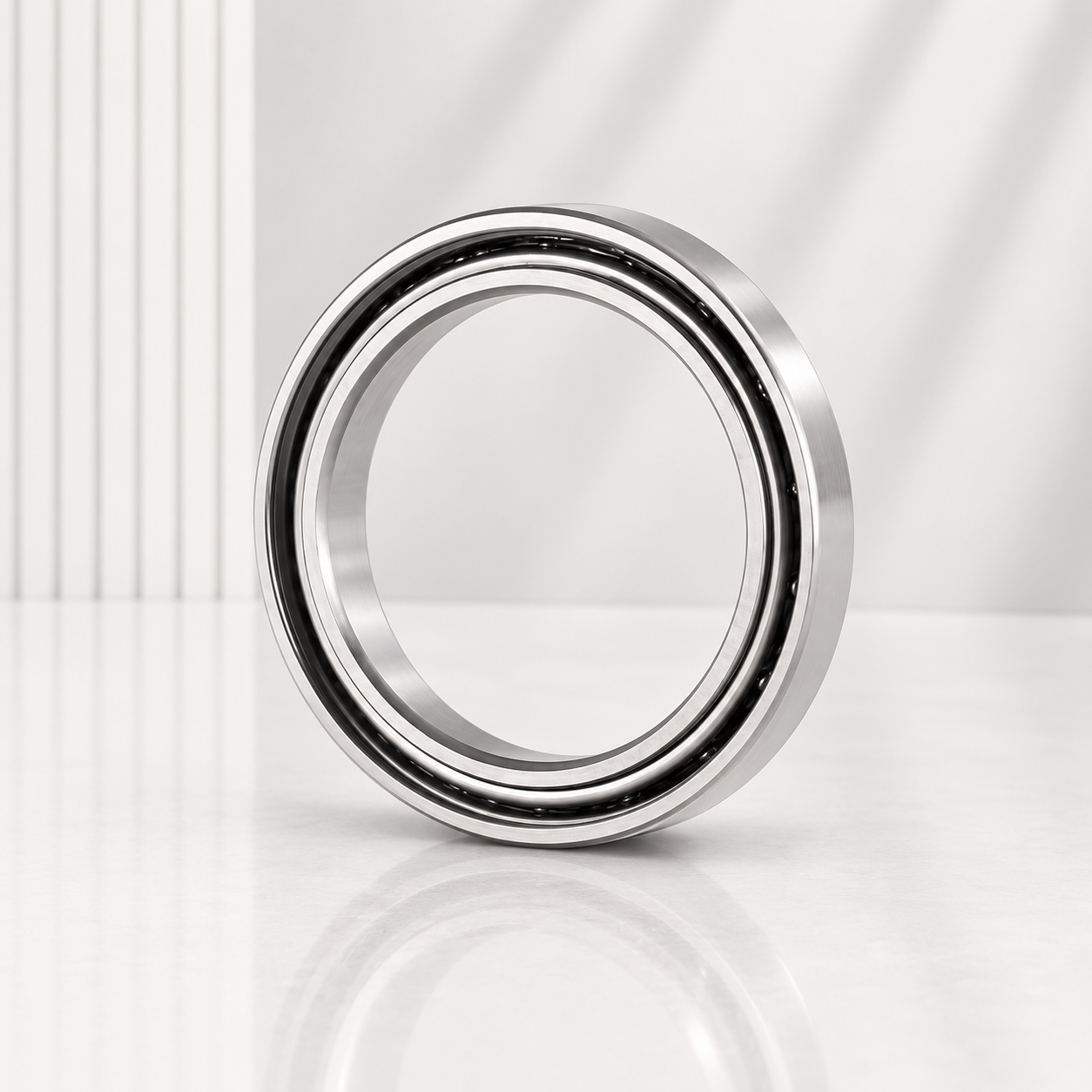

6701 thin section ball bearing for reliable operation in industrial machinery. The design combines compact installation with stable load support.
| Model | 6701 |
|---|---|
| Bearing type | Thin Section Ball Bearing |

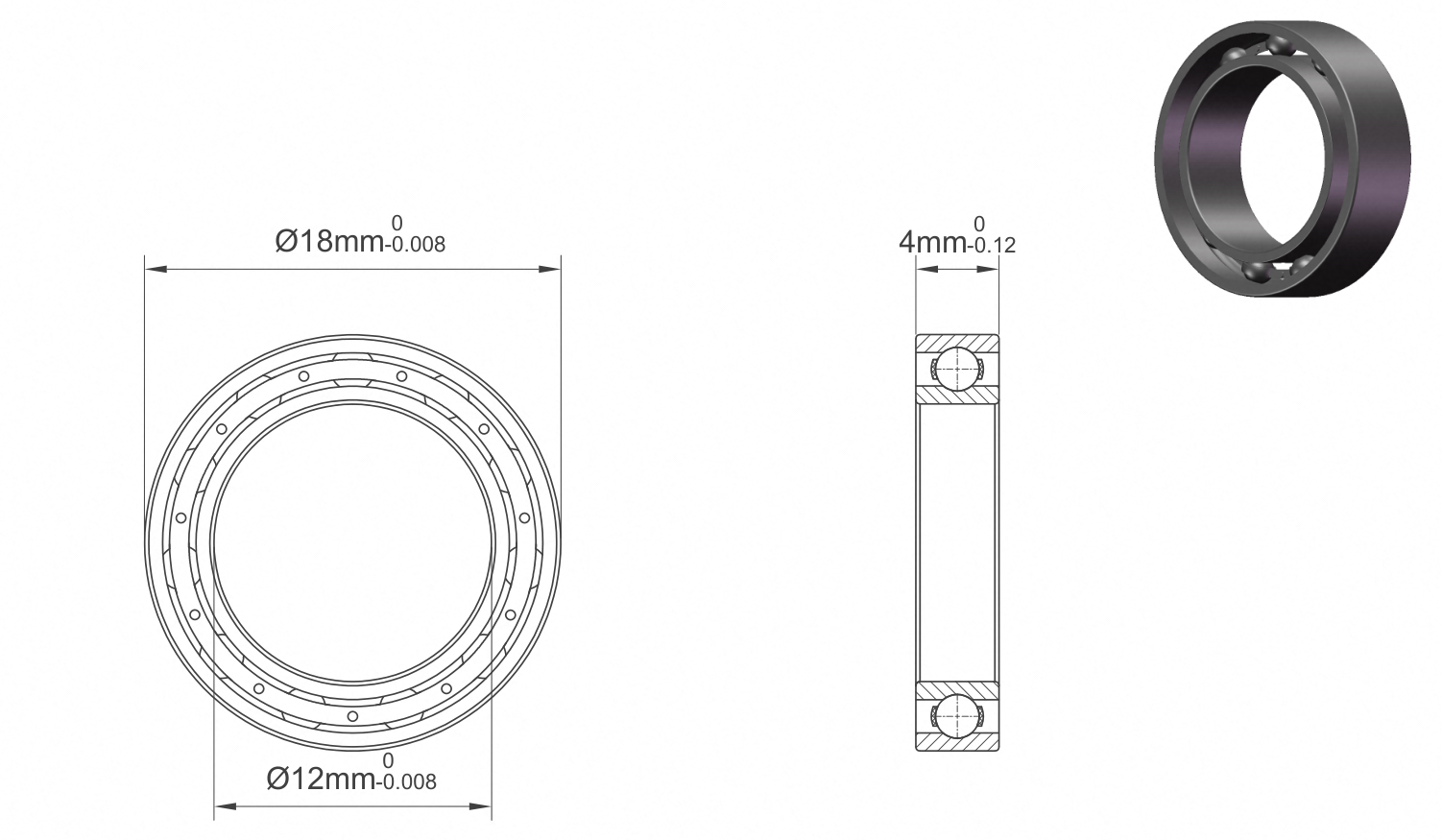

| Bore diameter | 12 mm |
| Outside diameter | 18 mm |
| Width | 4 mm |
| Seal type | Open |
| Material | Chrome steel |
| Dynamic radial load | 209 lbf |
| Static radial load | 120 lbf |
| Maximum speed | 15,000 rpm |
Compact cross-section for space-limited designs
Supports radial loads and moderate axial loads
Low-friction deep-groove construction
Open design supports application-specific lubrication
Precision instruments
Electric motors
Robotics and automation
Compact industrial equipment
Confirm dimensions, load, speed, lubrication, operating temperature and installation requirements before ordering.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
