6305-2RS1 Sealed Deep Groove Ball Bearing

BWK 6305-2RS1 sealed single-row deep groove ball bearing, 25 mm bore x 62 mm outside diameter x 17 mm width.

Availability:

Quantity:



Inquire Add to Basket

Model:
6305-2RS1
Brand:
BWK
Code:
BWK-6305-2RS1

DESCRIPTION

Product Overview

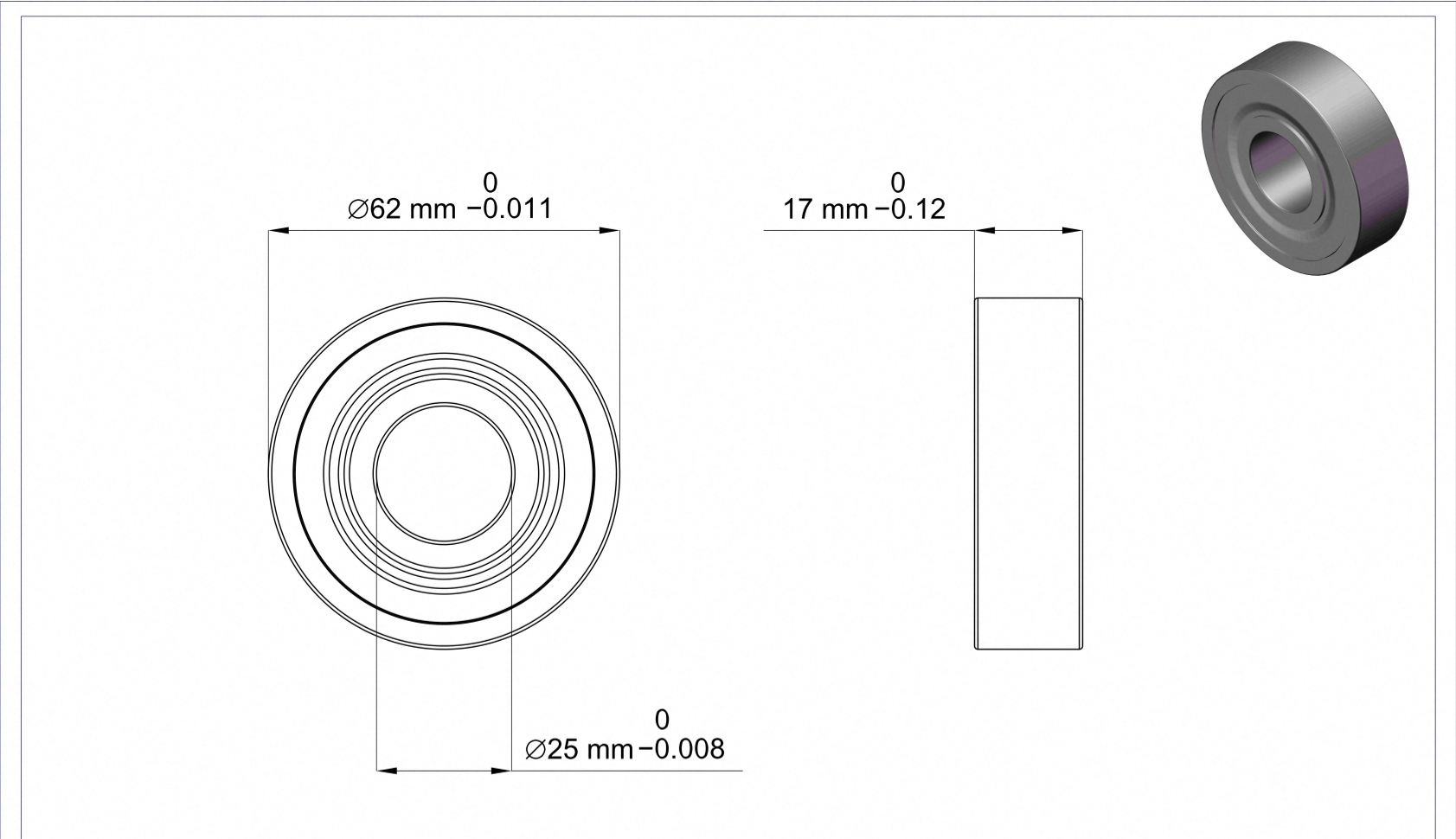

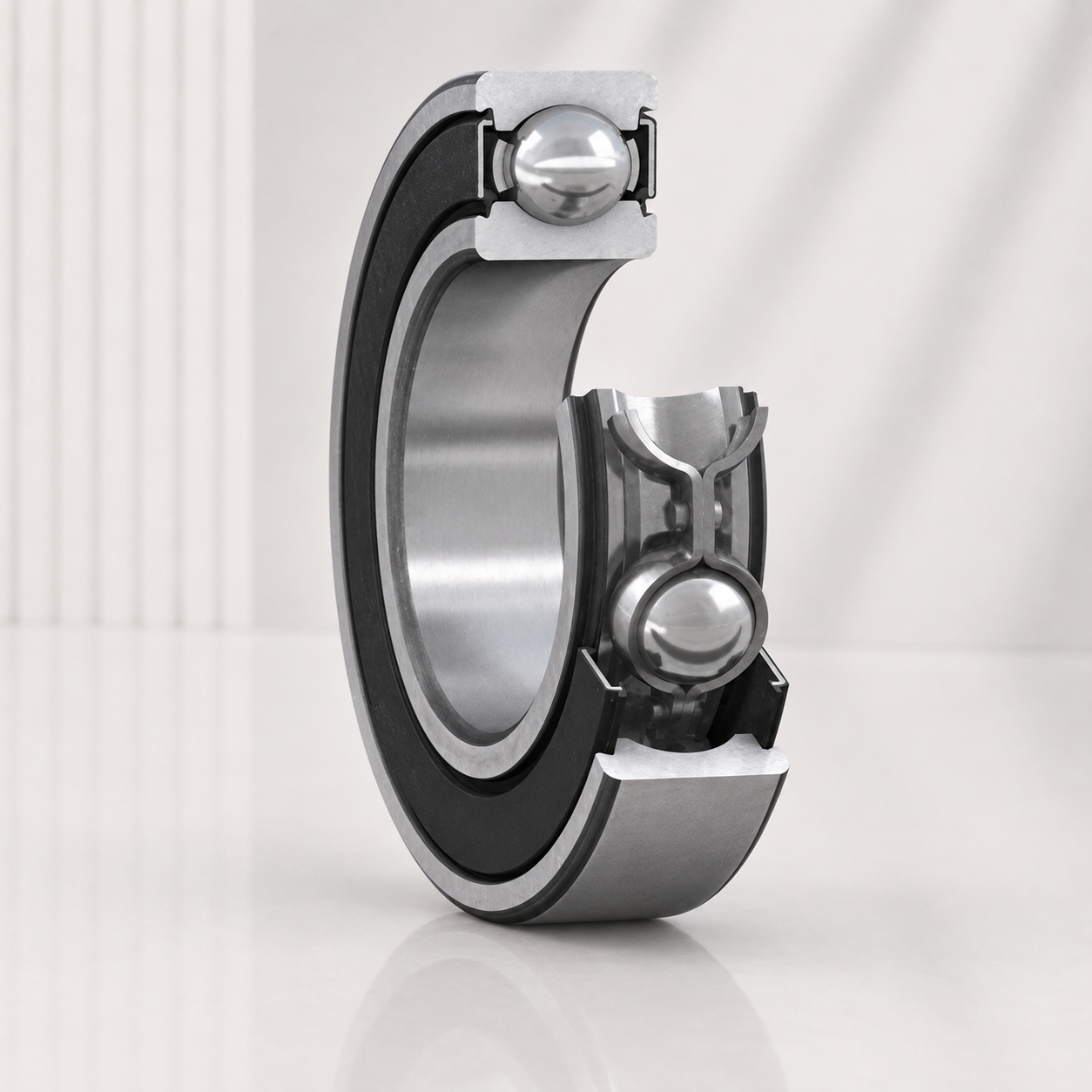

6305-2RS1 is a sealed single-row deep groove ball bearing with 25 mm bore, 62 mm outside diameter and 17 mm width. Its double-contact seal arrangement helps retain lubricant and reduce contamination in general industrial service.

6305-2RS1

Technical Data

Model	6305-2RS1
Bearing type	Single-row deep groove ball bearing
Seal type	Sealed on both sides
Bore diameter	25 mm
Outside diameter	62 mm
Width	17 mm
Ring and ball material	Chrome steel
Dynamic radial load	5261 lbf
Static radial load	2608 lbf
Maximum speed	7,500 rpm

Key Features

Sealed on both sides for lubricant retention
Chrome steel rings and balls
Supports radial loads and moderate axial loads
Low-friction design for reliable rotation

Applications

Electric motors and pumps
Industrial machinery
Conveyors and gearboxes
Agricultural and automation equipment

Selection Notes

Confirm shaft and housing fits, load, speed, lubrication and operating temperature before ordering.
