6308-2RS1 Sealed Deep Groove Ball Bearing

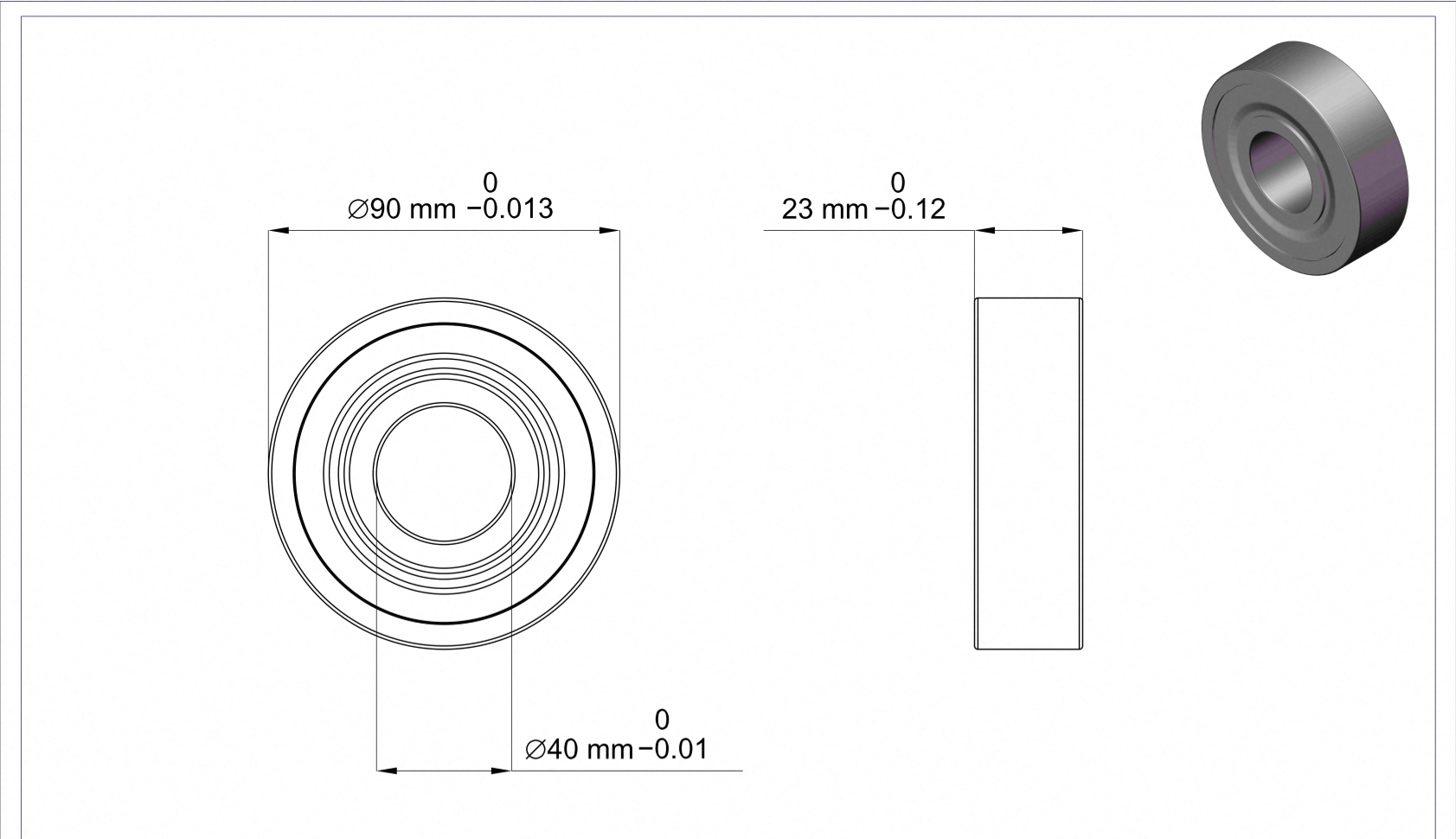

BWK 6308-2RS1 sealed single-row deep groove ball bearing, 40 mm bore x 90 mm outside diameter x 23 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • 6308-2RS1

  • BWK

  • BWK-6308-2RS1

DESCRIPTION

Product Overview

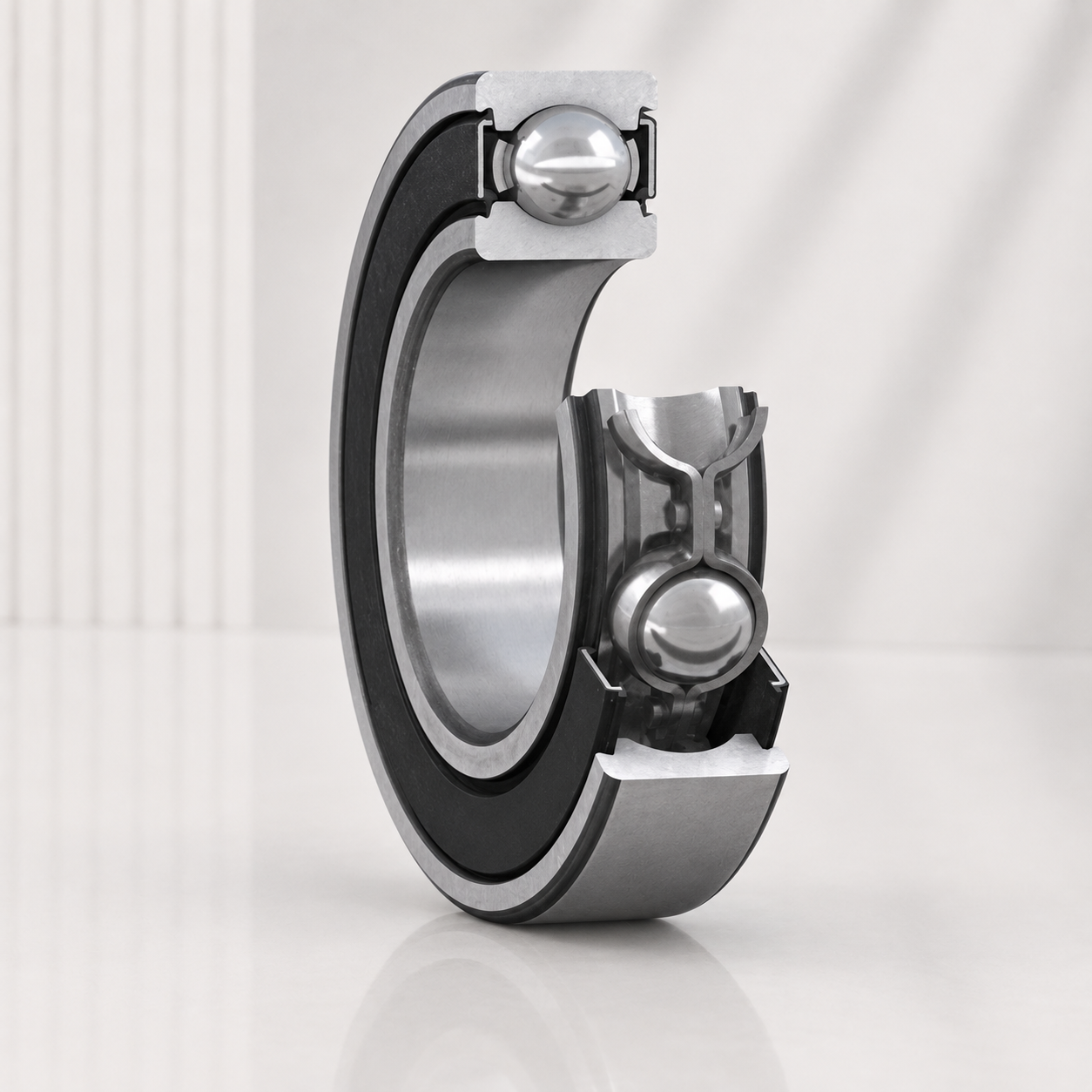

6308-2RS1 is a sealed single-row deep groove ball bearing with 40 mm bore, 90 mm outside diameter and 23 mm width. Its double-contact seal arrangement helps retain lubricant and reduce contamination in general industrial service.

6308-2RS1

Technical Data

Model 6308-2RS1
Bearing type Single-row deep groove ball bearing
Seal type Sealed on both sides
Bore diameter 40 mm
Outside diameter 90 mm
Width 23 mm
Ring and ball material Chrome steel
Dynamic radial load 9509 lbf
Static radial load 5395 lbf
Maximum speed 5,000 rpm

Key Features

  • Sealed on both sides for lubricant retention

  • Chrome steel rings and balls

  • Supports radial loads and moderate axial loads

  • Low-friction design for reliable rotation

Applications

  • Electric motors and pumps

  • Industrial machinery

  • Conveyors and gearboxes

  • Agricultural and automation equipment

Selection Notes

Confirm shaft and housing fits, load, speed, lubrication and operating temperature before ordering.
