6309-2RS1 Sealed Deep Groove Ball Bearing

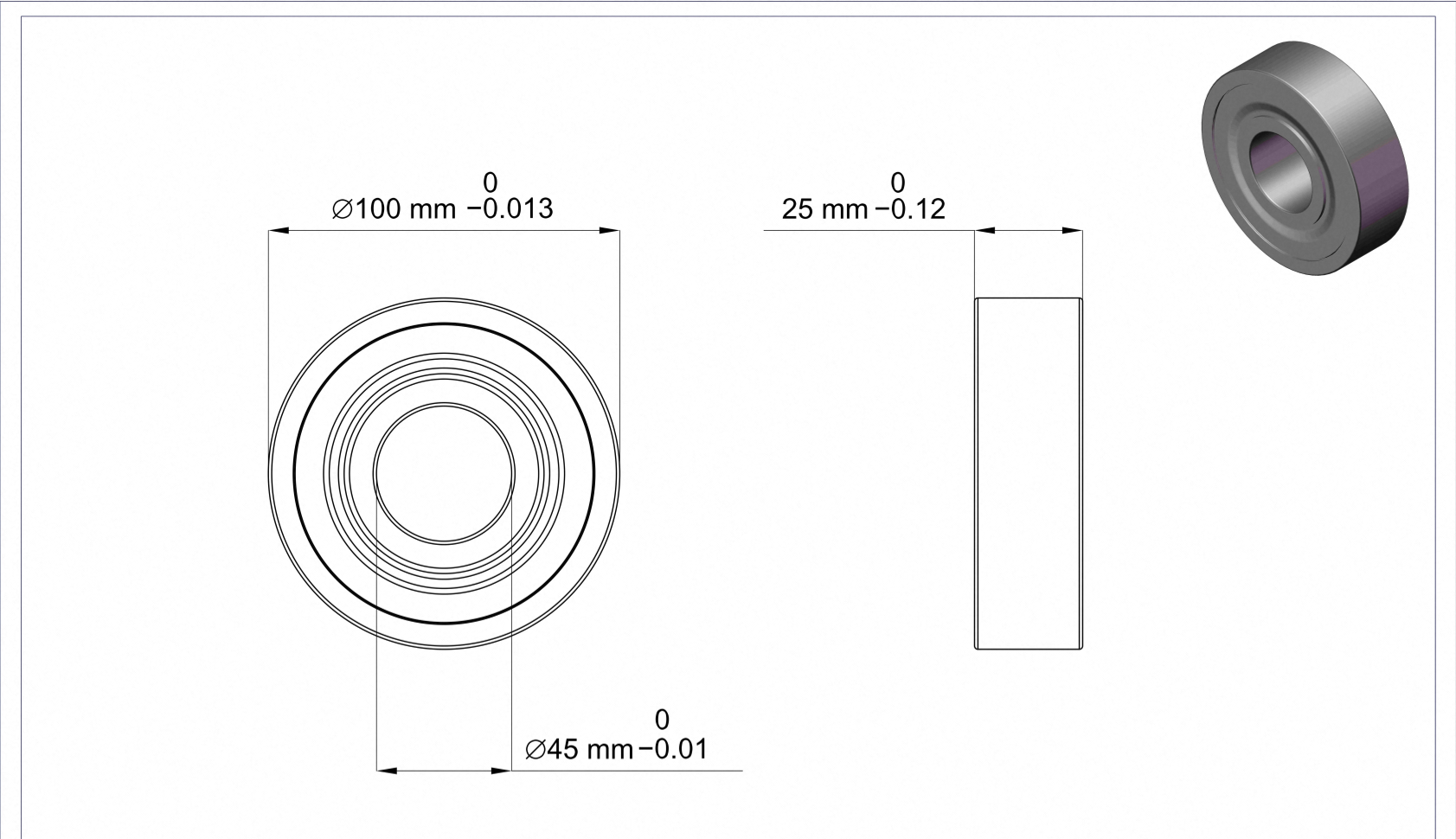

BWK 6309-2RS1 sealed single-row deep groove ball bearing, 45 mm bore x 100 mm outside diameter x 25 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • 6309-2RS1

  • BWK

  • BWK-6309-2RS1

DESCRIPTION

Product Overview

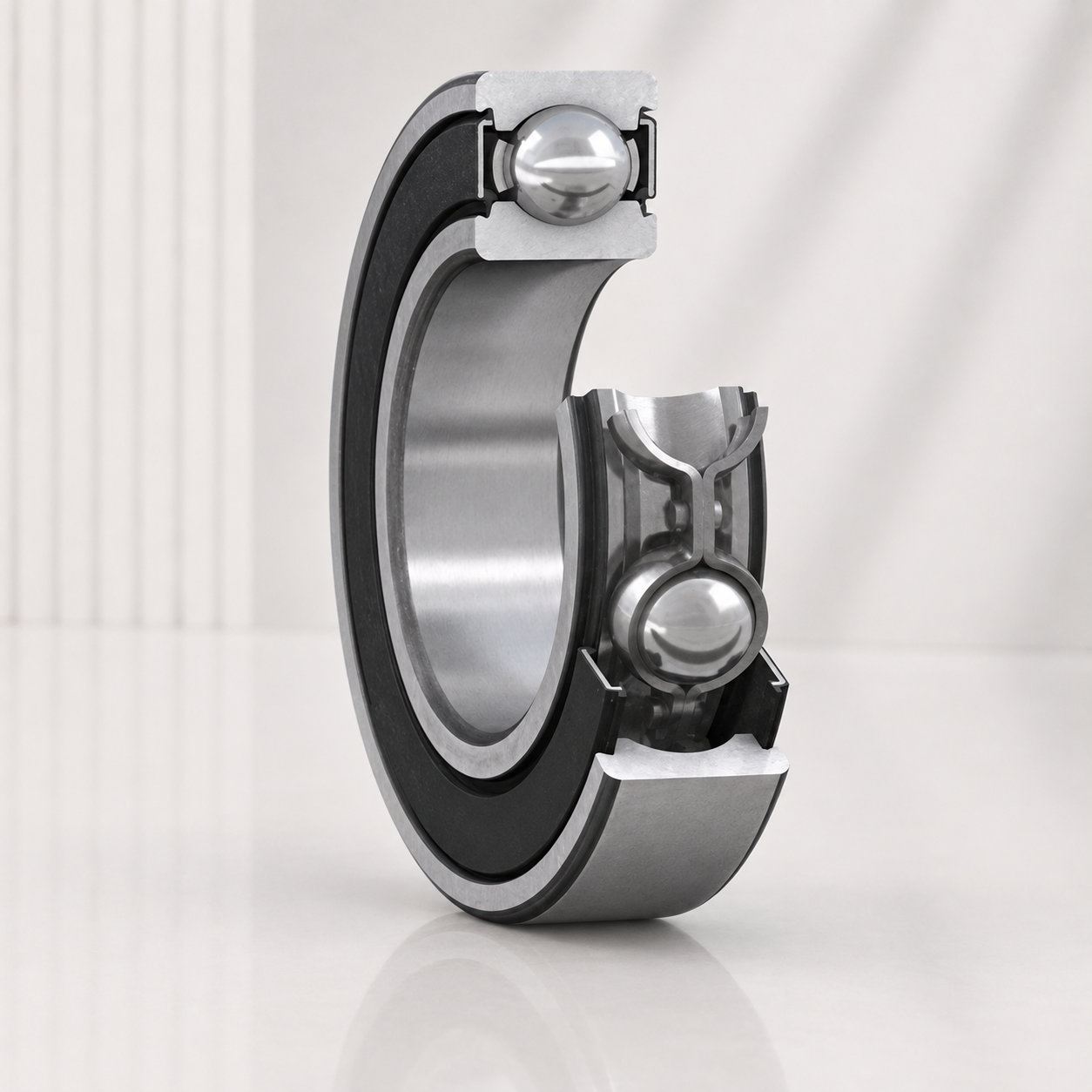

6309-2RS1 is a sealed single-row deep groove ball bearing with 45 mm bore, 100 mm outside diameter and 25 mm width. Its double-contact seal arrangement helps retain lubricant and reduce contamination in general industrial service.

6309-2RS1

Technical Data

Model 6309-2RS1
Bearing type Single-row deep groove ball bearing
Seal type Sealed on both sides
Bore diameter 45 mm
Outside diameter 100 mm
Width 25 mm
Ring and ball material Chrome steel
Dynamic radial load 12432 lbf
Static radial load 7081 lbf
Maximum speed 4,500 rpm

Key Features

  • Sealed on both sides for lubricant retention

  • Chrome steel rings and balls

  • Supports radial loads and moderate axial loads

  • Low-friction design for reliable rotation

Applications

  • Electric motors and pumps

  • Industrial machinery

  • Conveyors and gearboxes

  • Agricultural and automation equipment

Selection Notes

Confirm shaft and housing fits, load, speed, lubrication and operating temperature before ordering.
