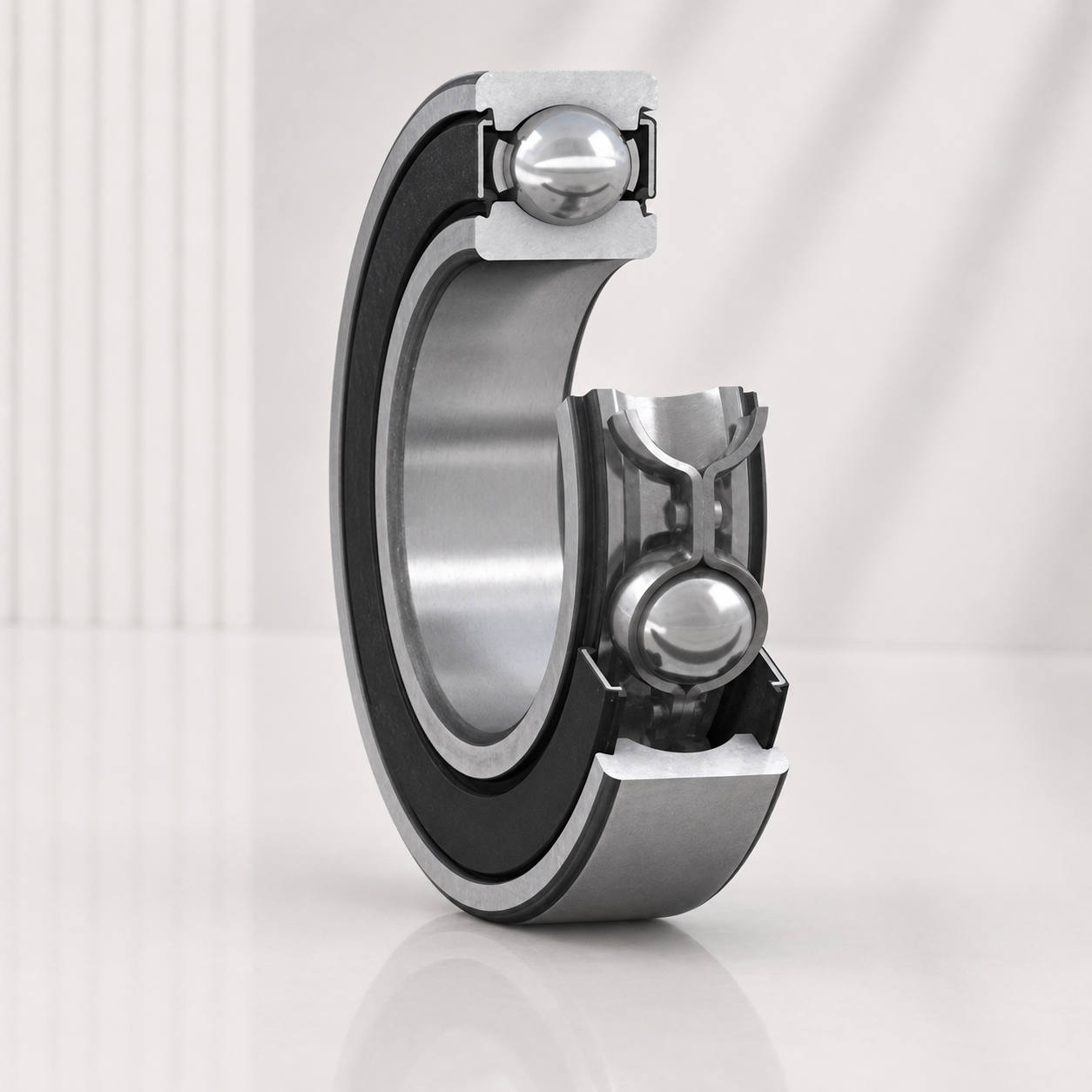

6303-2RSH Sealed Deep Groove Ball Bearing

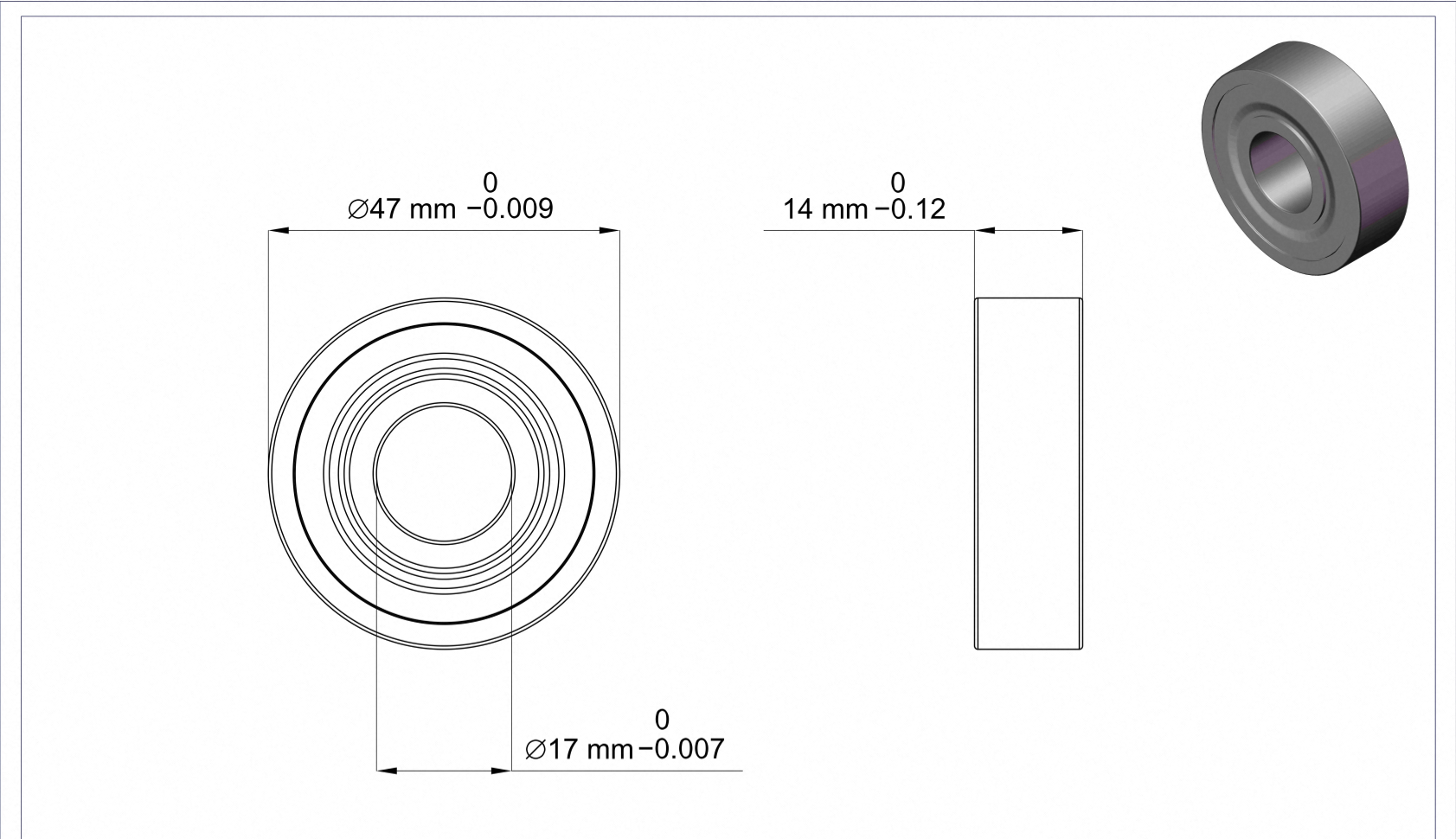

BWK 6303-2RSH sealed single-row deep groove ball bearing, 17 mm bore x 47 mm outside diameter x 14 mm width.

Availability:

Quantity:



Inquire Add to Basket

Model:
6303-2RSH
Brand:
BWK
Code:
BWK-6303-2RSH

DESCRIPTION

Product Overview

6303-2RSH is a sealed single-row deep groove ball bearing with 17 mm bore, 47 mm outside diameter and 14 mm width. Its double-contact seal arrangement helps retain lubricant and reduce contamination in general industrial service.

Technical Data

Model	6303-2RSH
Bearing type	Single-row deep groove ball bearing
Seal type	Sealed on both sides
Bore diameter	17 mm
Outside diameter	47 mm
Width	14 mm
Ring and ball material	Chrome steel
Dynamic radial load	3215 lbf
Static radial load	1472 lbf
Maximum speed	11,000 rpm

Key Features

Sealed on both sides for lubricant retention
Chrome steel rings and balls
Supports radial loads and moderate axial loads
Low-friction design for reliable rotation

Applications

Electric motors and pumps
Industrial machinery
Conveyors and gearboxes
Agricultural and automation equipment

Selection Notes

Confirm shaft and housing fits, load, speed, lubrication and operating temperature before ordering.
