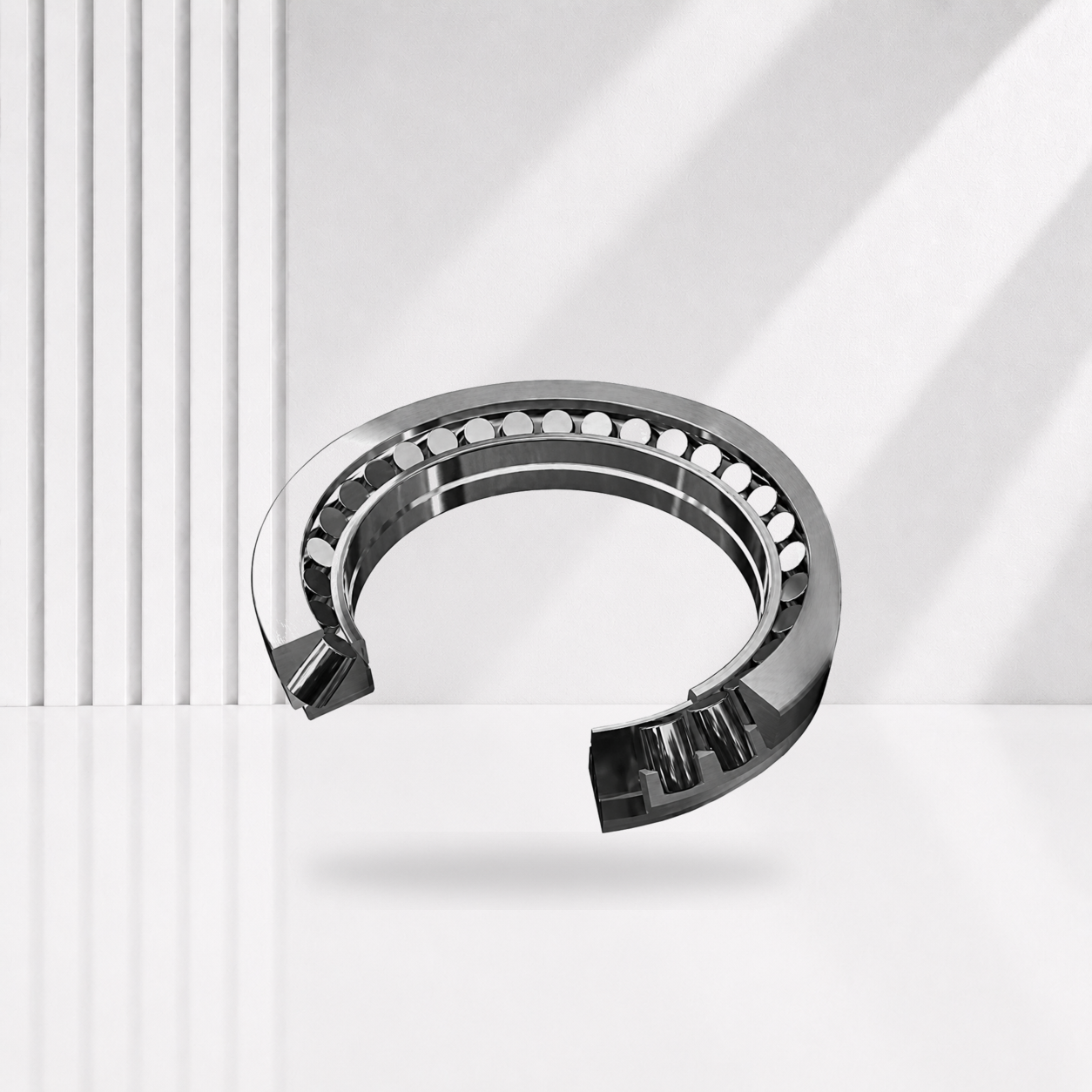

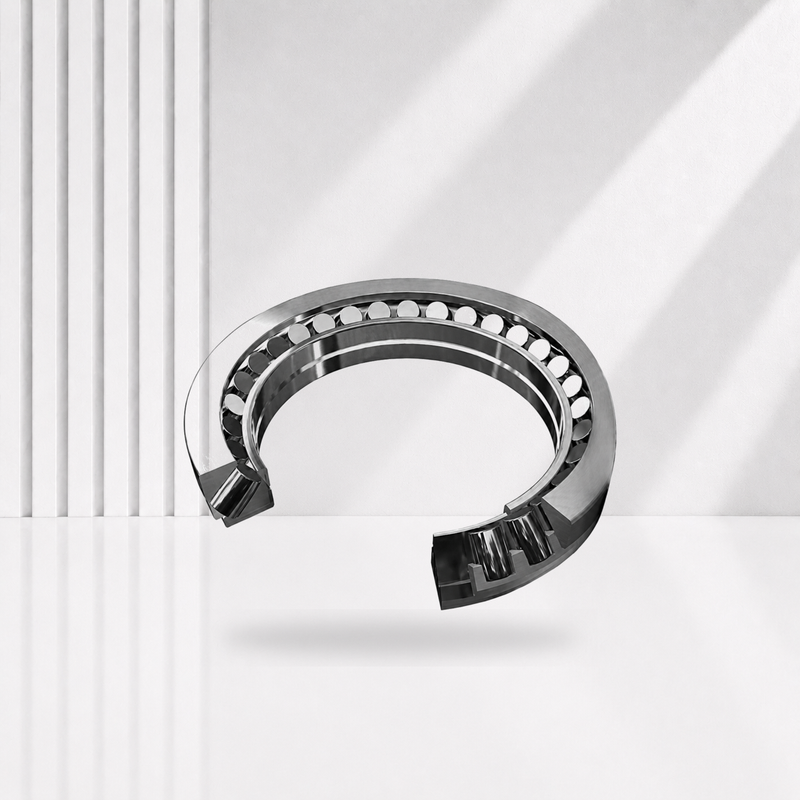

Spherical Roller Thrust Bearings

Spherical roller thrust bearings carry very high axial loads together with moderate radial loads and can accommodate misalignment. They are used in gearboxes, cranes, marine equipment, hydroelectric machinery and heavy industrial shafts.

Availability:

Quantity:



Inquire Add to Basket

Model:
29320E, 29420E, 29324E, 29424E, 29330E, 29430E, 29340E, 29440E, 29360E, 29460E

Product Overview

Available models and complete dimensional data are listed in the following parameter table tab.

Models & Dimensions

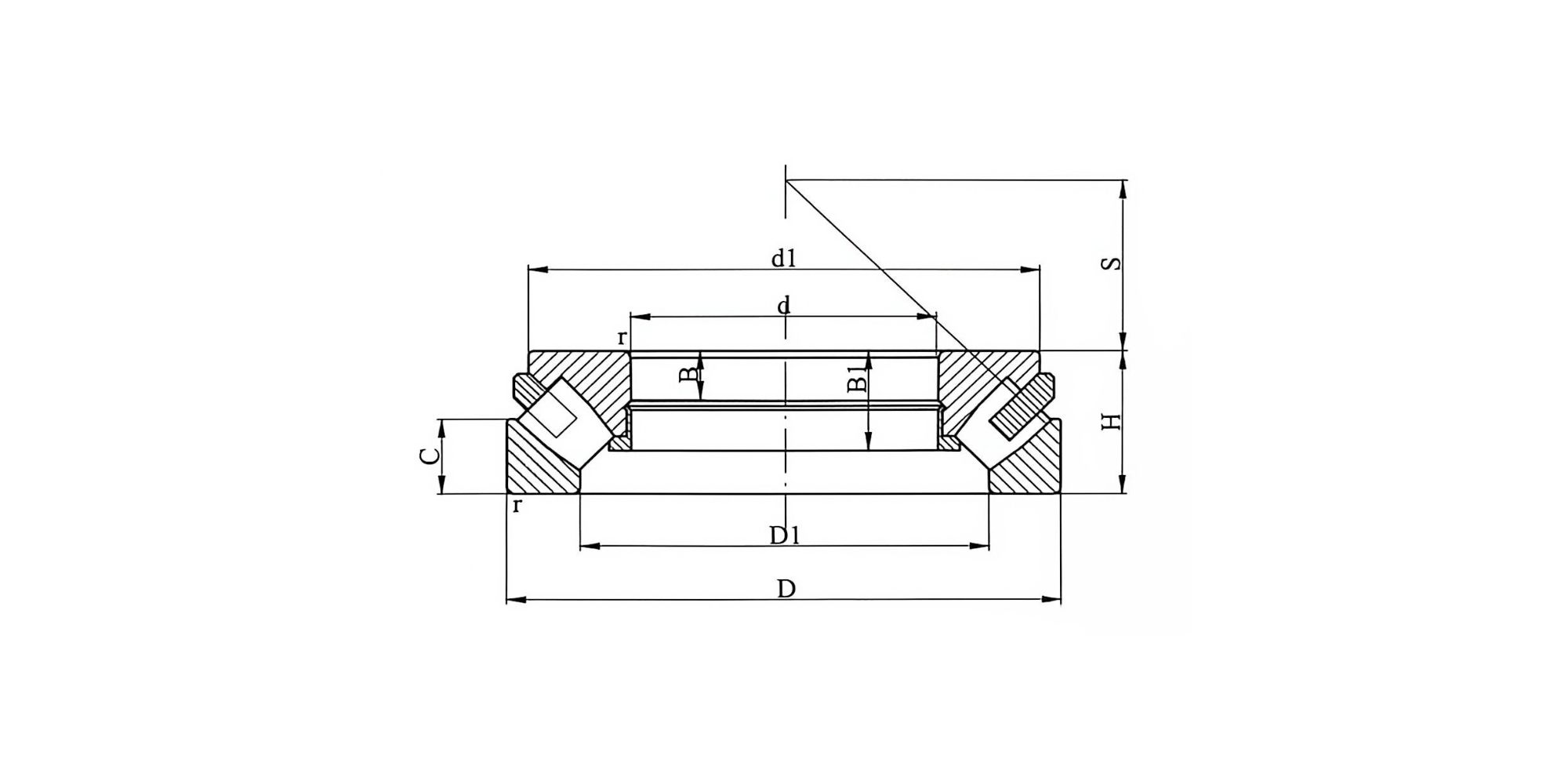

Bearing Designation – New	Bearing Designation – Old	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – H	Boundary Dimensions (mm) – r min	Basic Load Ratings (kN) – Ca	Basic Load Ratings (kN) – Coa	Other Dimensions (mm) – d1	Other Dimensions (mm) – D1	Other Dimensions (mm) – B	Other Dimensions (mm) – B1	Other Dimensions (mm) – C	Other Dimensions (mm) – s	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	kg
29320E	-	100	170	42	1.5	465	1290	152.3	127.5	26.2	36.3	20.5	58	2200	3600	3.65
29420E	-	100	210	67	3	980	2500	182.2	141.5	43	57.3	32	62	1700	3000	10.5
29322E	-	110	190	48	2	610	1730	171.1	140	30.3	41.7	24.8	64	1900	3200	5.34
29422E	-	110	230	73	3	1180	3000	199.4	155.3	47	64.7	34.7	69	1600	2800	13.5
29324E	-	120	210	54	2.1	765	2120	188.1	154.5	34	48.2	27	70	1700	2800	7.35
29424E	-	120	250	78	4	1370	3450	216.8	171	50.5	70.3	36.5	74	1500	2600	17.5
29326E	-	130	225	58	2.1	865	2500	203.4	165.5	36.7	50.6	30.1	76	1600	2600	9.12
29426E	-	130	270	85	4	1560	4050	234.4	184.5	54	76	40.9	81	1300	2400	22.3
29328E	-	140	240	60	2.1	980	2850	216.1	177	38.4	54	30	82	1500	2600	10.5
24928E	-	140	280	85	4	1630	4300	245.4	194.5	54	75.6	41	86	1300	2400	23.4
29230E	9039230E	150	215	39	1.5	408	1600	200.4	176	24	34.3	20.5	82	1800	2800	4.55
29330E	-	150	250	60	2.1	1000	2850	223.9	190	38	54.9	28	87	1500	2400	11.4
29430E	-	150	300	90	4	1860	5100	262.9	207.5	58	80.8	43.4	92	1200	2200	28.2
29232E	9039232E	160	225	39	1.5	357	1460	220	188	11	37	20	87	–	1700	4.85
29332E	-	160	270	67	3	1180	3450	243.5	203	42	60	33	92	1300	2200	14.5
29432E	-	160	320	95	5	2080	5600	279.3	223.5	60.5	84.3	45.5	99	1100	2000	33.5
29234E	9039234E	170	240	42	1.5	408	1660	235	201	13	40	22	93	–	1600	5.95
29334E	-	170	280	67	3	1200	3550	251.2	215	42.2	61.1	30.5	96	1300	2200	15.2
29434E	-	170	340	103	5	2360	6550	297.7	236	65.5	91.2	50	104	1100	1900	44.5
29236E	9039236E	180	250	42	1.5	495	2040	234.4	208	26	36.9	22	97	1600	2600	6.25
29336E	-	180	300	73	3	1430	4300	270	227	46	66.2	35.5	103	1200	2000	19.5
29436E	-	180	360	109	5	2600	7350	315.9	250	69.5	96.4	53	110	1000	1800	52.5
29238E	9039238E	190	270	48	2	518	2200	255	226	14	45	25.5	103	–	1400	8.74
29338E	-	190	320	78	4	1630	4750	285.6	243.5	49	71.3	36	110	1100	1900	23.5
29436E	-	190	380	115	5	2850	8000	332.9	264.5	73	101	55.5	117	950	1700	60.5
29240E	9039240E	200	280	48	2	656	2650	260.5	232.5	30	43.4	24	108	1400	2200	9.33
29340E	-	200	340	85	4	1860	5500	304.3	257	53.5	76.7	40	116	1000	1700	29.5
29440E	-	200	400	122	5	3200	9000	350.7	277.5	77	107.1	59.4	122	850	1600	72.5
29244E	9039244E	220	300	48	2	690	3000	280.5	251.5	30	43.4	24.5	117	1300	2200	10.6
29344E	-	220	360	85	4	2000	6300	326.3	273.5	55	77.7	41	125	1000	1700	33.5
29444E	-	220	420	122	6	3350	9650	371.6	300	77	107.4	58.5	132	850	1500	75.5
29248	9039248	240	340	60	2.1	799	3450	330	283	19	57	30	130	1100	1800	16.5
29348E	-	240	380	85	4	2040	6550	345.1	295.5	54	77.8	40.5	135	1000	1600	35.5
29448E	-	240	440	122	6	3400	10200	391.6	322	76	107.1	59	142	850	1500	80.3
29252	9039252	260	360	60	2.1	817	3650	350	302	19	57	30	139	1100	1700	18.5
29352E	-	260	420	95	5	2550	8300	382.2	324	61	86.6	46	148	850	1400	49.6
29452E	-	260	480	132	6	4050	12900	427.9	346	86	119	63	154	750	1300	105
29256	9039256	280	380	60	2.1	863	4000	370	323	19	57	30	150	1000	1700	19.5
29356E	-	280	440	95	5	2550	8650	401	343	62	86.7	45.5	158	850	1400	53.2
29456E	-	280	520	145	6	4900	15300	464.3	372	95	129.9	70	166	670	1200	135
29260	9039260	300	420	73	3	1070	4800	405	353	21	69	38	162	900	1400	30.5
29360E	-	300	480	109	5	3100	10600	434.1	372	70	98.9	51	168	750	1200	75.8
29460E	-	300	540	145	6	4310	16600	485	392	95	130.3	70.5	175	600	1200	140
29264	9039264	320	440	73	3	1100	5100	430	372	21	69	38	172	850	1400	33.3
29364E	-	320	500	109	5	3350	11200	454.5	391	68	97.8	53	180	750	1200	78.4
29464E	-	320	580	155	7.5	4950	19000	520.3	422	102	139.4	74.5	191	560	1100	175
29268	9039268	340	460	73	3	1130	5400	445	395	21	69	37	183	850	1300	33.5
29368	-	340	540	122	5	2710	11000	520	428	41	117	59	192	600	1100	105
29468E	-	340	620	170	7.5	5750	22400	557.9	445	112	151.4	84	201	500	1000	220
29272	9039272	360	500	85	4	1460	6800	485	423	25	81	44	194	750	1200	52.2
29372	-	360	560	122	5	2760	11600	540	448	41	117	59	202	600	1100	110
29472E	-	360	640	170	7.5	5350	21200	580	474	63	164	83.5	210	500	950	230
29276	9039276	380	520	85	4	1580	7650	505	441	27	81	42	202	700	1100	53.4
29376	-	380	600	132	6	3340	14000	580	477	44	127	63	216	530	1000	140
29476E	-	380	670	175	7.5	5870	24000	610	494	67	168	87..5	222	480	900	260
29280	9039280	400	540	85	4	1610	8000	526	460	27	81	42	212	700	1100	55.5
29380	-	400	620	132	6	3450	14600	596	494	43	127	64	225	530	950	150
29480E	-	400	710	185	7.5	6560	26500	645	525	69	178	89.5	234	450	850	310
29284	9039284	420	580	95	5	1990	9800	564	489	30	91	46	225	630	1000	75.5
29384	-	420	650	140	6	3740	16000	626	520	49	135	68	235	500	900	170
29484E	-	420	730	185	7.5	6730	27500	665	545	70	178	90.5	244	430	850	325
29288	9039288	440	600	95	5	2070	10400	585	508	30	91	46	235	630	1000	78
29388E	-	440	680	145	6	4490	19300	626	540	49	140	70.5	249	480	850	180
29488E	-	440	780	206	9.5	7820	32000	710	577	77	199	101	257	380	750	410
29292	9039292	460	620	95	5	2070	10600	605	530	30	91	46	245	600	950	81
29392	9039292	460	710	150	6	4310	19000	685	567	50	144	72	257	450	800	215
29492E	-	460	800	206	9.5	7990	33500	730	596	77	199	101.5	268	380	750	425
29296	9039296	480	650	103	5	2350	11800	635	556	33	99	53	259	560	900	98
29396	-	480	730	150	6	4370	19600	705	591	50	144	73.5	270	450	800	220
29496E	-	480	850	224	9.5	9550	39000	770	625	88	216	108	280	340	670	550
292/500	90392/500	500	670	103	5	2390	12500	654	574	33	99	53	268	560	900	100
293/500	-	500	750	150	6	4490	20400	725	611	50	144	74	280	430	800	235
294/500E	-	500	870	224	9.5	9370	40000	795	648	86	216	110	290	340	670	560
292/530E	90392/530E	530	710	109	5	3110	15300	675	608	32	105	56	285	530	850	115
293/530	-	530	800	160	7.5	5230	23600	772	648	53	154	76	295	400	750	270
294/530E	-	530	920	236	9.5	10500	44000	840	686	89	228	116	308	320	630	650
292/560	90392/560	560	750	115	5	2990	16000	732	644	37	111	61	302	480	800	140
293/560E	-	560	850	175	7.5	6900	31000	790	677	63	169	86	320	–	360	360
294/560E	-	560	980	250	12	12000	51000	890	727	99	241	122	328	300	560	810
292/600E	90392/600E	600	800	122	5	3740	18600	760	688	39	117	60	321	450	700	170
293/600	-	600	900	180	7.5	7530	34500	840	720	65	174	89	340	340	630	405
294/600E	-	600	1030	258	12	13100	56000	940	769	99	249	128	349	280	530	845
292/630E	90392/630E	630	850	132	6	4770	23600	810	723	50	127	62	338	400	670	210
293/630E	-	630	950	190	9.5	8450	38000	880	761	68	183	92	359	320	600	485
294/630E	-	630	1090	280	12	14400	62000	995	815	107	270	137	365	260	500	1100
292/670	90392/670	670	900	140	6	4200	22800	880	773	45	135	73	361	380	630	255
293/670E	-	670	1000	200	9.5	8970	41500	935	804	73	193	98	379	–	300	545
294/670E	-	670	1150	290	15	15400	68000	1045	864	110	280	141	387	240	450	1260
292/710	90392/710	710	950	145	6	5230	27000	900	815	46	140	71	380	–	360	290
293/710E	-	710	1060	212	9.5	9950	45500	985	855	74	205	103	404	280	500	660
294/710E	-	710	1220	308	15	17600	76500	1110	917	117	298	149	415	220	430	1500
292/750E	90392/750E	750	1000	150	6	6100	31000	950	858	50	144	74	409	340	560	325
293/750	-	750	1120	224	9.5	9370	45000	1086	910	76	216	109	415	260	480	770
294/750E	-	750	1280	315	15	18700	85000	1170	964	121	305	153	436	200	400	1650
292/800E	90392/800E	800	1060	155	7.5	6560	34500	1010	911	52	149	77	434	320	530	380
293/800	-	800	1180	230	9.5	9950	49000	1146	965	77	222	111	440	240	450	865
294/800E	-	800	1360	335	15	20200	93000	1250	1034	123	324	165	462	190	360	2025
292/850E	90392/850E	850	1120	160	7.5	2730	36000	1060	967	47	154	82	455	300	500	425
294/850E	-	850	1440	354	15	23900	108000	1315	1077	142	342	172	507	170	340	2390
294/900E	-	900	1520	372	15	26700	122000	1394	1137	147	360	186	518	160	300	2650
294/950E	-	950	1600	390	15	28200	132000	1470	1209	153	377	191	546	140	280	3065
