GE100ES, GE110ES, GE120ES, GE140ES, GE160ES

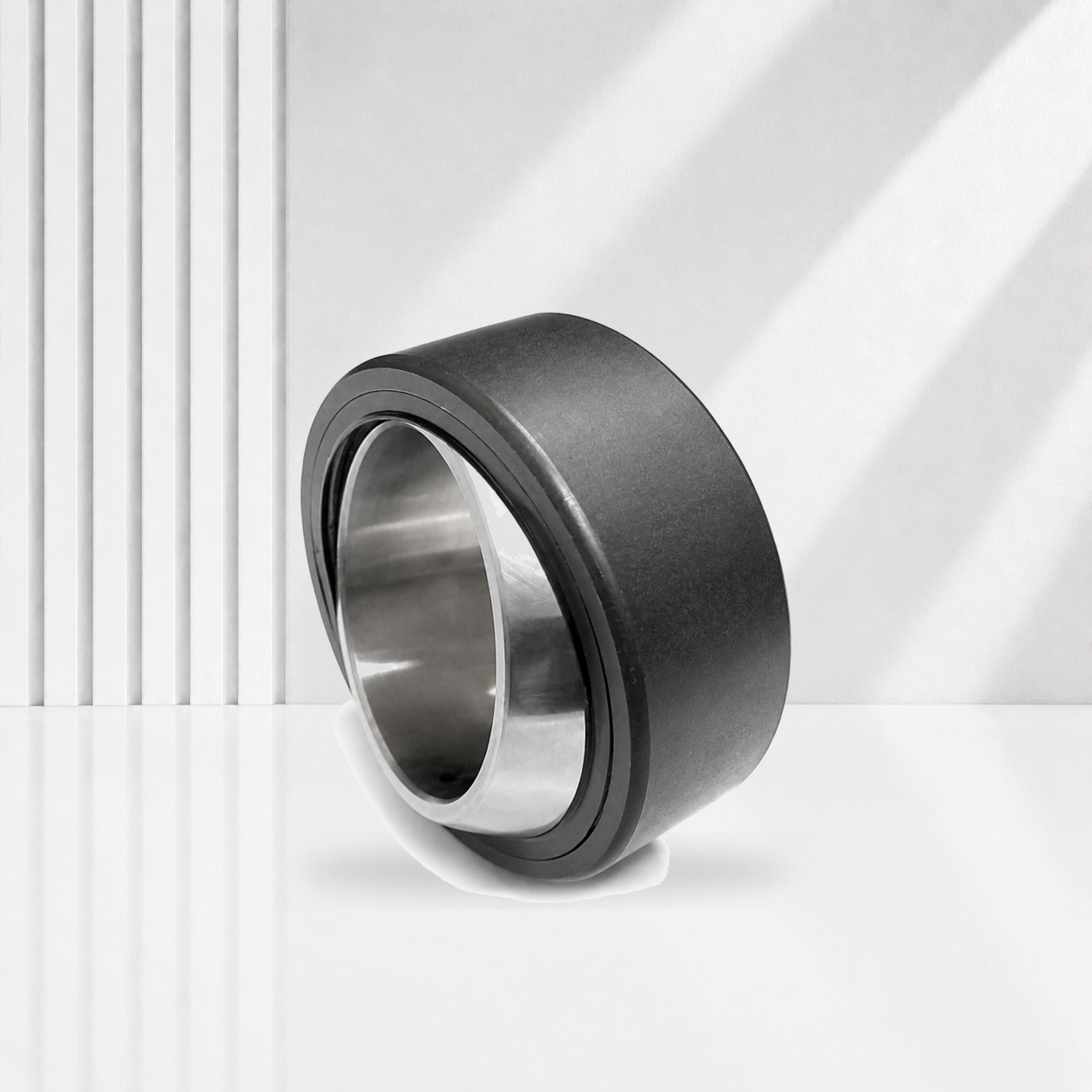

Spherical plain bearings accommodate oscillating movement, tilting and misalignment while carrying high radial loads and, depending on design, axial loads. They are used in hydraulic cylinders, construction machinery, linkages and heavy pivot joints operating at low speed.
Available models and complete dimensional data are listed in the following parameter table tab.

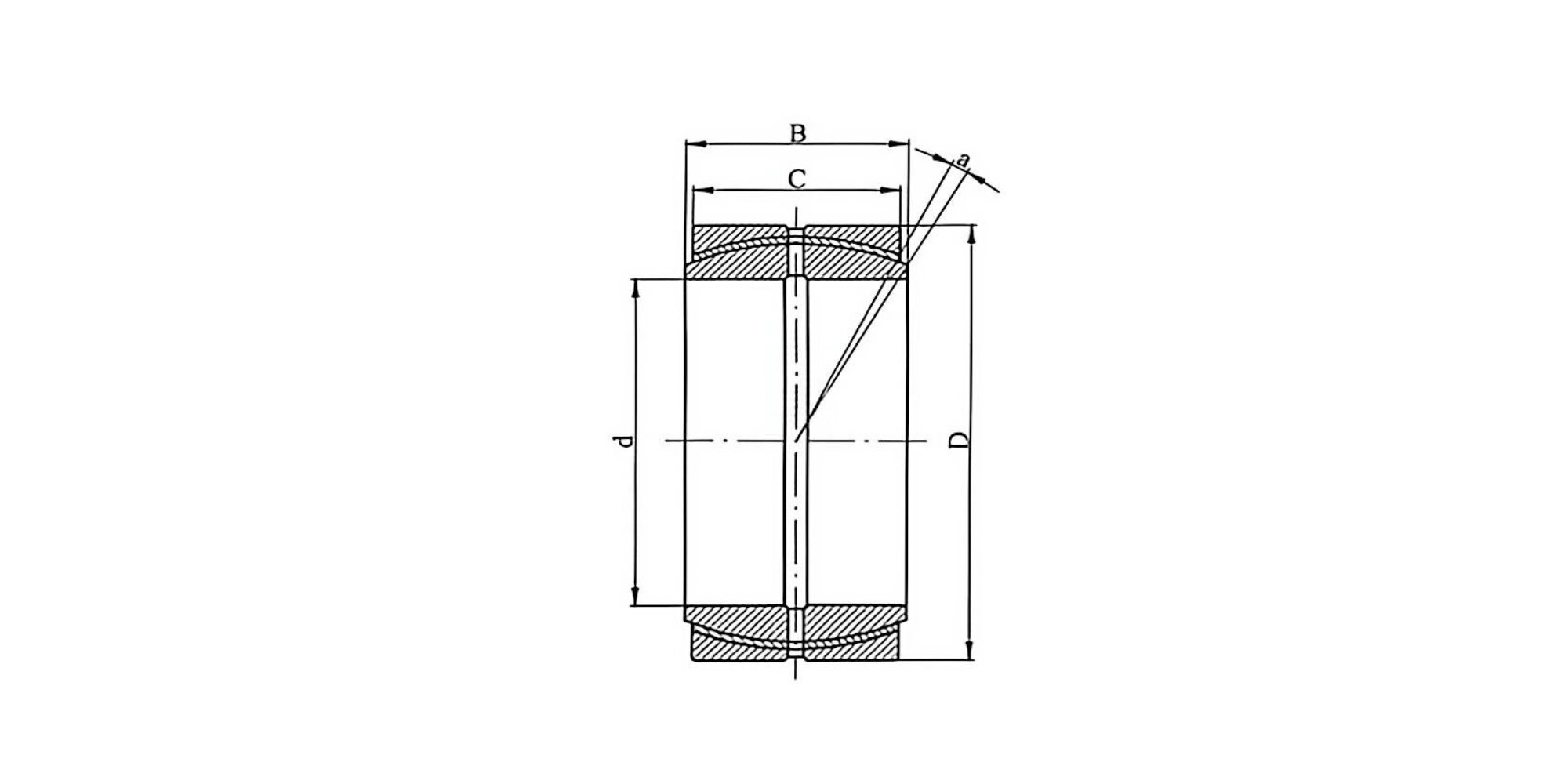

| Bearing Designation | Boundary Dimensions (mm) – d | Boundary Dimensions (mm) – D | Boundary Dimensions (mm) – B | Boundary Dimensions (mm) – C | Boundary Dimensions (mm) – a | Boundary Dimensions (mm) – r1min | Boundary Dimensions (mm) – r2min | Basic Load Ratings (kN) – Cr | Basic Load Ratings (kN) – Cor | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| GE100ES | 100 | 150 | 71 | 67 | 2 | 1 | 1 | 630 | 920 | 4.51 |
| GE110ES | 110 | 160 | 78 | 74 | 2 | 1 | 1 | 720 | 1100 | 5.32 |
| GE120ES | 120 | 180 | 85 | 80 | 2 | 1 | 1 | 895 | 1290 | 7.93 |
| GE140ES | 140 | 210 | 100 | 95 | 2 | 1 | 1 | 1260 | 1840 | 12.9 |
| GE160ES | 160 | 230 | 115 | 109 | 2 | 1 | 1 | 1680 | 2450 | 16.4 |
| GE180ES | 180 | 260 | 128 | 122 | 2 | 1.1 | 1.1 | 2180 | 3150 | 24.2 |
| GE200ES | 200 | 290 | 140 | 134 | 2 | 1.1 | 1.1 | 2575 | 3750 | 33.2 |
| GE220ES | 220 | 320 | 155 | 148 | 2 | 1.1 | 1.1 | 3200 | 4650 | 45.3 |
| GE240ES | 240 | 340 | 170 | 162 | 2 | 1.1 | 1.1 | 3750 | 5500 | 53.2 |
| GE260ES | 260 | 370 | 185 | 175 | 2 | 1.1 | 1.1 | 4450 | 6500 | 68.8 |
| GE280ES | 280 | 400 | 200 | 190 | 2 | 1.1 | 1.1 | 5250 | 7650 | 88.6 |
| GE300ES | 300 | 430 | 212 | 200 | 2 | 1.1 | 1.1 | 5900 | 8500 | 108 |
| GE320ES | 320 | 460 | 230 | 218 | 2 | 1.1 | 3 | 6750 | 9850 | 133 |
| GE340ES | 340 | 480 | 243 | 230 | 2 | 1.1 | 3 | 7450 | 11000 | 148 |
| GE360ES | 360 | 520 | 258 | 243 | 2 | 1.1 | 4 | 8550 | 12500 | 198 |
| GE380ES | 380 | 540 | 272 | 258 | 2 | 1.5 | 4 | 9600 | 14000 | 217 |
| GE400ES | 400 | 580 | 280 | 265 | 2 | 1.5 | 4 | 10000 | 15000 | 272 |
| GE420ES | 420 | 600 | 300 | 280 | 2 | 1.5 | 4 | 11000 | 16300 | 297 |
| GE440ES | 440 | 630 | 315 | 300 | 2 | 1.5 | 4 | 12800 | 18900 | 356 |
| GE460ES | 460 | 650 | 325 | 308 | 2 | 1.5 | 4 | 13600 | 19900 | 376 |
| GE480ES | 480 | 680 | 340 | 320 | 2 | 2 | 5 | 15000 | 21600 | 430 |
| GE500ES | 500 | 710 | 355 | 335 | 2 | 2 | 5 | 16100 | 24600 | 495 |
| GE530ES | 530 | 750 | 375 | 355 | 2 | 2 | 5 | 17900 | 26000 | 579 |
| GE560ES | 560 | 800 | 400 | 380 | 2 | 2 | 5 | 20600 | 29500 | 722 |
| GE600ES | 600 | 850 | 425 | 400 | 2 | 2 | 6 | 23100 | 34500 | 851 |
| GE630ES | 630 | 900 | 450 | 425 | 2 | 3 | 6 | 25800 | 38000 | 1029 |
| GE670ES | 670 | 950 | 475 | 450 | 2 | 3 | 6 | 28900 | 42500 | 1197 |
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
