Open Spherical Roller Bearings

Open spherical roller bearings accommodate shaft misalignment and deflection while carrying heavy radial loads and axial loads in both directions. Their robust design is widely used in conveyors, crushers, gearboxes, rolling equipment and other heavy industrial machinery.

Availability:

Quantity:



Inquire Add to Basket

Model:
22220E, 22224E, 23026CA, 24030CA, 23132CA, 24136CA, 23948CA, 23056CA, 24068CA, 24180CA

Product Overview

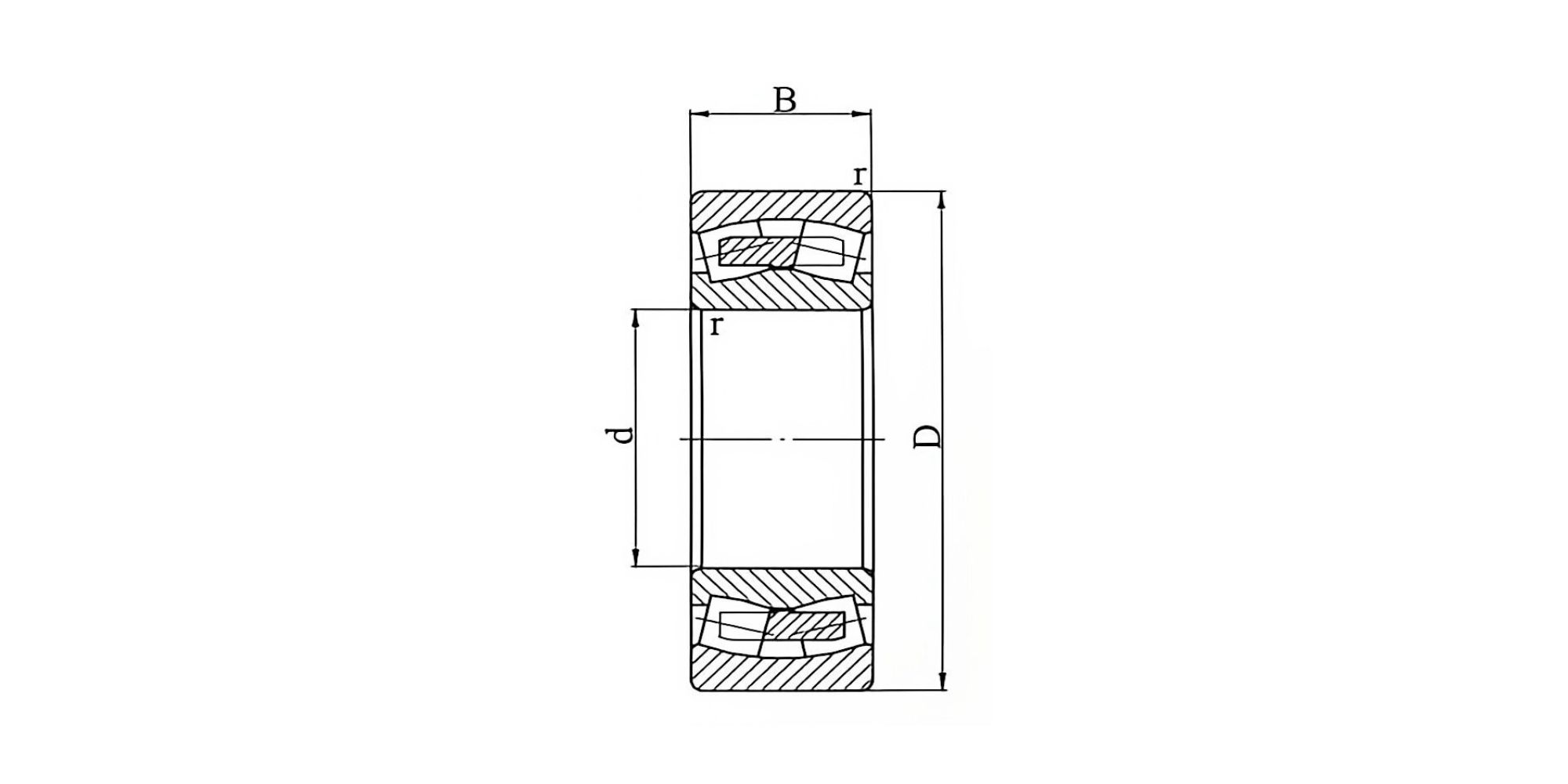

Available models and complete dimensional data are listed in the following parameter table tabs.

Models & Dimensions (1/2)

Bearing Designation – Cylindrical Bore	Bearing Designation – Tapered Bore	d	D	B	r min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	Calculation Factors – e	Calculation Factors – Y1	Calculation Factors – Y2	Calculation Factors – Y0	kg
24020CC	24020CCK	100	150	50	1.5	285	415	2800	4000	0.28	2.4	3.6	2.5	3.15
23120CC	23120CCK	100	165	52	2	365	490	3000	4000	0.3	2.4	3.4	2.2	4.55
24120CC	24120CCK	100	165	65	2	455	640	2400	3200	0.37	1.8	2.7	1.8	5.65
22220E	22220EK	100	180	46	2	425	490	3400	4500	0.24	2.8	4.2	2.8	4.92
24022CC	24022CCK	110	170	60	2	415	620	2400	3600	0.33	2	3	2	5.12
23122CC	23122CCK	110	180	56	2	430	585	2800	3600	0.3	2.3	3.4	2.2	5.75
24122CC	24122CCK	110	180	69	2	520	750	2200	3000	0.37	1.8	2.7	1.8	7.14
22222E	22222EK	110	200	53	2.1	560	640	3000	4000	0.25	2.7	4	2.5	7.09
24024CC	24024CCK	120	180	60	2	430	670	2400	3400	0.3	2.3	3.4	2.2	5.45
23124CC	23124CCK	120	200	62	2	510	695	2600	3400	0.28	2.4	3.6	2.5	8.11
24124CC	24124CCK	120	200	80	2	655	950	1900	2600	0.37	1.8	2.7	1.8	10.3
22224E	22224EK	120	215	58	2.1	630	765	2800	3800	0.26	2.6	3.9	2.5	8.74
23026CA	23026CAK	130	200	52	2	430	610	2800	3600	0.23	2.9	4.4	2.8	6.17
24026CA	24026CAK	130	200	69	2	540	815	2000	3000	0.31	2.2	3.3	2.2	8.05
23126CA	23126CAK	130	210	64	2	560	780	2400	3200	0.28	2.4	3.6	2.5	8.83
24126CA	24126CAK	130	210	80	2	680	1000	1800	2400	0.35	1.9	2.9	1.8	11.2
23028CA	23028CAK	140	210	53	2	465	680	2600	3400	0.22	3	4.6	2.8	6.55
24028CA	24028CAK	140	210	69	2	570	900	2000	2800	0.3	2.3	3.4	2.2	8.55
23128CA	23128CAK	140	225	68	2.1	630	900	2200	2800	0.28	2.4	3.6	2.5	10.5
24128CA	24128CAK	140	225	85	2.1	765	1160	1700	2400	0.35	1.9	2.9	1.8	13.5
23030CA	23030CAK	150	225	56	2.1	510	750	2400	3200	0.22	3	4.6	2.8	7.95
24030CA	24030CAK	150	225	75	2.1	655	1040	1800	2600	0.3	2.3	3.4	2.2	10.5
23130CA	23130CAK	150	250	80	2.1	830	1200	2000	2600	0.3	2.3	3.4	2.2	16.1
24130CA	24130CAK	150	250	100	2.1	1020	1530	1500	2200	0.37	1.8	2.7	1.8	20.2
23032CA	23032CAK	160	240	60	2.1	585	880	2400	3000	0.22	3	4.6	2.8	9.74
24032CA	24032CAK	160	240	80	2.1	950	1200	1700	2400	0.3	2.3	3.4	2.2	13.1
23132CA	23132CAK	160	270	86	2.1	980	1370	1900	2400	0.3	2.3	3.4	2.2	20.5
24132CA	24132CAK	160	270	109	2.1	1180	1760	1400	1900	0.4	1.7	2.5	1.6	25.2
23034CA	23034CAK	170	260	67	2.1	710	1060	2200	2800	0.23	2.9	4.4	2.8	13.1
24034CA	24034CAK	170	260	90	2.1	930	1460	1600	2400	0.33	2	3	2	17.5
23134CA	23134CAK	170	280	88	2.1	1040	1500	1800	2400	0.3	2.3	3.4	2.2	22.2
23134CA	23134CAK	170	280	109	2.1	1220	1860	1300	1900	0.37	1.8	2.7	1.8	27.5
23936CA	23936CAK	180	250	52	2	431	830	2200	2800	0.18	3.8	5.6	3.6	8.24
23036CA	23036CAK	180	280	74	2.1	830	1250	2000	2600	0.24	2.8	4.2	2.8	17.5
24036CA	24036CAK	180	280	100	2.1	1080	1730	1500	2200	0.33	2	3	2	23.2
23136CA	23136CAK	180	300	96	3	1200	1760	1700	2200	0.3	2.3	3.4	2.2	28.1
24136CA	24136CAK	180	300	118	3	1400	2160	1300	1700	0.37	1.8	2.7	1.8	34.5
23938CA	23938CAK	190	260	52	2	414	800	2200	2600	0.16	4.2	6.3	4	8.45
23038CA	23038CAK	190	290	75	2.1	865	1340	1900	2400	0.23	2.9	4.4	2.8	18.3
24038CA	24038CAK	190	290	100	2.1	1120	1800	1400	2000	0.31	2.2	3.3	2.2	24.5
23138CA	23138CAK	190	320	104	3	1370	2080	1500	2000	0.31	2.2	3.3	2.2	35.2
24138CA	24138CAK	190	320	128	3	1600	2500	1200	1600	0.4	1.7	2.5	1.6	43.3
23940CA	23940CAK	200	280	60	2.1	546	1040	2000	2400	0.19	3.6	5.3	3.6	11.5
23040CA	23040CAK	200	310	82	2.1	1000	1530	1800	2200	0.24	2.8	4.2	2.8	23.3
24040CA	24040CAK	200	310	109	2.1	1290	2120	1300	1900	0.33	2	3	2	31.4
23140CA	23140CAK	200	340	112	3	1600	2360	1500	1900	0.31	2.2	3.3	2.2	43.2
24140CA	24140CAK	200	340	140	3	1800	2800	1100	1500	0.4	1.7	2.5	1.6	53.5
23944CA	23944CAK	220	300	60	2.1	546	1080	1900	2200	0.16	4.2	6.3	4	13.1
23044CA	23044CAK	220	340	90	3	1220	1860	1600	2000	0.24	2.8	4.2	2.8	30.5
24044CA	24044CAK	220	340	118	3	1560	2600	1200	1700	0.33	2	3	2	40.2
23144CA	23144CAK	220	370	120	4	1800	2750	1300	1700	0.3	2.3	3.4	2.2	53.5
24144CA	24144CAK	220	370	150	4	2120	3350	1000	1400	0.4	1.7	2.5	1.6	67.2
23948CA	23948CAK	240	320	60	2.1	564	1160	1700	2000	0.15	4.5	6.7	4.5	14.4
23048CA	23048CAK	240	360	92	3	1290	2080	1500	1900	0.23	2.9	4.4	2.8	33.5
24048CA	24048CAK	240	360	118	3	1600	2700	1100	1600	0.3	2.3	3.4	2.2	43.2
23148CA	23148CAK	240	400	128	4	2080	3200	1200	1600	0.3	2.3	3.4	2.2	66.5
24148CA	24148CAK	240	400	160	4	2400	3900	900	1300	0.4	1.7	2.5	1.6	83.2
23952CA	23952CAK	260	360	75	2.1	880	1800	1500	1900	0.18	3.8	5.6	3.6	24.3
23052CA	23052CAK	260	400	104	4	1600	2550	1300	1700	0.23	2.9	4.4	2.8	48.5
24052CA	24052CAK	260	400	140	4	2040	3450	1000	1400	0.33	2	3	2	65.5
23152CA	23152CAK	260	440	144	4	2550	3900	1100	1400	0.31	2.2	3.3	2.2	90.5
24152CA	24152CAK	260	440	180	4	3000	4800	850	1200	0.4	1.7	2.5	1.6	110
23956CA	23956CAK	280	380	75	2.1	845	1760	1400	1700	0.16	4.2	6.3	4	26.1
23056CA	23056CAK	280	420	106	4	1730	2850	1300	1600	0.23	2.9	4.4	2.8	52.5
24056CA	24056CAK	280	420	140	4	2160	3800	950	1400	0.31	2.2	3.3	2.2	69.5
23156CA	23156CAK	280	460	146	5	2650	4250	1000	1300	0.3	2.3	3.4	2.2	97.1
24156CA	24156CAK	280	460	180	5	3100	5100	800	1100	0.4	1.7	2.5	1.6	120
23960CA	23960CAK	300	420	90	3	1200	2500	1300	1600	0.19	3.6	5.3	3.6	40.5
23060CA	23060CAK	300	460	118	4	2120	3450	1200	1500	0.23	2.9	4.4	2.8	71.5
24060CA	24060CAK	300	460	160	4	2700	4750	850	1200	0.33	2	3	2	97.1
23160CA	23160CAK	300	500	160	5	3200	5100	950	1200	0.3	2.3	3.4	2.2	125
24160CA	24160CAK	300	500	200	5	3750	6300	700	1000	0.4	1.7	2.5	1.6	160
23964CA	23964CAK	320	440	90	3	1430	2700	1400	1500	0.17	4	5.9	4	42.1
23064CA	23064CAK	320	480	121	4	2240	3800	1100	1400	0.23	2.9	4.4	2.8	78.4
24064CA	24064CAK	320	480	160	4	2850	5100	800	1200	0.31	2.2	3.3	2.2	100
23164CA	23164CAK	320	540	176	5	3750	6000	850	1100	0.31	2.2	3.3	2.2	165
24164CA	24164CAK	320	540	218	5	4250	7100	670	900	0.4	1.7	2.5	1.6	210
23968CA	23968CAK	340	460	90	3	1460	2800	1300	1400	0.17	4	5.9	4	45.5
23068CA	23068CAK	340	520	133	5	2700	4550	1000	1300	0.24	2.8	4.2	2.8	105
24068CA	24068CAK	340	520	180	5	3450	6200	750	1100	0.33	2	3	2	140
23168CA	23168CAK	340	580	190	5	4250	6800	800	1000	0.31	2.2	3.3	2.2	210
24168CA	24168CAK	340	580	243	5	5300	8650	600	850	0.4	1.7	2.5	1.6	280
23972CA	23972CAK	360	480	90	3	1400	2750	1200	1300	0.15	4.5	6.7	4.5	46.5
23072CA	23072CAK	360	540	134	5	2750	4800	950	1200	0.23	2.9	4.4	2.8	110
24072CA	24072CAK	360	540	180	5	3550	6550	700	1000	0.31	2.2	3.3	2.2	145
23172CA	23172CAK	360	600	192	5	4300	6950	750	1000	0.3	2.3	3.4	2.2	220
24172CA	24172CAK	360	600	243	5	5600	9300	560	800	0.4	1.7	2.5	1.6	280
23976CA	23976CAK	380	520	106	4	1960	3800	1100	1200	0.17	4	5.9	4	69.2
23076CA	23076CAK	380	560	135	5	2900	5000	900	1200	0.22	3	4.6	2.8	115
24076CA	24076CAK	380	560	180	5	3600	6800	670	950	0.3	2.3	3.4	2.2	150
23176CA	23176CAK	380	620	194	5	4400	7100	560	1000	0.3	2.3	3.4	2.2	230
24176CA	24176CAK	380	620	243	5	5700	9800	480	850	0.37	1.8	2.7	1.8	300
23980CA	23980CAK	400	540	106	4	2000	3900	1100	1200	0.16	4.2	6.3	4	71.5
23080CA	23080CAK	400	600	148	5	3250	5700	850	1100	0.23	2.9	4.4	2.8	150
24080CA	24080CAK	400	600	200	5	4300	8000	630	900	0.3	2.3	3.4	2.2	205
23180CA	23180CAK	400	650	200	6	4650	7650	530	950	0.28	2.4	3.6	2.5	265
24180CA	24180CAK	400	650	250	6	6200	10600	430	800	0.37	1.8	2.7	1.8	340
23984CA	23984CAK	420	560	106	4	2040	4150	1000	1100	0.16	4.2	6.3	4	74.5
23084CA	23084CAK	420	620	150	5	3400	6000	600	1100	0.22	3	4.6	2.8	155
24084CA	24084CAK	420	620	200	5	4400	8300	530	900	0.3	2.3	3.4	2.2	210
23184CA	23184CAK	420	700	224	6	5600	9300	480	900	0.3	2.3	3.4	2.2	350
24184CA	24184CAK	420	700	280	6	7350	12600	400	700	0.4	1.7	2.5	1.6	445
23988CA	23988CAK	440	600	118	4	2450	4900	950	1000	0.16	4.2	6.3	4	99.5
23088CA	23088CAK	440	650	157	6	3650	6550	560	1000	0.22	3	4.6	2.8	180
24088CA	24088CAK	440	650	212	6	4800	9150	500	850	0.3	2.3	3.4	2.2	245
23188CA	23188CAK	440	720	226	6	6000	10000	450	850	0.3	2.3	3.4	2.2	360
24188CA	24188CAK	440	720	280	6	7500	13200	400	700	0.37	1.8	2.7	1.8	460
23992CA	23992CAK	460	620	118	4	2500	5000	600	1000	0.16	4.2	6.3	4	105
23092CA	23092CAK	460	680	163	6	3900	6950	560	950	0.22	3	4.6	2.8	205
24092CA	24092CAK	460	680	218	6	5200	10000	480	800	0.28	2.4	3.6	2.5	275
23192CA	23192CAK	460	760	240	7.5	6400	10800	430	800	0.3	2.3	3.4	2.2	440
24192CA	24192CAK	460	760	300	7.5	8300	14600	360	670	0.37	1.8	2.7	1.8	560
23996CA	23996CAK	480	650	128	5	2900	5700	560	1000	0.18	3.8	5.6	3.6	125
23096CA	23096CAK	480	700	165	6	3900	6800	530	950	0.21	3.2	4.8	3.2	215
24096CA	24096CAK	480	700	218	6	5300	10400	450	750	0.28	2.4	3.6	2.5	285
23196CA	23196CAK	480	790	248	7.5	6950	12000	400	750	0.3	2.3	3.4	2.2	485
24196CA	24196CAK	480	790	308	7.5	9000	15600	340	630	0.37	1.8	2.7	1.8	605
239/500CA	239/500CAK	500	670	128	5	2900	6000	530	950	0.17	4	5.9	4	130
230/500CA	230/500CAK	500	720	167	6	4150	7800	500	900	0.21	3.2	4.8	3.2	225
240/500CA	240/500CAK	500	720	218	6	5500	11000	430	700	0.26	2.6	3.9	2.5	295
231/500CA	231/500CAK	500	830	264	7.5	7650	12900	380	700	0.3	2.3	3.4	2.2	580
241/500CA	241/500CAK	500	830	325	7.5	9800	17000	320	600	0.37	1.8	2.7	1.8	745
239/530CA	239/530CAK	530	710	136	5	3200	6700	500	900	0.17	4	5.9	4	155
230/530CA	230/530CAK	530	780	185	6	5100	9300	450	800	0.22	3	4.6	2.8	310
240/530CA	240/530CAK	530	780	250	6	6700	13200	400	670	0.28	2.4	3.6	2.5	410
231/530CA	231/530CAK	530	870	272	7.5	8150	14000	360	670	0.3	2.3	3.4	2.2	645
241/530CA	241/530CAK	530	870	335	7.5	10600	19000	300	560	0.37	1.8	2.7	1.8	830
239/560CA	239/560CAK	560	750	140	5	3450	7200	450	850	0.16	4.2	6.3	4	175
230/560CA	230/560CAK	560	820	195	6	5600	10200	430	750	0.22	3	4.6	2.8	355
240/560CA	240/560CAK	560	820	258	6	7350	14600	380	630	0.28	2.4	3.6	2.5	465
231/560CA	231/560CAK	560	920	280	7.5	9150	16000	340	630	0.3	2.3	3.4	2.2	740
241/560CA	241/560CAK	560	920	355	7.5	12000	21600	280	500	0.35	1.9	2.9	1.8	985
239/600CA	239/600CAK	600	800	150	5	3900	8300	430	750	0.17	4	5.9	4	220
230/600CA	230/600CAK	600	870	200	6	6000	11400	400	700	0.22	3	4.6	2.8	405
240/600CA	240/600CAK	600	870	272	6	8150	17000	340	560	0.3	2.3	3.4	2.2	540
231/600CA	231/600CAK	600	980	300	7.5	10200	18000	320	560	0.3	2.3	3.4	2.2	895
241/600CA	241/600CAK	600	980	375	7.5	11500	23600	240	480	0.37	1.8	2.7	1.8	1200
239/630CA	239/630CAK	630	850	165	6	4650	9800	400	700	0.17	4	5.9	4	280
230/630CA	230/630CAK	630	920	212	7.5	6700	12500	380	670	0.21	3.2	4.8	3.2	485
240/630CA	240/630CAK	630	920	290	7.5	8800	18000	320	530	0.28	2.4	3.6	2.5	655
231/630CA	231/630CAK	630	1030	315	7.5	10500	20800	260	530	0.3	2.3	3.4	2.2	1050
241/630CA	241/630CAK	630	1030	400	7.5	12700	27000	220	450	0.37	1.8	2.7	1.8	1400

Models & Dimensions (2/2)

Bearing Designation – Cylindrical Bore	Bearing Designation – Tapered Bore	d	D	B	r min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	Calculation Factors – e	Calculation Factors – Y1	Calculation Factors – Y2	Calculation Factors – Y0	kg
239/670CA	239/670CAK	670	900	170	6	5000	10800	360	670	0.17	4	5.9	4	315
230//670CA	230/670CAK	670	980	230	7.5	7650	14600	340	600	0.21	3.2	4.8	3.2	600
240/670CA	240/670CAK	670	980	308	7.5	10000	20400	300	500	0.28	2.4	3.6	2.5	790
231/670CA	231/670CAK	670	1090	336	7.5	10900	22400	240	500	0.3	2.3	3.4	2.2	1250
241/670CA	241/670CAK	670	1090	412	7.5	13800	29000	200	400	0.37	1.8	2.7	1.8	1600
239/710CA	239/710CAK	710	950	180	6	5600	12000	340	600	0.17	4	5.9	4	365
230/710CA	230/710CAK	710	1030	236	7.5	8300	16300	320	560	0.21	3.2	4.8	3.2	670
240/710CA	240/710CAK	710	1030	315	7.5	9370	22800	260	450	0.27	2.5	3.7	2.5	895
231/710CA	231/710CAK	710	1150	345	9.5	12200	26000	240	450	0.28	2.4	3.6	2.5	1450
241/710CA	241/710CAK	710	1150	438	9.5	15200	32500	190	380	0.37	1.8	2.7	1.8	1900
239/750CA	239/750CAK	750	1000	185	6	6000	13200	320	560	0.16	4.2	6.3	4	420
230/750CA	230/750CAK	750	1090	250	7.5	9650	18600	300	530	0.21	3.2	4.8	3.2	795
240/750CA	240/750CAK	750	1090	335	7.5	10100	25000	240	430	0.28	2.4	3.6	2.5	1065
231/750CA	231/750CAK	750	1220	365	9.5	13800	29000	220	430	0.28	2.4	3.6	2.5	1700
241/750CA	241/750CAK	750	1220	475	9.5	17300	37500	180	360	0.37	1.8	2.7	1.8	2100
239/800CA	239/800CAK	800	1060	195	6	6400	14300	300	530	0.16	4.2	6.3	4	470
230/800CA	230/800CAK	800	1150	258	7.5	10000	20000	280	480	0.2	3.4	5	3.2	895
240/800CA	240/800CAK	800	1150	345	7.5	11100	28500	220	400	0.27	2.5	3.7	2.5	1200
231/800CA	231/800CAK	800	1280	375	9.5	14800	31500	200	400	0.28	2.4	3.6	2.5	1920
241/800CA	241/800CAK	800	1280	475	9.5	18400	40500	170	320	0.35	1.9	2.9	1.8	2300
239/850CA	239/850CAK	850	1120	200	6	5980	15600	260	480	0.16	4.2	6.3	4	560
230/850CA	230/850CAK	850	1220	272	7.5	9370	21600	240	450	0.2	3.4	5	3.2	1050
240/850CA	240/850CAK	850	1220	365	7.5	12700	31500	200	360	0.27	2.5	3.7	2.5	1410
231/850CA	231/850CAK	850	1360	400	12	16100	34500	180	360	0.28	2.4	3.6	2.5	2200
241/850CA	241/850CAK	850	1360	500	12	20200	45000	150	300	0.35	1.9	2.9	1.8	2710
239/900CA	239/900CAK	900	1180	206	6	6440	17000	240	450	0.15	4.5	6.7	4.5	605
230/900CA	230/900CAK	900	1280	280	7.5	10100	23200	220	400	0.2	3.4	5	3.2	1200
240/900CA	240/900CAK	900	1280	375	7.5	13600	34500	190	340	0.26	2.6	3.9	2.5	1570
241/900CA	241/900CAK	900	1420	515	12	21400	49000	140	280	0.35	1.9	2.9	1.8	3350
230/1000CA	230/1000CAK	1000	1420	308	7.5	12700	30500	180	360	0.19	3.6	5.3	3.6	1600
240/1000CA	240/1000CAK	1000	1420	412	7.5	15400	40500	160	280	0.26	2.6	3.9	2.5	2140
231/1000CA	231/1000CAK	1000	1580	462	12	21400	48000	140	280	0.28	2.4	3.6	2.5	3500
241/1000CA	241/1000CAK	1000	1580	580	12	26700	62000	120	240	0.35	1.9	2.9	1.8	4300

Open Spherical Roller Bearings 24020CC 23120CC 24120CC 22220E 24022CC BWK Bearing

Open Spherical Roller Bearings

Related Products
