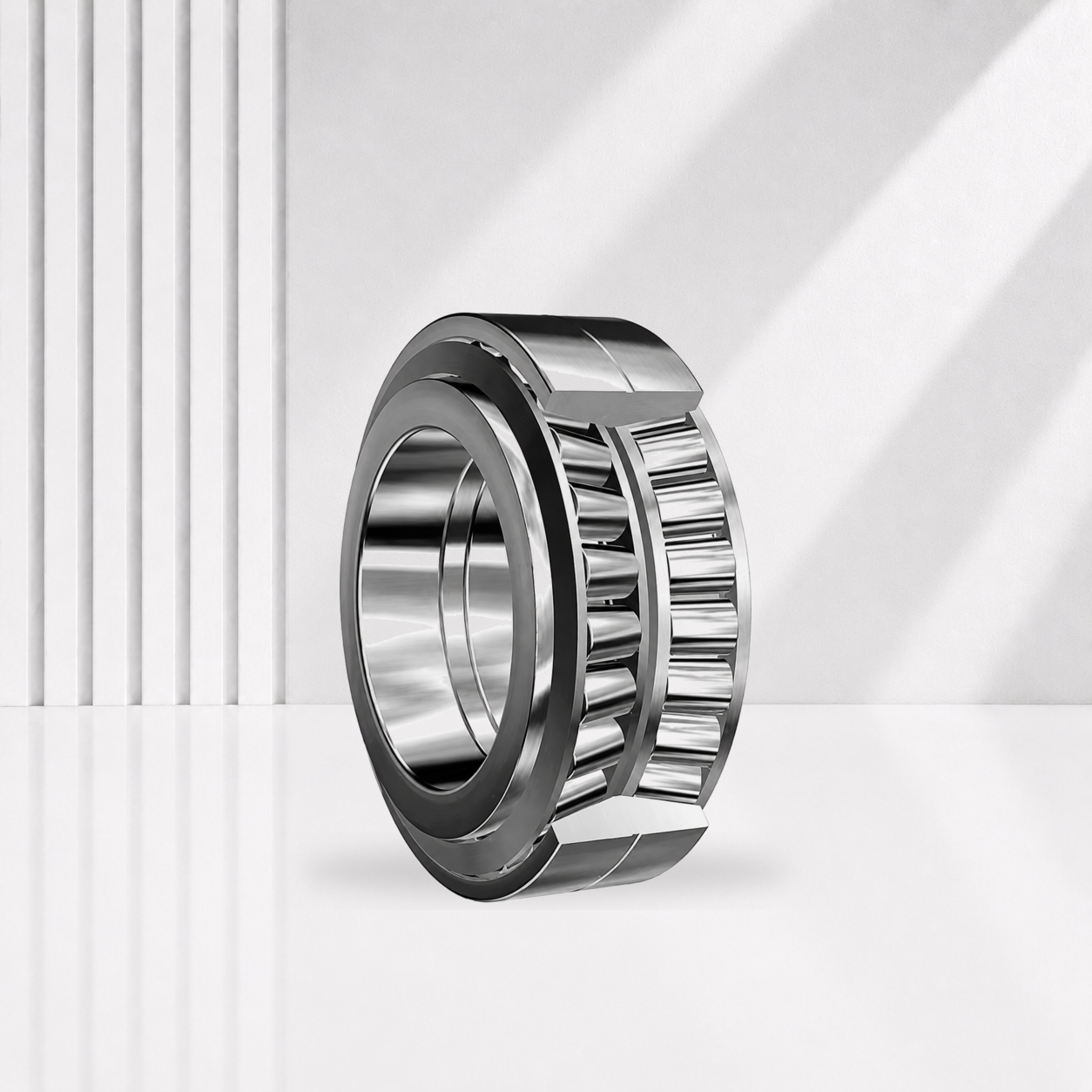

Steep-Angle Double-Row Tapered Roller Bearings

Steep-angle double-row tapered roller bearings are optimized for applications with substantial axial loading in both directions. Their increased contact angle improves axial capacity and rigidity while retaining useful radial load capability for heavy industrial assemblies.

Availability:

Quantity:



Inquire Add to Basket

Model:
DTSA1001, DTSA1003, DTSA0001, DTSA0003, DTSA0006, DTSA0011, DTSA0015, DTSA0017, DTSA0021, DTSA0023

Product Overview

Steep-angle double-row tapered roller bearings are optimized for applications with substantial axial loading in both directions. Their increased contact angle improves axial capacity and rigidity while retaining useful radial load capability for heavy industrial assemblies.

Available models and complete dimensional data are listed in the following parameter table tab.

Models & Dimensions

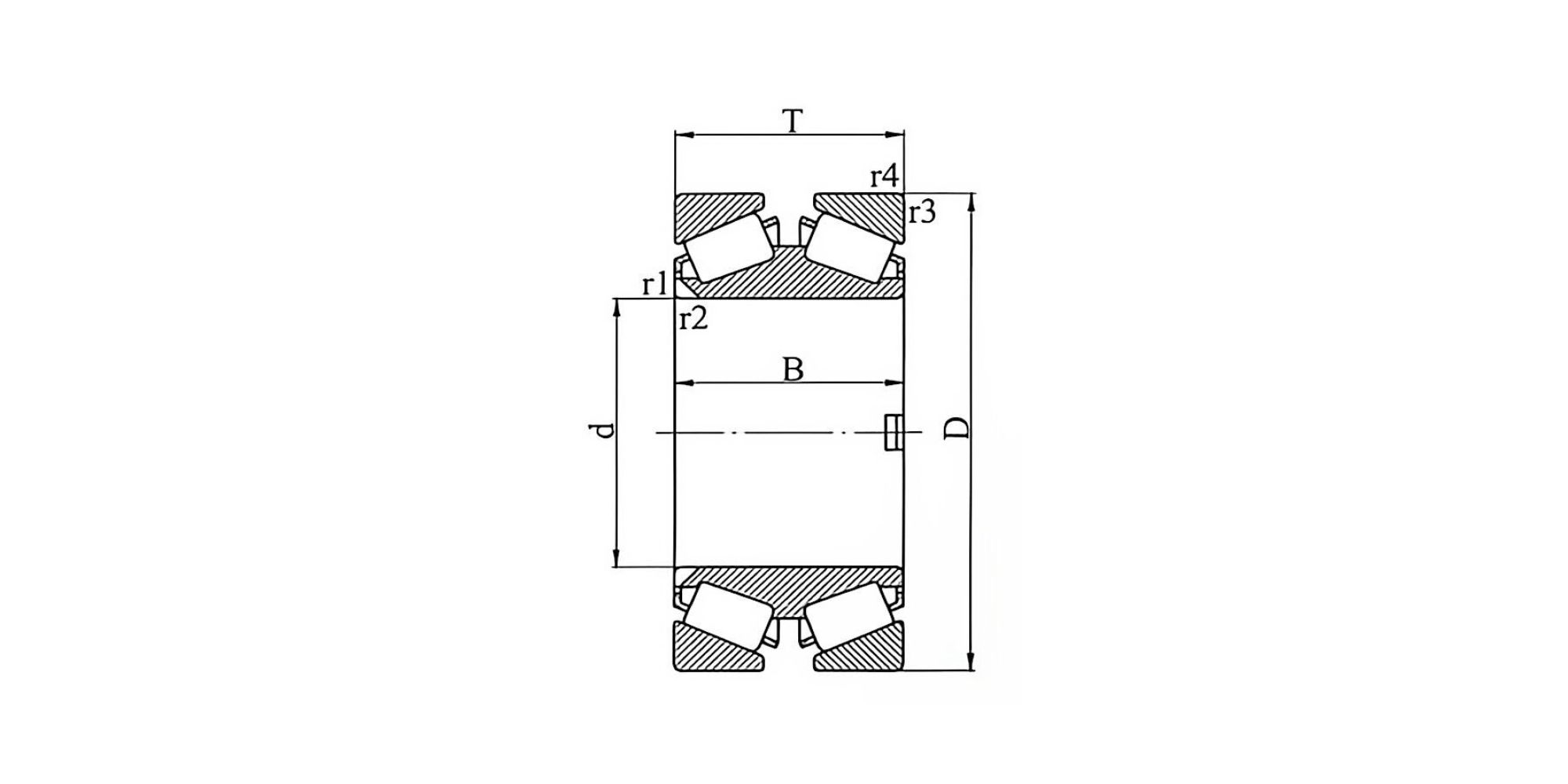

Bearing Designation	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – T	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – r1,2 min	Boundary Dimensions (mm) – r3,4 min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Calculation Factors – e	Calculation Factors – Y1	Calculation Factors – Y2	Calculation Factors – Y0	Calculation Factors – Y3	Calculation Factors – k	Bearing Designation – SKF	Bearing Designation – FAG	Bearing Designation – KOYO	kg
DTSA1001	200	360	170	170	1.5	4	1250	2300	0.96	－	0.7	0.68	1.04	－	-	-	45T403617	73.3
DTSA1002	220	360	120	120	4	3	1000	1920	0.87	－	0.78	0.76	1.16	－	-	-	45T443612	42.2
DTSA1003	240	460	140	140	6	5	1400	2570	0.87	－	0.78	0.76	1.16	－	-	-	45T484614	95.5
DTSA1004	260	459	155	155	5	4	1570	2780	0.87	－	0.78	0.76	1.16	－	-	-	45T524616	95.5
DTSA1005	285	380	92	92	1	2.5	758	1820	0.87	－	0.78	0.76	1.16	－	-	-	45T573809B	28.2
DTSA0001	300	440	105	105	4	4	1010	2040	0.88	0.77	1.15	0.8	－	0.67	332168	531529	-	48.5
DTSA0002	305.033	560	200	200	3.3	6.4	2920	5300	0.88	0.77	1.15	0.8	－	0.67	BT2B334087/HA3	-	-	205
DTSA0003	305.070	500	200	200	6.4	4.8	2550	5200	0.88	0.77	1.15	0.8	－	0.67	332169	533062	-	150
DTSA0004	305.070	560	200	200	3.3	6	2920	5300	0.88	0.77	1.15	0.8	－	0.67	332068	-	-	200
DTSA0005	360	560	160	160	3	5	2380	4650	0.72	0.94	1.4	0.9	－	0.8	BT2-8000/HA3	-	-	140
DTSA0006	360	600	200	200	3	5	3030	5850	0.94	0.72	1.07	0.7	－	0.6	BT2-8002/HA3	-	-	220
DTSA0007	380	560	200	200	5	5	2810	6550	0.79	0.85	1.25	0.8	－	0.73	BT2-8009/HA3	-	-	165
DTSA0008	380	565	200	200	5	5	2810	6550	0.79	0.85	1.25	0.8	－	0.73	BT2-8003/HA3	-	-	170
DTSA0009	386	574	220	220	3	5	2750	6550	0.83	0.81	1.2	0.8	－	0.71	BT2-8010/HA3VA901	-	-	185
DTSA0010	390	570	200	200	5	5	2750	6550	0.83	0.81	1.2	0.8	－	0.71	BT2B328896/HA3	-	-	170
DTSA0011	400	650	240	240	6.4	6.4	3910	8150	0.88	0.77	1.15	0.8	－	0.67	332167	531295A	-	310
DTSA0012	445	620	160	160	2	5	2120	5100	0.83	0.81	1.2	0.8	－	0.69	BT2B334069/HA3	801317	-	135
DTSA0013	460	680	180	180	2.5	6	3140	6950	0.99	0.7	1	0.7	－	0.6	BT2B328876/HA1	-	-	210
DTSA0014	510	733.5	200.025	200.025	3.3	4.8	3580	8500	0.88	0.77	1.15	0.8	－	0.67	617670	524209A	-	265
DTSA0015	510.13	800	285	285	4.8	10	5610	12700	0.88	0.77	1.15	0.8	－	0.67	332171	531530	-	505
DTSA0016	520	660	140	140	3	5	2050	5700	0.68	1	1.5	1	－	0.85	BT2-8001/HA3	-	-	115
DTSA0017	635	939.8	304.8	304.800	3.3	6.4	6710	16600	0.88	0.77	1.15	0.8	－	0.67	331535B	-	-	720
DTSA0018	660	814	176.212	176.212	4	6	2690	8330	0.67	－	1.01	0.99	1.5	－	-	-	2TR660B	170
DTSA0019	685.8	939.800	228.600	235	4	6	4930	12800	0.76	－	0.88	0.86	1.31	－	-	-	2TR686A	450
DTSA0020	720	920	150	130	5	5	2550	6390	0.87	－	0.78	0.76	1.16	－	-	-	2TR720	226
DTSA0021	785	1100	285	285	4	6	6370	16500	0.87	－	0.78	0.76	1.16	－	-	-	2TR785	810
DTSA0022	800	1100	300	300	1.5	6	7650	21600	0.79	0.85	1.25	0.8	－	－	-	-	-	850
DTSA0023	900	1220	340	340	2.5	6	7930	23200	0.87	－	0.78	0.76	1.16	－	-	-	2TR900	1000
