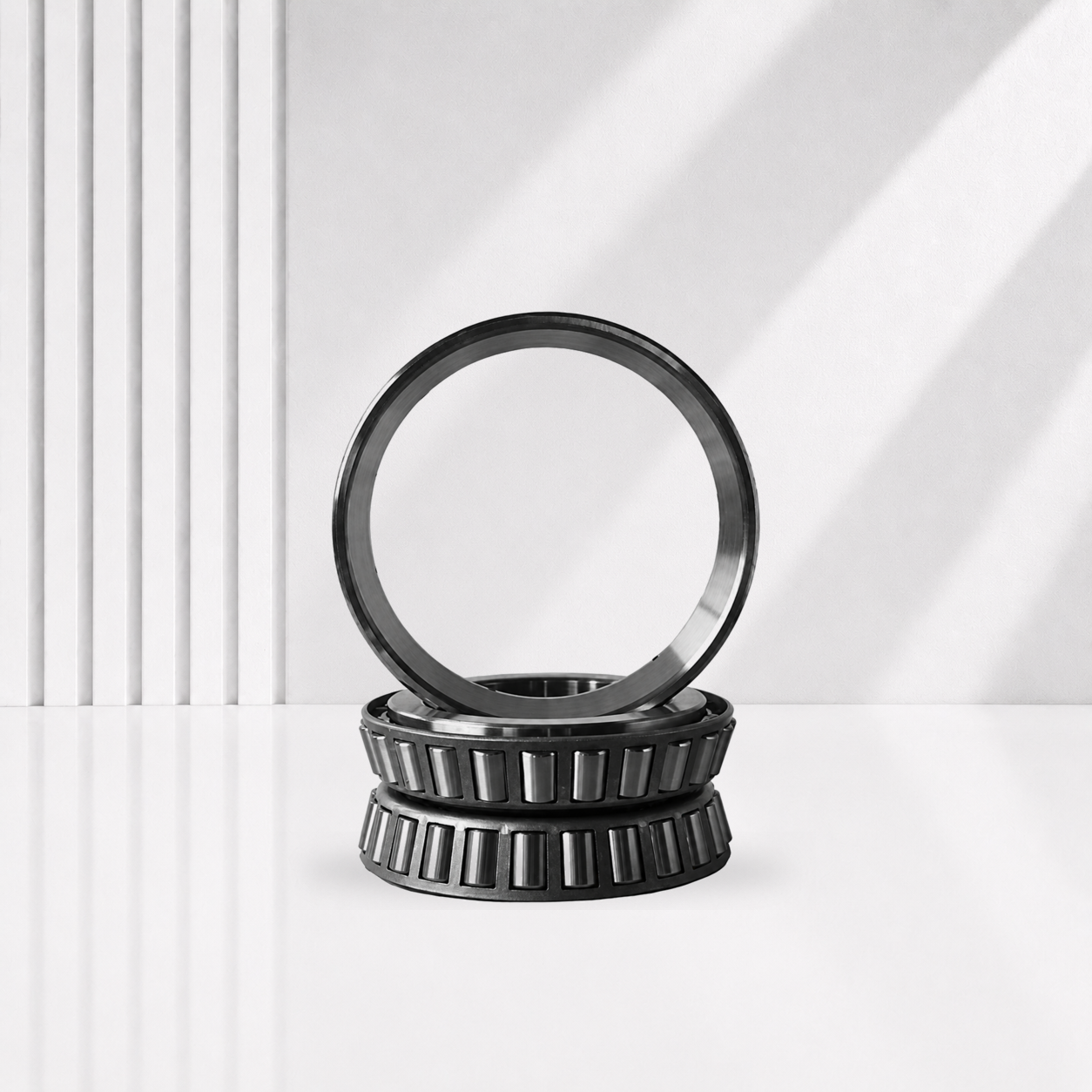

Double-Row Tapered Roller Bearings – Metric Series

Metric double-row tapered roller bearings support heavy radial loads and axial loads in both directions while providing rigid shaft location. They are used in gearboxes, rolling equipment, wheel assemblies and industrial drives that require compact combined-load support.

Availability:

Quantity:



Inquire Add to Basket

Model:
352220E, 352224E, 352226E, 352228E, 352232E, 352234E, 352236E, 352240E, 352252X2, 3510/600

Product Overview

Available models and complete dimensional data are listed in the following parameter table tab.

Models & Dimensions

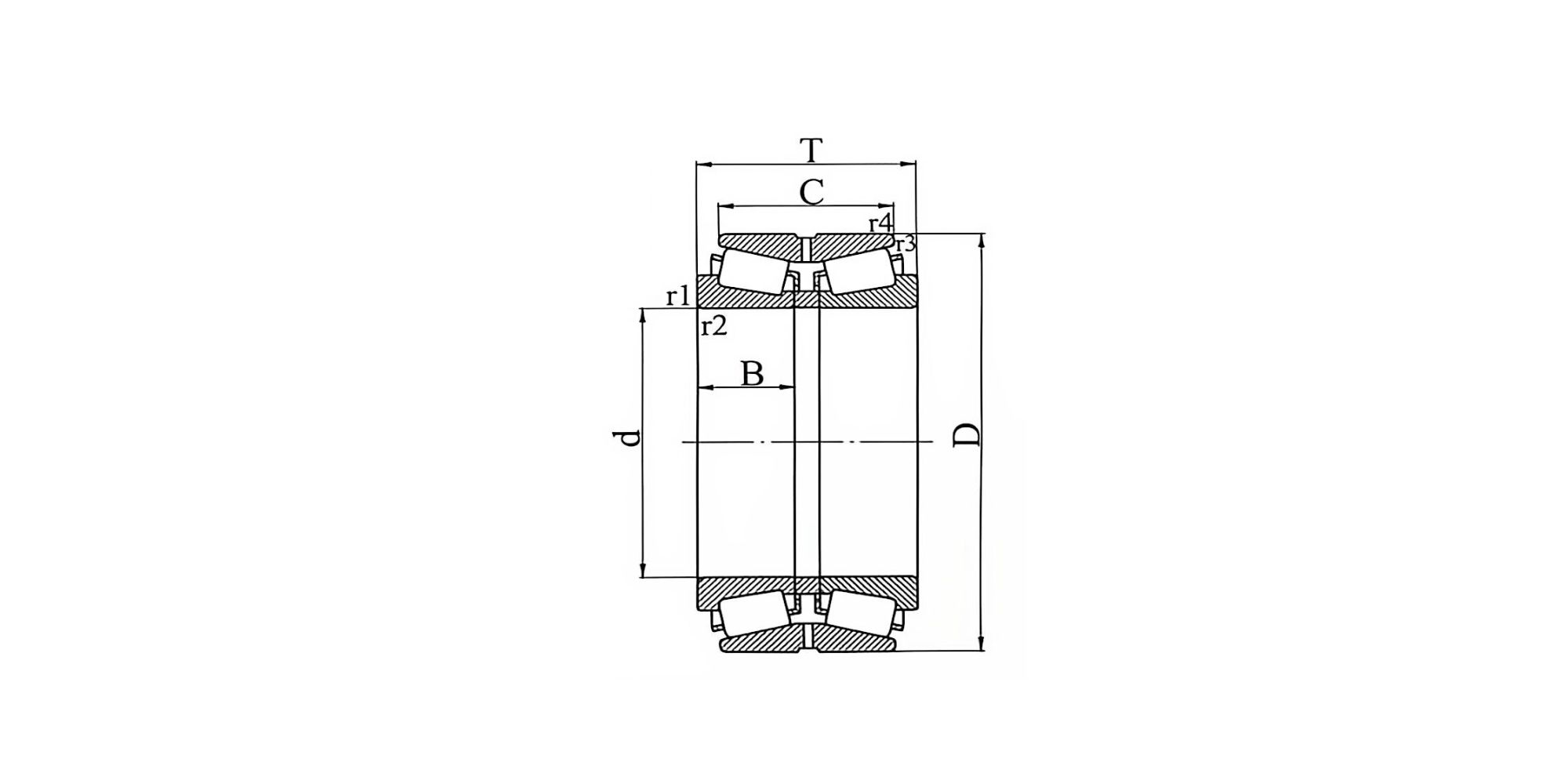

Bearing Designation – New	Bearing Designation – Old	d	D	T	B	C	r1,2 min	r3,4 min	Cr	Cor	Limiting Speeds (rpm) – Grease	Limiting Speeds (rpm) – Oil	Calculation Factors – e	Calculation Factors – Y1	Calculation Factors – Y2	Calculation Factors – Y0	kg
352220E	97520E	100	180	107	46	87	3	1	555	925	1400	1900	0.42	1.6	2.4	1.6	10.7
352122	2097722	110	180	95	42	76	2	0.6	422	840	1300	1700	0.25	2.7	4	2.6	10.2
352222E	97522E	110	200	121	53	101	3	1	698	1210	1200	1600	0.42	1.6	2.4	1.6	15.5
352222X2	97522	110	200	125	56.5	102	3	1	595	1120	1200	1600	0.39	1.7	2.6	1.7	16.4
352124	2097724	120	200	110	48	90	2	0.6	508	910	1100	1500	0.3	2.2	3.3	2.2	12.6
352224E	97524E	120	215	132	58	109	3	1	775	1360	1100	1400	0.44	1.6	2.3	1.5	18.9
352224X2	97524	120	215	132	60	106	3	1	698	1340	1100	1400	0.41	1.6	2.5	1.6	19.1
352926X2	2097926	130	180	70	30	50	2	0.6	258	565	1200	1600	0.27	2.5	3.7	2.4	4.88
352026X2	2097126	130	200	95	42.5	75	2.5	0.6	422	830	1100	1500	0.35	1.9	2.9	1.9	9.72
352126	2097726	130	210	110	48	90	2	0.6	540	1000	1000	1400	0.26	2.6	3.8	2.5	12.9
352226E	97526E	130	230	145	64	117.5	4	1	895	1630	1000	1300	0.44	1.6	2.3	1.5	24.1
352028X2	2097128	140	210	95	41.5	75	2.5	0.6	448	900	950	1300	0.37	1.8	2.7	1.8	8.35
352128	2097728	140	225	115	50	90	2.5	1	560	1110	950	1300	0.34	2	3	2	15.3
352228E	97528E	140	250	153	68	125.5	4	1	1050	1840	850	1100	0.44	1.6	2.3	1.5	30.1
352228X2	97528	140	250	158	73	128	4	1	985	1840	850	1100	0.33	2.1	3.1	2	30.6
352930X2	2097930	150	210	80	35	62	2.5	0.6	352	790	950	1300	0.27	2.5	3.7	2.4	9.32
352130	2097730	150	250	138	60	112	2.5	1	778	1560	850	1100	0.3	2.2	3.3	2.2	25.8
352230X2	97530E	150	270	172	80	138	4	1	1070	2180	800	1100	0.39	1.7	2.6	1.7	38.9
352032X2	2097132	160	240	115	51	90	3	1	608	1260	850	1100	0.37	1.8	2.7	1.8	16.5
352132	2097732	160	270	150	66	120	2.5	1	872	1720	800	1000	0.36	1.9	2.8	1.8	28.2
352232E	97532E	160	290	178	80	144	4	1	1390	2840	700	1000	0.44	1.6	2.3	1.5	46.9
350633	97833	165	290	150	70	125	3	1	1100	2300	850	1100	0.37	1.8	2.7	1.8	41.1
352934X2	2097934	170	230	82	36	65	2.5	0.6	395	922	850	1100	0.28	2.4	3.6	2.3	8.11
352034X2	2097134	170	260	120	54	95	3	1	672	1460	800	1000	0.31	2.2	3.2	2.1	20.4
352134	2097734	170	280	150	66	120	2.5	1	962	2000	750	950	0.38	1.8	2.6	1.7	35.6
352234E	97534E	170	310	192	86	152	5	1.1	1580	3200	750	950	0.44	1.6	2.3	1.5	58.2
352936X2	2097936	180	250	95	42.5	74	2.5	0.6	468	1080	800	1000	0.37	1.8	2.7	1.8	13.2
352036X2	2097136	180	280	134	61	108	3	1	742	1540	750	950	0.28	2.4	3.6	2.4	28.5
352136	2097736	180	300	164	72	134	3	1	1100	2350	700	900	0.26	2.6	3.8	2.6	39.9
352236E	97536E	180	320	192	86	152	5	1.1	1620	3350	670	850	0.45	1.5	2.2	1.5	63.8
352938X2	2097938	190	260	95	41.5	75	2.5	0.6	522	1270	750	950	0.38	1.8	2.6	1.7	13.3
352038X2	2097138	190	290	134	61	104	3	1	742	1540	700	900	0.45	1.5	2.2	1.5	28.8
352138	2097738	190	320	170	78	130	3	1	1160	2420	670	850	0.31	2.2	3.2	2.1	52.5
352238E	97538E	190	340	204	92	160	5	1.1	1740	3350	600	800	0.44	1.6	2.3	1.5	69.8
352940X2	2097940	200	280	105	46.5	80	3	1	610	1520	700	900	0.39	1.8	2.6	1.7	18.1
352040X2	2097140	200	310	152	70	120	3	1	912	2140	670	850	0.39	1.7	2.6	1.7	39.4
352140	2097740	200	340	184	82	150	3	1	1450	2970	630	800	0.25	2.7	4	2.7	63.8
352240E	97540E	200	360	218	98	174	5	1.1	2140	3950	560	700	0.41	1.7	2.5	1.6	93.3
352944X2	2097944	220	300	110	49	88	3	1	660	1580	670	850	0.31	2.2	3.2	2.1	21.7
352044X2	2097144	220	340	165	76	130	4	1	1240	2680	600	750	0.35	1.9	2.9	1.9	49.5
352144	2097744	220	370	195	88	150	4	1.1	1540	3240	600	750	0.37	1.8	2.7	1.8	76.3
352948X2	2097948	240	320	110	49	90	3	1	660	1580	600	750	0.32	2.1	3.1	2.1	22.2
352048X2	2097148	240	360	165	76	130	4	1	1240	2820	530	670	0.33	2	3	2	52.8
352148	2097748	240	400	210	95	163	4	1.1	1870	4050	500	630	0.31	2.2	3.2	2.1	98.1
352952X2-1	2097952	260	360	134	61	108	3	1	942	2490	530	670	0.37	1.8	2.7	1.8	37.3
352052X2	2097152	260	400	186	87	146	5	1.1	1570	3600	500	630	0.3	2.3	3.3	2.2	79.3
352152	2097752	260	440	225	106	180	4	1.1	2210	4720	450	560	0.24	2.8	4.2	2.8	124
352956X2	2097956	280	380	134	61	108	3	1	1080	2810	480	600	0.29	2.3	3.4	2.3	41.3
352056X2	2097156	280	420	186	85	146	5	1.1	1700	3880	450	560	0.37	1.8	2.7	1.8	81.5
352960X2-1	2097960	300	420	160	72	128	4	1	1360	3610	450	560	0.28	2.4	3.6	2.3	60.8
352060X2	2097160	300	460	210	97	165	5	1.1	1830	4390	430	530	0.31	2.2	3.2	2.1	117
351160	1097760	300	500	205	90	165	5	1.5	2110	4460	400	500	0.32	2.1	3.2	2.1	143
352964X2	2097964	320	440	160	72	128	4	1	1410	3830	430	530	0.3	2.3	3.3	2.2	67.6
352064X2	2097164	320	480	210	97	160	5	1.1	1830	4390	400	500	0.42	1.6	2.4	1.6	122
352968X2	2097968	340	460	160	72	128	4	1	1450	4050	400	500	0.31	2.2	3.2	2.1	71.5
351068	97168	340	520	180	82	135	5	1.5	1870	4070	380	480	0.29	2.3	3.4	2.3	128
351168	1097768	340	580	242	106	170	5	1.5	2870	5970	340	430	0.42	1.6	2.4	1.6	235
352972X2	2097972	360	480	160	72	128	4	1	1490	4270	380	480	0.33	2.1	3.1	2	74.3
351072	97172	360	540	185	82	140	5	1.5	2120	4910	360	450	0.3	2.3	3.3	2.2	132
351172	1097772	360	600	242	106	170	5	1.5	2950	6270	320	400	0.44	1.5	2.3	1.5	235
351976	1097976	380	520	145	65	105	4	1.1	1210	3250	360	450	0.43	1.6	2.3	1.6	80.3
351076	97176	380	560	190	82	140	5	1.5	2150	5090	340	430	0.31	2.2	3.2	2.1	146
351176	1097776	380	620	242	106	170	5	1.5	3310	7430	300	380	0.46	1.5	3.2	1.4	264
351980	1097980	400	540	150	65	105	4	1.1	1210	3110	320	400	0.45	1.5	2.2	1.5	86.9
351080	97180	400	600	206	90	150	5	1.5	2620	6380	300	380	0.4	1.7	2.5	1.7	180
351984	1097984	420	560	145	65	105	4	1.1	1450	3740	300	380	0.31	2.2	3.2	2.1	88.8
351084	97184	420	620	206	90	150	5	1.5	2650	6600	280	360	0.41	1.6	2.5	1.6	196
351184	1097784	420	700	275	122	200	6	2.5	4270	8810	240	320	0.32	2.1	3.2	2.1	392
351988	1097988	440	600	170	74	125	4	1.1	1890	4860	280	360	0.39	1.8	2.6	1.7	114
351088	97188	440	650	212	94	152	6	2.5	2750	7020	260	340	0.43	1.6	2.3	1.5	213
351992	1097992	460	620	174	74	130	4	1.1	1910	4990	260	340	0.4	1.7	2.5	1.7	128
351092	97192	460	680	230	100	175	6	2.5	3320	8160	220	300	0.31	2.2	3.2	2.1	253
351996	1097996	480	650	180	78	130	5	1.5	1950	5270	240	320	0.42	1.6	2	1.6	133
351096	97196	480	700	240	100	180	6	2.5	3330	8190	200	280	0.32	2.1	3.1	2.1	281
351196	1097796	480	790	310	136	224	7.5	3	5000	11990	180	240	0.41	1.6	2.5	1.6	561
3519/500	10979/500	500	670	180	78	130	5	1.5	2150	6120	220	300	0.44	1.5	2.3	1.5	129
3510/500	971/500	500	720	236	100	180	6	2.5	3390	8450	190	260	0.33	2	3	2	289
3519/530	10979/530	530	710	190	82	136	5	1.5	2390	6800	190	260	0.41	1.6	2.5	1.6	192
3519/560	10979/560	560	750	213	85	156	5	1.5	2550	7060	170	220	0.44	1.5	2.3	1.5	235
3510/560	971/560	560	820	260	115	185	6	2.5	4340	10800	160	200	0.4	1.7	2.5	1.7	410
3519/600	10979/600	600	800	205	90	156	5	1.5	3210	9460	150	190	0.33	2.1	3.1	2	265
3510/600	971/600	600	870	270	118	198	6	2.5	4880	12730	130	170	0.41	1.6	2.5	1.6	500
3519/630	10979/630	630	850	242	100	182	6	2.5	3730	10390	130	170	0.4	1.7	2.5	1.7	368
3511/670	10977/670	670	1090	410	185	295	7.5	3	9680	23200	90	120	0.32	2.1	3.2	2.1	1370
3519/710	10979/710	710	950	240	106	175	6	2.5	4070	12400	100	140	0.49	1.5	2.2	1.4	444
3510/710	971/710	710	1030	315	140	220	7.5	3	6560	17930	90	120	0.43	1.6	2.3	1.5	810
3519/750	10979/750	750	1000	264	112	194	6	2.5	5020	14480	90	120	0.4	1.7	2.5	1.6	499
3519/800	10979/800	800	1060	270	115	204	6	2.5	5020	15000	80	100	0.35	1.9	2.9	1.9	604
3519/850	10979/850	850	1120	268	118	188	6	2.5	5460	16860	75	95	0.46	1.5	2.2	1.5	636
3519/900	10979/900	900	1180	275	122	205	6	2.5	5000	16200	70	90	0.39	1.7	2.6	1.7	730
3519/950	10979/950	950	1250	300	132	220	7.5	3	6790	21100	–	–	0.33	2	3	2	910
