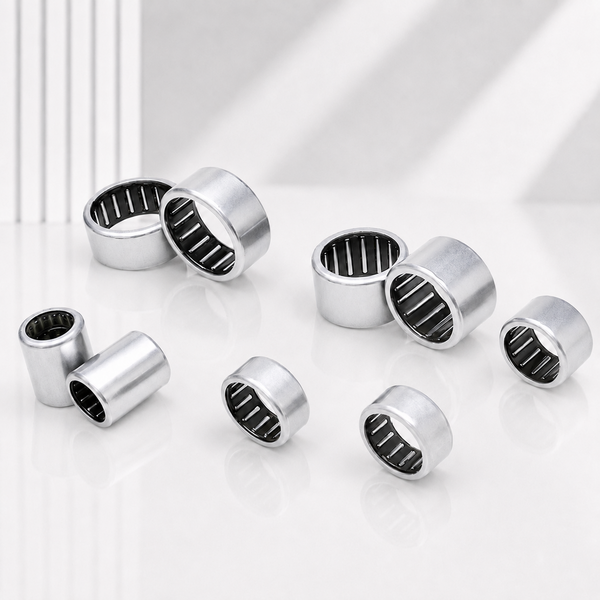

Drawn Cup Roller Clutches

Drawn cup roller clutches provide compact one-way torque transmission. HF clutch-only and HFL clutch-and-bearing structures are available for different mounting and support requirements.
Availability:
Quantity:
Inquire Add to Basket

  • HF0612, HF0812, HFL0822, HF1012, HFL1022, HF1216, HFL1226, HF1416, HFL1426, HF1616, HFL162224, HFL1626, HF202611, HF2012, HF2016, HF2520, HF3016, HF3020, HF3520

  • BWK

Product Details

Drawn Cup Roller Clutches

Drawn cup roller clutches provide one-way torque transmission in a compact radial section. They lock in one direction and overrun freely in the opposite direction, making them suitable for indexing, backstopping and overrunning clutch functions.


Structure and Features

  • Compact thin-walled drawn cup construction

  • High torque capacity relative to radial section height

  • HF clutch-only and HFL clutch-and-bearing structures

  • Simple press-fit installation without additional axial location

  • Low overrunning friction for efficient one-way operation

Series: HF, HFL


Applications

Suitable for office equipment, printing machinery, conveyors, agricultural machinery, exercise equipment, starter mechanisms and compact transmission systems.


Drawn Cup Roller Clutches


Technical Data

Shaft Diameter (mm) Current Designation Original Designation Fw (mm) D (mm) C (mm) rmin (mm) Driving Torque Md (Nm) Limiting Speed n (rpm) Limiting Speed nA (rpm) Weight (kg)
6 HF0612
6 10 12 0.3 1.76 20000 13000 0.00300
8 HF0812 DX-81212 8 12 12 0.3 3.15 16000 11000 0.00350
8 HFL0822
8 12 22 0.3 3.15 16000 11000 0.00588
10 HF1012
10 14 12 0.3 5.3 14000 11000 0.00422
10 HFL1022
10 14 22 0.3 5.3 14000 11000 0.00712
12 HF1216
12 18 16 0.3 12.2 10000 7000 0.01050
12 HFL1226
12 18 26 0.3 12.2 10000 7000 0.01800
14 HF1416
14 20 16 0.3 17.3 8500 7000 0.01230
14 HFL1426
14 20 26 0.3 17.3 8500 7000 0.02048
16 HF1616
16 22 16 0.3 20.5 8500 7000 0.01250
16 HFL162224
16 22 24 0.3 20.5 8500 7000 0.01900
16 HFL1626
16 22 26 0.3 20.5 8500 7000 0.02179
20 HF202611
20 26 11 0.3 16 6500 6500 0.01104
20 HF2012
20 26 12 0.3 17 6500 6500 0.01222
20 HF2016
20 26 16 0.3 28.5 6500 6500 0.02180
25 HF2520
25 32 20 0.3 66 5000 5000 0.03030
25.4 RC-162108-FS
25.4 33.34 12.7 0.3 30 5000 5000 0.01935
25.4 RC-162110-FS
25.4 33.338 15.88 0.3 67 5000 5000 0.03040
25.4 RCB-162117
25.4 33.34 26.99 0.3 67 5000 5000 0.05170
30 HF3016
30 37 16 0.3 70 4000 4000 0.02840
30 HF3020
30 37 20 0.3 90 4000 4000 0.03490
35 HF3520
35 42 20 0.3 121 3700 3700 0.04140

Dimensions, torque ratings and limiting speeds should be confirmed according to the actual operating conditions.
