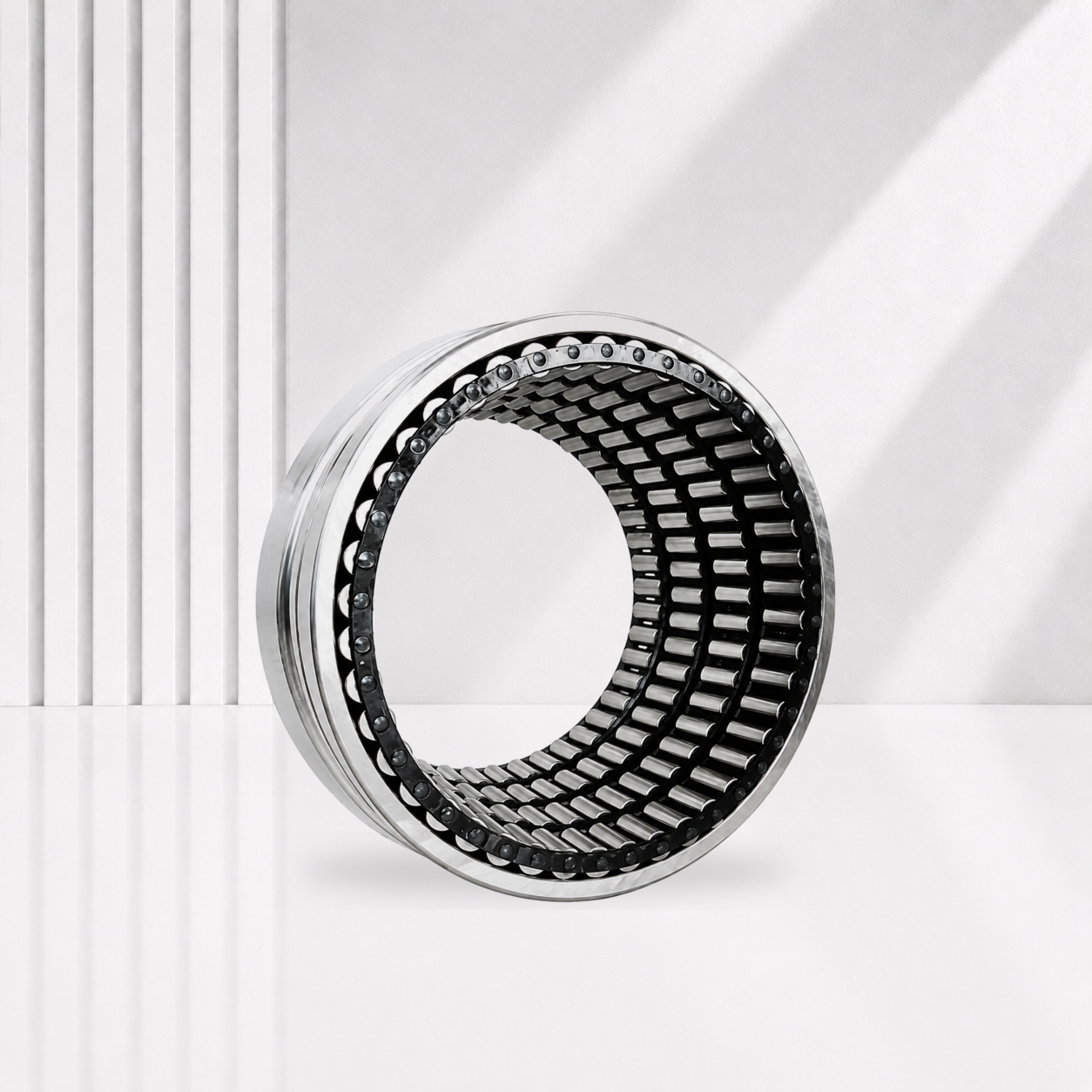

Four-Row Cylindrical Roller Bearings – Interference Fit

Four-row cylindrical roller bearings with an interference-fit arrangement are designed for rolling mill roll-neck applications that require very high radial load capacity and stable running accuracy. Their separable construction supports maintenance and roll servicing, while the fit helps secure the rings under heavy shock and cyclic loads.

Availability:

Quantity:



Inquire Add to Basket

Model:
FC1623108, FC2028104, FC2436105, FC2842100, FC3246168E, FC3652168, FC4056200E, FCD4462225E, FCD4866220E, FCD5280335, FCDP80112410, FCDP120174640E

Product Overview

Available models and complete dimensional data are listed in the following parameter table tabs.

Models & Dimensions (1/4)

Bearing Designation – New	Bearing Designation – Old	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – Fw	Boundary Dimensions (mm) – r1,2 min	Boundary Dimensions (mm) – r3,4 min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Bearing Designation – SKF	Bearing Designation – FAG	Bearing Designation – NTN	Bearing Designation – NSK	Bearing Designation – KOYO	kg
FC1623108	-	80	115	108	90	1.5	1.1	284	656	-	-	-	-	-	3.76
FC182870	672718	90	140	70	105	1.5	1.1	239	385	-	-	-	-	-	4.42
FC182874	-	90	140	74	105	1.5	1.1	244	496	-	-	-	-	-	4.25
FC1828105	672718K	90	140	105	105	1.5	1.1	394	736	-	-	-	-	-	6.08
FC202780	-	100	135	80	110	1.5	1.5	176	425	-	-	-	-	-	3.24
FC202870	672820K	100	140	70	111	1.5	1.1	298	606	-	-	-	-	-	3.32
FC202880	672720K	100	140	80	111	1.5	1.1	238	484	-	-	-	-	-	3.83
FC2028104	672720	100	140	104	111	1.5	1.1	400	820	-	-	-	100RV1401	-	4.91
FC202970	-	100	145	70	113	1.5	1.1	248	542	-	-	-	-	20FC1570	3.81
FC2030106	-	100	150	106	113	1.5	1.1	470	854	-	-	-	-	-	6.65
FC223080	-	110	150	80	122	1.5	1.5	200	520	-	-	-	-	-	4.32
FC2230120	-	110	150	120	122	1.5	1.5	370	800	-	-	-	-	-	6.28
FC223490	672722K	110	170	90	127	2	2	428	752	-	-	-	-	22FC1790	7.54
FC223492	-	110	170	92	127	2	2	379	752	-	-	-	-	-	7.78
FC2234120	672722	110	170	120	127	2	2	615	1180	-	-	-	110RV1701	-	10.3
FC233390	-	115	165	90	132	1.5	1.1	398	751	-	-	-	-	23FC1690	6.52
FC243387	-	120	165	87	134.5	1.5	1.1	374	745	-	-	-	120RV1601	24FC1787	5.66
FC243490	-	120	170	90	133	2	2	337	787	-	-	-	-	-	6.51
FC243692	672824	120	180	92	137	2	2	427	751	-	-	4R2437	-	-	8.22
FC2436105	672724	120	180	105	135	2	2	550	1200	-	-	4R2438	-	4CR120	9.45
FC2436120	-	120	180	120	136	2	2	477	1061	-	-	-	-	-	11.3
FC2443102	-	120	215	102	148	2.1	2.1	605	1072	-	-	-	-	-	16.3
FC2443174	-	120	215	174	147	2.1	2.1	1060	1600	-	-	-	120RV2101	-	27.3
FC263590	-	130	175	90	143	2	2	291	783	-	-	-	-	-	6.85
FC2640104	672726K	130	200	104	150	2	2	566	998	-	-	4R2628	-	26FC20104	12.1
FC2640110	-	130	200	110	150	2	2	608	1040	-	-	-	-	26FC20110	13
FC2640125	672726	130	200	125	149	2	2	700	1190	-	-	-	130RV2001	26FC20125	14.5
FC2838119	-	140	190	119	154	2	2	704	1248	-	-	-	-	28FC19119W	9.7
FC284280	-	140	210	80	156	2	2	500	970	-	-	-	-	-	9.64
FC2842100	-	140	210	100	158	2	2	715	1248	-	-	-	-	-	12.2
FC2842106	672828	140	210	106	158	2	2	715	1248	-	-	-	-	-	13.2
FC2842116	-	140	210	116	160	2	2	640	1130	-	-	4R2823	140RV2101	28FC21116A	13.9
FC2842125	672728	140	210	125	158	2	2	715	1265	-	-	-	-	-	14.9
FC2842155	-	140	210	155	158	2	2	715	1331	-	-	-	-	-	18.1
FC2942155	-	145	210	155	166	2	2	1080	1930	314625	511605	4R2906	145RV2101	29FC21155	18.1
FC2945156	-	145	225	156	169	2	2	1250	1960	313924A	512764	4R2908	145RV2201	313924	23.2
FC2946156	-	145	230	156	169	2	2	886	1827	-	-	-	-	-	24.7
FC3042120	-	150	210	120	166	2	2	587	1380	-	-	-	-	-	12.5
FC3044120	672930K	150	220	120	167	2	2	702	1193	-	-	-	-	-	15.5
FC3044150	-	150	220	150	168	2	2	900	1700	-	-	4R3031	150RV2201	30FC22150A	19.3
FC3045112	-	150	225	112	170	2	2	550	1210	-	-	-	-	-	16.3
FC3045120	672730K	150	225	120	169	2	2	702	1408	-	-	-	-	-	16.2
FC3045150	-	150	225	150	169	2	2	801	1670	-	-	-	-	-	20.9
FC3046130	-	150	230	130	174	2	2	845	1520	-	-	4R3029	150RV2301	30FC23130-1	19.7
FC3046150	-	150	230	150	177	2	2	950	1790	-	-	-	-	-	22.8
FC3046156	672730	150	230	156	174	2	2	1250	2080	313891A	508955	4R3040	150RV2302	313891-1	24.6
FC3244180	-	160	220	180	177	2.1	2.1	964	2560	-	-	4R3224	-	32FC22180	20.2
FC3245120	-	160	225	120	177	2.1	2.1	639	1340	-	-	-	-	-	14.9
FC3246130	-	160	230	130	178	2.1	2.1	781	1320	-	-	-	160RV2301	32FC23130	17.7
FC3246130E	-	160	230	130	180	2.1	2.1	830	1340	314190	502894	4R3226	-	314190	17.6
FC3246168	-	160	230	168	177	2.1	2.1	1040	2170	-	-	-	-	-	22.8
FC3246168E	-	160	230	168	179	2.1	2.1	1160	2200	315189A	510150	4R3232	-	-	23.5
FC3246168E1	-	160	230	168	180	2.1	2.1	1040	2200	-	-	-	160RV2302	32FC23170A	23.5
FC3246180	-	160	230	180	178	2.1	2.1	1080	2280	-	-	-	160RV2303	32FC23180	24.6
FC3248120	-	160	240	120	183	2.1	2.1	745	1320	-	-	-	160RV2401	32FC24120W	18.6
FC3248124	672732K	160	240	124	183	2.1	2.1	635	1301	-	-	-	-	-	19.6
FC3248168	672732	160	240	168	183	2.1	2.1	1042	2310	-	-	-	-	-	26.7
FC3248170	-	160	240	170	183	2.1	2.1	1080	2290	-	-	4R3225	160RV2402	32FC24170	27.8
FC3446120	-	170	230	120	187	2	2	819	1610	-	-	4R3426	170RV2301	34FC23120	14.3
FC3446130	-	170	230	130	188.5	2	2	780	1400	313673	508370	-	-	-	15.6
FC3446180	-	170	230	180	186	2.1	2.1	1034	2035	-	-	-	-	-	24.5
FC3448130	-	170	240	130	190	2.1	2.1	913	1830	BC4B635122	510440B	-	-	-	18.7
FC3448156	-	170	240	156	189	2.1	2.1	972	2170	-	-	4R3429	-	34FC24156	22.2
FC3450150	-	170	250	150	192	2.1	2.1	720	1716	-	-	-	-	-	25.1
FC3450168	-	170	250	168	192	2.1	2.1	1210	2320	-	-	-	170RV2501	34FC25168	28.1
FC3450170	672734	170	250	170	192	2.1	2.1	1210	2418	-	-	-	170RV2502	34FC25170	28.6
FC3451180	-	170	255	180	193	2.1	2.1	1380	2500	-	-	4R3425	170RV2503	-	30.5
FC3452120	672734K	170	260	120	195	2.1	2.1	860	1752	-	-	-	-	-	23.2
FC3452150	-	170	260	150	195	2.1	2.1	1030	1840	-	-	-	170RV2602	34FC26150	28.8
FC3452170	-	170	260	170	195	2.1	2.1	1034	2096	-	-	-	-	-	32.7
FC3452192	672734KU	170	260	192	195	2.1	2.1	1087	2240	-	-	-	-	-	36.9
FC3452225	-	170	260	225	196	2.1	2.1	1930	3350	313587B	505470	4R3431	-	-	43.3
FC3650120	-	180	250	120	200	2.1	2.1	610	1578	-	-	-	-	-	18.1
FC3650130	-	180	250	130	200	2.1	2.1	716	1922	-	-	-	-	-	19.5
FC3650156	672736K	180	250	156	198	2.1	2.1	880	2230	-	-	-	-	-	23.4
FC3650156E	-	180	250	156	200	2.1	2.1	1020	2230	-	-	4R3625	180RV2501	36FC25156A	22.8
FC3652120	672836	180	260	120	202	2.1	2.1	735	1577	-	-	-	-	-	21.1
FC3652124	-	180	260	124	202	2.1	2.1	735	1577	-	-	-	-	-	21.7
FC3652156	-	180	260	156	198	2.1	2.1	835	2200	-	-	-	-	-	27.3
FC3652160	672736U	180	260	160	202	2.1	2.1	880	2230	-	-	-	-	-	28.4
FC3652168	672736	180	260	168	202	2.1	2.1	1280	2500	313812	507536	4R3628	180RV2601	313812W	29.5
FC3652180	-	180	260	180	202	2.1	2.1	1100	2800	-	-	-	-	-	32.9
FC3653180	-	180	265	180	204	2.1	2.1	1340	2690	-	-	4R3618	180RV2602	-	33.8
FC3656180E	-	180	280	180	206	2.1	2.1	1287	2995	-	524372	-	-	-	46.2
FC3656180	672736K	180	280	180	207	2.1	2.1	1287	2995	-	-	-	-	-	41.4
FC3656200	-	180	280	200	205	2.1	2.1	1620	2990	-	-	-	-	36FC28200	46.3
FC3658192	-	180	290	192	210	2.1	2.1	1287	2478	-	-	-	-	-	50.5
FC3852168	672838	190	260	168	208	2.1	2.1	1140	2520	-	-	-	-	-	25.5
FC3852168E	-	190	260	168	212	2.1	2.1	1340	2600	313651	507735	4R3820	190RV2601	38FC26168-1	27.2
FC3853124	-	190	265	124	213	2.1	2.1	819	1921	-	-	-	-	-	21.3
FC3854166	-	190	270	166	212	2.1	2.1	1034	2460	-	-	-	-	-	30.4
FC3854168	672738K	190	270	168	212	2.1	2.1	1034	2460	-	-	-	-	-	30.8
FC3854170	-	190	270	170	213	2.1	2.1	1290	2910	-	-	4R3818	190RV2702	38FC27170A	31.7
FC3854200	672738	190	270	200	212	2.1	2.1	1660	3350	314199B	508657	4R3821	190RV2701	314199	37.5
FC3856200	-	190	280	200	214	2.1	2.1	1830	3370	314049A	510199	4R3823	190RV2801	-	42.3
FC4050200	-	200	250	200	215	1	1	900	2500	-	-	-	200RV2521	-	23.8
FC4053180	-	200	265	180	217	2	2	1200	2790	-	-	-	-	40FC27180	27.2
FC4054120	-	200	270	120	222	2.1	2.1	617	1630	-	-	-	-	-	19.6
FC4054170	-	200	270	170	222	2.1	2.1	1290	2700	314553	522742	4R4039	-	314553	28.5
FC4056170	-	200	280	170	222	2.1	2.1	1630	3000	314385	507344	-	-	40FC28170	32.5
FC4056188	672740K	200	280	188	222	2.1	2.1	1350	2810	-	-	-	-	40FC28188	36.2
FC4056190	-	200	280	190	223	3	3	1460	3100	-	-	-	200RV2803	40FC28190A	36.5
FC4056200E	-	200	280	200	222	2.1	2.1	1630	3350	313893	508726	4R4037	200RV2802	313893-1	39.3
FC4056200	672940	200	280	200	224	2.1	2.1	1410	3200	-	-	-	200RV2801	40FC28200	39.4
FC4058130	-	200	290	130	226	2.1	2.1	941	1916	-	-	-	-	-	38.5
FC4058192	672740	200	290	192	226	2.1	2.1	1730	3310	313811	512580	4R4041	200RV2901	313811	42.8
FC4058202	-	200	290	202	226	2.1	2.1	1540	3310	-	-	-	-	-	43.4
FC4062130	-	200	310	130	229	2.1	2.1	1113	2254	-	-	-	-	-	36.3
FC4062200	-	200	310	200	229	2.1	2.1	1573	3625	-	524373	-	-	-	59.5
FC4062230	-	200	310	230	229	2.1	2.1	2360	4000	313639/VJ202	503901.N128A	-	200RV3102	-	64.3
FC4064216	-	200	320	216	231	2.1	2.1	2120	3900	-	-	4R4028	200RV3231	-	67.2
FC4258192	-	210	290	192	234	2.1	2.1	1185	3245	-	-	-	-	-	38.2
FC4258192E	-	210	290	192	236	2.1	2.1	1700	3400	313646	507628	4R4206	210RV2901	42FC29192	41.2
FC4260170	-	210	300	170	234	2.1	2.1	1215	2845	-	-	-	-	-	38.8
FC4260210	672742	210	300	210	234	2.1	2.1	1660	3490	-	-	-	-	42FC30120	47.9
FC4458192	-	220	290	192	239	2.1	2.1	1190	3350	-	-	4R4413	-	-	33.8
FC4460160	-	220	300	160	245	2.1	2.1	1000	2590	-	-	4R4419	-	-	32.8
FC4460190	-	220	300	190	240	2.1	2.1	1219	3323	-	-	-	-	-	39.3
FC4460192	-	220	300	192	242	2.1	2.1	1219	3323	-	-	-	-	-	39.7
FCD4460200	-	220	300	200	240	2.1	2.1	1790	3900	BC2B322341/HB1VJ202	567623	-	-	-	41.2
FC4462190	-	220	310	190	246	2.1	2.1	11320	3450	-	-	-	-	-	45.1
FC4462192	672744	220	310	192	246	2.1	2.1	1830	3650	313839	507333	4R4426	-	313837A	46.3
FC4462192E	-	220	310	192	247	2.1	2.1	1540	3450	-	-	-	220RV3101	313837-1	46.3
FCD4462204	-	220	310	204	247	2.1	2.1	1420	3750	-	-	4R4425	-	-	49.8
FCD4462215	-	220	310	215	242	2.1	2.1	1590	3950	-	-	4R4420	-	-	51.5
FCD4462225E	-	220	310	225	244	2.1	2.1	2200	4300	313894B	514461	-	-	44FC31225A	54.5
FCD4462225	-	220	310	225	245	2.1	2.1	1940	4150	-	506869	4R4416	220RV3102	44FC31225	54.9
FCD4462265	-	220	310	265	245	2.1	2.1	1690	4700	-	-	4R4430	-	-	63.5
FC4464160	-	220	320	160	245	2.1	2.1	1190	2550	-	-	4R4428	-	-	46.5
FC4464192	672844	220	320	192	246	2.1	2.1	1600	3440	-	-	-	-	-	51.5
FCD4464210	-	220	320	210	246	2.1	2.1	1900	3750	-	509216	-	220RV3203	44FC32210	61.2
FCD4464210E	-	220	320	210	248	2.1	2.1	1790	3650	-	-	4R4429	220RV3201	44FC32210-1	56.1
FCD4466230	-	220	330	230	249	2.1	2.1	2360	4000	314889/VJ202	541452	-	-	-	68.5
FC4468180	-	220	340	180	256	3	3	1500	2750	-	-	-	-	44FC34180A	60.3
FC4468192	672744K	220	340	192	246	2.1	2.1	1820	3600	-	-	-	-	-	64.2
FCD4468210	672844Y	220	340	210	250	2.1	2.1	1909	3846	-	-	-	-	-	70.2
FCD4468290	-	220	340	290	250	2.1	2.1	3250	5400	-	525147	-	-	-	96.3

Models & Dimensions (2/4)

Bearing Designation – New	Bearing Designation – Old	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – Fw	Boundary Dimensions (mm) – r1,2 min	Boundary Dimensions (mm) – r3,4 min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Bearing Designation – SKF	Bearing Designation – FAG	Bearing Designation – NTN	Bearing Designation – NSK	Bearing Designation – KOYO	kg
FCD4469210	-	220	345	210	250	2.1	2.1	1909	3846	-	-	-	-	-	73.8
FC4666170	-	230	330	170	260	2.1	2.1	1140	2970	-	-	-	-	-	47.4
FC4666206E	-	230	330	206	258	2.1	2.1	1520	3800	-	-	4R4614	-	-	58.6
FC4666206	672746	230	330	206	260	2.1	2.1	2080	4000	313824	508727	-	230RV3301	313824	58
FCD4668260	-	230	340	260	261	2.1	2.1	2390	5100	-	-	4R4611	230RV3401	46FC34260	81
FCD4673250	-	230	365	250	266	2.1	2.1	2640	4900	313581A	529113	-	230RV3601	313581AW	100
FC4866180	-	240	330	180	265	2.1	2.1	2040	3800	635194	504547	-	-	-	49.5
FCD4866220	672748	240	330	220	264	2.1	2.1	1830	4340	-	-	-	240RV3304A	48FC33220	56.4
FCD4866220E	-	240	330	220	270	2.1	2.1	2080	4400	313921	508368	4R4811	240RV3301	312943/1YD	58
FC4868192	672748K	240	340	192	268	2.1	2.1	1474	3582	-	-	-	-	-	55.4
FCD4868220	-	240	340	220	268	2.1	2.1	2400	4200	-	513703	4R4806	240RV3403	48FC34220	71
FCD4870220	-	240	350	220	270	2.1	2.1	1576	4073	-	-	-	-	-	71
FC4872218	-	240	360	218	270	3	3	2130	4060	-	-	-	-	48FC36218	77.4
FCD4872220E	-	240	360	220	272	2.1	2.1	2250	4374	-	-	-	240RV3601	-	78.8
FCD4872220	-	240	360	220	274	2.1	2.1	1760	4050	-	-	4R4807	-	-	79.6
FC4872290	-	240	360	290	270	3	3	3300	6550	BC4B322292A/HB3	-	-	-	48FC36290W	130
FC5068170	-	250	340	170	274	3	3	1392	3488	-	-	-	-	-	45
FC5068220	-	250	340	220	274	3	3	1329	3123	-	-	-	-	-	52.8
FCD5068230	-	250	340	230	270	3	3	1700	4350	-	-	-	-	-	65
FC5070220E	-	250	350	220	274	3	3	1700	4350	-	-	-	-	-	58
FC5070220	672750	250	350	220	278	3	3	1930	4350	-	-	4R5008	250RV3501	50FC35220	65
FCD5070230	672750K1	250	350	230	278	3	3	1700	4350	-	-	-	-	-	68.7
FC5072220	672750K	250	360	220	282	3	3	1700	4240	-	-	-	-	-	73
FC5272192	-	260	360	192	288	3	3	1609	3874	-	-	-	-	-	60
FC5272200	-	260	360	200	288	3	3	1550	4550	-	-	-	-	-	62
FC5272204	-	260	360	204	287	3	3	1980	4400	314997/VJ202	-	-	-	-	64.5
FC5272230	-	260	360	230	292	3	3	1980	4650	BC4B320956	-	-	-	-	73.5
FCD5272260	-	260	360	260	287	3	3	2300	5320	-	-	-	-	52FC36260	80
FC5274192	-	260	370	192	291	3	3	1670	4012	-	-	-	-	-	66
FC5274200	672752K	260	370	200	292	3	3	1771	4120	-	-	-	-	-	68.9
FC5274220	672752	260	370	220	292	3	3	2160	4650	313823	507336	4R5217	260RV2701	313823	76.5
FC5274230	-	260	370	230	292	3	3	1760	4450	-	-	-	-	-	79.3
FC5276220	-	260	380	220	292	3	3	2104	4900	-	-	-	-	-	85
FCD5276280E	-	260	380	280	294	3	3	2820	6250	-	-	4R5213	260RV3801	52FC38280	108
FCD5276280	672852	260	380	280	295	3	3	2720	6250	-	-	-	-	-	108
FCD5280290	-	260	400	290	296	3	3	3900	7100	313427B	518214	-	260RV4001	-	135
FCD5280335	-	260	400	335	294	3	3	4300	7340	-	521065	-	-	52FC40335W	149
FC5374234	-	265	370	234	300	3	3	2500	5400	313922	517423	-	-	53FC37234	80
FC5476230	672754	270	380	230	298	3	3	2330	5050	-	-	-	270RV3801	54FC38230	81.8
FCD5476275E	-	270	380	275	298	3	3	3080	6990	-	-	-	-	-	97.8
FCD5476275	672754K1	270	380	275	300	3	3	3080	6990	-	-	-	-	-	102
FC5478220	-	270	390	220	306	3	3	1800	4803	-	-	-	-	-	86.7
FCD5478240	-	270	390	240	298	3	3	2236	5330	-	-	-	-	-	94
FC5480220	672854	270	400	220	305	3	3	1822	4600	-	-	-	-	-	95.3
FC5675200	672956	280	375	200	307	3	3	1500	4310	-	-	-	-	-	63.5
FC5676170	-	280	380	170	306	3	3	1710	3590	-	-	-	-	56FC38170W	55
FC5676192	-	280	380	192	310	3	3	1560	4580	-	-	-	-	-	64.6
FCD5676290	-	280	380	290	308.5	3	3	2750	6950	BC4--0001	-	-	-	-	75
FC5678220	672756	280	390	220	312	3	3	2240	5000	313822	507339	4R5611	280RV3901	313822	81.5
FC5678240	-	280	390	240	312	3	3	2360	5500	-	-	-	280RV3902	-	90
FCD5678275	-	280	390	275	308	3	3	3600	7200	314719C	527104	-	280RV3903	-	105
FCD5678275E	-	280	390	275	312	3	3	3150	6400	-	513729A	4R5612	-	56FC39275	105
FCD5680285	-	280	400	285	316	3	3	3400	7350	314170/VJ202	513342	-	280RV4021	-	120
FCD5682300	672856	280	410	300	313	3	3	3900	7450	314897/VJ202	510350	-	-	-	134
FCD5684280	-	280	420	280	318	3	3	2945	7212	-	-	-	-	-	137
FCD5684300	-	280	420	300	319	3	3	3470	7350	313487	507356	-	-	-	150
FC5878190	-	290	390	190	316	4	4	2050	4550	635195	-	-	-	-	67
FC5878234	-	290	390	234	320	4	4	2270	5600	-	-	-	290RV3901	58FC39234	79.6
FC5880180	-	290	400	180	320	4	4	2189	5385	-	-	-	-	58FC40180W	68
FC5882240	672758	290	410	240	320	4	4	2570	5600	-	-	4R5806	290RV4101	58FC41240	103
FCD5884300	-	290	420	300	327	4	4	3300	7500	-	-	4R5805	290RV4201	58FC42300	141
FCD5888310	-	290	440	310	328	4	4	4300	9700	-	517796	-	-	-	170
FCD6080300	-	300	400	300	328	4	4	2720	6900	-	-	E-4R6014	300RV4021	60FC40300	104
FCD6084180	-	300	420	180	332	4	4	2200	6780	-	-	-	-	-	92.4
FC6084218	672760K	300	420	218	332	4	4	2350	5010	-	-	-	-	60FC42218	93.7
FC6084240	672760	300	420	240	332	4	4	2670	5750	-	-	-	300RV4201	60FC42240	103
FC6084240E	-	300	420	240	334	4	4	2020	5450	-	-	E-4R6017	-	-	106
FCD6084300	-	300	420	300	332	4	4	3740	8800	314484D	524289	E-4R6020	300RV4221	60FC42300W	130
FCD6088320	-	300	440	320	337	4	4	2843	8212	-	-	-	-	-	177
FCD6092270	-	300	460	270	344	4	4	2670	5800	-	-	E-4R6019	-	-	162
FCD6092350	-	300	460	350	341	4	4	5500	9700	-	517795	-	-	-	250
FC6286240	-	310	430	240	344.5	4	4	2610	5950	-	-	E-4R6202	310RV4301	62FC43240	107
FC6488240	-	320	440	240	351	4	4	2169	6100	-	-	E-4R6414	-	-	113
FCD6488286	-	320	440	286	350	4	4	6900	8564	-	537046	-	-	-	142
FCD6488300	-	320	440	300	351	4	4	2720	8280	-	-	-	-	-	142
FC6490180	-	320	450	180	355	4	4	2193	5364	-	-	-	-	-	90.1
FC6490240	-	320	450	240	354	4	4	2320	5750	-	-	-	-	-	125
FC6490240E	-	320	450	240	355	4	4	2700	5750	-	-	-	-	64FC45240	116
FCD6492240	-	320	460	240	364	4	4	2920	7200	BC4B322216/VJ202	804571	-	-	-	140
FCD6492280	-	320	460	280	357	4	4	2800	7400	-	-	-	-	-	159
FCD6492300	-	320	460	300	357	4	4	2567	6087	-	-	-	-	-	163
FCD6492340	-	320	460	340	360	4	4	3860	9450	-	-	E-4R6412	-	64FC46340A	178
FCD6494350	-	320	470	350	357	4	4	5200	9780	-	532592	-	-	-	225
FCD6496290	-	320	480	290	364	4	4	3520	8640	-	-	-	-	-	187
FCD6496350	-	320	480	350	364	4	4	5600	10800	314274B	541851	-	320RV4811	-	235
FC6686230	-	330	430	230	358	4	4	2340	5850	-	-	-	330RV4301	-	87.4
FC6688200	-	330	440	200	360	4	4	2160	4850	-	-	E-4R6603	330RV4401	66FC44200W	83.6
FCD6692340E	-	330	460	340	364	4	4	3860	9150	-	-	-	-	66FC46340	174
FCD6692340	-	330	460	340	365	4	4	4650	10200	313445C	543447	E-4R6605	330RV4601	-	182
FC6890250E	-	340	450	250	364	4	4	2400	6530	-	-	-	-	-	109
FC6890250E1	-	340	450	250	368	4	4	2750	6800	-	-	-	340RV4502	68FC45250BW	106
FC6890250	672768K	340	450	250	371	4	4	2720	6750	-	-	-	340RV4501	-	124
FC6892260	672768	340	460	260	370	4	4	2380	7600	-	-	-	-	-	125
FC6896280	-	340	480	280	374	4	4	2840	7870	-	-	-	-	-	160
FCD6896350	-	340	480	350	378	4	4	3575	11000	314485A	527634	-	340RV4801	68FC48350C	205
FCD6898300	-	340	490	300	377	4	4	3350	8300	-	-	E-4R6804	-	-	187
FCD68100370	-	340	500	370	385	4	4	6550	13200	BC4B322261/HB1	517794	-	-	-	260
FCD681200380	-	340	560	380	396	4	4	7650	12900	313404A	545171	-	-	-	350
FCD6996350	-	345	480	350	376	3	3	4400	10300	-	-	-	345RV4821	-	190
FCD70100380	-	350	500	380	389	4	4	5700	11400	314563/VJ202	532381	-	-	-	242
FCD7010410	-	350	500	410	388	4	4	7100	14300	BC4B322777/HB1	532001	-	-	-	285
FCD70104300	-	350	520	300	401	4	4	5100	9000	BC2B319878/VJ202	568450	-	-	-	220
FCD7296290E	-	360	480	290	392	4	4	3470	8510	-	-	-	-	72FC48290	145
FCD7296290	-	360	480	290	394	4	4	3250	8300	-	-	-	360RV4801	-	146
FCD72100250	-	360	500	250	394	4	4	3580	7350	BC2B320075/VJ202	-	-	-	-	145
FCD72102370	-	360	510	370	397	4	4	3756	9870	-	-	-	-	-	242
FCD72102380	-	360	510	380	399	4	4	5200	12300	-	-	-	-	72FC51380	249
FCDP72102400	-	360	510	400	397	4	4	4250	11500	-	-	E-4R7203	-	-	262
FCDP72104380	-	360	520	380	405	4	4	6200	13700	-	562913	-	-	72FC52380	266
FCD7496230	-	370	480	230	400	4	4	2100	6250	-	-	E-4R7405	-	-	106
FCD7496250	-	370	480	250	401	4	4	2830	7422	-	-	-	370RV4801	-	116
FCDP74104380	-	370	520	380	409	4	4	6100	14400	314486A	543975	-	370RV5211	74FC52380	255
FCDP74104400	-	370	520	400	413	4	4	4740	11900	-	-	-	-	74FC52400W	268
FCDP74106400	-	370	530	400	413	4	4	4433	13402	-	-	-	-	-	312
FCDP74108400	-	370	540	400	415	4	4	5250	12400	-	-	-	370RV5401	74FC54400A	311
FCDP75109400	-	375	545	400	417	4	4	6310	14500	-	-	-	-	75FC55400	315
FCD76100290	-	380	500	290	414	4	4	3350	8800	-	-	-	380RV5001	-	153
FCD76104280	-	380	520	280	417	4	4	3650	9150	-	-	E-4R7605	380RV5202	76FC52280	174
FCD76104280E	-	380	520	280	426	4	4	2860	7200	NNU4976B/DRW33	-	-	-	-	185
FCD76104290	-	380	520	290	418	4	4	3750	8850	-	576360	-	380RV5201	76FC52290	182
FCD76104300	-	380	520	300	416	4	4	3550	9600	-	-	E-4R7607	-	-	210
FCD76108300	-	380	540	300	421	4	4	5010	11000	313030A	541982	-	-	-	220
FCD76108340	-	380	540	340	424	4	4	4700	10900	-	-	-	380RV5431	-	249
FCD76108380	-	380	540	380	422	4	4	3800	10900	-	-	-	-	-	290
FCDP76108400E	-	380	540	400	422	4	4	6700	14400	BC4B313511B	544794	E-4R7604	380RV5411	76FC54400W	295
FCDP76108400	-	380	540	400	424	4	4	5050	12000	315606	-	-	380RV5401	76FC54400CW	280
FCDP76112300	-	380	560	300	424	4	4	4950	9650	BC4B322189	-	-	-	-	260
FCDP76112325	-	380	560	325	428	4	4	5320	10600	BC4B322264/HB1	-	-	-	-	265
FCD78102290	-	390	510	290	424	4	4	3400	9000	-	-	-	390RV5101	-	156
FCD78108320	-	390	540	320	431	4	4	5500	12200	BC4B322498	578278	-	-	-	230
FCD78110310	-	390	550	310	430	4	4	5120	11200	313190A	-	-	-	-	240
FCDP78110400	-	390	550	400	434	4	4	5150	12400	-	-	-	390RV552A	78FC55400AW	303
FCD80104250	-	400	520	250	432	5	5	3000	7700	-	-	-	400RV5202	80FC52250W	137
FCDP80108380	-	400	540	380	436	5	5	4550	9780	-	533426	-	-	-	273
FCDP80110300E	-	400	550	300	438	5	5	4460	10400	-	-	-	-	80FC55300	214
FCDP80110300	-	400	550	300	441	5	5	4150	9750	-	-	-	400RV5501	-	213
FCDP80112400	-	400	560	400	446	5	5	5650	13600	-	-	E-4R8007	400RV5612	80FC56400W	303

Models & Dimensions (3/4)

Bearing Designation – New	Bearing Designation – Old	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – Fw	Boundary Dimensions (mm) – r1,2 min	Boundary Dimensions (mm) – r3,4 min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Bearing Designation – SKF	Bearing Designation – FAG	Bearing Designation – NTN	Bearing Designation – NSK	Bearing Designation – KOYO	kg
FCDP80112410	-	400	560	410	445	5	5	7800	16500	313015DC	513769A	E-4R8010	400RV5611	80FC56410	315
FCDP80118440	-	400	590	440	450	5	5	8300	16600	315802/VJ202	542395	-	-	-	415
FCDP82112400	-	410	560	400	450	5	5	6700	16600	316689	543736	-	-	-	300
FCDP82120440	-	410	600	440	460	5	5	9300	18600	313877B	517436	-	410RV6011	-	425
FCD84112280	-	420	560	280	457	5	5	3930	9350	-	-	E-4R8403	420RV5601	84FC56280	191
FCD84116260	-	420	580	260	468	5	5	3740	9650	BC2B320074A/VJ202	-	-	-	-	210
FCD84116320	-	420	580	320	463	5	5	4680	19800	313555C/VJ202	533053	-	-	-	250
FCDP84120440	-	420	600	440	470	5	5	8150	17600	313513	545467	-	420RV6011	4CR420A	400
FCD84124300	-	420	620	300	473	5	5	5200	15800	-	-	-	-	-	416
FCDP84124400E	-	420	620	400	473	5	5	6930	15600	314391/VJ202	509394	-	-	-	430
FCDP84124400	-	420	620	400	478	5	5	5000	13400	-	-	E-4R8401	-	-	410
FCD86114340	-	430	570	340	465	5	5	6000	16800	-	526415	-	-	-	260
FCDP86118420	-	430	591	420	476	5	5	5200	13400	-	-	-	430RV5921	-	347
FCDP88124450E	-	440	620	450	487	5	5	8800	19600	314554B	545628	E-4R8801	440RV6213	88FC62450AW	427
FCDP88124450	-	440	620	450	490	5	5	7450	19000	-	-	-	440RV6221	-	430
FCD88130355	-	440	650	355	494	5	5	6700	14000	316899A	-	-	-	-	420
FCDP88132340	-	440	660	340	492	5	5	6710	13700	635043	-	-	-	-	333
FCDP89120435	-	445	600	435	478	3	2	9150	16000	-	543174	-	-	-	353
FCDP89127375	-	445	635	375	496	4	4	6240	14600	-	-	-	-	4CR445	385
FCD90118300	-	450	590	300	490	5	5	3910	12000	315811E	-	-	-	-	245
FCDP90118435	-	450	590	435	486	5	5	8150	19000	-	542648	-	-	-	345
FCDP90126450	-	450	630	450	500	5	5	6950	17500	-	-	-	450RV6321	90FC63450A	433
FCD92122320	-	460	610	320	499	5	5	4100	14600	-	526420	-	-	-	290
FCD92124320	-	460	620	320	500	5	5	4800	16200	-	526026	-	-	-	290
FCD92124400	-	460	620	400	502	5	5	6500	17000	-	-	E-4R9209	460RV6211	92FC62400BW	344
FCD92130355	-	460	650	355	509.5	5	5	6270	14600	313031A	541756	-	-	-	380
FCDP92130424	-	460	650	424	510	5	5	9000	18300	315196A	513584A	-	-	-	450
FCDP92130470	-	460	650	470	509	5	5	10400	22400	314560 319155	518846	E-4R9216	460RV6511	92FC65470W	510
FCDP92132475	-	460	660	475	508	5	5	11000	35000	-	517693	-	-	-	585
FCDP92134500	-	460	670	500	522	5	5	7650	22700	-	-	-	460RV6721	-	596
FCDP92140540	-	460	700	540	519	5	5	12000	37500	-	529368	-	-	-	785
FCDP95120368	-	475	600	368	504	3	3	5500	14600	BC4B326261/HA1	-	-	-	-	235
FCDP96130340	-	480	650	340	522	5	5	6550	18400	-	525884	-	-	-	320
FCDP96130420	-	480	650	420	522	5	5	8120	23700	-	525912	-	-	-	440
FCDP96130450	-	480	650	450	525	5	5	9000	21200	316690B	547660	E-4R9609	-	-	439
FCD96136420	-	480	680	420	528	5	5	9800	19300	319320	533522	-	-	-	515
FCDP96136500	-	480	680	500	528	5	5	9130	23000	316624	-	-	-	-	605
FCDP96136500E	-	480	680	500	532	5	5	11600	24000	313516D	514445B	E-4R9604	-	-	585
FCDP96136500E1	-	480	680	500	534	5	5	9000	23100	-	-	-	480RV6801	96FC68500	630
FCDP96140500	-	480	700	500	534	5	5	12200	34200	-	546152V	-	-	-	675
FCDP96140530	-	480	700	530	536	5	5	11200	31500	-	523399	-	-	-	720
FCDP99123360	-	495	615	360	530	6	6	4030	12000	-	-	-	-	99FC62360	235
FCDP100130260	-	500	650	260	542	6	6	4020	10200	319254/VJ202	-	-	-	-	225
FCDP100134450E	-	500	670	450	540	6	6	8300	22300	316083A	-	-	500RV6712E	-	463
FCDP100134450	-	500	670	450	556	6	6	9000	22800	-	533023	-	-	-	458
FCDP100136450	-	500	680	450	550	6	6	10200	22000	BC4B316515	546335	-	-	-	509
FCDP100138470	-	500	690	470	547	6	6	7650	22500	-	-	E-4R10016	-	-	590
FCDP100138510	-	500	690	510	552	6	6	9010	24600	-	-	E-4R10006	500RV6921	100FC69510	590
FCDP100140500	-	500	700	500	554	6	6	11600	38000	-	517692	-	-	-	615
FCDP100140515	-	500	700	515	554	6	6	9100	25200	-	-	E-4R10011	500RV7021	-	680
FCDP100142480	-	500	710	480	558	6	6	11200	23200	316968A	530488	-	500RV7111	-	615
FCDP100144400	-	500	720	400	558	6	6	7920	17600	BC4B322066	-	-	-	-	530
FCDP100144530	-	500	720	530	560	6	6	9950	25300	-	-	-	500RV7211	100FC72530	782
FCDP100144530E	-	500	720	530	568	6	6	12700	28500	314441B	513378A	E-4R10015	-	100FC72530C	780
FCDP102134320	-	510	670	320	554	6	6	4950	13500	-	-	E-4R10201	510RV6701	102FC67320	335
FCDP102136500	-	510	680	500	560	6	6	10400	26000	BC4B319411	567725A	-	-	-	522
FCDP102140540	-	510	700	540	558	6	6	8300	25000	-	-	E-4R10202	-	-	689
FCDP102146520E	-	510	730	520	565	6	6	13400	42000	-	541646	-	-	-	745
FCDP102146520	-	510	730	520	569	6	6	9520	22000	BC4-8009/HB1	-	-	-	-	750
FCDP102152550	-	510	760	550	570	6	6	14600	28000	BC4-8007/HB1	517690	-	-	-	950
FCDP104140540	-	520	700	540	564	6	6	8200	25500	-	-	E-4R10403	-	-	658
FCDP104147535	-	520	735	535	574.5	6	6	10400	26600	-	-	E-4R10402	520RV7331	104FC74535	740
FCDP104150530	-	520	750	530	576	6	6	13700	45000	-	541647	-	-	-	810
FCDP106140540	-	530	700	540	574	6	6	8150	26500	-	-	E-4R10603	-	-	626
FCDP106152520E	-	530	760	520	587	6	6	13700	29000	314886A	531597	-	-	-	775
FCDP106152520	-	530	760	520	590	6	6	9150	26700	-	-	E-4R10601	-	-	800
FCDP106156500	-	530	780	500	591	6	6	9350	20400	315040/VJ202	-	-	-	-	805
FCDP106156570	-	530	780	570	595	6	6	12500	30600	-	-	-	530RV7813	106FC78570	952
FCDP106156570E	-	530	780	570	601	6	6	14600	32500	314517A	517689A	E-4R10502	530RV7811	-	960
FCDP106174670	-	530	870	670	615	6	6	21200	38000	-	543481	-	-	-	1680
FCDP109162580	-	545	810	580	614	6	6	13500	33400	-	-	-	-	109FC81580	1090
FCDP110148510	-	550	740	510	600	6	6	12200	28500	316691B	532843	-	-	110FC74510	639
FCDP110160520E	-	550	800	520	612	6	6	11700	27000	316115/VJ202	549875	-	-	-	895
FCDP110160520	-	550	800	520	622	6	6	9450	26500	-	-	E-4R11001	-	-	965
FCDP110160560	-	550	800	560	610	6	6	15300	30500	BC4B322719/HB1	517688	-	-	-	985
FCDP112136360	-	560	680	360	590	6	6	4650	16500	-	-	E-4R11202	-	-	265
FCDP112160600	-	560	800	600	620	6	6	13000	33400	-	-	-	560RV8011	112FC80600	1010
FCDP112164600	-	560	820	600	625	6	6	14200	34000	BC4B322930/HA4	517687A	-	-	-	1080
FCDP112164630	-	560	820	630	625	6	6	14400	45200	-	526708	-	-	112FC82630	1240
FCDP114150530	6727/570	570	750	530	622	5	5	6750	25200	-	-	-	-	-	662
FCDP114163594	-	570	815	594	628	6	6	13700	34500	-	-	E-4R11402	570RV8111	114FC81594	1010
FCDP114166600	-	570	830	600	635	6	6	17600	67800	-	517686	-	-	-	1200
FCDP116170640	-	580	850	640	648	6	6	18000	38000	-	517685	-	-	-	1275
FCDP118164590	-	590	820	590	649	6	6	13100	35100	-	-	-	-	118FC82590	990
FCD120164550	-	600	820	550	660	6	6	14000	33500	-	518780	-	-	-	900
FCDP120164575	-	600	820	575	660	6	6	15000	36000	315175A(C)	528518	-	600RV8212E	120FC82575	936
FCDP120174540	-	600	870	540	672	6	6	15300	38300	315068A	533259	E-4R12002	-	-	1150
FCDP120174640E	-	600	870	640	672	6	6	18300	40000	315513	517684A	E-4R12001	600RV8713	120FC87640	1340
FCDP120174640	-	600	870	640	682	6	6	15100	40000	314317A	-	-	600RV8711	4CR600A	1300
FCDP120184680	-	600	920	680	674	6	6	22800	67100	-	526235	-	-	-	1800
FCDP122164430	-	610	820	430	665	6	6	9350	23600	315257A	-	-	-	-	652
FCDP122170570	-	610	850	570	670	6	6	13200	34900	-	-	-	-	122FC85570	1040
FCDP122174660	-	610	870	660	680	6	6	15400	41500	-	-	E-4R12202	610RV8711	122FC87660	1400
FCDP126160360	-	630	800	360	675	5	5	6850	19500	-	-	-	-	126FC80360	440
FCDP126170436	-	630	850	436	690	6	6	7480	23600	BC2-8012/HB1VJ202	-	-	-	-	720
FCDP126180670	-	630	900	670	698	6	6	20800	63500	-	517683	-	-	-	1525
FCDP128174610	-	640	870	610	697	6	3	14200	40000	-	-	-	640RV8711	-	1100
FCDP128176600	-	640	880	600	700	6	6	15000	40800	-	-	-	-	128FC88600	1130
FCDP130180650	-	650	900	650	704	7.5	7.5	17200	41500	BC4-8002/HA6	-	-	-	-	1260
FCDP130184670	-	650	920	670	723	7.5	7.5	20800	46500	313007C	515194A	E-4R13005	650RV9212	130FC92670	1460
FCDP130184690	-	650	920	690	723	7.5	7.5	16600	45500	-	-	E-4R13003	650RV9211	130FC92690B	1550
FCDP130184690E	-	650	920	690	724	7.5	7.5	16700	46500	-	-	-	-	130FC92690	1490
FCDP132164440	-	660	820	440	702	7.5	7.5	7480	22800	239509FA	-	E-4R13201	-	-	530
FCDP132176450	-	660	880	450	727	7.5	7.5	7210	23600	313477/VJ202	509944	-	-	-	785
FCDP134174530	-	670	870	530	725	6	3	13700	34500	-	533258	-	-	-	827
FCDP134190690	-	670	950	690	740	5	4	22400	50000	-	517682	-	-	-	1606
FCDP134190700	-	670	950	700	750	7.5	7.5	14500	47300	-	-	-	-	-	1670
FCDP136188600	-	680	940	600	743	7.5	7.5	19000	53400	-	533683	-	-	-	1295
FCDP136196640	-	680	980	640	760	7.5	7.5	21000	45000	313154C	524229	-	-	-	1750
FCDP138196715	-	690	980	715	767	7.5	7.5	22800	54000	313008A	517681	E-4R13802	690RV9812	138FC98750	1780
FCDP138196750	-	690	980	750	766	7.5	7.5	19200	53000	-	-	-	690RV9812	138FC98750	1850
FCDP140186620	-	700	930	620	763	7.5	7.5	17000	44000	316967	530487	E-4R14003	700RV9311	-	1197
FCDP140196700	-	700	980	700	774	7.5	7.5	17800	49000	-	-	-	700RV9821	140FC98700	1680
FCDP140200710	-	700	1000	710	770	4	4	18900	47400	-	-	-	-	140FC100710W	1810
FCDP142200715	-	710	1000	715	787.5	7.5	7.5	23200	56000	313403C	517680A	E-4R14205	710RV1011	-	1860
FCDP142204710	-	710	1020	710	785	4	4	19300	49100	-	-	-	-	142FC102710	1940
FCDP145200700	-	725	1000	700	796	6	6	18200	53500	-	-	E-4R14501	725RV1011	145FC100700W	1730
FCDP146188500	-	730	940	500	780	7.5	7.5	12300	42500	-	526447	-	-	-	920
FCDP146192620	-	730	960	620	790	7.5	7.5	17600	45000	315982	525438	-	730RV9611	-	1220
FCDP146200700	-	730	1000	700	798	7.5	7.5	13570	39140	-	-	-	-	-	1734
FCDP146206750	-	730	1030	750	809	7.5	7.5	25500	58500	314518B	517679	-	730RV1011	-	2040
FCDP150200500	-	750	1000	500	816	7.5	7.5	12300	33500	314420/VJ202	-	-	-	-	1150
FCDP150200670	-	750	1000	670	813	7.5	7.5	20400	50000	315973	524881A	-	750RV1011	-	1480
FCDP150218615	-	750	1090	615	836	7.5	7.5	21600	43000	-	800494	-	-	-	1966
FCDP151214750	-	755	1070	750	837	7.5	7.5	21700	58500	-	-	-	755RV1011	-	2230
FCDP152206750E	-	760	1030	750	828	7.5	7.5	20500	61100	-	-	E-4R15204	-	152FC103750	2000
FCDP152206750	-	760	1030	750	834	7.5	7.5	18200	53500	-	-	-	760RV1031	-	1880
FCDP152216790	-	760	1080	790	846	7.5	7.5	23800	65500	312979D	-	-	-	-	2440
FCDP156214780	-	780	1070	780	853	7.5	7.5	26500	64000	BC4-8015/HB1	540088	-	-	156FC107780	2300
FCDP158224810	-	790	1120	810	875	7.5	4	30000	69500	-	517678	-	-	-	2605
FCD160216700	-	800	1080	700	870	7.5	7.5	16500	55000	-	-	E-4R16004	-	-	1950
FCDP160216700E	-	800	1080	700	878	7.5	7.5	22800	58500	315599A	526169	-	800RV1011	-	1950

Models & Dimensions (4/4)

Bearing Designation – New	Bearing Designation – Old	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – Fw	Boundary Dimensions (mm) – r1,2 min	Boundary Dimensions (mm) – r3,4 min	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor	Bearing Designation – SKF	Bearing Designation – FAG	Bearing Designation – NTN	Bearing Designation – NSK	Bearing Designation – KOYO	kg
FCDP160216750	-	800	1080	750	880	7.5	7.5	18700	56500	-	-	E-4R16005	800RV1032	160FC108750	2050
FCDP160230850	-	800	1150	850	905	5	5	25200	68000	-	524137	-	-	-	3150
FCDP164226800	-	820	1130	800	903	7.5	7.5	27000	68000	BC4B320455	803317	E-4R16406	820RV1117	164FC113800A	2540
FCDP164232840	-	820	1160	840	910	7.5	7.5	25000	71000	-	-	E-4R16403	-	164FC116840	2930
FCDP164232840E	-	820	1160	840	911	7.5	7.5	25600	72000	-	-	-	820RV1111A	-	2900
FCDP166216710	-	830	1080	710	896	6	6	22800	61000	-	567729	-	-	166FC108710	1724
FCDP168232840	-	840	1160	840	920	7.5	7.5	24900	71000	-	-	E-4R16801	840RV1111	168FC116840	2840
FCDP168236880	-	840	1180	880	917	10	5	-	-	-	524060	-	-	-	3300
FCDP170230650	-	850	1150	650	941	7.5	7.5	15700	51000	-	-	E-4R17001	-	-	1980
FCDP170230800	-	850	1150	800	930	7.5	7.5	19700	71000	-	-	E-4R17003	-	-	2430
FCDP170230840	-	850	1150	840	928	7.5	7.5	30500	76500	315826A(B)	545636	-	850RV1114	-	2630
FCDP170236650	-	850	1180	650	945	7.5	7.5	19600	54500	-	-	E-4R17004	850RV1133	170FC118650	2270
FCDP170236850E	-	850	1180	850	928	7.5	7.5	24100	78500	-	-	E-4R17002	-	-	2970
FCDP170236850	-	850	1180	850	940	7.5	7.5	24600	72000	-	-	-	850RV1111	170FC118850	2850
FCDP170244900	-	850	1220	900	940	7.5	7.5	28000	82400	-	523397	-	-	-	3720
FCDP172226670	-	860	1130	670	934	6	6	18400	56500	-	-	-	860RV1132	-	1780
FCDP172228750	-	860	1140	750	938	7.5	7.5	20100	60900	-	-	-	-	172FC114750	2080
FCDP173236750	-	865	1180	750	945.3	7.5	7.5	27500	67000	BC4B319668	566883	-	-	-	2462
FCDP176228800	-	880	1140	800	946	6	6	23600	77400	-	-	-	-	176FC114800	2210
FCDP180244840	-	900	1220	840	989	7.5	7.5	31500	8000	316043	527048	-	900RV1212	-	3060
FCDP180256930	-	900	1280	930	1000	7.5	7.5	39000	93000	313528C	541812	-	900RV1213	180FC128930	4300
FCDP184256865	-	920	1280	865	1015	7.5	7.5	28000	80000	-	-	-	920RV1211A	-	3510
FCDP1882641000	-	940	1320	1000	1029	7.5	4	41500	98000	-	517676	-	-	-	4375
FCDP190260850	-	950	1300	850	1044	7.5	7.5	27200	91100	-	-	-	-	-	3500
FCDP190272975	-	950	1360	975	1075	6	6	34100	100000	BC4B319862	-	-	-	-	4850
FCDP1902721000	-	950	1360	1000	1075	7.5	5	38000	110000	314520C	517369A	-	950RV1311	-	5020
FCDP196262880	-	980	1310	880	1061.7	6	6	25700	82000	319303	-	-	-	-	3350
FCDP1962721000	-	980	1360	1000	1080	7.5	5	41500	106000	-	517740	-	-	-	4671
FCDP198272760	-	990	1360	760	1080	7.5	6	30500	68000	-	522071	-	-	-	3269
FCDP200262880	-	1000	1310	880	1080	7.5	7.5	23400	88500	-	-	E-4R20001	-	-	3260
FCDP200272800E	-	1000	1360	800	1090	7.5	7.5	25000	85000	-	-	E-4R20002	-	-	3530
FCDP200272800	-	1000	1360	800	1101	7.5	4	24700	80000	316234A	527021	-	-	-	3600
FCDP206276850	-	1030	1380	850	1124	7.5	7.5	29800	90900	-	-	E-4R20601	-	206FC138850A	3680
FCDP2082881000	-	1040	1440	1000	1133	7.5	5	45000	106000	-	517675	-	-	-	5040
FCDP212272800	-	1060	1360	800	1137	7.5	5	32500	91500	-	521910	-	-	-	3005
FCDP2203001000	-	1100	1500	1000	1194	7.5	4	47500	116000	-	517737	-	-	-	5305
FCDP2243161150	-	1120	1580	1150	1255	7.5	7.5	43500	134500	-	-	-	1120RV1511	-	7400
FCDP230300760	-	1150	1500	760	1240	7.5	5	33500	86500	-	518206	-	-	-	3622
FCDP2403181050E	-	1200	1590	1050	1295	7.5	7.5	36000	133000	-	-	E-4R24002	-	-	6220
FCDP2403181050	-	1200	1590	1050	1305	7.5	6	47500	134000	315494B	518649	-	-	-	5970

Four-Row Cylindrical Roller Bearings – Interference Fit FC1623108 FC182870 FC182874 FC1828105 FC202780 BWK Bearing

Four-Row Cylindrical Roller Bearings – Interference Fit

Related Products
