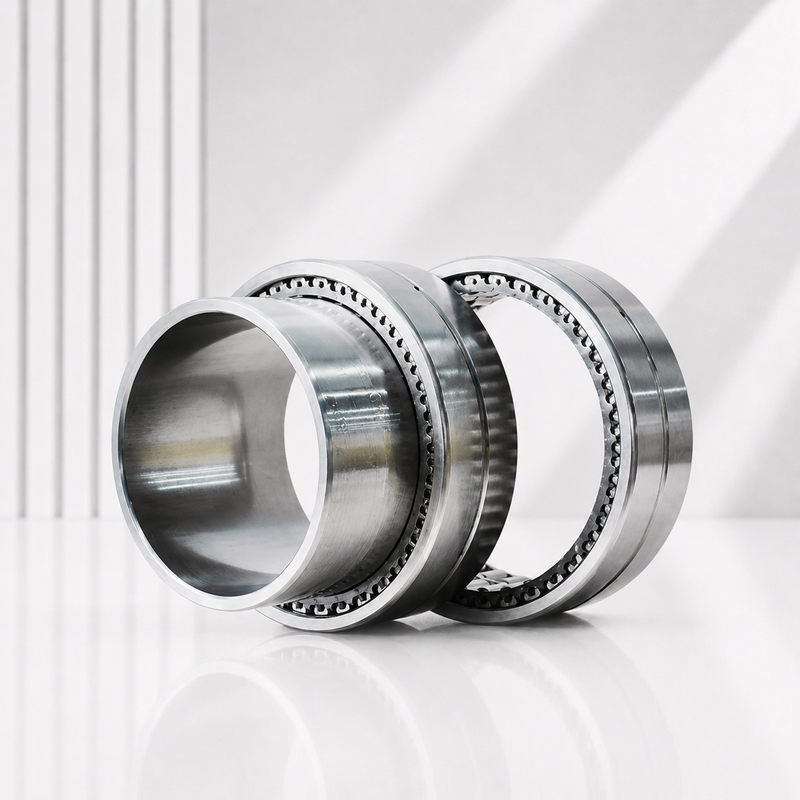

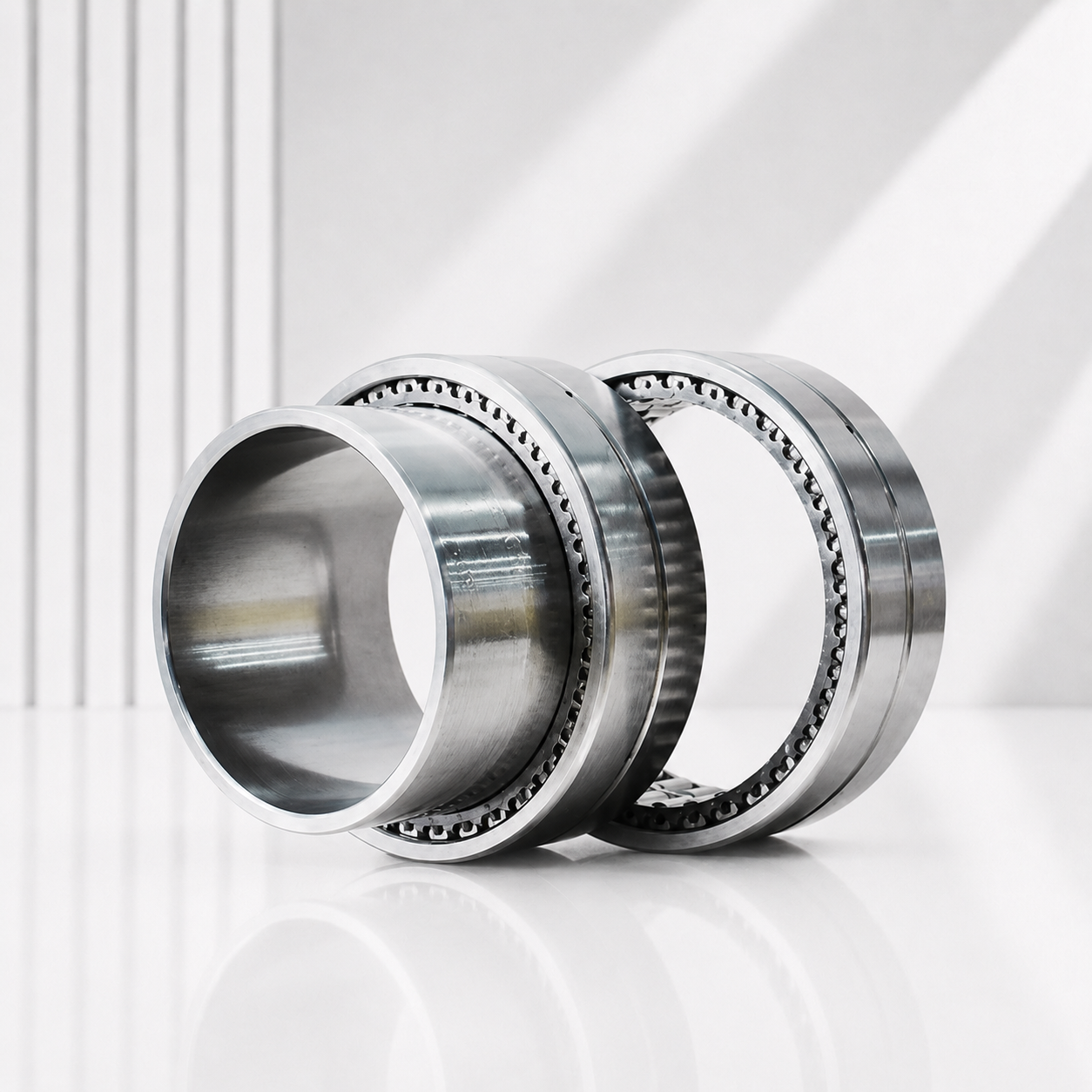

Four-Row Cylindrical Roller Bearings – Clearance Fit

Four-row cylindrical roller bearings with a clearance-fit arrangement combine high radial capacity with convenient mounting and removal. They are suitable for roll-neck positions where frequent roll changes, controlled internal clearance and reliable performance under heavy radial loads are required.

Availability:

Quantity:



Inquire Add to Basket

Model:
BC4B319738A, 27FC19120, 319019, 40FC28180/200, BC4B320415, 48FC35184/224, 315605, 64FC44240/280, 319040A, BC4B326858/HB3, BC4B320608, 4CR760A

Product Overview

Four-row cylindrical roller bearings with a clearance-fit arrangement combine high radial capacity with convenient mounting and removal. They are suitable for roll-neck positions where frequent roll changes, controlled internal clearance and reliable performance under heavy radial loads are required.

Available models and complete dimensional data are listed in the following parameter table tab.

Models & Dimensions

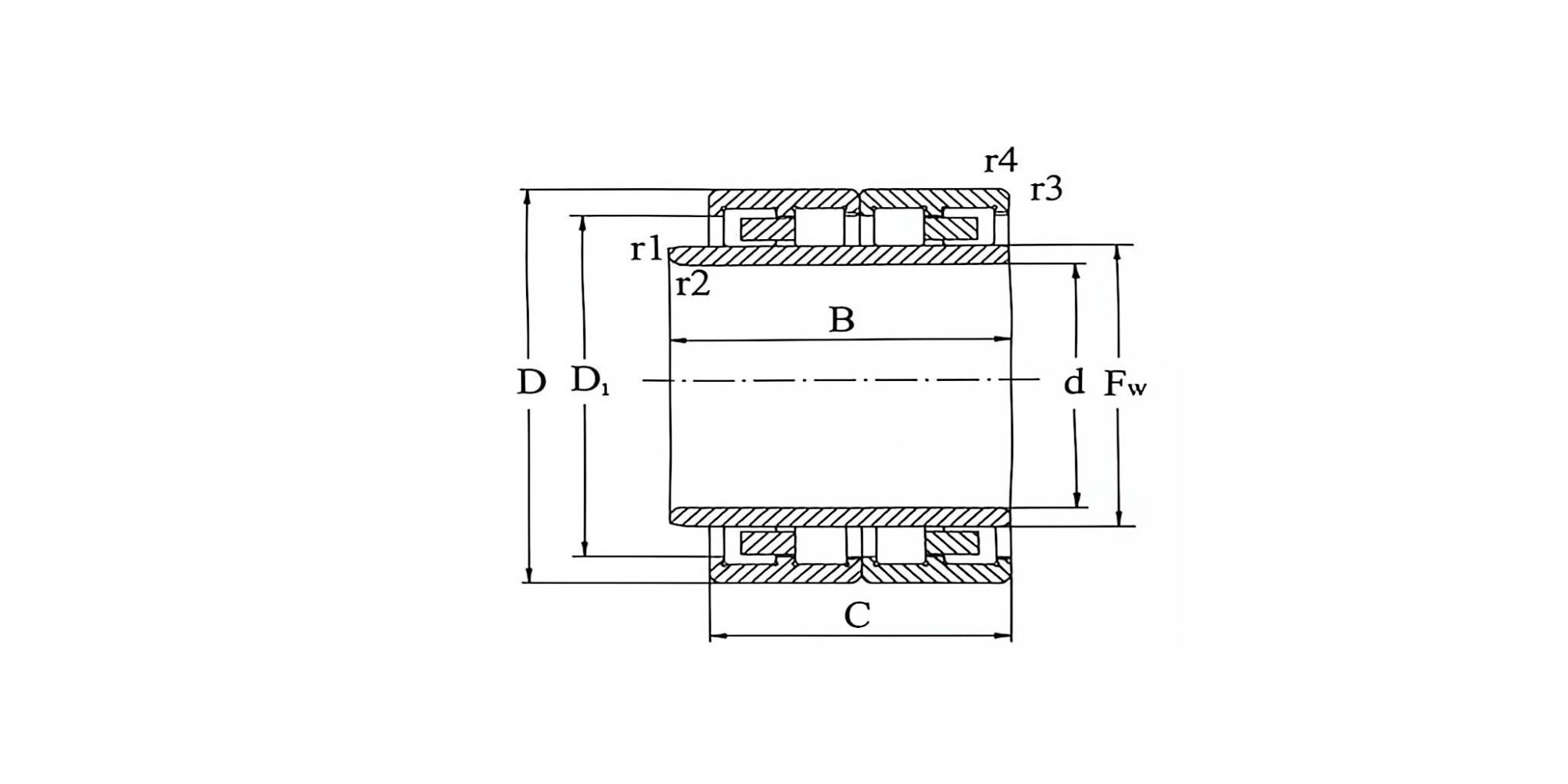

Bearing Designation – SKF	Bearing Designation – FAG	Bearing Designation – NSK	Bearing Designation – KOYO	Boundary Dimensions (mm) – d	Boundary Dimensions (mm) – D	Boundary Dimensions (mm) – B	Boundary Dimensions (mm) – C	Boundary Dimensions (mm) – Fw	Boundary Dimensions (mm) – r1,2 min	Boundary Dimensions (mm) – r3,4 min	kg	Basic Load Ratings (kN) – Cr	Basic Load Ratings (kN) – Cor
BC4B319738A	-	-	-	115	165	107.5	90	132.5	1.1	1.1	8.51	402	765
-	-	-	27FC19120	135	188	121	120	150	1.5	1.5	10.3	632	1260
BC4B466971B	-	-	-	139.7	215	195	187	156.285	3	0.4	25.2	1010	2280
-	801083	-	-	170	260	250	225	196	2.5	2.1	41.8	1930	3350
319019	530908	-	-	200	280	180	170	222	2.1	2.1	35.1	1630	3000
-	-	-	40FC28180/200	200	280	200	180	222	2	2	34.4	1280	2620
-	800426	-	-	200	310	260	230	229	3	3	64.9	2360	3750
-	580510	-	-	220	340	320	290	250	3	2	100	3550	5850
BC4B320415	-	-	-	240	330	240	220	270	2.1	2.1	60.5	1720	4300
-	-	-	48FC35184/224	240	350	224	184	270	3	3	62.4	1610	3110
-	801076	-	-	250	350	320	290	277	3	3	86.5	3100	6000
BC4B319464/HA3	536897	-	-	260	370	240	220	292	3	3	79.4	2200	4605
315605	522009	-	-	270	380	295	275	300	2.1	2.1	100	3550	7200
-	533575	-	-	280	390	240	220	312	2.1	3	83.9	2280	4300
319259	-	-	-	280	390	250	220	312	3	3	84.5	2240	5000
319129	532504	-	-	300	420	320	300	332	4	1.5	135	4150	8800
BC4-0003	-	-	-	300	420	330	300	332	4	1.5	140	3740	8800
-	-	-	64FC44230/240	320	440	240	230	351	3	3	103	2530	5490
-	-	-	64FC44240/280	320	440	280	240	353	3	3	131	2500	5670
-	580511	-	-	320	440	370	340	350	4	1.5	160	4650	9500
-	-	-	68FC48350	340	480	356	350	376	3	3	200	4190	9630
319040A	531839	-	-	340	480	370	350	378	4	1.5	210	5300	11000
-	580512	-	-	340	500	410	370	385	6	3	289	5850	11200
-	538977	-	-	350	500	400	380	388	6	3	246	6550	13200
BC4B326858/HB3	801476	-	-	350	520	320	300	401	5	5	240	5100	9000
-	-	-	72FC48230/250	360	480	250	230	392	3	3	117	2800	6450
316890B	533808	-	-	360	510	400	380	399	4	1.5	260	6100	12200
-	801082	-	-	370	520	410	380	409	3	1.5	258	6100	11800
315606	522007	-	-	380	540	400	380	424	4	1.5	295	5700	13700
BC4B320989/HA3	565463	-	-	380	540	400	380	422	4	1.5	300	6700	14000
BC4B320612	561269	-	-	410	560	420	400	450	3	2	293	7500	16000
-	533022	-	-	430	570	360	340	465	4	5	245	6200	13200
-	579578	-	-	440	620	430	410	487	2.1	2	398	8650	17600
BC4B320608	533578	-	-	440	620	470	450	487	4	3	434	9500	20000
-	561271	-	-	440	620	470	450	487	4	3	428	9300	19300
BC4B322993A/HA7	-	-	-	460	650	460	424	510	4	3	490	7810	18300
-	536712	-	-	460	650	490	470	509	5	2.5	513	10400	22000
-	567014	-	-	460	680	410	410	516	2.5	2.5	527	9800	18300
-	533487	-	-	480	650	450	450	525	3	3	443	9800	22000
-	540386	-	-	500	670	450	450	540	2.1	5	459	9500	21200
-	564182	-	-	500	670	470	450	540	4	4	454	9500	21600
BC4-8010/HA4	-	-	-	500	670	479	450	540	6	5	485	8250	22000
BC4-8011/HA4	-	-	-	500	670	517	450	540	6	5	475	8250	22000
-	-	500RV6812	100FC68405	500	680	420	405	550	5	5	451	6710	17600
-	579713	-	-	530	760	555	520	587	5	2.5	809	13700	29000
-	579741	-	-	550	740	527	510	600	2.1	2	645	12200	28500
-	532470	-	-	570	830	630	600	635	3	4	1155	16600	34500
BC4-8012/HA4	-	-	-	580	780	520	486	634	4	2	700	9900	27000
BC4B326140/HA4	-	-	-	580	780	521	486	634	4	2	700	9900	27000
BC4-8013/HA4	-	-	-	580	780	558	486	634	4	2	715	9900	27000
BC4B322497/HA4	572137	-	-	600	870	578	540	672	5	4	1260	15300	31500
-	-	-	142FC93635	710	929.9	645	635	767	5	5	1310	15500	47000
-	-	-	4CR750	750	1080	665	650	833	7.5	7.5	2020	19000	46900
-	-	760RV1032A	4CR760A	760	1080	805	790	845	6	6	2460	23100	63500
-	-	-	4CR760	760	1080	805	790	847	6	6	2440	22600	61700
-	-	-	153FC101708A	765	1010	718	708	827	6	6	1610	19100	58000
-	-	-	153FC107652	765	1065	662	652	840	6	6	1870	19200	51700
BC4B316341/HA4	-	820RV1132	-	820	1100	745	720	892	6	3	2000	19800	58500
319313	-	820RV1134	-	820	1130	825	800	903	7.5	7.5	2570	24200	68000
-	-	850RV1112A	4CR850A	850	1180	875	850	940	7.5	7.5	2930	25400	72700
-	-	-	171FC109655	855	1094.9	665	655	918	6	6	1580	18000	58000
-	-	860RV1133	172FC116710	860	1160	735	710	940	7.5	6	2200	20800	60000
-	-	-	174FC115685A	870	1145	705	685	940	6	6	1990	20500	62900
-	-	900RV1211	4CR900A	900	1230	895	870	985	7.5	7.5	3200	26900	77500
-	-	-	180FC123870	900	1230	895	870	990	7.5	7.5	3170	26400	77500
-	-	-	180FC128840	900	1280	1050	840	1000	7.5	7.5	3890	28900	79100
-	-	-	184FC128800	920	1280	815	800	1010	7.5	7.5	3280	28700	79900
-	-	-	184FC128850	920	1280	865	850	1015	7.5	7.5	3530	27600	77500
-	-	-	4CR920A	920	1300	975	950	1019	7.5	7.5	4190	32600	92600
-	-	-	4CR950A	950	1300	965	950	1036	7.5	7.5	3920	32600	96900
-	-	-	216FC136800	1080	1358.8	825	800	1150	7.5	7.5	2840	25400	87000
-	-	-	240FC151101	1200	1509.85	1027.5	1005	1278	7.5	7.5	4390	36600	131000
