16323001
BWK
BWK-16323001

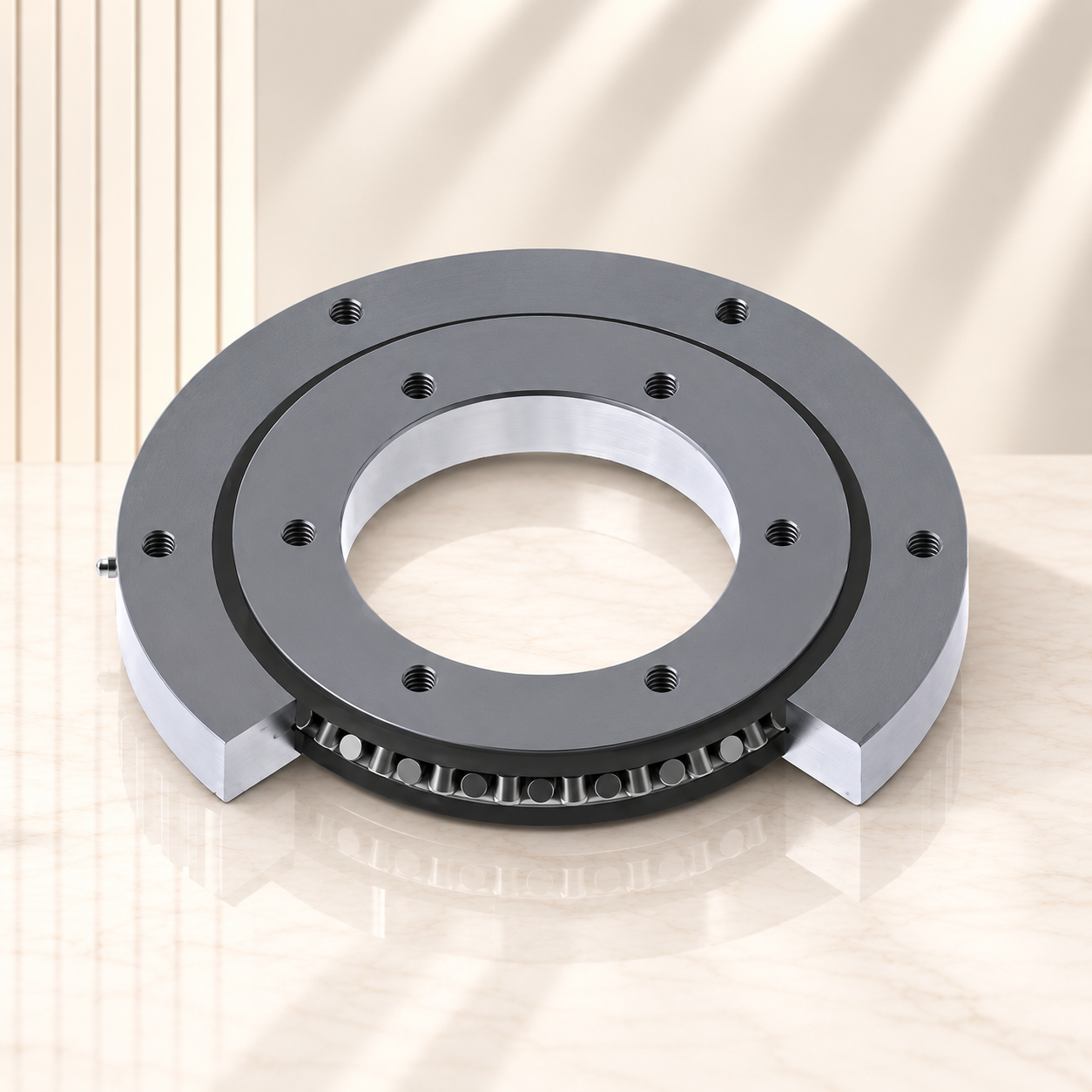

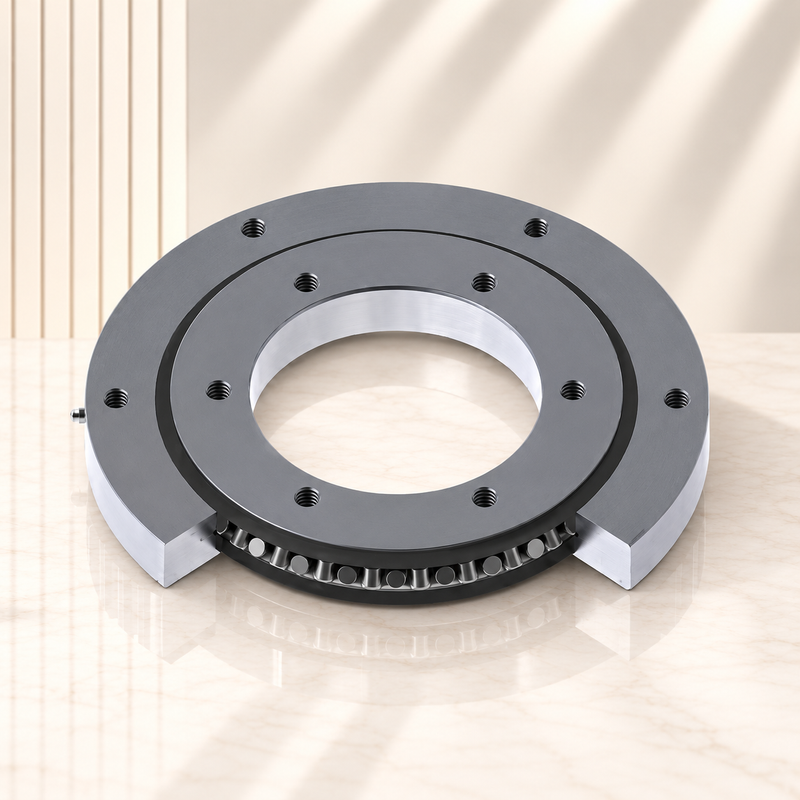

16323001 is a crossed roller slewing bearing with a 46.77 in bore, 56.38 in outside diameter and 3.82 in overall assembly height. Alternating roller orientations support radial load, axial load and overturning moment. The gearless configuration requires a separately selected drive.

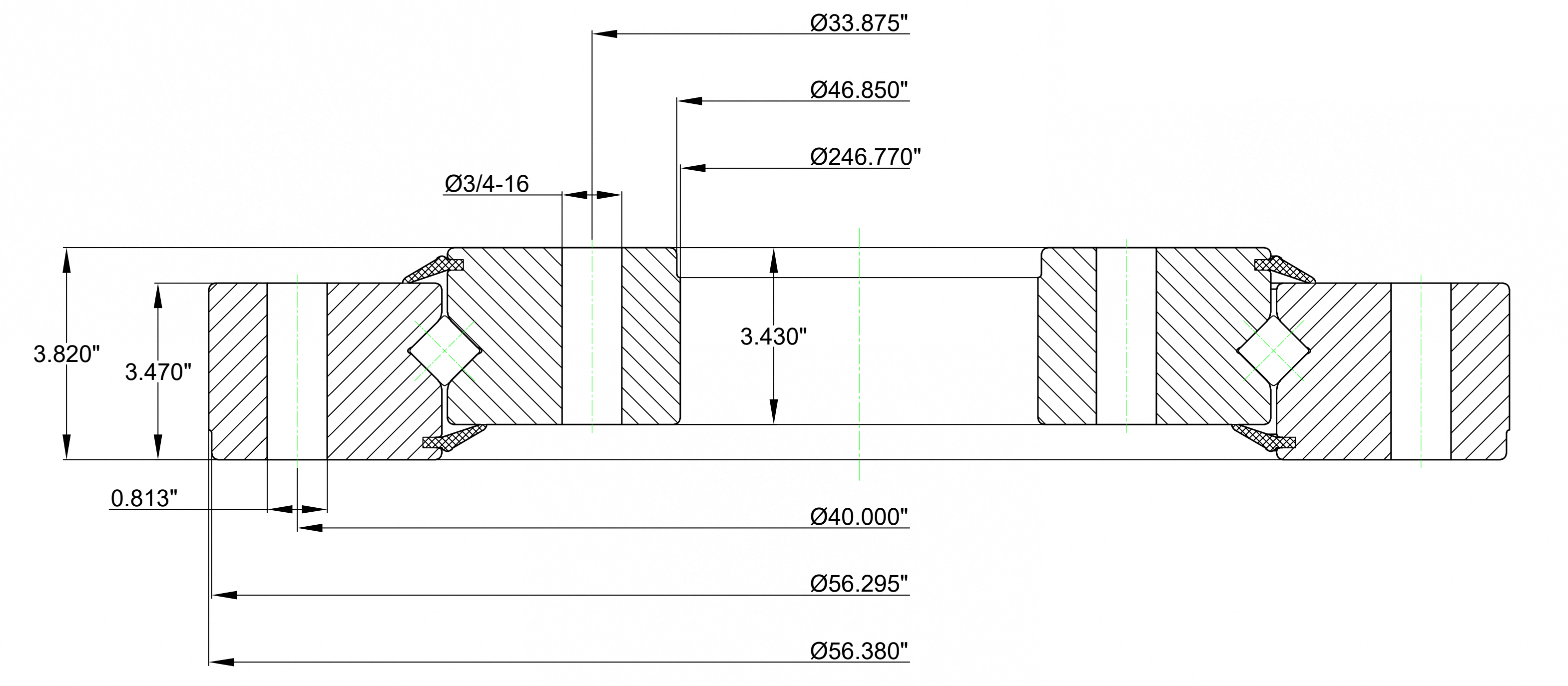

| Model | 16323001 |
| Product Type | Crossed Roller Slewing Bearing |
| Structure | Single row crossed rollers, without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | XR Series |
| Gear | Without Gear |
| Type | Roller |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 46.77 in |
| Outside Diameter Of Outer Ring | 56.38 in |
| Internal Diameter On Inner Ring | 46.85 in |
| External Diameter On Outer Ring | 56.295 in |
| Height Of Overall Bearing Assembly | 3.82 in |
| Height Of Inner Ring | 3.43 in |
| Height Of Outer Ring | 3.43 in |
| Size Holes In Inner Ring | 1-8 in |
| Size Holes In Outer Ring | 0.813 in |
| Number Holes In Inner Ring | 36 |
| Number Holes In Outer Ring | 36 |
| Basic Dynamic Load Rating(Ca) | 237380 lbf |
| Basic Dynamic Load Rating(Cr) | 209680 lbf |
| Moment Load Rating | 482960 ft-lbf |
| Ring Material Options | 42CrMo or 50Mn; confirm supplied grade when ordering |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 710 lbs |
Heavy positioning tables, industrial rotary equipment and handling systems.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure. Obtain a confirmed installation drawing for the mounting dimensions before manufacture or installation.
