16321001
BWK
BWK-16321001

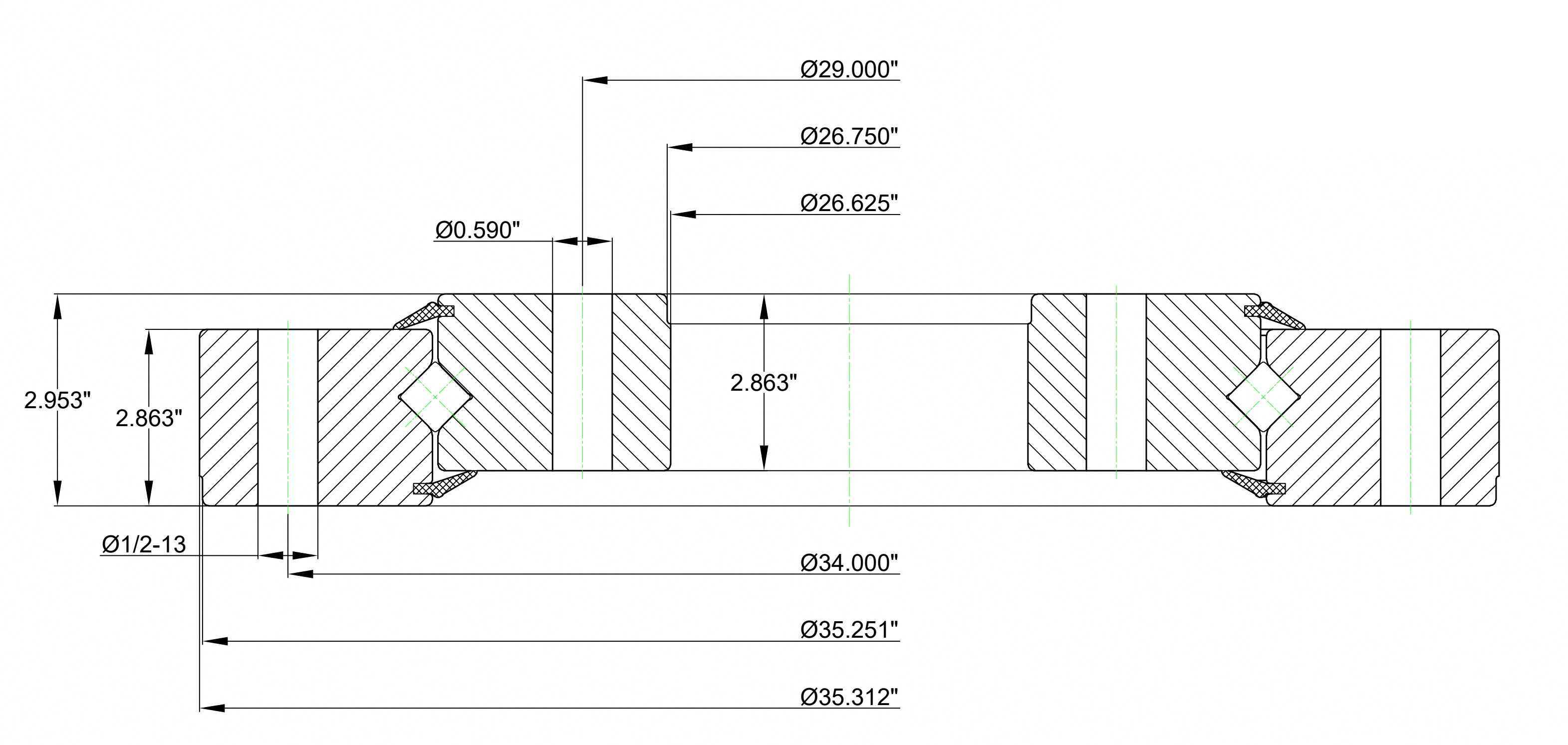

16321001 is a crossed roller slewing bearing with a 26.625 in inner-ring bore, 35.312 in outer-ring outside diameter and 2.953 in overall assembly height. Alternating roller orientations support combined loads and overturning moments. The gearless ring can be integrated into a separately driven rotating assembly.
| Model | 16321001 |
| Product Type | Crossed Roller Slewing Bearing |
| Structure | Single row crossed rollers, without gear |
| System of Measurement | Inch (dimensions shown) |
| Series | XR Series |
| Gear | Without Gear |
| Type | Roller |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 26.625 in |
| Outside Diameter Of Outer Ring | 35.312 in |
| Internal Diameter On Inner Ring | 26.75 in |
| External Diameter On Outer Ring | 35.251 in |
| Height Of Overall Bearing Assembly | 2.953 in |
| Height Of Inner Ring | 2.863 in |
| Height Of Outer Ring | 2.863 in |
| Bolt Circle In Inner Ring | 29 in |
| Bolt Circle In Outer Ring | 34 in |
| Size Holes In Inner Ring | 0.59 in |
| Size Holes In Outer Ring | 1/2-13 in |
| Number Holes In Inner Ring | 24 |
| Number Holes In Outer Ring | 24 |
| Basic Dynamic Load Rating(Ca) | 91980 lbf |
| Basic Dynamic Load Rating(Cr) | 81310 lbf |
| Moment Load Rating | 116170 ft-lbf |
| Ring Material Options | 42CrMo or 50MN; confirm the supplied grade when ordering |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 325 lbs |
Rotary tables, industrial positioning systems and handling equipment.
Check axial load, radial load and overturning moment together, including duty cycle and mounting stiffness. Match the bolt circles, hole sizes and ring heights to the mating structure. Confirm seal configuration, material grade and lubrication requirements before ordering. Install on flat, adequately stiff mounting surfaces. Follow the specified bolt tightening procedure and lubrication schedule. Do not use the limiting moment rating alone as a complete application approval.
