16319001
BWK
BWK-16319001

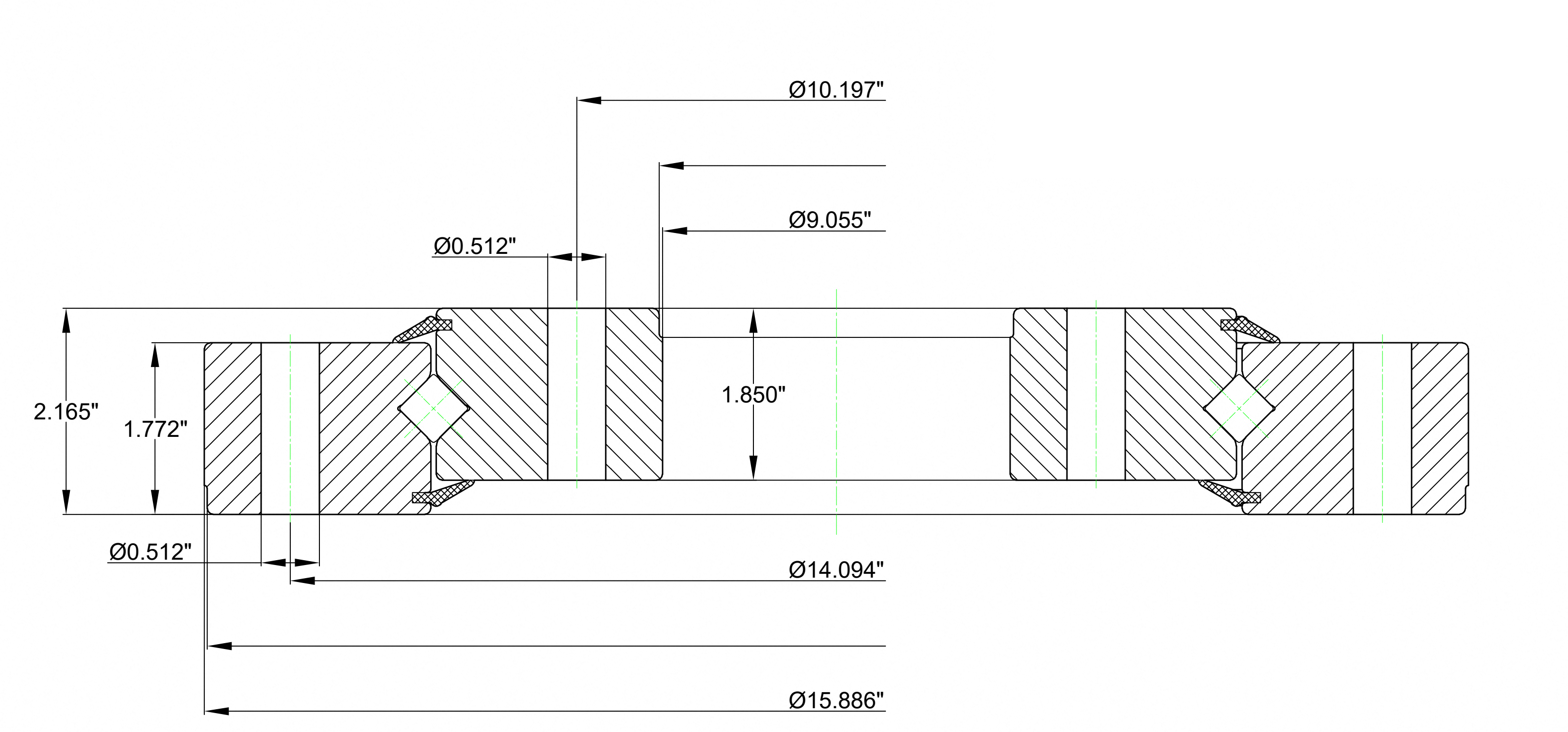

16319001 is a crossed roller slewing bearing with a 9.055 in inner-ring bore, 15.886 in outer-ring outside diameter and 2.165 in overall assembly height. Alternating roller orientations support combined loads and overturning moments. The gearless ring can be integrated into a separately driven rotating assembly.
| Model | 16319001 |
| Product Type | Crossed Roller Slewing Bearing |
| Structure | Single row crossed rollers, without gear |
| System of Measurement | Inch (dimensions shown) |
| Series | XR Series |
| Gear | Without Gear |
| Type | Roller |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 9.055 in |
| Outside Diameter Of Outer Ring | 15.886 in |
| Height Of Overall Bearing Assembly | 2.165 in |
| Height Of Inner Ring | 1.85 in |
| Height Of Outer Ring | 1.85 in |
| Bolt Circle In Inner Ring | 10.197 in |
| Bolt Circle In Outer Ring | 14.094 in |
| Size Holes In Inner Ring | 0.512 in |
| Size Holes In Outer Ring | 0.512 in |
| Number Holes In Inner Ring | 24 |
| Number Holes In Outer Ring | 24 |
| Basic Dynamic Load Rating(Ca) | 42830 lbf |
| Basic Dynamic Load Rating(Cr) | 36850 lbf |
| Moment Load Rating | 20140 ft-lbf |
| Ring Material Options | 42CrMo or 50MN; confirm the supplied grade when ordering |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 65 lbs |
Rotary tables, industrial positioning systems and handling equipment.
Check axial load, radial load and overturning moment together, including duty cycle and mounting stiffness. Match the bolt circles, hole sizes and ring heights to the mating structure. Confirm seal configuration, material grade and lubrication requirements before ordering. Install on flat, adequately stiff mounting surfaces. Follow the specified bolt tightening procedure and lubrication schedule. Do not use the limiting moment rating alone as a complete application approval.
