16327001
BWK
BWK-16327001

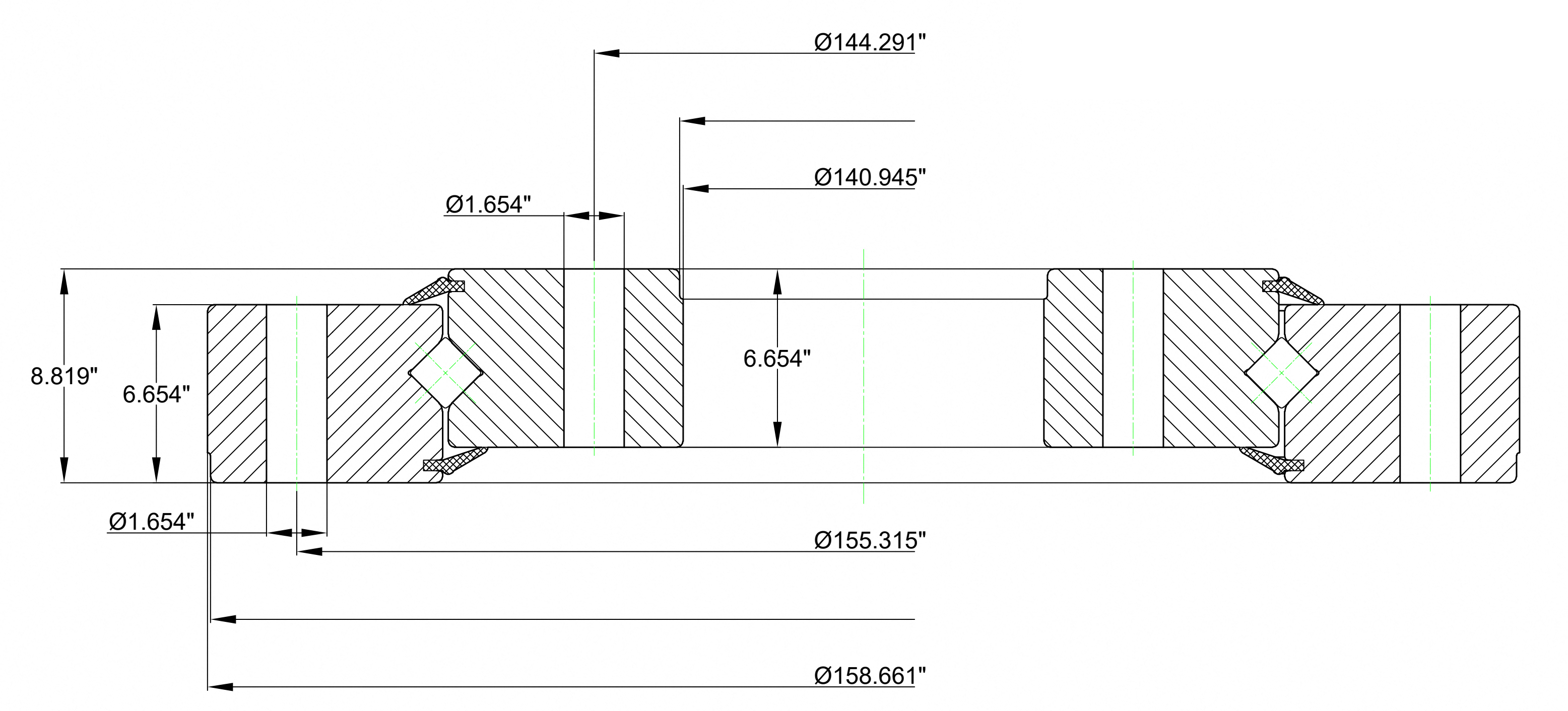

16327001 is a crossed roller slewing bearing with a 140.945 in bore, 158.661 in outside diameter and 8.819 in overall assembly height. Alternating roller orientations support radial load, axial load and overturning moment. The gearless configuration requires a separately selected drive.
| Model | 16327001 |
| Product Type | Crossed Roller Slewing Bearing |
| Structure | Single row crossed rollers, without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | XR Series |
| Gear | Without Gear |
| Type | Roller |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 140.945 in |
| Outside Diameter Of Outer Ring | 158.661 in |
| Height Of Overall Bearing Assembly | 8.819 in |
| Height Of Inner Ring | 6.654 in |
| Height Of Outer Ring | 6.654 in |
| Bolt Circle In Inner Ring | 144.291 in |
| Bolt Circle In Outer Ring | 155.315 in |
| Size Holes In Inner Ring | 1.654 in |
| Size Holes In Outer Ring | 1.654 in |
| Number Holes In Inner Ring | 92 |
| Number Holes In Outer Ring | 92 |
| Basic Dynamic Load Rating(Ca) | 812130 lbf |
| Basic Dynamic Load Rating(Cr) | 723870 lbf |
| Moment Load Rating | 4879900 ft-lbf |
| Ring Material Options | 42CrMo or 50Mn; confirm supplied grade when ordering |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 6400 lbs |
Heavy positioning tables, industrial rotary equipment and handling systems.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure.
