16326001
BWK
BWK-16326001

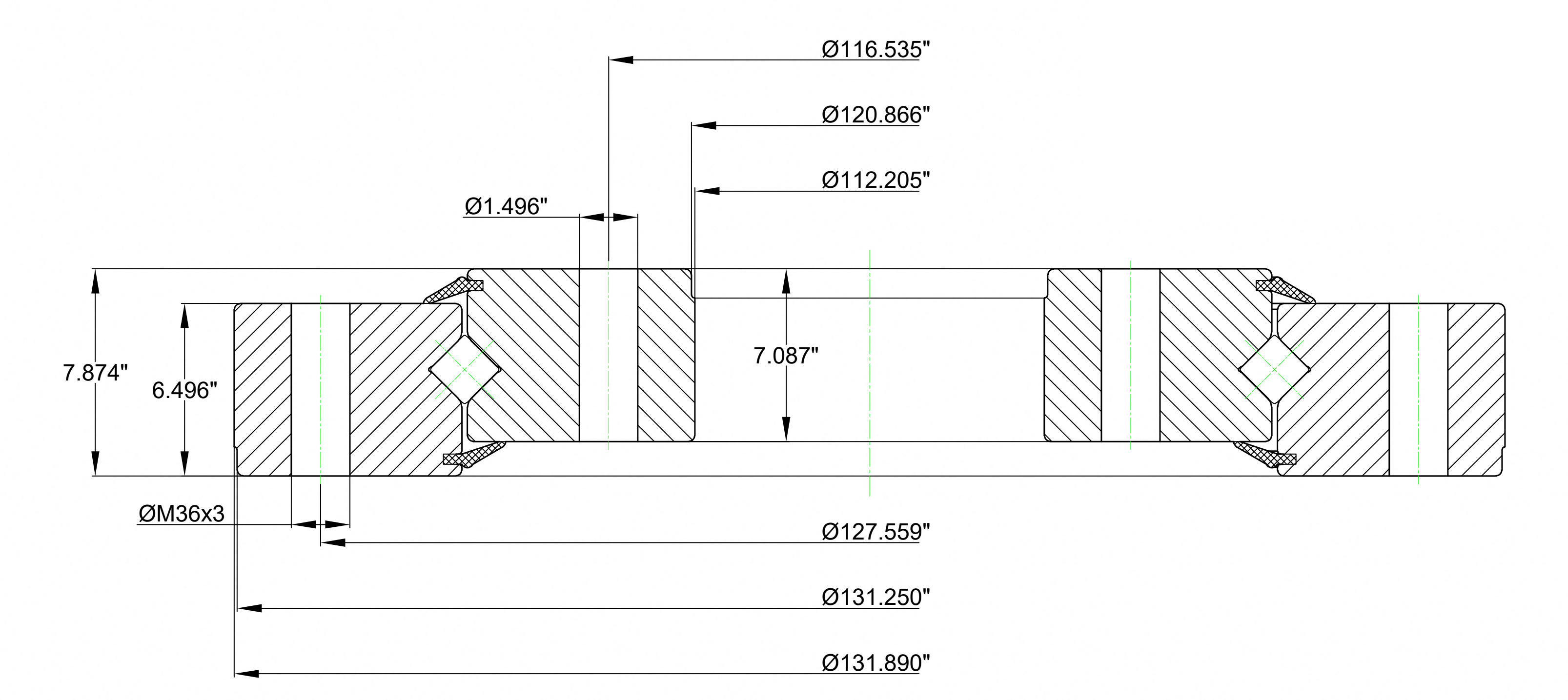

16326001 is a crossed roller slewing bearing with a 112.205 in bore, 131.89 in outside diameter and 7.874 in overall assembly height. Alternating roller orientations support radial load, axial load and overturning moment. The gearless configuration requires a separately selected drive.
| Model | 16326001 |
| Product Type | Crossed Roller Slewing Bearing |
| Structure | Single row crossed rollers, without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | XR Series |
| Gear | Without Gear |
| Type | Roller |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 112.205 in |
| Outside Diameter Of Outer Ring | 131.89 in |
| Internal Diameter On Inner Ring | 120.866 in |
| External Diameter On Outer Ring | 131.25 in |
| Height Of Overall Bearing Assembly | 7.874 in |
| Height Of Inner Ring | 7.087 in |
| Height Of Outer Ring | 7.087 in |
| Bolt Circle In Inner Ring | 116.535 in |
| Bolt Circle In Outer Ring | 127.559 in |
| Size Holes In Inner Ring | 1.496 in |
| Size Holes In Outer Ring | M36x3 |
| Number Holes In Inner Ring | 40 |
| Number Holes In Outer Ring | 40 |
| Basic Dynamic Load Rating(Ca) | 858130 lbf |
| Basic Dynamic Load Rating(Cr) | 762050 lbf |
| Moment Load Rating | 4185500 ft-lbf |
| Ring Material Options | 42CrMo or 50Mn; confirm supplied grade when ordering |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 6500 lbs |
Heavy positioning tables, industrial rotary equipment and handling systems.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure.
