RA6008
BWK
BWK-RA6008
RA6008 is an open RA-series thin-section crossed roller bearing. Its compact 8 mm cross section supports combined radial, axial and moment loads where installation space and rotational accuracy are important.
| Model | RA6008 |
|---|---|
| Bearing type | Single-row thin-section crossed roller bearing |
| Seal type | Open |
| Mounting holes | Without holes |
| Load direction | Combined |
| Bore diameter | 60 mm |
| Outside diameter | 76 mm |
| Width | 8 mm |
| Shoulder diameter ds (max) | 63.5 mm |
| Housing shoulder diameter Dh (min) | 70.5 mm |
| Minimum chamfer radius | 0.5 mm |
| Greasing hole a | 2 mm |
| Greasing hole b | 0.8 mm |
| Ring material | Steel |
| Roller material | Steel |
| Basic dynamic load rating C | 5.68 kN |
| Basic static load rating Co | 8.68 kN |
| Temperature range | 0 - 230 °F |
| Lubrication | Required |
| Weight | 0.09 kg |
Thin cross section for compact mechanisms
Crossed roller arrangement provides high rigidity and accuracy
Supports radial, axial and moment loads in one bearing
Open construction allows application-specific lubrication and servicing
Industrial robots and rotary joints
Precision indexing and positioning equipment
Medical, optical and inspection systems
Compact machine-tool and automation mechanisms

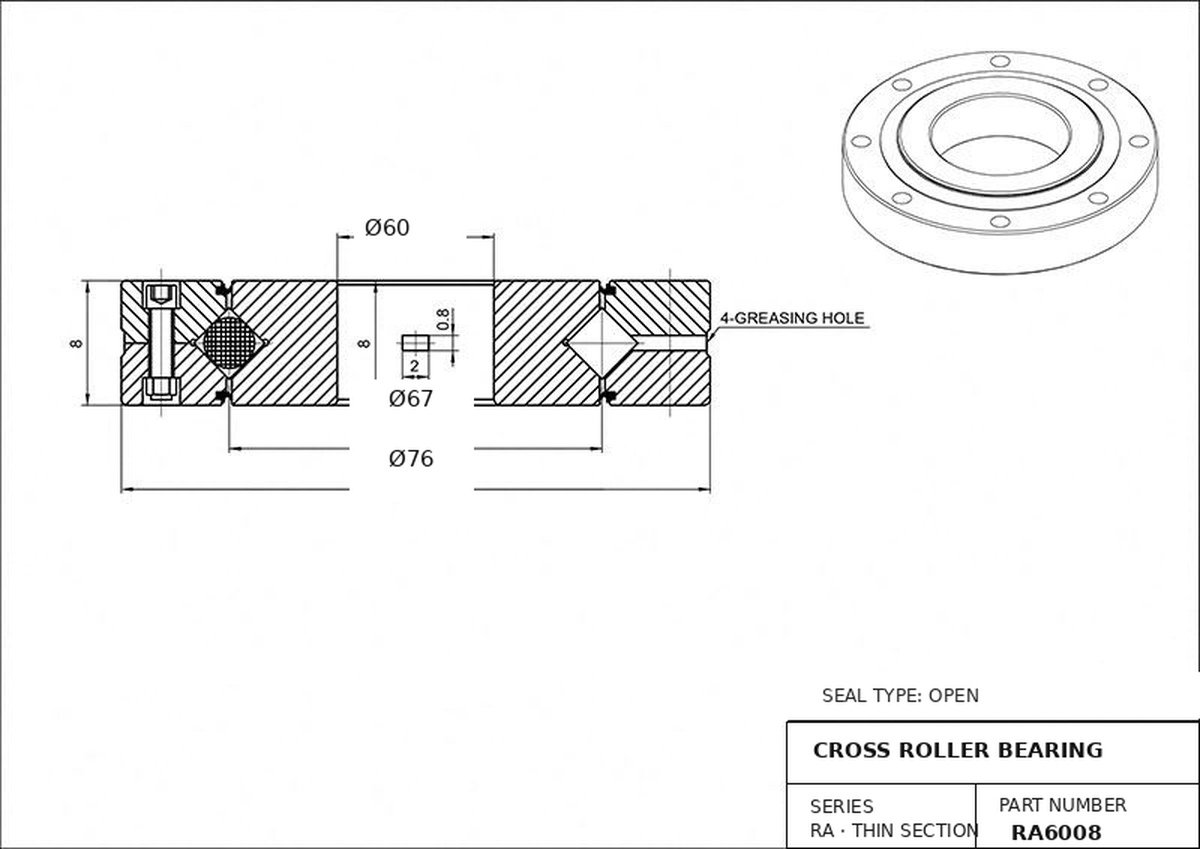

Confirm shaft and housing fits, clearance, load, accuracy, lubrication and operating temperature before ordering. Use the dimensional drawing for final installation dimensions.
