16353001 Three Row Roller Slewing Bearing

16353001 is a three row roller slewing bearing with a 97.638 in inner-ring bore, 118.583 in outer-ring outside diameter and 7.677 in overall assembly height. Separate roller rows support axial load, radial load and overturning moment, making the arrangement suitable for heavily loaded rotary equipment.
Availability:
Quantity:
Inquire Add to Basket

  • 16353001

  • BWK

  • BWK-16353001

DESCRIPTION

Product Overview

16353001 is a three row roller slewing bearing with a 97.638 in inner-ring bore, 118.583 in outer-ring outside diameter and 7.677 in overall assembly height. Separate roller rows support axial load, radial load and overturning moment, making the arrangement suitable for heavily loaded rotary equipment.

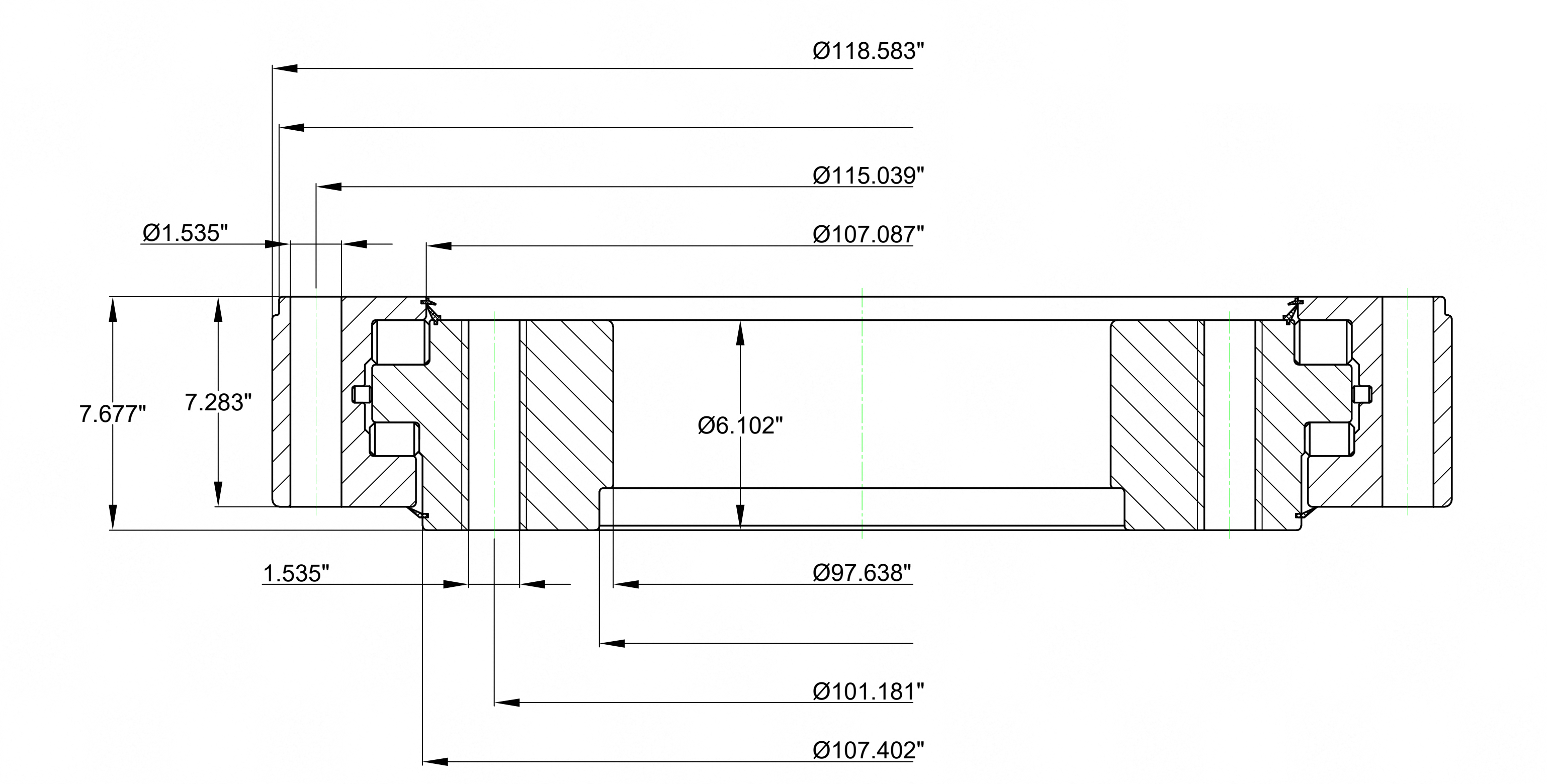

16353001

Technical Specifications

Model 16353001
Product Type Three Row Roller Slewing Bearing
Structure Three row roller arrangement, without gear
System of Measurement Inch (dimensions shown)
Series TR Series
Gear Without Gear
Type Roller
Bearing Type Standard
Inside Diameter Of Inner Ring 97.638 in
Outside Diameter Of Outer Ring 118.583 in
Internal Diameter On Outer Ring 107.087 in
External Diameter On Inner Ring 107.402 in
Height Of Overall Bearing Assembly 7.677 in
Height Of Inner Ring 6.102 in
Height Of Outer Ring 6.102 in
Bolt Circle In Inner Ring 101.181 in
Bolt Circle In Outer Ring 115.039 in
Size Holes In Inner Ring 1.535 in
Size Holes In Outer Ring 1.535 in
Number Holes In Inner Ring 72
Number Holes In Outer Ring 72
Moment Load Rating 7936000 ft-lbf
Ring Material Options 42CrMo or 50MN; confirm the supplied grade when ordering
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 6280 lbs

Applications

Heavy handling machinery, large turntables and lifting equipment.

Selection and Installation

Check axial load, radial load and overturning moment together, including duty cycle and mounting stiffness. Match the bolt circles, hole sizes and ring heights to the mating structure. Confirm seal configuration, material grade and lubrication requirements before ordering. Install on flat, adequately stiff mounting surfaces. Follow the specified bolt tightening procedure and lubrication schedule. Do not use the limiting moment rating alone as a complete application approval.
