16352001 Three Row Roller Slewing Bearing

16352001 is a three row roller slewing bearing with a 72.5 in inner-ring bore, 93 in outer-ring outside diameter and 9.05 in overall assembly height. Separate roller rows support axial load, radial load and overturning moment, making the arrangement suitable for heavily loaded rotary equipment.
Availability:
Quantity:
Inquire Add to Basket

  • 16352001

  • BWK

  • BWK-16352001

DESCRIPTION

Product Overview

16352001 is a three row roller slewing bearing with a 72.5 in inner-ring bore, 93 in outer-ring outside diameter and 9.05 in overall assembly height. Separate roller rows support axial load, radial load and overturning moment, making the arrangement suitable for heavily loaded rotary equipment.

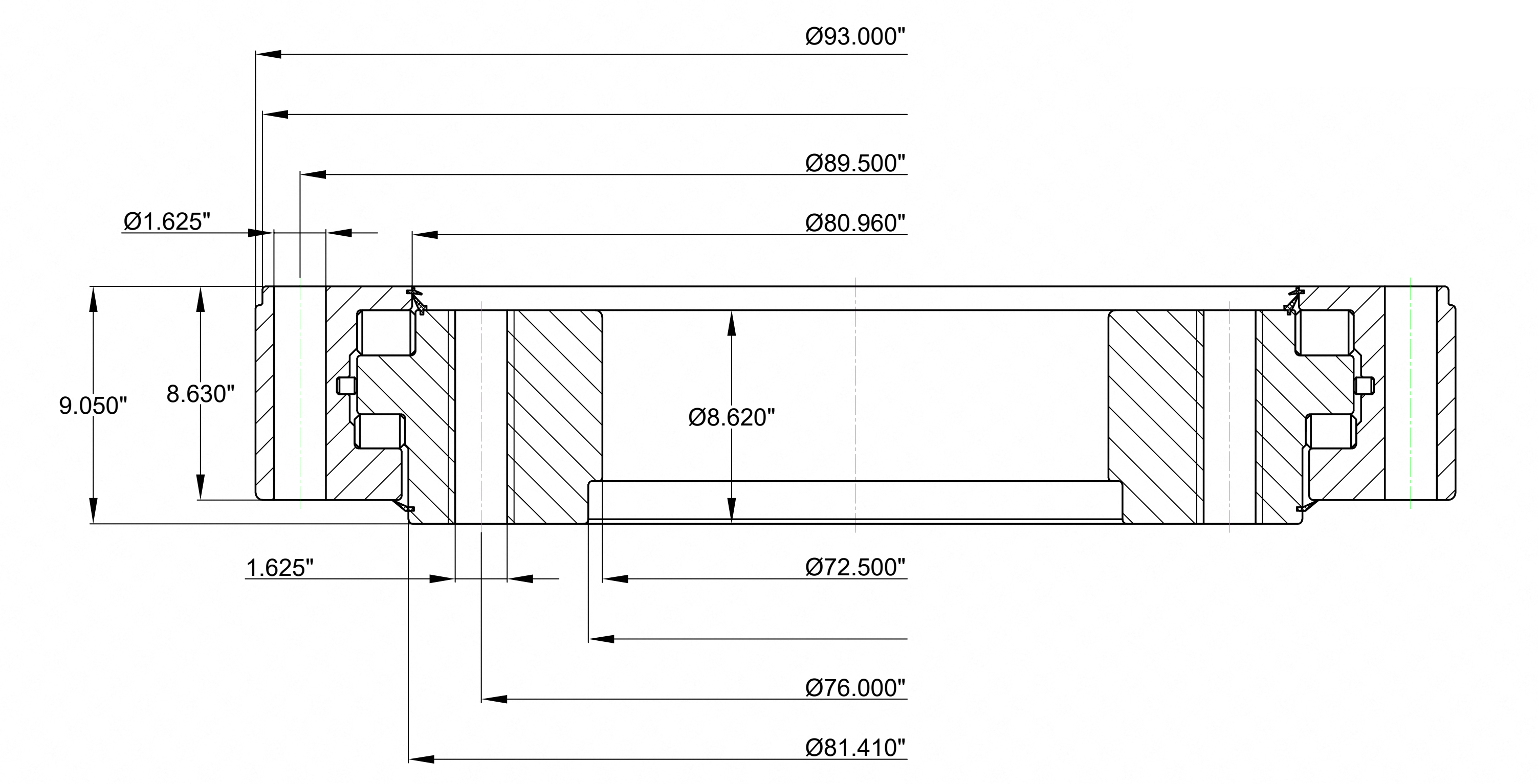

16352001

Technical Specifications

Model 16352001
Product Type Three Row Roller Slewing Bearing
Structure Three row roller arrangement, without gear
System of Measurement Inch (dimensions shown)
Series TR Series
Gear Without Gear
Type Roller
Bearing Type Standard
Inside Diameter Of Inner Ring 72.5 in
Outside Diameter Of Outer Ring 93 in
Internal Diameter On Outer Ring 80.96 in
External Diameter On Inner Ring 81.41 in
Height Of Overall Bearing Assembly 9.05 in
Height Of Inner Ring 8.62 in
Height Of Outer Ring 8.62 in
Bolt Circle In Inner Ring 76 in
Bolt Circle In Outer Ring 89.5 in
Size Holes In Inner Ring 1.625 in
Size Holes In Outer Ring 1.625 in
Number Holes In Inner Ring 60
Number Holes In Outer Ring 60
Moment Load Rating 6404300 ft-lbf
Ring Material Options 42CrMo or 50MN; confirm the supplied grade when ordering
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 5630 lbs

Applications

Heavy handling machinery, large turntables and lifting equipment.

Selection and Installation

Check axial load, radial load and overturning moment together, including duty cycle and mounting stiffness. Match the bolt circles, hole sizes and ring heights to the mating structure. Confirm seal configuration, material grade and lubrication requirements before ordering. Install on flat, adequately stiff mounting surfaces. Follow the specified bolt tightening procedure and lubrication schedule. Do not use the limiting moment rating alone as a complete application approval.
