16350001 Three Row Roller Slewing Bearing

16350001 is a three row roller slewing bearing with a 41.535 in inner-ring bore, 56.89 in outer-ring outside diameter and 8.661 in overall assembly height. Separate roller rows support axial load, radial load and overturning moment, making the arrangement suitable for heavily loaded rotary equipment.
Availability:
Quantity:
Inquire Add to Basket

  • 16350001

  • BWK

  • BWK-16350001

DESCRIPTION

Product Overview

16350001 is a three row roller slewing bearing with a 41.535 in inner-ring bore, 56.89 in outer-ring outside diameter and 8.661 in overall assembly height. Separate roller rows support axial load, radial load and overturning moment, making the arrangement suitable for heavily loaded rotary equipment.

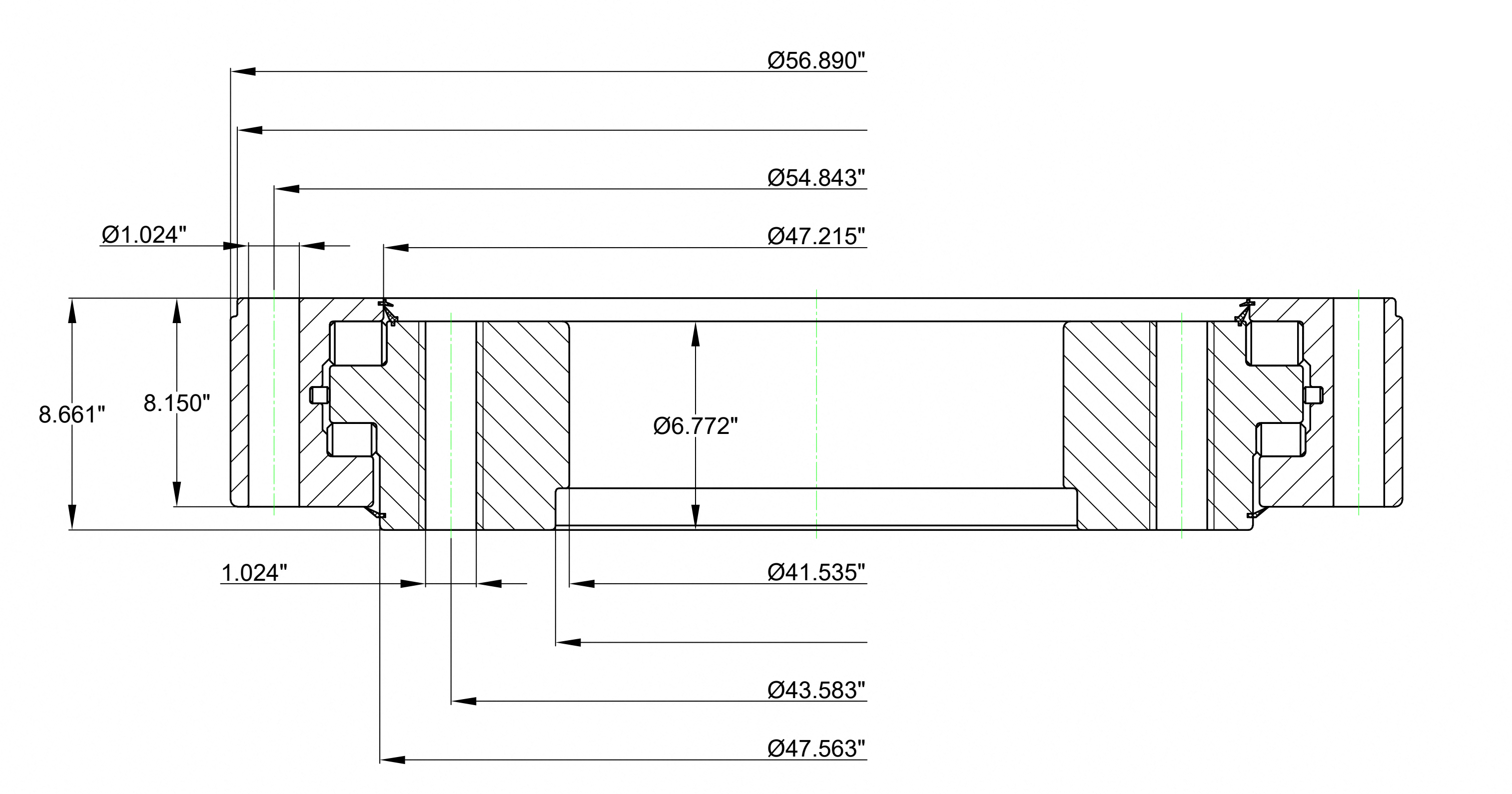

16350001

Technical Specifications

Model 16350001
Product Type Three Row Roller Slewing Bearing
Structure Three row roller arrangement, without gear
System of Measurement Inch (dimensions shown)
Series TR Series
Gear Without Gear
Type Roller
Bearing Type Standard
Inside Diameter Of Inner Ring 41.535 in
Outside Diameter Of Outer Ring 56.89 in
Internal Diameter On Outer Ring 47.215 in
External Diameter On Inner Ring 47.563 in
Height Of Overall Bearing Assembly 8.661 in
Height Of Inner Ring 6.772 in
Height Of Outer Ring 6.772 in
Bolt Circle In Inner Ring 43.583 in
Bolt Circle In Outer Ring 54.843 in
Size Holes In Inner Ring 1.024 in
Size Holes In Outer Ring 1.024 in
Number Holes In Inner Ring 48
Number Holes In Outer Ring 48
Moment Load Rating 1275900 ft-lbf
Ring Material Options 42CrMo or 50MN; confirm the supplied grade when ordering
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 2450 lbs

Applications

Heavy handling machinery, large turntables and lifting equipment.

Selection and Installation

Check axial load, radial load and overturning moment together, including duty cycle and mounting stiffness. Match the bolt circles, hole sizes and ring heights to the mating structure. Confirm seal configuration, material grade and lubrication requirements before ordering. Install on flat, adequately stiff mounting surfaces. Follow the specified bolt tightening procedure and lubrication schedule. Do not use the limiting moment rating alone as a complete application approval.
