YRTC150-XL High-Speed Rotary Table Bearing

BWK YRTC150-XL rotary table bearing, 150 mm bore x 240 mm outside diameter x 40 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • YRTC150-XL

  • BWK

  • BWK-YRTC150-XL

DESCRIPTION

Product Overview

YRTC150-XL is a precision bearing designed for stable rotational accuracy, compact installation and reliable load support. It is suitable for high-speed rotary tables, machine-tool spindles and precision positioning systems.

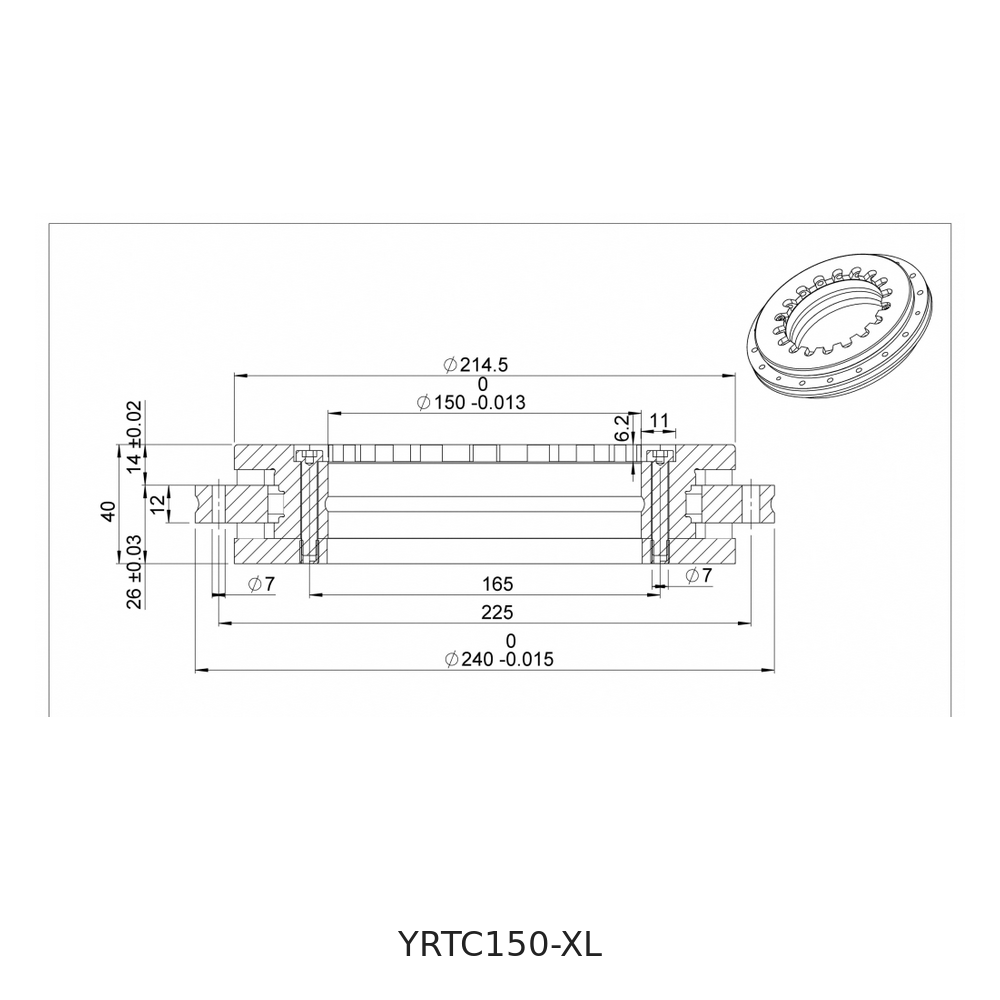

YRTC150-XL_drawing

Technical Data

Model YRTC150-XL
Bore diameter 150 mm
Outside diameter 240 mm
Width 40 mm

Features

Dynamic radial load 75 kN; static radial load 146 kN; dynamic axial load 128 kN; static axial load 650 kN; weight 5.4 kg; limiting speed 800 rpm.

For quotation and selection support, please provide the model, quantity, operating speed, load direction, accuracy requirement and working environment.
