RU148UU
BWK
BWK-RU148UU

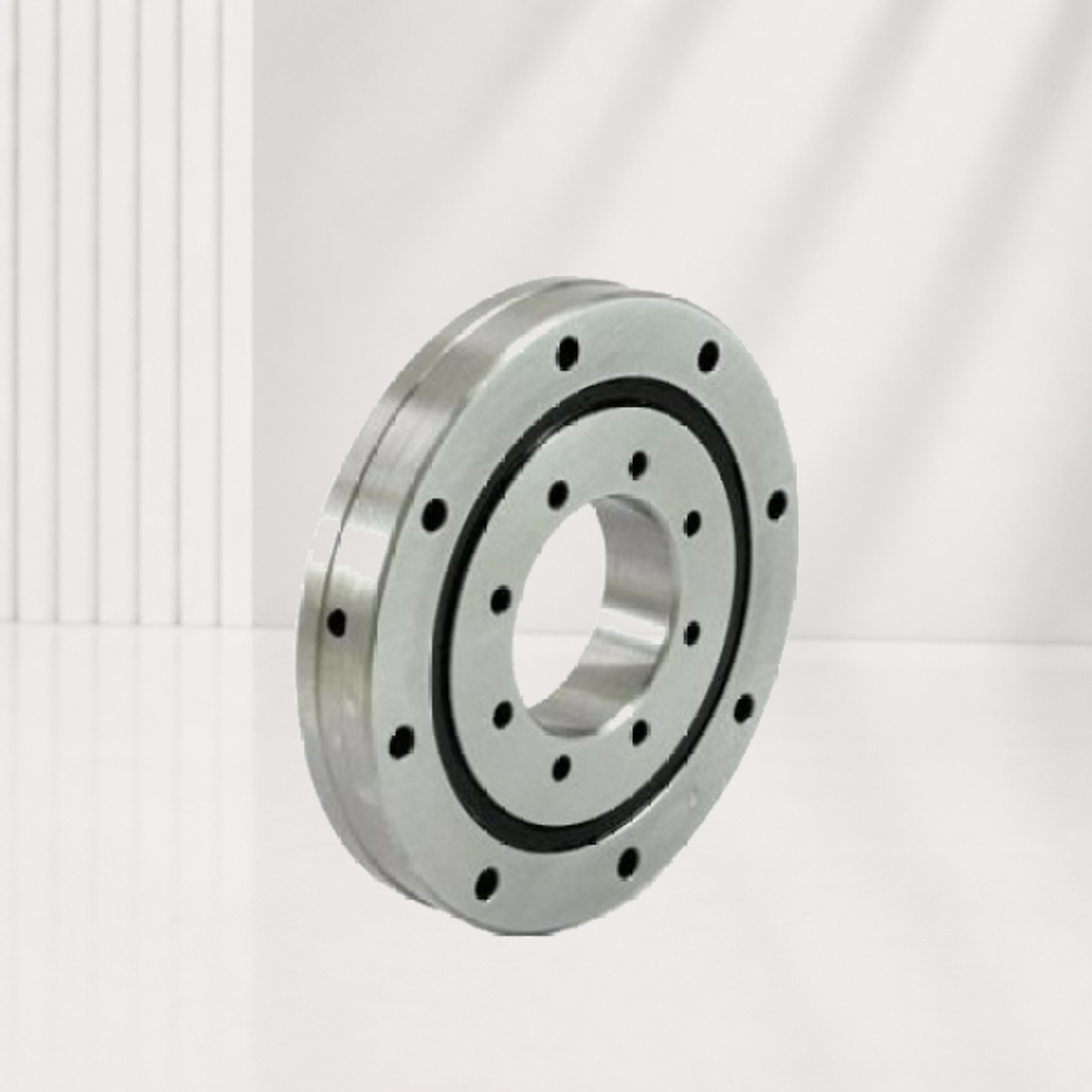

RU148UU is a double-sealed single-row crossed roller bearing. Its integrated inner and outer rings and factory-machined mounting holes support compact, rigid installation for combined radial, axial and moment loads.
| Model | RU148UU |
|---|---|
| Bearing type | Single-row crossed roller bearing |
| Seal type | Double Seal |
| Load direction | Combined |
| Mounting design | With Holes |
| Bore diameter | 90 mm |
| Outside diameter | 210 mm |
| Width | 25 mm |
| Inner ring mounting holes | 12-M8 through |
| Outer ring mounting holes | 12-φ9 through φ14 counter bore depth 12 |
| Inner ring PCD | 112 mm |
| Outer ring PCD | 187 mm |
| Ring material | Steel |
| Roller material | Steel |
| Basic dynamic load rating C | 49.1 kN |
| Basic static load rating Co | 76.8 kN |
| Temperature range | 0 -230 °F |
| Lubrication | Required |
| Weight | 4.9 kg |
Crossed roller arrangement for high rigidity and rotational accuracy
Supports radial, axial and moment loads in one compact bearing
Integrated mounting holes simplify surrounding structure and assembly
Seals on both sides help retain lubricant and reduce contamination
Industrial robots and rotary joints
Machine-tool rotary tables
Precision indexing and positioning equipment
Inspection, optical and automation systems

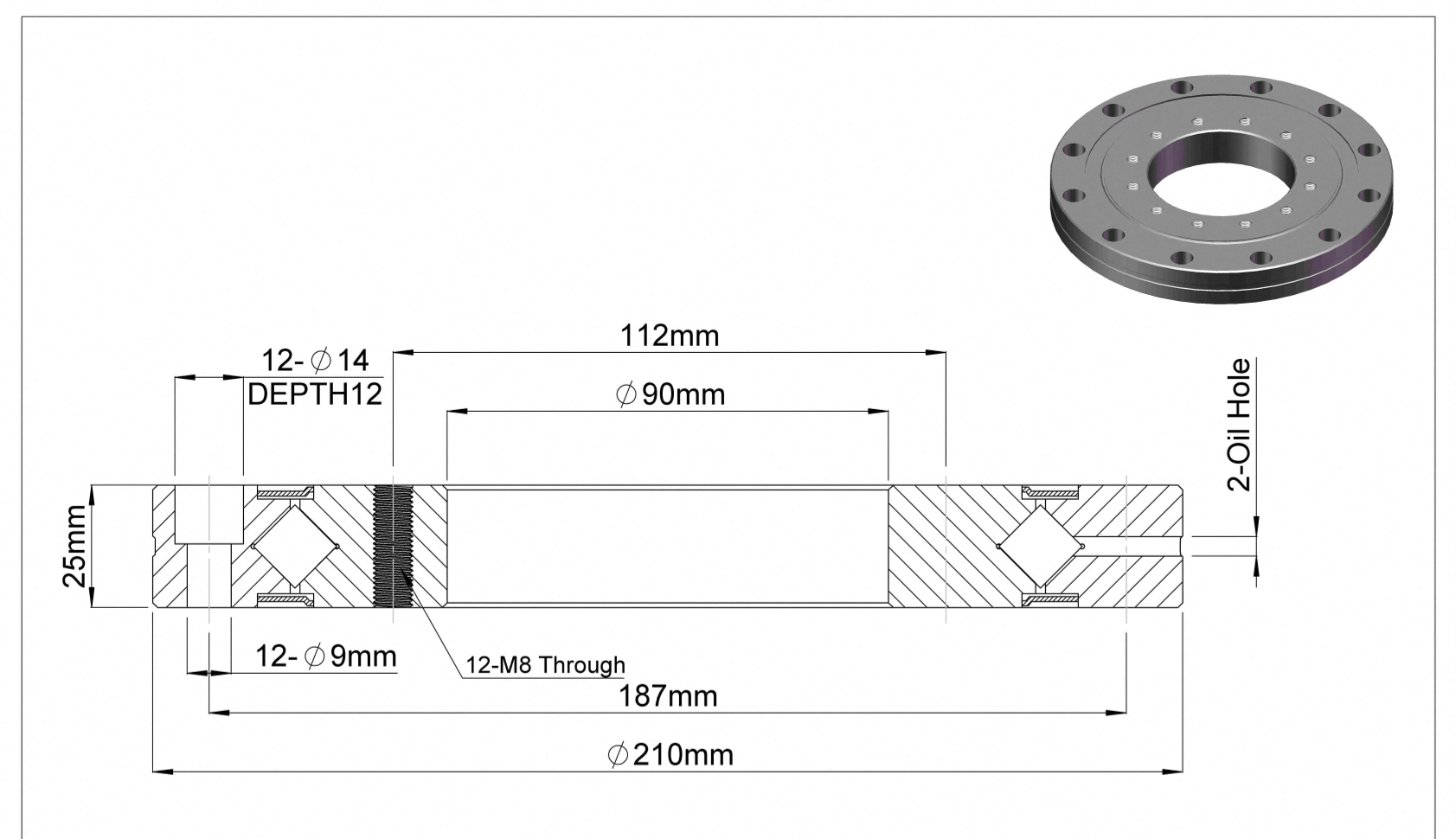

Confirm mounting-hole layout, fits, load, accuracy, lubrication and operating temperature before ordering. Product drawings should be used for final installation dimensions.
