YRTC120-XL High-Speed Rotary Table Bearing

BWK YRTC120-XL rotary table bearing, 120 mm bore x 210 mm outside diameter x 40 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • YRTC120-XL

  • BWK

  • BWK-YRTC120-XL

DESCRIPTION

Product Overview

YRTC120-XL is a precision bearing designed for stable rotational accuracy, compact installation and reliable load support. It is suitable for high-speed rotary tables, machine-tool spindles and precision positioning systems.

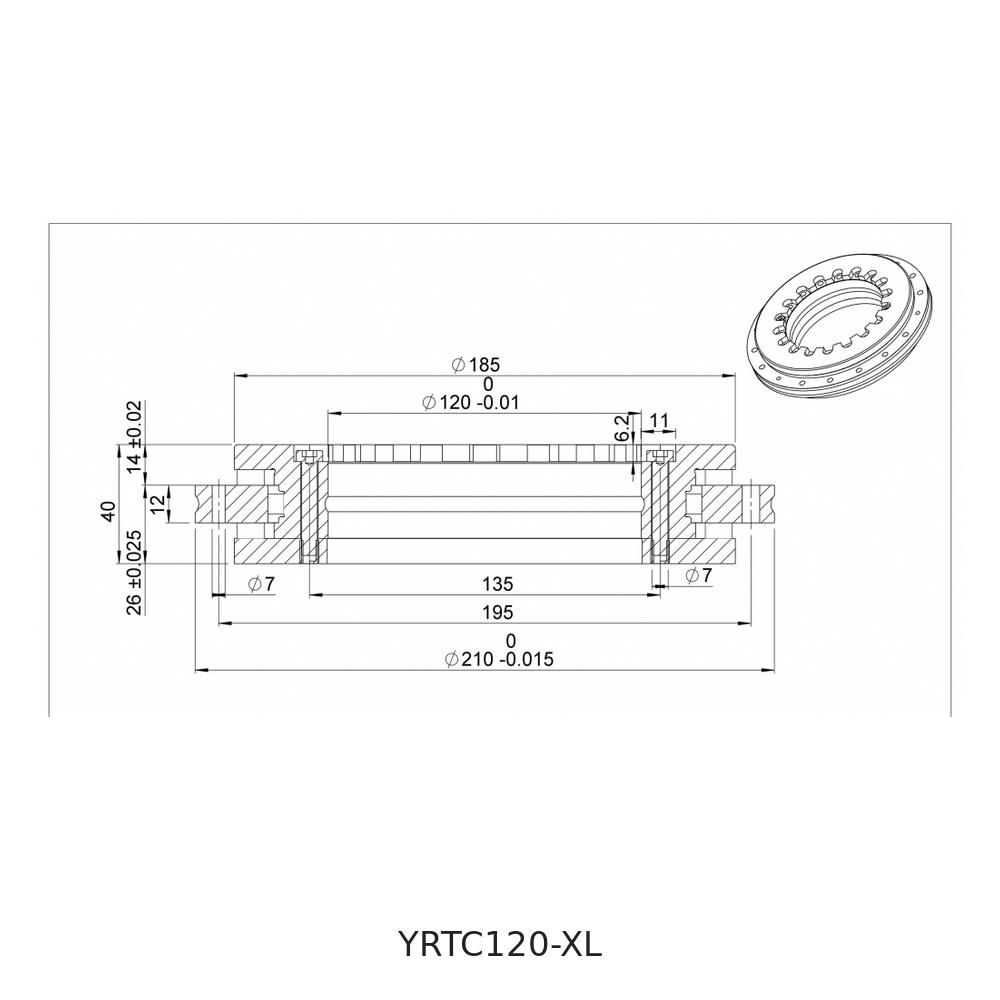

YRTC120-XL_drawing

Technical Data

Model YRTC120-XL
Bore diameter 120 mm
Outside diameter 210 mm
Width 40 mm

Features

Dynamic radial load 69 kN; static radial load 124 kN; dynamic axial load 112 kN; static axial load 520 kN; weight 4.61 kg; limiting speed 900 rpm.

For quotation and selection support, please provide the model, quantity, operating speed, load direction, accuracy requirement and working environment.
