YRTC100-XL High-Speed Rotary Table Bearing

BWK YRTC100-XL rotary table bearing, 100 mm bore x 185 mm outside diameter x 38 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • YRTC100-XL

  • BWK

  • BWK-YRTC100-XL

DESCRIPTION

Product Overview

YRTC100-XL is a precision bearing designed for stable rotational accuracy, compact installation and reliable load support. It is suitable for high-speed rotary tables, machine-tool spindles and precision positioning systems.

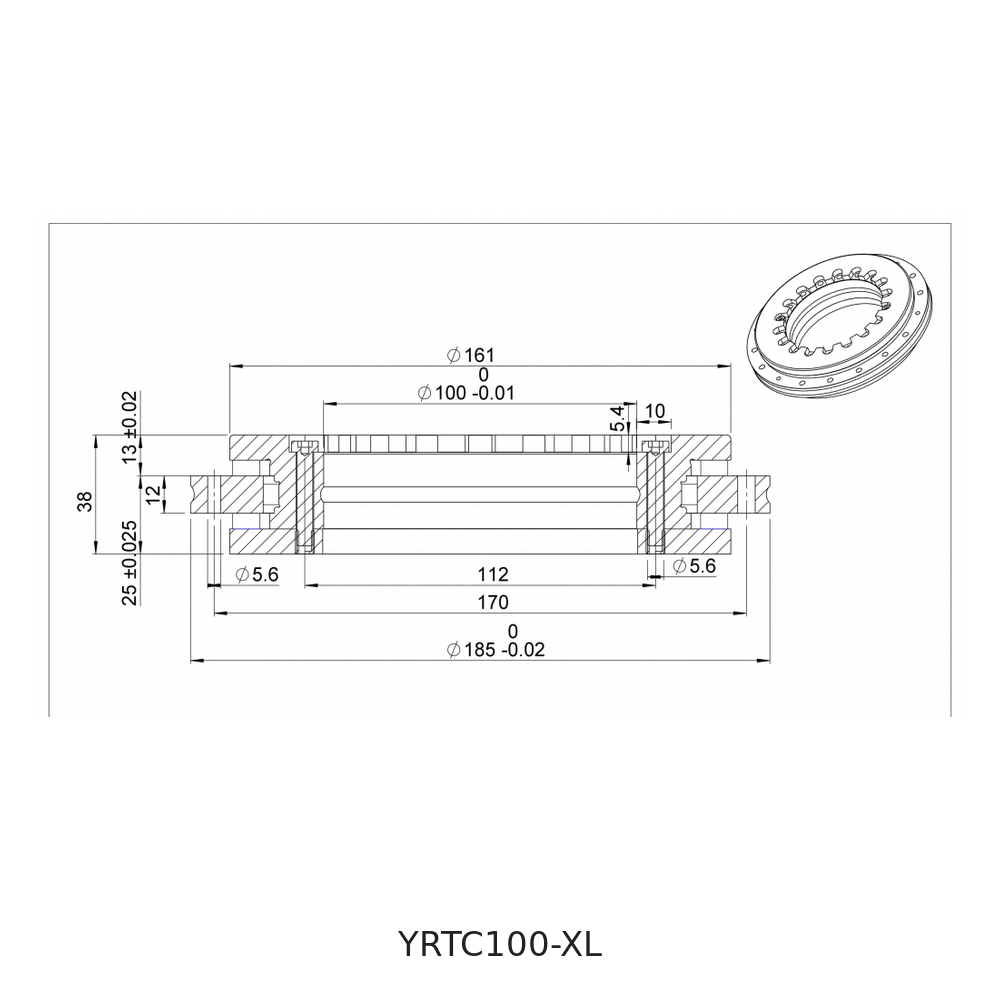

YRTC100-XL_drawing

Technical Data

Model YRTC100-XL
Bore diameter 100 mm
Outside diameter 185 mm
Width 38 mm

Features

Dynamic radial load 50 kN; static radial load 88 kN; dynamic axial load 105 kN; static axial load 455 kN; weight 3.65 kg; limiting speed 1200 rpm.

For quotation and selection support, please provide the model, quantity, operating speed, load direction, accuracy requirement and working environment.
