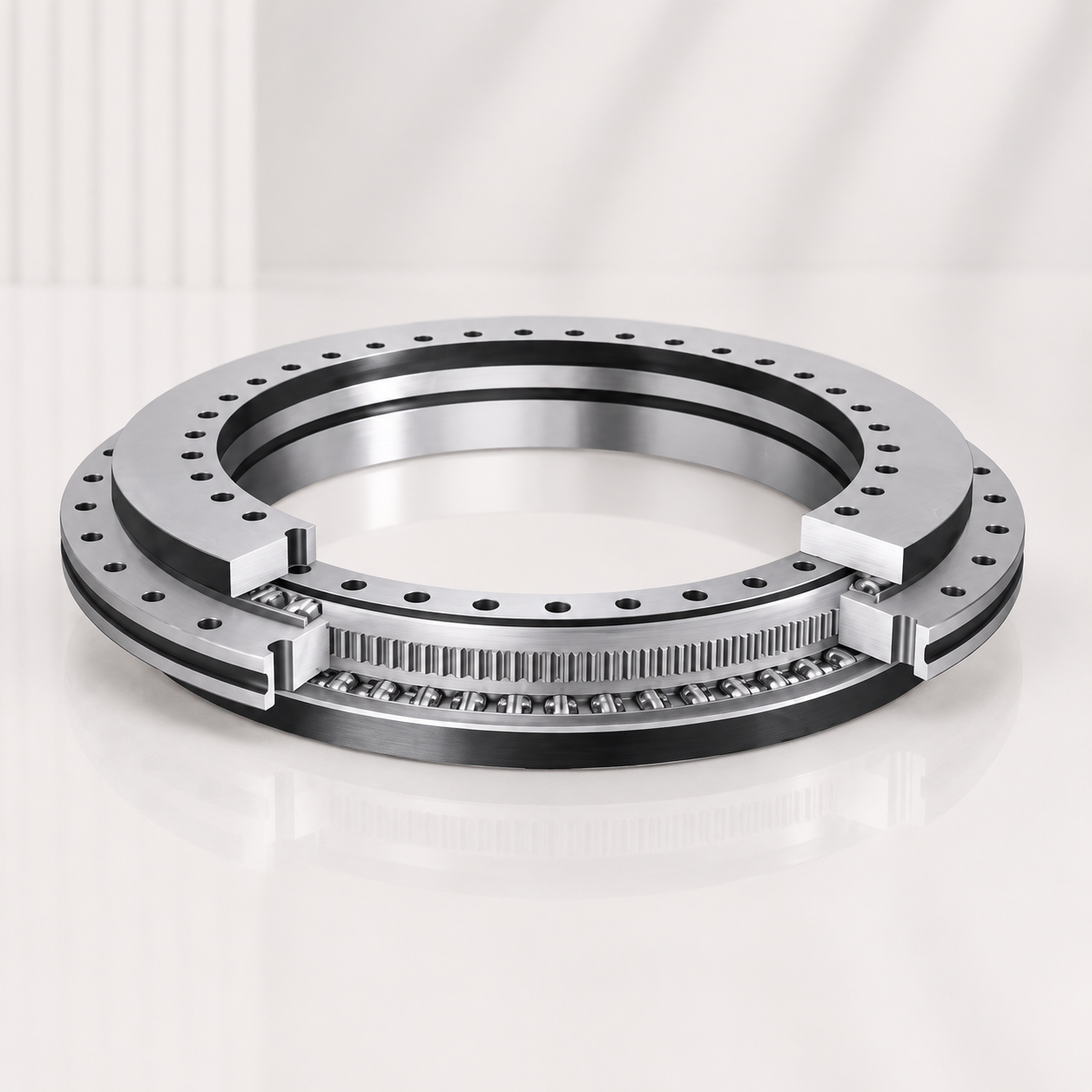

YRT50 Precision Rotary Table Bearing

BWK YRT50 rotary table bearing, 50 mm bore x 126 mm outside diameter x 30 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • YRT50

  • BWK

  • BWK-YRT50

DESCRIPTION

Product Overview

YRT50 is a precision bearing designed for stable rotational accuracy, compact installation and reliable load support. It is suitable for rotary tables, indexing heads, measuring equipment and precision positioning systems.

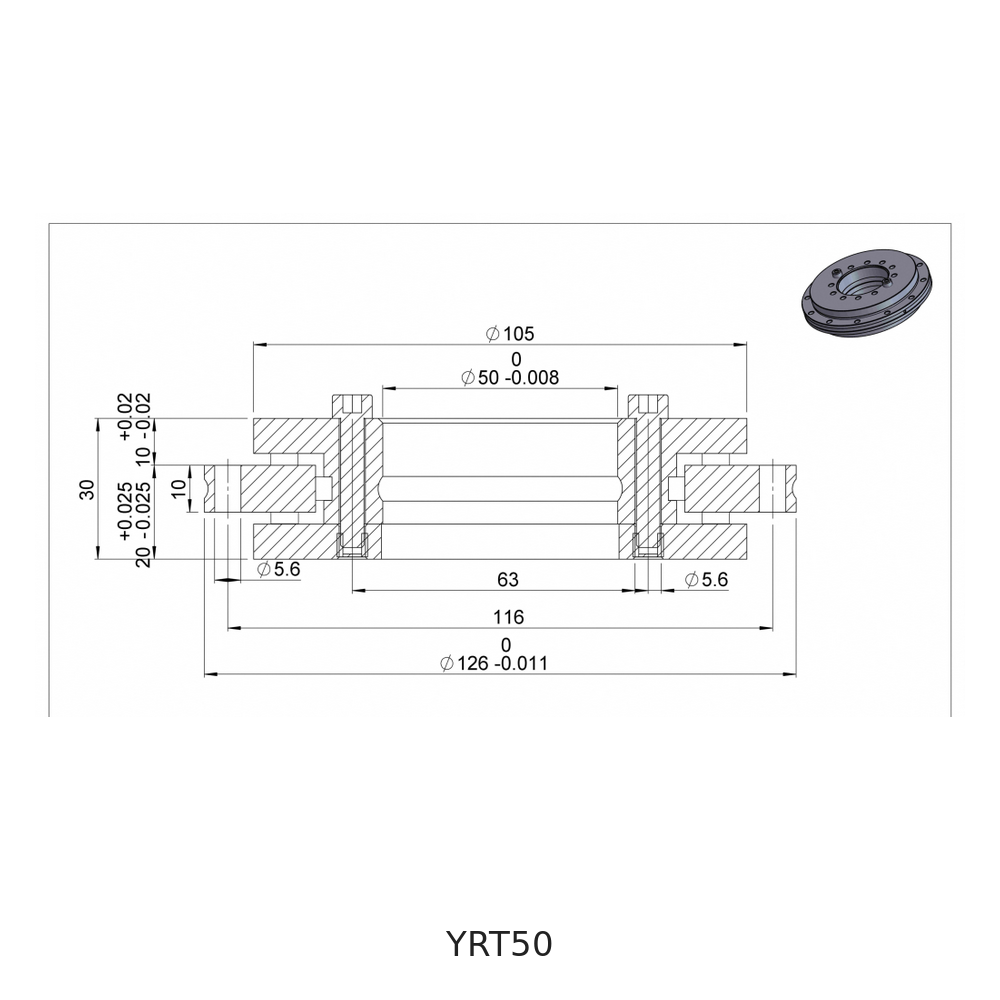

YRT50_drawing

Technical Data

Model YRT50
Bore diameter 50 mm
Outside diameter 126 mm
Width 30 mm

Features

Dynamic radial load 28.5 kN; static radial load 49.5 kN; dynamic axial load 56 kN; static axial load 280 kN; weight 1.6 kg; limiting speed 440 rpm.

For quotation and selection support, please provide the model, quantity, operating speed, load direction, accuracy requirement and working environment.
