F606 2RS
BWK
BWK-F606-2RS

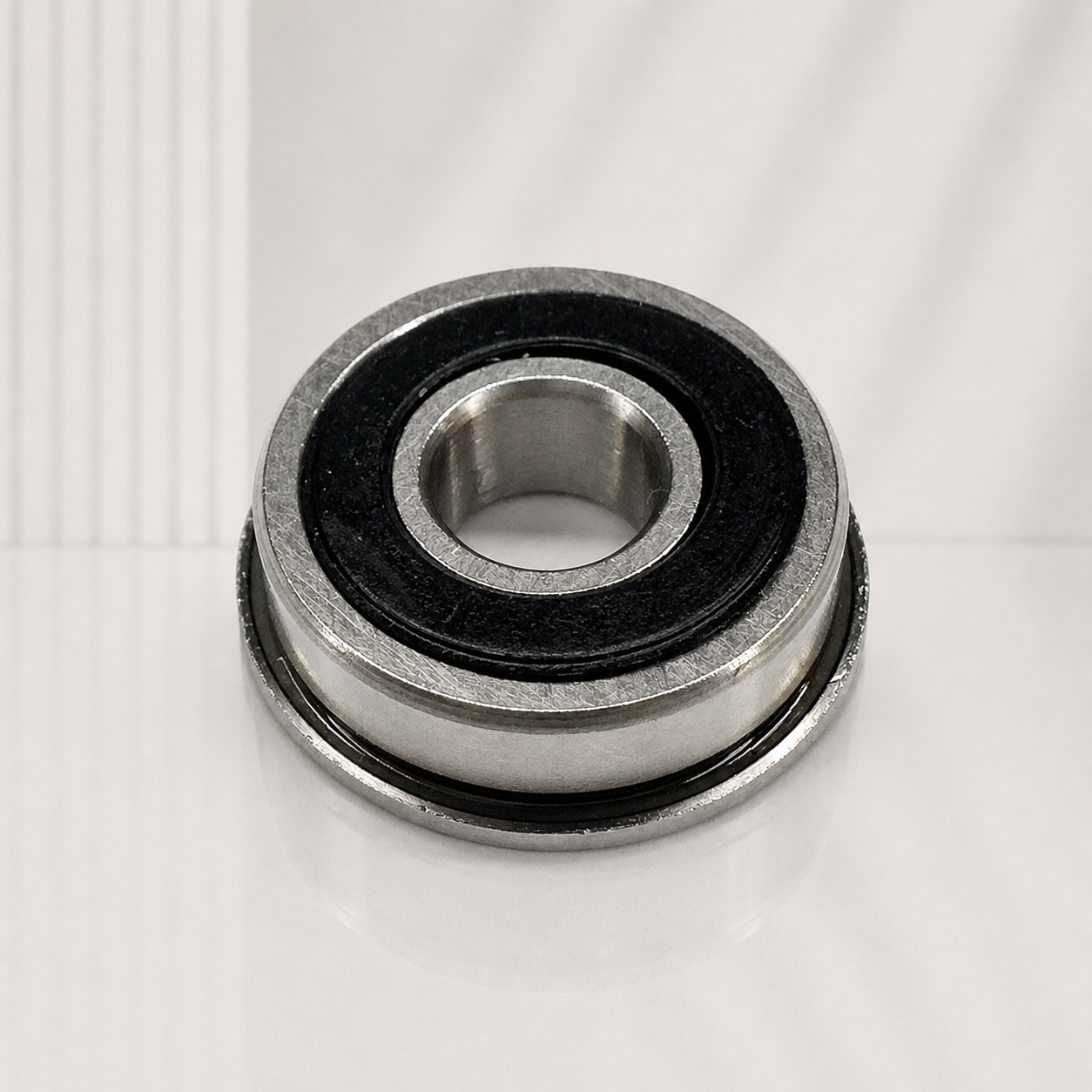

F606 2RS miniature flanged ball bearing with 6 mm bore, 17 mm outside diameter and 6 mm width. The integral flange supports accurate axial positioning and simplifies mounting in compact assemblies.

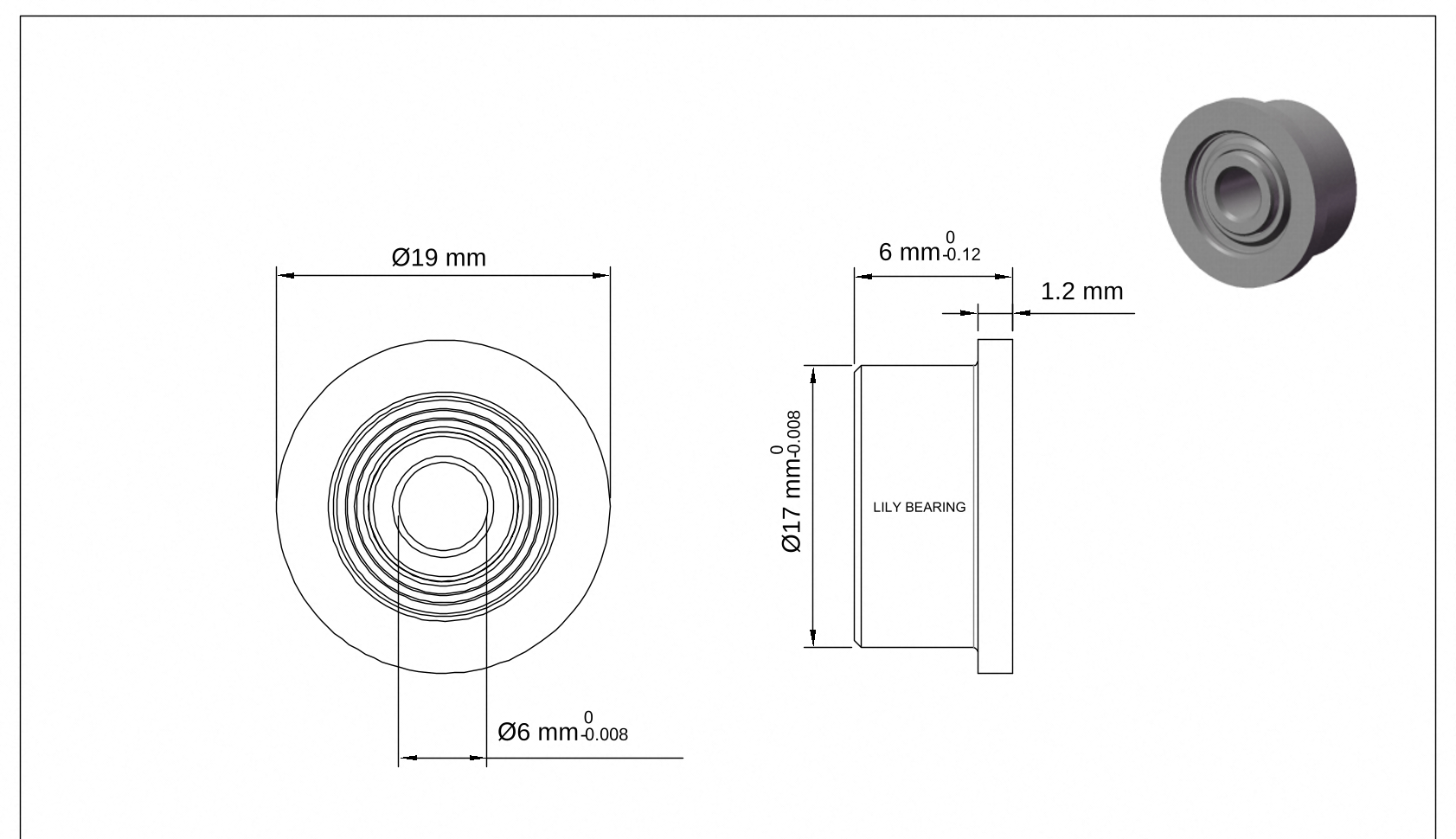

| Model | F606 2RS |
|---|---|
| Bore diameter | 6 mm |
| Outside diameter | 17 mm |
| Width | 6 mm |
| Flange outside diameter | 19 mm |
| Flange thickness | 1.2 mm |
| Closure | double rubber seals |
Compact metric-size construction
Integral flange for reliable axial location
Low-friction deep-groove ball bearing design
Suitable for precision and light-duty mechanisms
Small electric motors
Precision instruments
Automation equipment
Robotics and miniature mechanisms
Office and medical equipment
Confirm shaft fit, housing fit, load, speed, lubrication and operating environment before ordering.
