F604
BWK
BWK-F604

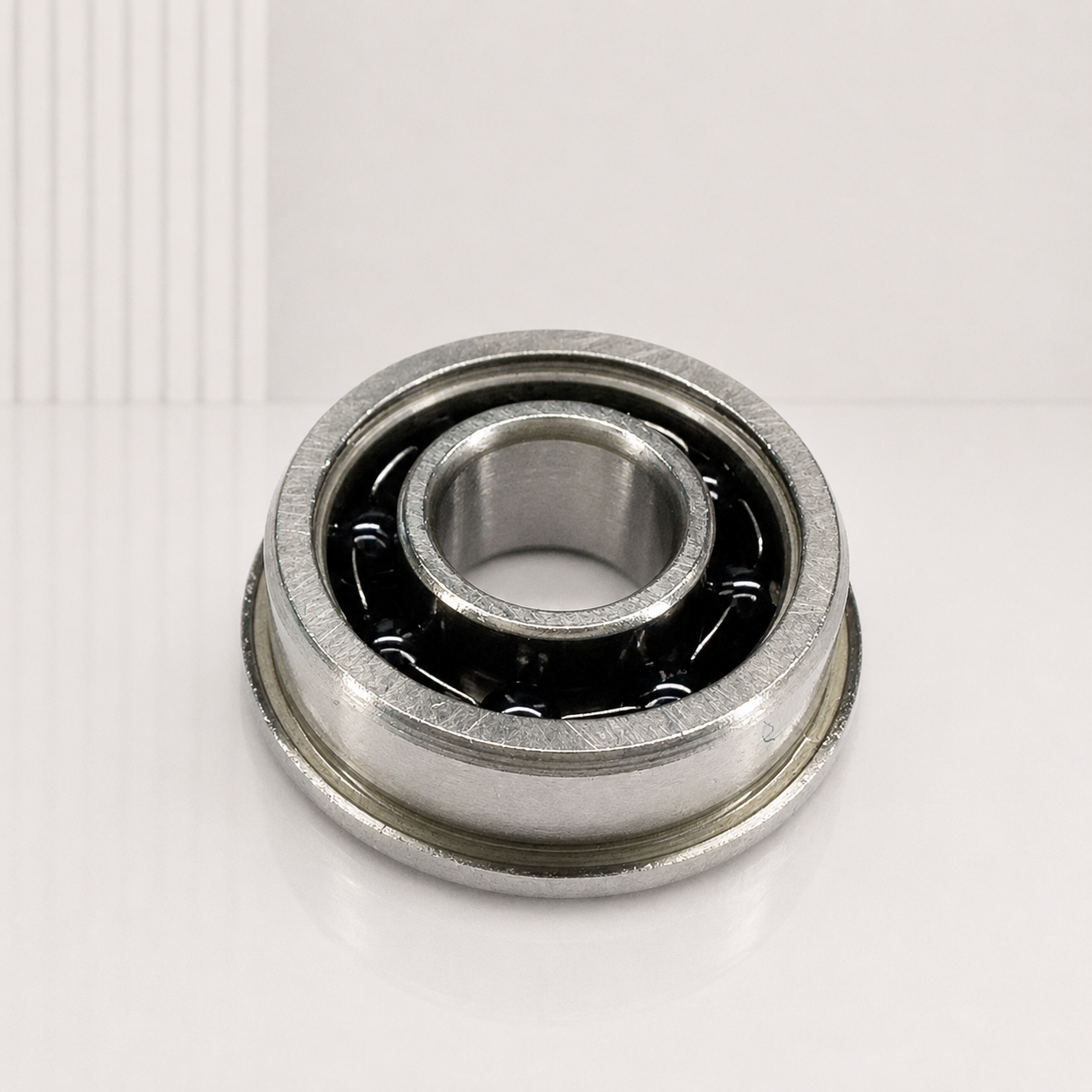

F604 miniature flanged ball bearing with 4 mm bore, 12 mm outside diameter and 4 mm width. The integral flange supports accurate axial positioning and simplifies mounting in compact assemblies.

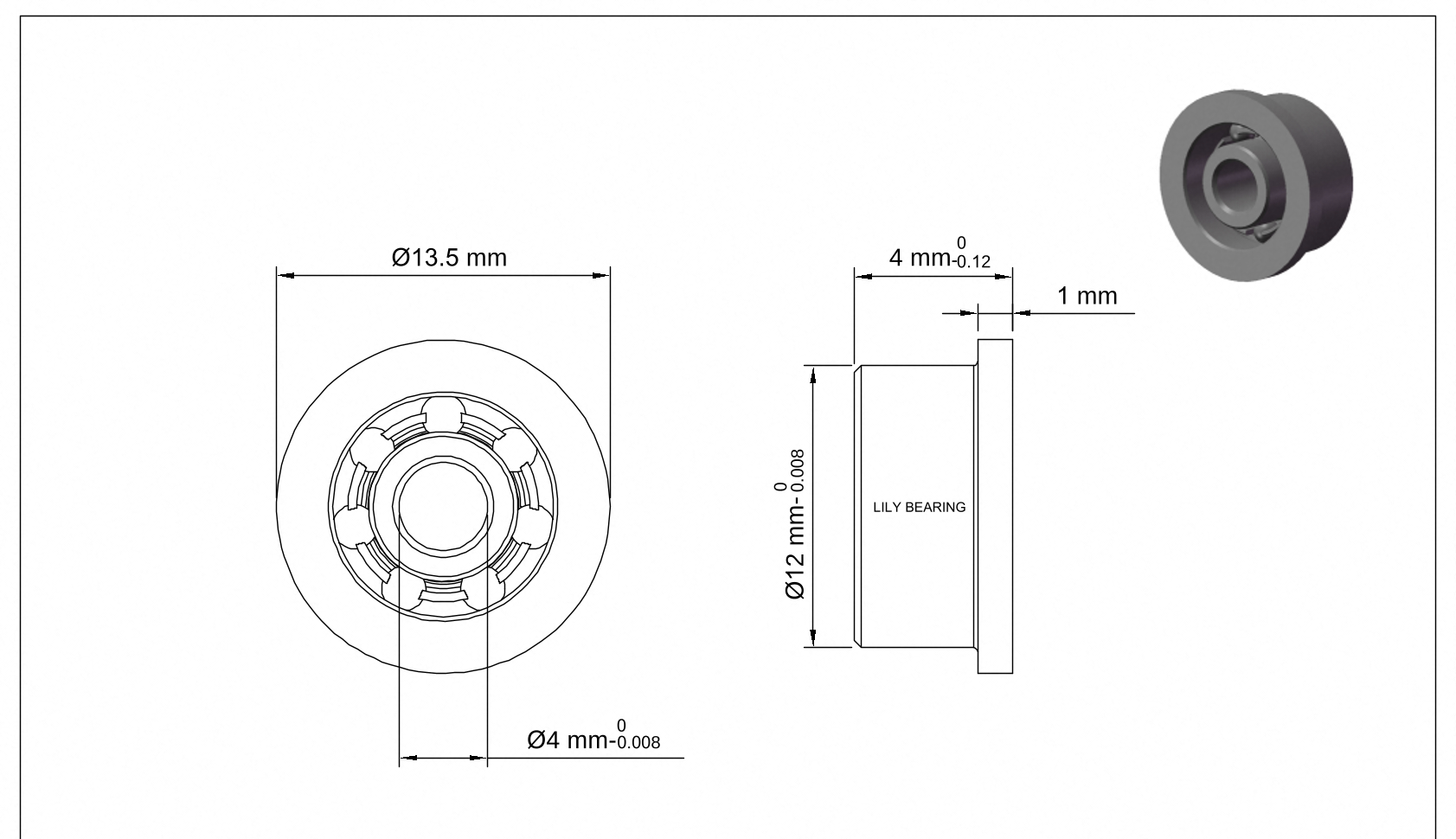

| Model | F604 |
|---|---|
| Bore diameter | 4 mm |
| Outside diameter | 12 mm |
| Width | 4 mm |
| Flange outside diameter | 13.5 mm |
| Flange thickness | 1 mm |
| Closure | open design |
Compact metric-size construction
Integral flange for reliable axial location
Low-friction deep-groove ball bearing design
Suitable for precision and light-duty mechanisms
Small electric motors
Precision instruments
Automation equipment
Robotics and miniature mechanisms
Office and medical equipment
Confirm shaft fit, housing fit, load, speed, lubrication and operating environment before ordering.
