MTE-540
BWK
BWK-MTE-540

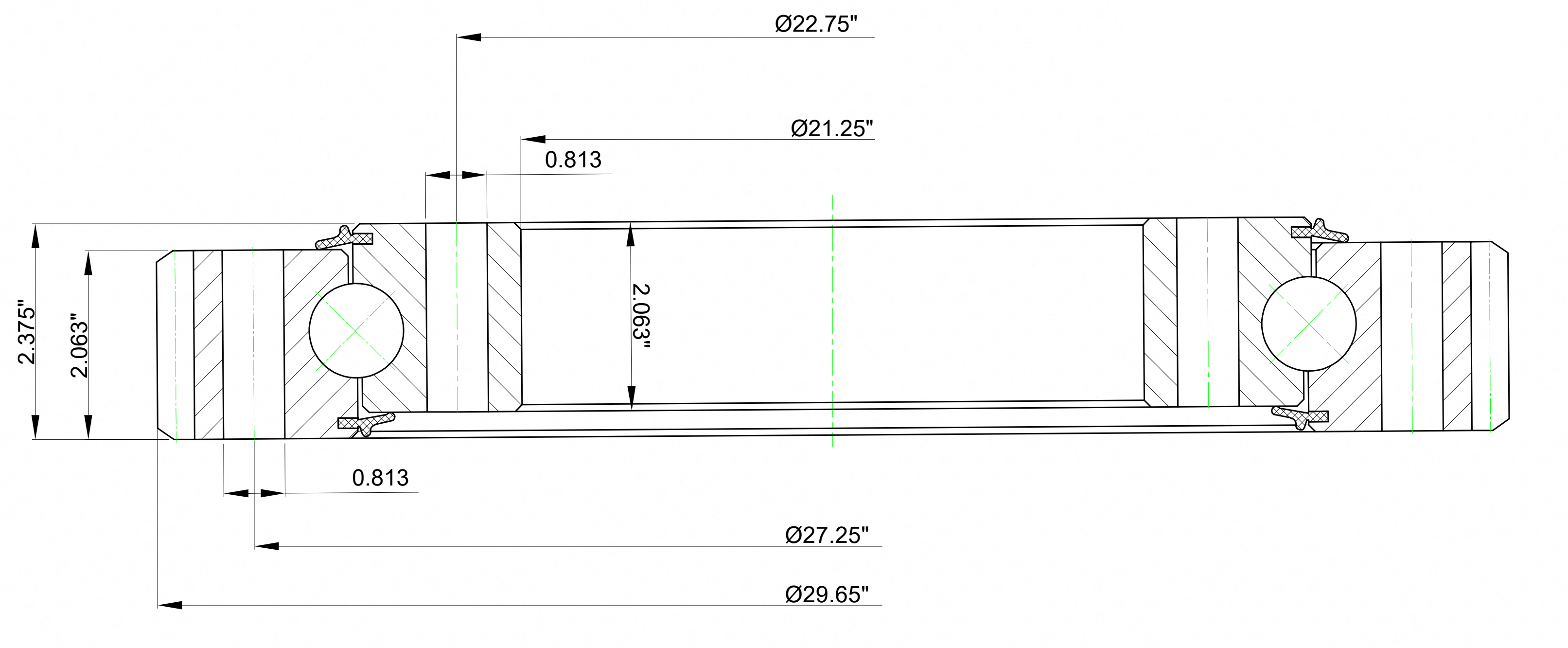

MTE-540 is a external gear four point contact slewing bearing with a 21.25 in bore, 29.65 in outside diameter and 2.375 in overall assembly height. The external gear engages a mating pinion. The raceway supports combined loads and overturning moment in a bolted rotary assembly.
| Model | MTE-540 |
| Product Type | External Gear Four Point Contact Slewing Bearing |
| Structure | Single-row ball ring with external gear |
| Dimension Units | Inch (dimensions shown) |
| Series | MT Series |
| Gear | External Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 21.25 in |
| Outside Diameter Of Outer Ring | 29.65 in |
| Height Of Overall Bearing Assembly | 2.375 in |
| Height Of Inner Ring | 2.063 in |
| Bolt Circle In Inner Ring | 22.75 in |
| For Load Direction | Four Point Contact |
| Bolt Circle In Outer Ring | 27.25 in |
| Size Holes In Inner Ring | 0.813 in |
| Tooth | SD |
| Size Holes In Outer Ring | 0.813 in |
| Face Width Of Gear Teeth | 2.063 in |
| Number Holes In Inner Ring | 28 |
| Number Holes In Outer Ring | 24 |
| Diametral Pitch | 4 |
| Pitch Diameter Of Gear | 29.25 in |
| Number Of Gear Teeth | 117 |
| Moment Load Rating | 232000 ft-lbf |
| Max Gear Tooth Load Fz | 10520 lbs |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 163 lbs |
Driven rotary tables, handling machinery and positioning platforms.
Assess axial load, radial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm the bolt circles, hole sizes, material grade, seal configuration and lubrication requirements before ordering. Use flat, adequately stiff mounting surfaces and the specified bolt-tightening procedure. Match the gear module or diametral pitch, tooth count and gear face width to the pinion, and check the permissible tooth load.
