RKS.060.20.0744
BWK
BWK-RKS.060.20.0744

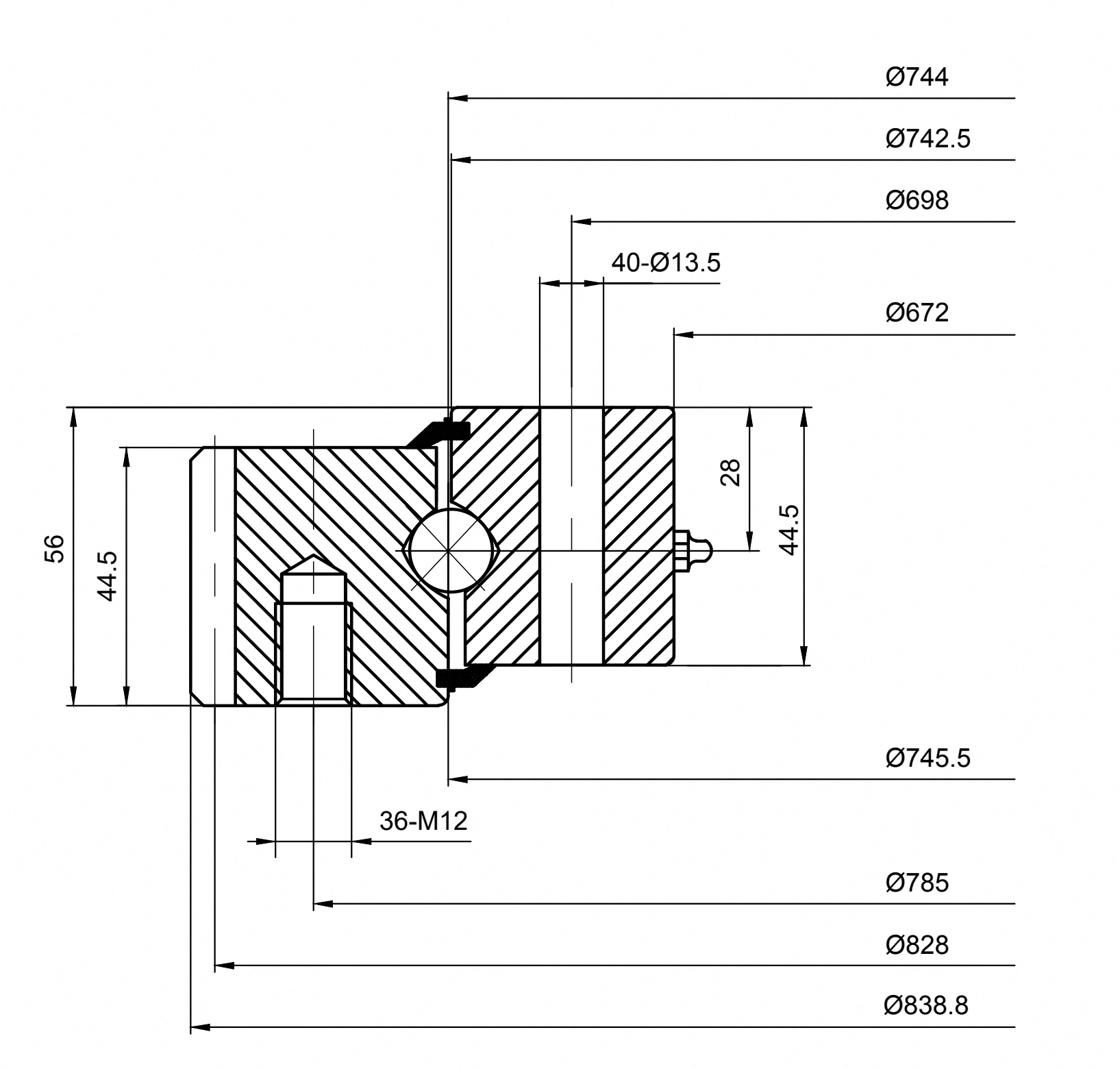

RKS.060.20.0744 is a gearless four point contact slewing bearing with a 26.457 in bore, 32.126 in outside diameter and 2.205 in overall assembly height. The gearless design supports combined loading and is secured through mounting holes in the rings. Check the support stiffness and load distribution together.
| Model | RKS.060.20.0744 |
| Product Type | Gearless Four Point Contact Slewing Bearing |
| Structure | Four-point contact ball arrangement without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | Medium Size Four-Point Contact |
| Gear | Without Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 26.457 in |
| Outside Diameter Of Outer Ring | 32.126 in |
| Height Of Overall Bearing Assembly | 2.205 in |
| Internal Diameter On Outer Ring | 29.35 in |
| Height Of Inner Ring | 1.752 in |
| Height Of Outer Ring | 1.752 in |
| Internal Diameter On Inner Ring | 29.232 in |
| Bolt Circle In Inner Ring | 27.48 in |
| Bolt Circle In Outer Ring | 31.102 in |
| Size Holes In Inner Ring | 0.531 in |
| Size Holes In Outer Ring | 0.531 in |
| Number Holes In Inner Ring | 40 |
| Number Holes In Outer Ring | 40 |
| Basic Dynamic Load Rating(Ca) | 58950 lbf |
| Diameter Of Bearing Raceway | 29.291 in |
| Basic Static Load Rating(C0a) | 414000 lbf |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 52 kg |
Industrial positioning assemblies, turntables and material-handling systems.
Assess axial load, radial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm the bolt circles, hole sizes, material grade, seal configuration and lubrication requirements before ordering. Use flat, adequately stiff mounting surfaces and the specified bolt-tightening procedure.
