RKS.061.25.1424 External Gear Four Point Contact Slewing Bearing

RKS.061.25.1424 is a external gear four point contact slewing bearing with a 52.717 in bore, 61.339 in outside diameter and 2.677 in overall assembly height. The external ring gear supports driven rotation of a large rotary assembly. Check pinion engagement and supporting-structure stiffness for the application.
Availability:
Quantity:
Inquire Add to Basket

  • RKS.061.25.1424

  • BWK

  • BWK-RKS.061.25.1424

DESCRIPTION

Product Overview

RKS.061.25.1424 is a external gear four point contact slewing bearing with a 52.717 in bore, 61.339 in outside diameter and 2.677 in overall assembly height. The external ring gear supports driven rotation of a large rotary assembly. Check pinion engagement and supporting-structure stiffness for the application.

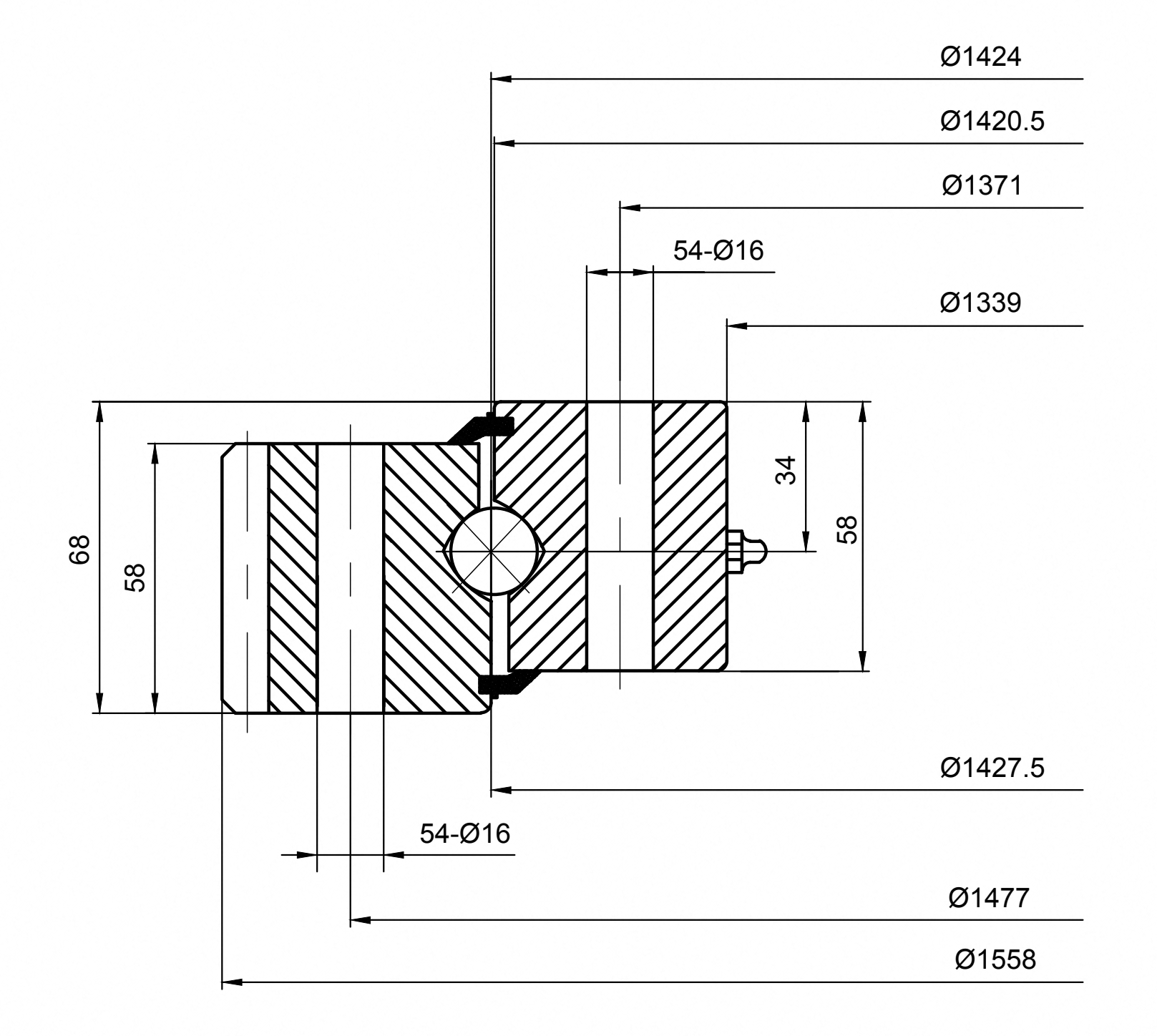

RKS.061.25.1424

Technical Specifications

Model RKS.061.25.1424
Product Type External Gear Four Point Contact Slewing Bearing
Structure Four-point contact ball arrangement with external gear
Dimension Units Inch (dimensions shown)
Series Medium Size Four-Point Contact
Gear External Gear
Type Ball
Bearing Type Standard
Inside Diameter Of Inner Ring 52.717 in
Outside Diameter Of Outer Ring 61.339 in
Height Of Overall Bearing Assembly 2.677 in
Internal Diameter On Outer Ring 56.201 in
Height Of Inner Ring 2.283 in
Height Of Outer Ring 2.283 in
Internal Diameter On Inner Ring 55.925 in
Bolt Circle In Inner Ring 53.976 in
Bolt Circle In Outer Ring 58.15 in
Size Holes In Inner Ring 0.63 in
Size Holes In Outer Ring 0.63 in
Module 10
Number Holes In Inner Ring 54
Number Holes In Outer Ring 54
Pitch Diameter Of Gear 60.236 in
Permissible Tooth Forces T 10125 lbs
Basic Dynamic Load Rating(Ca) 121725 lbf
Number Of Gear Teeth 153
Max Gear Tooth Load Fz 29250 lbs
Diameter Of Bearing Raceway 56.063 in
Basic Static Load Rating(C0a) 1064250 lbf
Ring Material Options 42CrMo or 50Mn or 440C; confirm supplied grade when ordering
Ball Material Chrome Steel
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 180 kg

Applications

Large driven platforms, handling machinery and industrial turntables.

Selection and Installation

Assess axial load, radial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm the bolt circles, hole sizes, material grade, seal configuration and lubrication requirements before ordering. Use flat, adequately stiff mounting surfaces and the specified bolt-tightening procedure. Match the gear module or diametral pitch, tooth count and gear face width to the pinion, and check the permissible tooth load.
