VSA201094-N
BWK
BWK-VSA201094-N

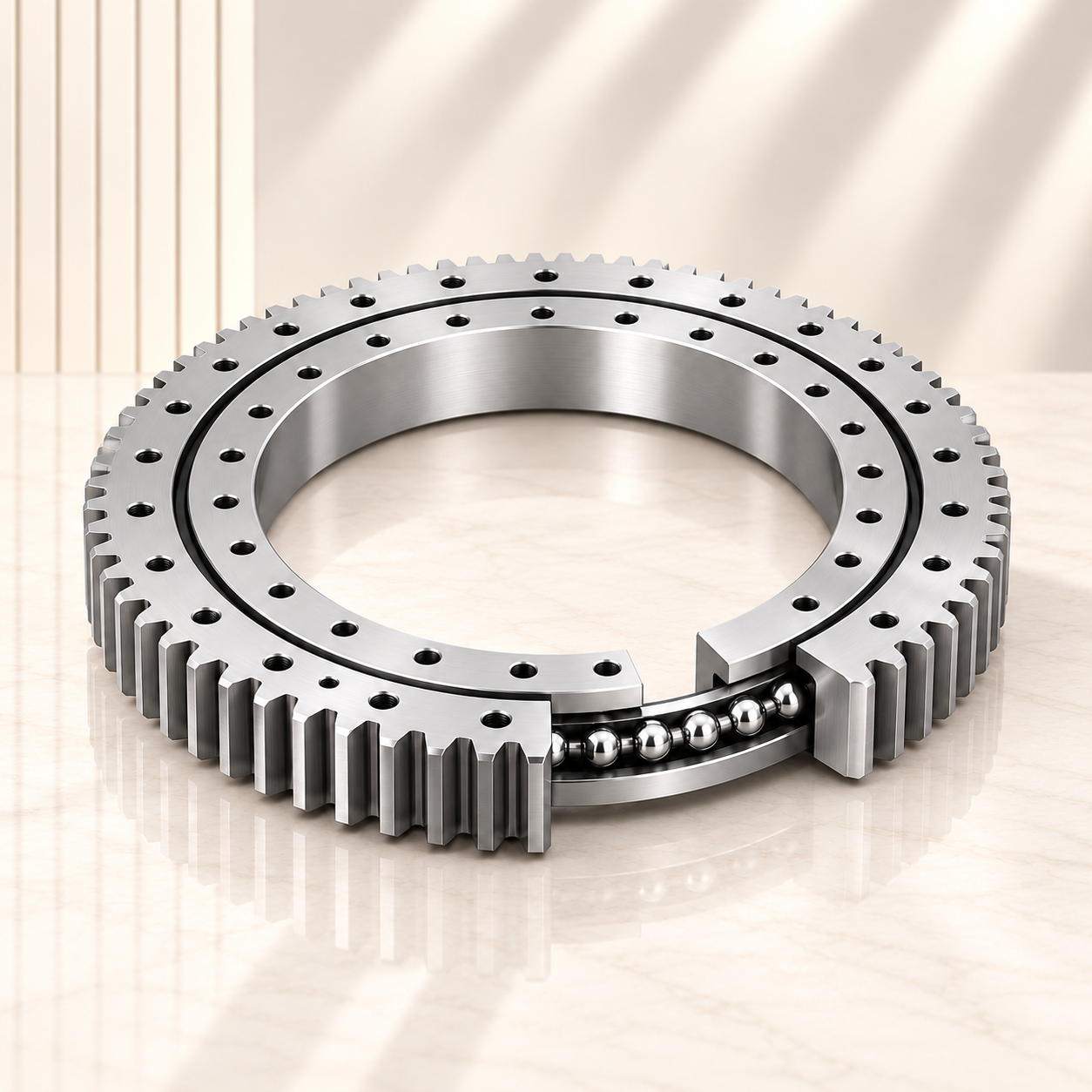

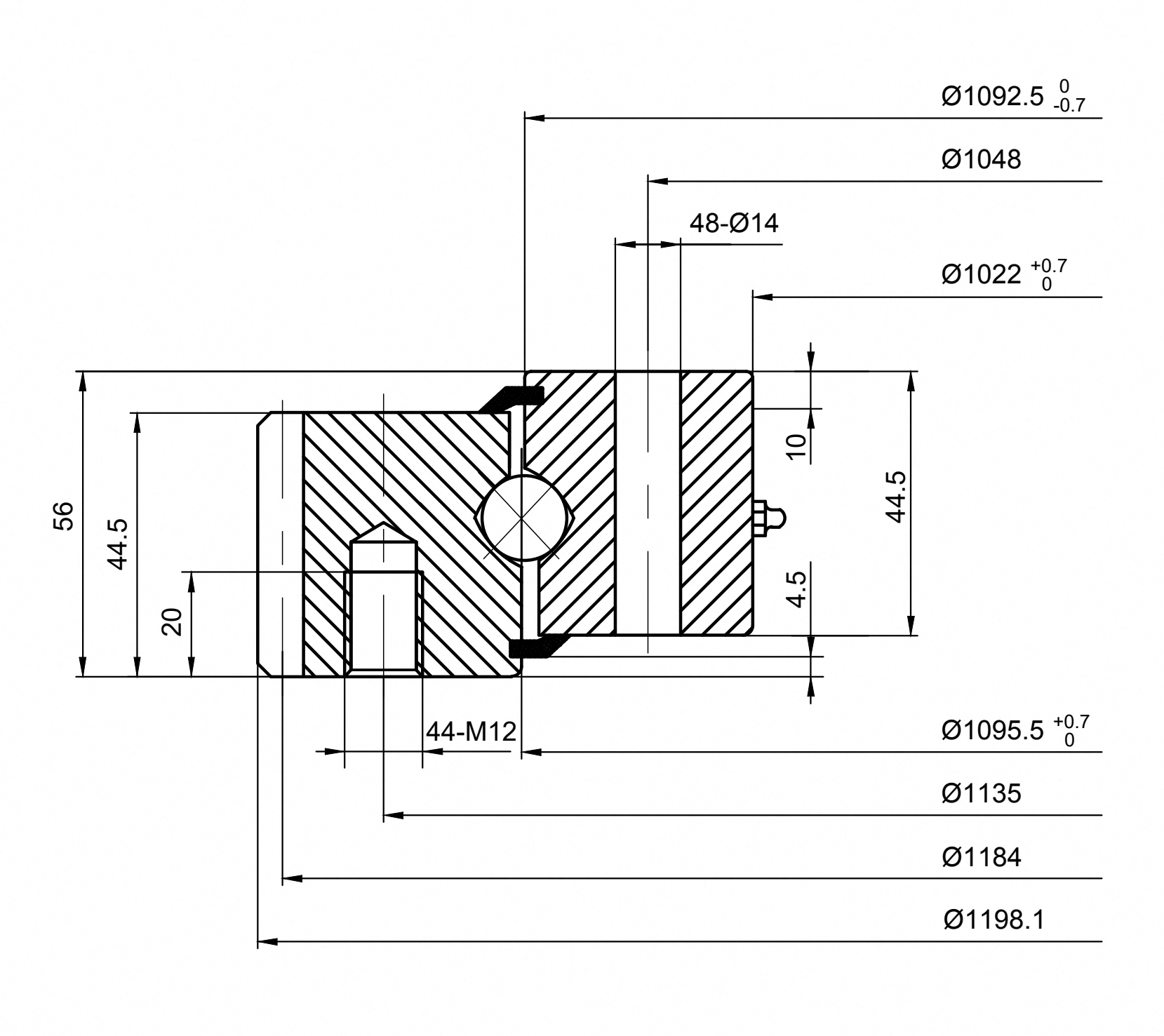

VSA201094-N is a external gear four point contact slewing bearing with a 40.236 in bore, 47.169 in outside diameter and 2.205 in overall assembly height. A bolted mounting arrangement and external ring gear provide the interfaces for a driven rotating assembly. Selection must consider combined loads and mounting stiffness.
| Model | VSA201094-N |
| Product Type | External Gear Four Point Contact Slewing Bearing |
| Structure | Standard-section four-point contact ball arrangement with external gear |
| Dimension Units | Inch (dimensions shown) |
| Series | VS Series |
| Gear | External Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 40.236 in |
| Outside Diameter Of Outer Ring | 47.169 in |
| Height Of Overall Bearing Assembly | 2.205 in |
| External Diameter On Inner Ring | 43.012 in |
| Height Of Inner Ring | 1.752 in |
| Height Of Outer Ring | 1.752 in |
| Bolt Circle In Inner Ring | 41.26 in |
| Inside Diameter Of Inner Ring Tolerance | 0 in to 0.028 in |
| Bolt Circle In Outer Ring | 44.685 in |
| Size Holes In Inner Ring | 0.551 in |
| Size Holes In Outer Ring | M12 |
| Number Holes In Inner Ring | 48 |
| Number Holes In Outer Ring | 44 |
| Gear Module | 8 mm |
| Pitch Diameter Of Gear | 46.614 in |
| Permissible Tooth Forces T | 6367.5 lbs |
| Basic Dynamic Load Rating(Ca) | 44550 lbf |
| Number Of Gear Teeth | 148 |
| Basic Dynamic Load Rating(Cr) | 40275 lbf |
| Basic Static Load Rating(C0r) | 182250 lbf |
| Max Gear Tooth Load Fz | 9450 lbs |
| Basic Static Load Rating(C0a) | 398250 lbf |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 90.998 kg |
Industrial rotary tables, lifting platforms and positioning equipment.
Assess axial load, radial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm the bolt circles, hole sizes, material grade, seal configuration and lubrication requirements before ordering. Use flat, adequately stiff mounting surfaces and the specified bolt-tightening procedure. Match the gear module or diametral pitch, tooth count and gear face width to the pinion, and check the permissible tooth load.
