MTE-145
BWK
BWK-MTE-145

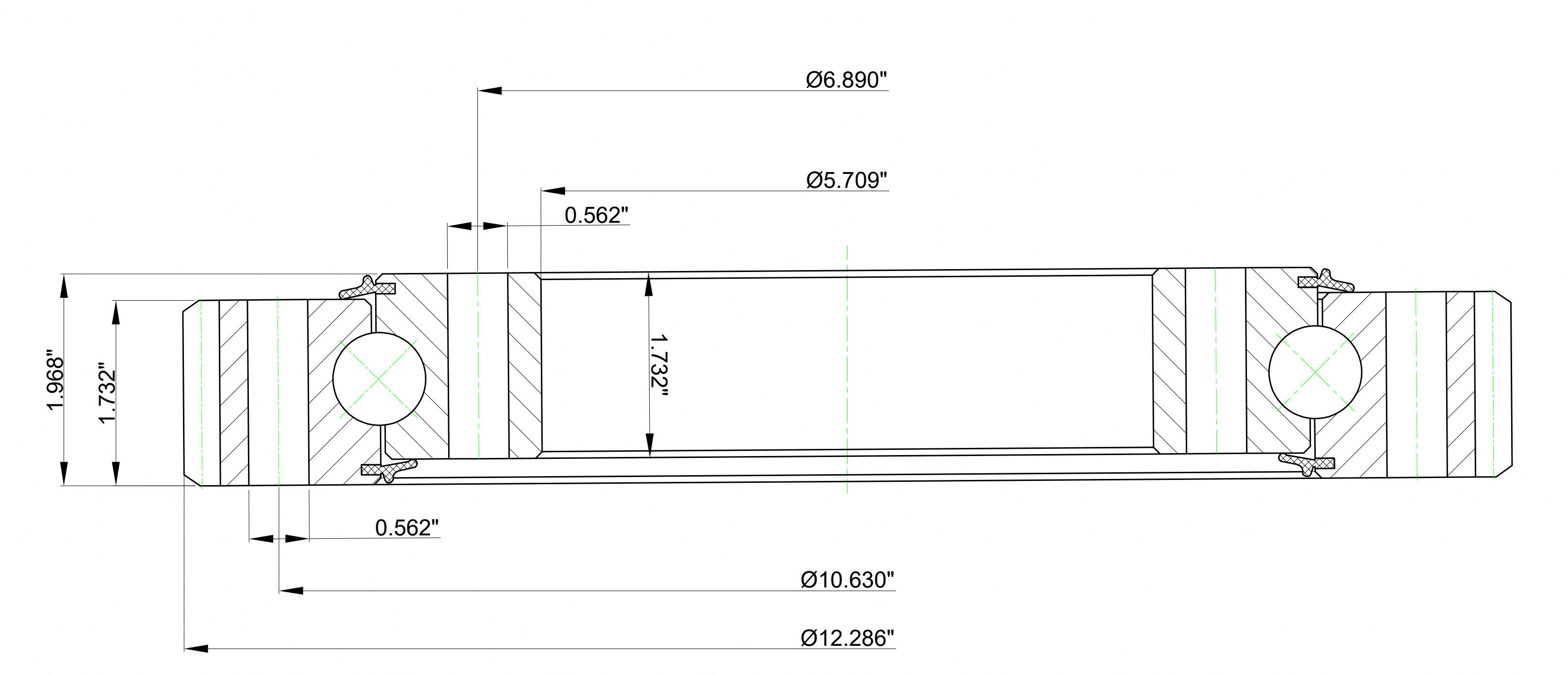

MTE-145 is a external gear four point contact ball slewing bearing with a 5.709 in inner-ring bore, 12.286 in outer-ring outside diameter and 1.968 in overall assembly height. The ball raceway supports combined loads, while the external gear provides a pinion drive interface. Mounting holes secure the rings to the supporting structure.
| Model | MTE-145 |
| Product Type | External Gear Four Point Contact Ball Slewing Bearing |
| Structure | Single row ball, four-point contact, external gear |
| System of Measurement | Inch (dimensions shown) |
| Series | MT Series |
| Gear | External Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 5.709 in |
| Outside Diameter Of Outer Ring | 12.286 in |
| Height Of Overall Bearing Assembly | 1.968 in |
| Height Of Inner Ring | 1.732 in |
| Bolt Circle In Inner Ring | 6.89 in |
| For Load Direction | Four Point Contact |
| Bolt Circle In Outer Ring | 10.63 in |
| Size Holes In Inner Ring | 0.562 in |
| Tooth | FS |
| Size Holes In Outer Ring | 0.562 in |
| Face Width Of Gear Teeth | 1.732 in |
| Number Holes In Inner Ring | 16 |
| Number Holes In Outer Ring | 16 |
| Diametral Pitch | 5/7 |
| Pitch Diameter Of Gear | 12 in |
| Number Of Gear Teeth | 60 |
| Moment Load Rating | 26000 ft-lbf |
| Max Gear Tooth Load Fz | 7140 lbs |
| Ring Material Options | 42CrMo or 50MN or 440C; confirm the supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 38 lbs |
Driven turntables, industrial positioning machinery and lifting platforms.
Check axial load, radial load and overturning moment together, including duty cycle and mounting stiffness. Match the bolt circles, hole sizes and ring heights to the mating structure. Confirm seal configuration, material grade and lubrication requirements before ordering. Verify tooth count, diametral pitch, gear face width and permissible tooth load against the mating pinion. Install on flat, adequately stiff mounting surfaces. Follow the specified bolt tightening procedure and lubrication schedule. Do not use the limiting moment rating alone as a complete application approval.
