BB6013 Four Point Contact Ball Slewing Bearing

BB6013 is a four point contact ball slewing bearing with a 2.362 in inner-ring bore, 3.543 in outer-ring outside diameter and 0.512 in overall assembly height. Compact ring construction supports combined axial, radial and overturning moment loads. The gearless configuration is intended for an external drive arrangement.
Availability:
Quantity:
Inquire Add to Basket

  • BB6013

  • BWK

  • BWK-BB6013

DESCRIPTION

Product Overview

BB6013 is a four point contact ball slewing bearing with a 2.362 in inner-ring bore, 3.543 in outer-ring outside diameter and 0.512 in overall assembly height. Compact ring construction supports combined axial, radial and overturning moment loads. The gearless configuration is intended for an external drive arrangement.

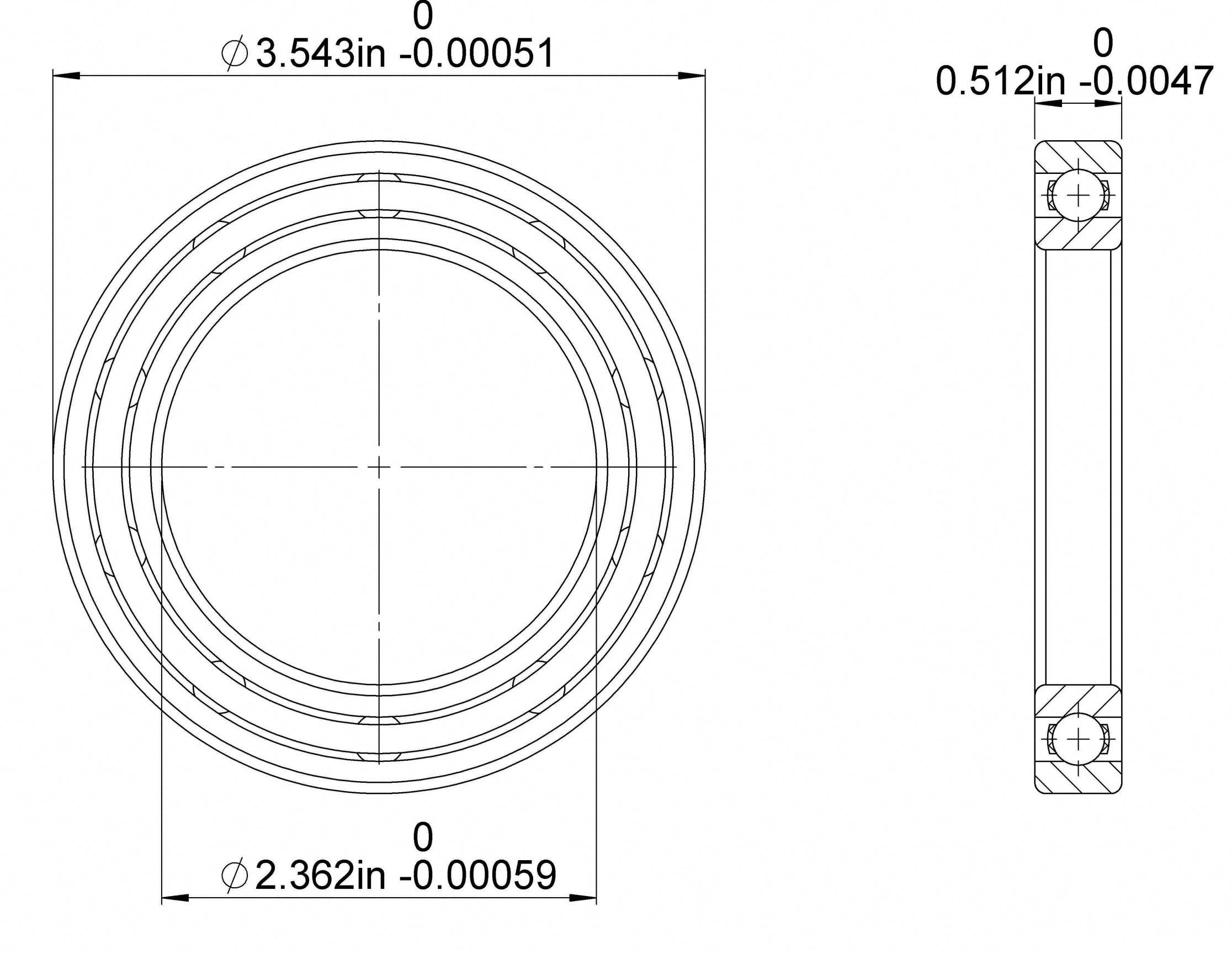

BB6013

Technical Specifications

Model BB6013
Product Type Four Point Contact Ball Slewing Bearing
Structure Single row ball, four-point contact, without gear
System of Measurement Inch (dimensions shown)
Series BB Series
Gear Without Gear
Type Ball
Bearing Type Standard
Inside Diameter Of Inner Ring 2.362 in
Outside Diameter Of Outer Ring 3.543 in
Height Of Overall Bearing Assembly 0.512 in
For Load Direction Four Point Contact
Seal Type Open
Bore Dia Tolerance -0.00059 in
Outer Dia Tolerance -0.00051 in
Width Tolerance -0.0047 in
Dynamic Radial Load 2227 lbs
Dynamic Thrust 3166 lbs
Radial Clearance 0.0012 in
Dynamic Moment 63 lbs
Radial and Axial Runout Inner 0.0005 in
Radial and Axial Runout Outer 0.0005 in
Moment Load Rating 279 ft-lbs
Ring Material Options 42CrMo or 50MN or 440C; confirm the supplied grade when ordering
Weight 0.3 kg

Applications

Rotary indexing equipment, compact turntables and positioning systems.

Selection and Installation

Check axial load, radial load and overturning moment together, including duty cycle and mounting stiffness. Match the bolt circles, hole sizes and ring heights to the mating structure. Confirm seal configuration, material grade and lubrication requirements before ordering. Install on flat, adequately stiff mounting surfaces. Follow the specified bolt tightening procedure and lubrication schedule. Do not use the limiting moment rating alone as a complete application approval.
