BB15013
BWK
BWK-BB15013

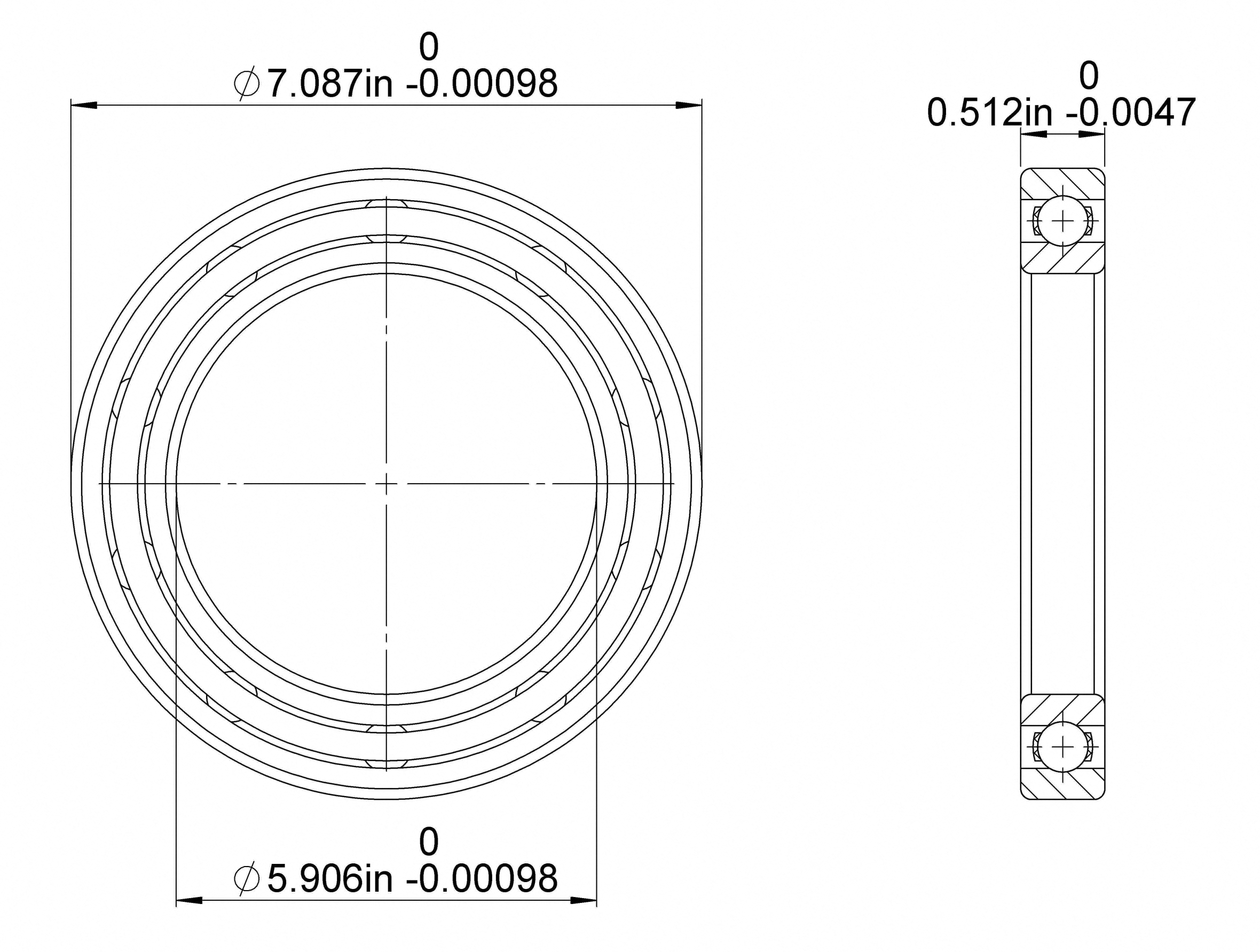

BB15013 is a four point contact ball slewing bearing with a 5.906 in bore, 7.087 in outside diameter and 0.512 in overall assembly height. The compact gearless ring supports radial load, axial load and overturning moment in a small cross-section.
| Model | BB15013 |
| Product Type | Four Point Contact Ball Slewing Bearing |
| Structure | Single row ball, four-point contact, without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | BB Series |
| Gear | Without Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 5.906 in |
| Outside Diameter Of Outer Ring | 7.087 in |
| Height Of Overall Bearing Assembly | 0.512 in |
| For Load Direction | Four Point Contact |
| Seal Type | Open |
| Bore Dia Tolerance | -0.00098 in |
| Outer Dia Tolerance | -0.00098 in |
| Width Tolerance | -0.0047 in |
| Dynamic Radial Load | 3505 lbs |
| Dynamic Thrust | 5412 lbs |
| Radial Clearance | 0.002 in |
| Radial and Axial Runout Inner | 0.001 in |
| Radial and Axial Runout Outer | 0.001 in |
| Moment Load Rating | 965 ft-lbs |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Weight | 0.61 kg |
Compact turntables, rotary positioning systems and automation equipment.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure. Obtain a confirmed installation drawing for the mounting dimensions before manufacture or installation.
