3305 A
BWK
BWK-3305-A

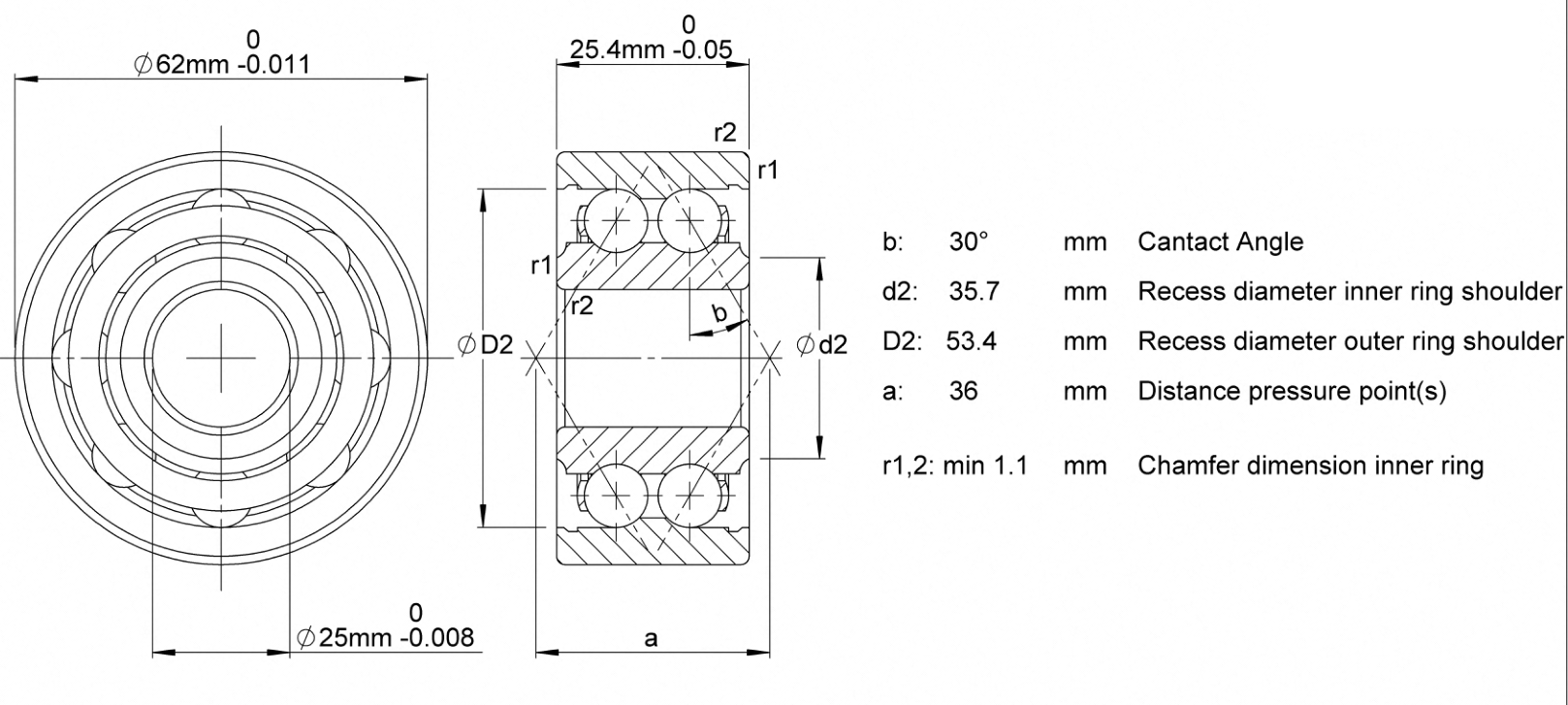

3305 A is a double row angular contact ball bearing for 25 mm bore, 62 mm outer diameter and 25.4 mm width. The two ball rows support combined radial and axial loads and provide axial location in both directions.
| Model | 3305 A |
| Product Type | Double Row Angular Contact Ball Bearing |
| Structure | Double row angular contact ball bearing |
| For Load Direction | Angular Contact |
| Seal Type | Open |
| Bore Dia | 25 mm |
| Outer Dia | 62 mm |
| Width | 25.4 mm |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 32.53 kN |
| Static Radial Load | 22.02 kN |
| Temperature Range | -30° to 110 °C |
| Lubrication | Lubricated |
| Weight | 0.35 kg |
| Limiting Speed | 11000 rpm |
Pumps, gearboxes and machinery requiring combined-load support.
Check bearing arrangement, shaft and housing fits, lubrication and operating speed before installation.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
