3307 A Double Row Angular Contact Ball Bearing

3307 A is a double row angular contact ball bearing for 35 mm bore, 80 mm outer diameter and 34.9 mm width. The two ball rows support combined radial and axial loads and provide axial location in both directions.
Availability:
Quantity:
Inquire Add to Basket

  • 3307 A

  • BWK

  • BWK-3307-A

DESCRIPTION

Product Overview

3307 A is a double row angular contact ball bearing for 35 mm bore, 80 mm outer diameter and 34.9 mm width. The two ball rows support combined radial and axial loads and provide axial location in both directions.

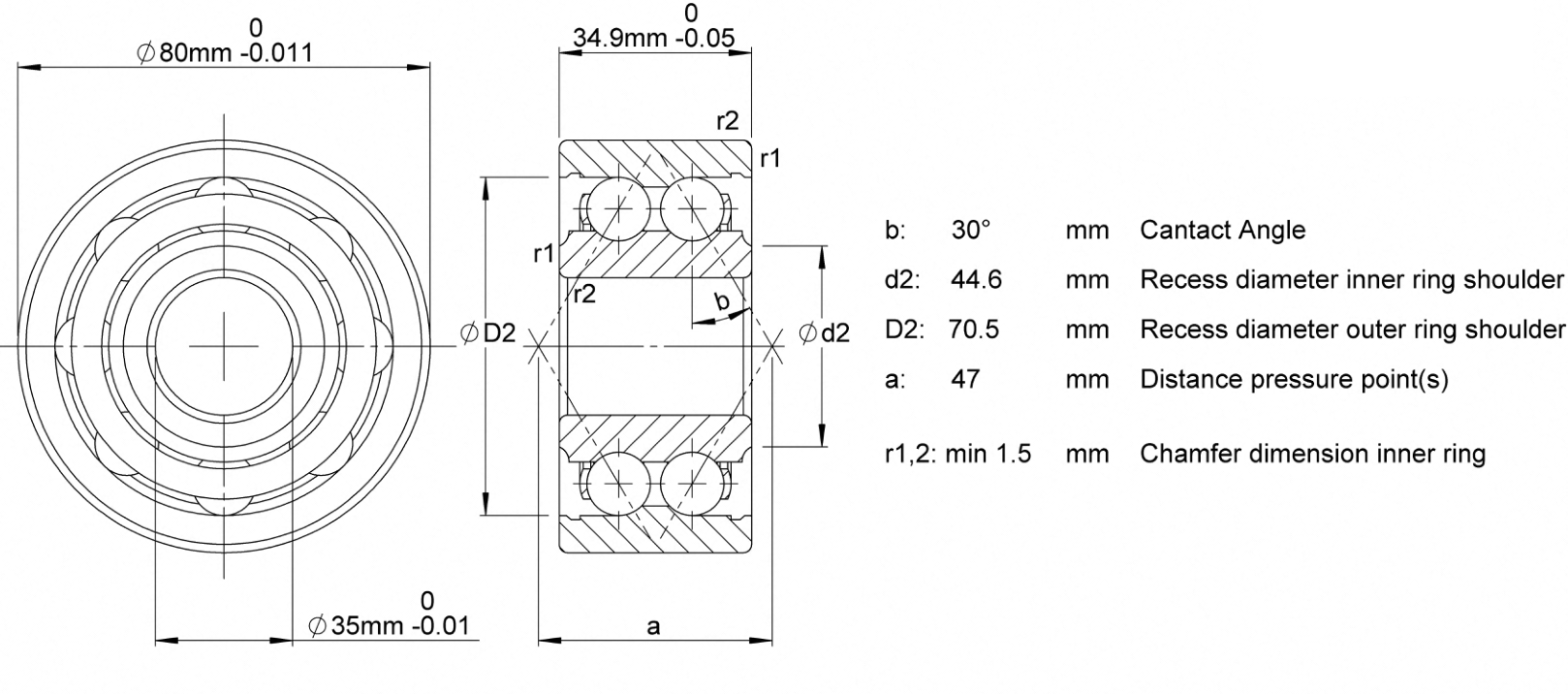

3307-a

Technical Specifications

Model 3307 A
Product Type Double Row Angular Contact Ball Bearing
Structure Double row angular contact ball bearing
For Load Direction Angular Contact
Seal Type Open
Bore Dia 35 mm
Outer Dia 80 mm
Width 34.9 mm
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 54.05 kN
Static Radial Load 38.03 kN
Temperature Range -30° to 110 °C
Lubrication Lubricated
Weight 0.74 kg
Limiting Speed 8500 rpm

Applications

Pumps, gearboxes and machinery requiring combined-load support.

Selection and Installation

Check bearing arrangement, shaft and housing fits, lubrication and operating speed before installation.
